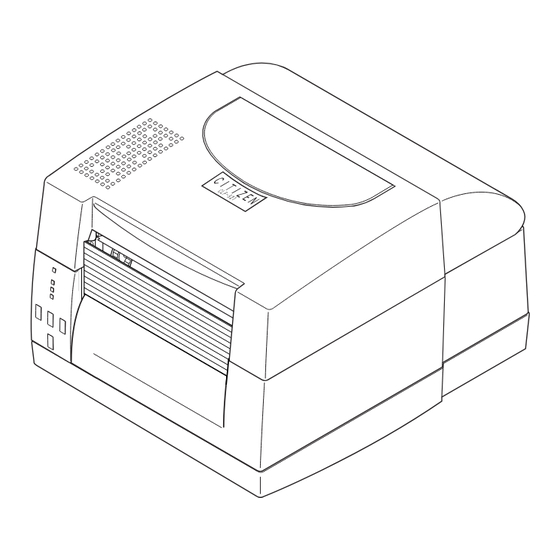

Citizen CLP-512 Technical Manual

Thermal label & barcode printer
Hide thumbs

Advertisement

Quick Links

Download this manual

Technical Manual

CLP-521
Thermal Label & Barcode Printer
JM74903-00

Advertisement

loading

Related Manuals for Citizen CLP-512

Summary of Contents for Citizen CLP-512

  • Page 1: Technical Manual

    Technical Manual CLP-521 Thermal Label & Barcode Printer JM74903-00...
  • Page 2 CLP-521 Drawing No. 1 Parts List & Location for General Assembly Revision Up List Sheet No. Rev. No. Date Dec. 12, 2003 CLP-521...
  • Page 3 DRAWING NO. 1 General Assembly (Rev. 0) CLP-521...
  • Page 4 PARTS LIST for CLP-521 TITLE: General Assembly Sheet No. 1/1 Drawing No. 1 Rev. No. 0 Q'ty/ Location Part Name Part No. Remarks Unit SA, Top Cover JM56703-0 Screw, PH, M3.0x6 E00130-06 Cover, Motor JM56210-0 Screw, PHT (PT), M3.0x8 E11230-08 Cover, Connector JM56205-0 Cover, Front...
  • Page 5 CLP-521 Drawing No. 2 Parts List & Location for Base Unit Revision Up List Sheet No. Rev. No. Date Dec. 12, 2003 Dec. 12, 2003 CLP-521...
  • Page 6 DRAWING NO. 2 Base Unit (Rev. 0) 5 (1/2) CLP-521...
  • Page 7 PARTS LIST for CLP-521 TITLE: Base Unit Sheet No. 1/2 Drawing No. 2 Rev. No. 0 Q'ty/ Location Part Name Part No. Remarks Unit Screw, PHT (PT), M3.0x14 E11230-14 Unit, Mechanism JM49801-0 SA, Centro Cable JM67725-0 Screw, PHT (ST), M3.0x5 E11130-05 Unit, Main PCB (With ROM)-I JM66820-0...
  • Page 8 PARTS LIST for CLP-521 TITLE: Base Unit Sheet No. 2/2 Drawing No. 2 Rev. No. 0 Q'ty/ Location Part Name Part No. Remarks Unit 2-19 SA, Core JM59701-0 SA, Power Cable JM67745-0 Screw, BHT (ST) (N), M3.0x5 E14330-05W Washer, EXT. T (N), 3 E51130-00 Lock Screw (Inch) C6390-049...
  • Page 9 CLP-521 Drawing No. 3 Parts List & Location for Mechanism Unit Revision Up List Sheet No. Rev. No. Date Dec. 12, 2003 5-12 CLP-521...
  • Page 10 DRAWING NO. 3 Mechanism Unit (Rev. 0) 5-13 CLP-521...

  • Page 11: Parts List For Clp

    PARTS LIST for CLP-521 TITLE: Mechanism Unit Sheet No. 1/1 Drawing No. 3 Rev. No. 0 Q'ty/ Location Part Name Part No. Remarks Unit Unit, Head-DT JM19801-0 Shaft, Head Holder JM42007-0 Screw, PH, M3.0x6 E00130-06 Spring, Head Up JM13601-0 SA, Platen JM22701-0 E-Ring, 4 E60340-00...
  • Page 12 CLP-521 Drawing No. 4 Parts List & Location for Head-DT Unit Revision Up List Sheet No. Rev. No. Date Dec. 12, 2003 5-15 CLP-521...
  • Page 13 DRAWING NO. 4 Head-DT Unit (Rev. 0) 5-16 CLP-521...

  • Page 14: E11130-05

    PARTS LIST for CLP-521 TITLE: Head-DT Unit Sheet No. 1/1 Drawing No. 4 Rev. No. 0 Q'ty/ Location Part Name Part No. Remarks Unit Bushing, Head JM11201-0 Bracket, Head JM14101-0 Screw, PH, M3.0x6 E00130-06 SA, Head Cable JM67710-0 SA, Head JM14703-0 Spring, Head L JM13603-0...
  • Page 15 CLP-521 Drawing No. 5 Parts List & Location for PF Unit Revision Up List Sheet No. Rev. No. Date Dec. 12, 2003 Dec. 12, 2003 5-18 CLP-521...
  • Page 16 DRAWING NO. 5 PF Unit (Rev. 0) 5-19 CLP-521...

  • Page 17: Parts List For Clp

    PARTS LIST for CLP-521 TITLE: PF Unit Sheet No. 1/2 Drawing No. 5 Rev. No. 0 Q'ty/ Location Part Name Part No. Remarks Unit SA, Motor JM25701-0 Screw, PH, M3.0x3 E00130-03 Screw, PH, M3.0x5 E00130-05 SA, Main Plate L JM44701-0 Gear, PF2 JM20202-0 Gear, PF Idle...

  • Page 18: E51130-00

    PARTS LIST for CLP-521 TITLE: PF Unit Sheet No. 2/2 Drawing No. 5 Rev. No. 0 Q'ty/ Location Part Name Part No. Remarks Unit 5-21 SA, Main Plate R JM44702-0 Screw, NO.0 PH, M2.6x6 E01626-06 Holder, Guide Sensor L JM44207-0 Label 5, Caution Head AK99925-0 Washer, EXT.

  • Page 19: Sheet No

    CLP-521 Drawing No. 6 Parts List & Location for Sensor U Unit Revision Up List Sheet No. Rev. No. Date Dec. 12, 2003 5-22 CLP-521...
  • Page 20 DRAWING NO. 6 Sensor U Unit (Rev. 0) 5-23 CLP-521...
  • Page 21 PARTS LIST for CLP-521 TITLE: Sensor U Unit Sheet No. 1/1 Drawing No. 6 Rev. No. 0 Q'ty/ Location Part Name Part No. Remarks Unit Cover, Head Wire JM44201-1 Spring, Sensor Frame JM23602-0 Screw, PH, M2.6x3 E00126-03 Cap, Sensor Frame L JM24210-0 Washer, Plain, 2 E50120-00...
  • Page 22 CLP-521 Drawing No. 7 Parts List & Location for Control Panel Unit Revision Up List Sheet No. Rev. No. Date Dec. 12, 2003 5-25 CLP-521...
  • Page 23 DRAWING NO. 7 Control Panel Unit (Rev. 0) 5-26 CLP-521...
  • Page 24 PARTS LIST for CLP-521 TITLE: Control Panel Unit Sheet No. 1/1 Drawing No. 7 Rev. No. 0 Q'ty/ Location Part Name Part No. Remarks Unit Cover, Ope-Pane JM56204-0 Switch, Key JM56207-0 LED, Window JM56208-0 SA, Ope-Pane PCB JM66720-0 Screw, PHT (PT), M3.0x6 E11230-06 5-27 CLP-521...
  • Page 25 CLP-521 Drawing No. 8 Parts List & Location for Accessories Revision Up List Sheet No. Rev. No. Date Dec. 12, 2003 5-28 CLP-521...
  • Page 26 DRAWING NO. 8 Accessories (Rev. 0) 5-29 CLP-521...
  • Page 27 PARTS LIST for CLP-521 TITLE: Accessories Sheet No. 1/1 Drawing No. 8 Rev. No. 0 Q'ty/ Location Part Name Part No. Remarks Unit For CA Cord Set (UL/CSA) C6001-001 For CSE Cord Set (OE Straight) C6001-201 Shaft, Paper JM79202-0 Flange, Paper Wide JM79201-0 –...
