Masibus Automation & Instrumentation Pvt. Ltd.
Sector-25, Gandhinagar-382044, Gujarat, India
+91 79 23287275-79
Doc. Ref. no.:mL12/om/401
B/30, GIDC Electronics Estate,
Email: support@masibus.com
Web: www.masibus.com
User's Manual
R
T
D
C
A
R
T
D
C
A
+91 79 23287281-82
L
I
B
R
A
T
O
R
L
I
B
R
A
T
O
R
R
C
-
1
2
R
C
-
1
2
Issue no. 01
Advertisement
Table of Contents
Related Manuals for Masibus RC-12
Summary of Contents for Masibus RC-12

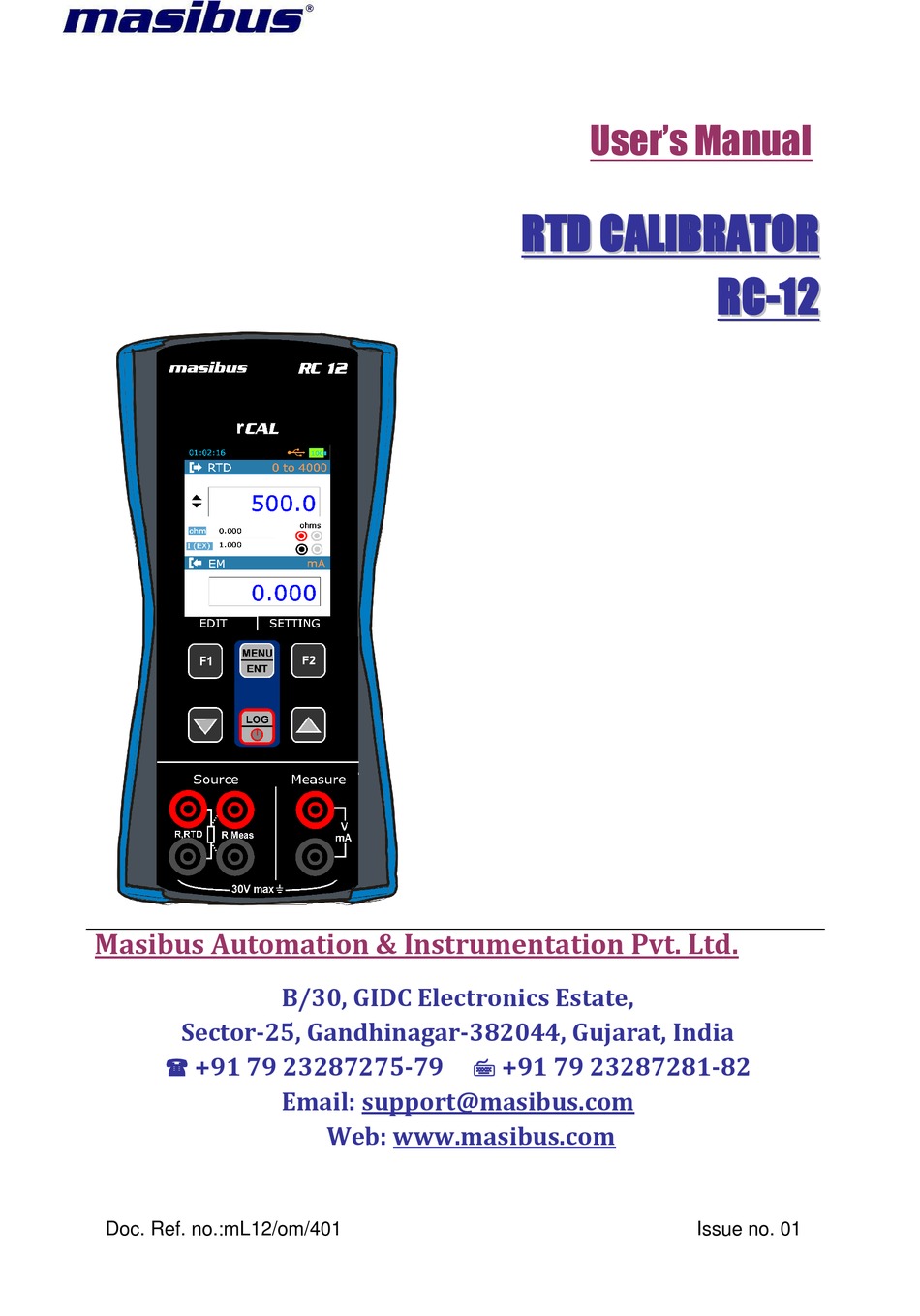

- Page 1 User’s Manual Masibus Automation & Instrumentation Pvt. Ltd. B/30, GIDC Electronics Estate, Sector-25, Gandhinagar-382044, Gujarat, India +91 79 23287275-79 +91 79 23287281-82 Email: support@masibus.com Web: www.masibus.com Doc. Ref. no.:mL12/om/401 Issue no. 01...
-
Page 2: Table Of Contents
General warnings ................5 Electrical warnings ................5 Cautions ................... 5 Summary of functions ..............6 2. RC-12 Hardware Parts & Accessories ............ 7 2.1 Unpacking & Inspection ............7 2.2 Operational Sections and Connections ......... 7 2.2.1 The Terminal Connections ..........8 2.2.2 The KeyPad .............. - Page 3 4.2 SOURCE Page ............... 27 4.2.1 STEP Page ..............28 4.2.2 RAMP Page ..............30 4.2.3Continuity Test ..............32 4.3 DISPLAY Page ............... 33 4.3.1 EM Display Settings ............33 4.3.2 RTD Display Settings ............34 4.4 DATA LOGGING Page ............36 4.6 SETTING Page ...............
-
Page 4: Introduction
1. Introduction Thank you for purchasing RTD Calibrator RC-12. Foreword RC-12 calibrator is compact hand-held calibrator with an easy to use graphical user interface. This manual describes the basic functions and operation methods. Please read through this user’s manual carefully... -
Page 5: General Warnings
WARNING It is dangerous to ignore the specified limits for General the instrument or its related accessories. warnings Do not use the instrument or accessory if it is not in its normal condition. Use the applicable protection and obey all safety precautions. -
Page 6: Summary Of Functions
This table gives a summary of the available functions Summary with the RC-12 calibrator. Function functions Easy to read liquid crystal display (LCD) in color Rechargeable lithium Ion battery with enhanced power control for prolonged battery life. -
Page 7: Hardware Parts & Accessories
2.2 Operational Sections and Connections All sections and connections are presented in detail on the next pages. Note: Keep in mind that the next picture (as well as all pictures of RC-12 in this manual) has an example configuration of modules. The configuration of your RC-12 may vary significantly from the one in the picture. -
Page 8: The Terminal Connections
Terminal Connection For RTD Measure & Source and EM Measure Keypad Section Color Display USB Connection Slot for PC Communication & Charging 2.2.1 The Terminal Connections EM Measure Terminals Input Terminal for measuring voltage, current and supplying loop power. EM Measure Terminals Range: 0.000 –... - Page 9 mA Current Measurement In this mode RC-12 not providing any supply voltage. For proper measurement the external device should capable of providing the voltage supply. If the external device should not capable, an external Power Supply should be connected in series.
- Page 10 In RTD simulation RC-12 mimics an RTD. The instrument under test generates the current for the RTD measurement. RC-12 controls the voltage across its terminals so that the resistance (voltage to Current ratio) corresponds to the simulated temperature. Use of 2-, 3-or 4-wire connection is up to the receiver instrument.
- Page 11 RTD and Resistance measurement. 2-Wire RTD Measurement Two leftmost terminals are used in 2-wire systems. RC-12 displays the selected wiring system in run page. RC-12 sources current through the resistor and measure the voltage drop across same terminals.
-
Page 12: The Keypad
2.2.2 The KeyPad RC-12 has six different keys. The key description is given below. This key has different functionalities in different menu. And that is shown on Bottom Left Part of Display. -
Page 13: The Display
Different Display Mode and Icon Details. 2.2.4 The USB Connection The USB Connection Connector is given at Top of the RC-12. It’s a USB mini B-Type Female Connector. It is common for PC Communication & Charging the device. -
Page 14: Power Options
For operating conditions, see section 6.1 on Page-49. To prevent an explosion or fire, use only the Masibus specified battery, battery charger & USB Cable. To prevent battery leakage or heat generation, only use the battery charger in the temperature range 0 to 45°C (32 to... -
Page 15: Charge Time
2.4.1 Charge time Charge Method Charge Time (to Full Capacity) External Charging ≈ 5 hours Adaptor Note: USB mini Type B connector charges the battery when the instrument is off and increases the battery life when the instrument is on. 2.4.2 Operating Time Operation Battery Duration... -
Page 16: Start Up & Basic Operations
When the power is off, the last set of configuration options stays in memory. 3.2 The User Interface Every time RC-12 is switched on, the startup message ends in RUN Page. There are3 Display Mode available in RUN Page. -
Page 17: The Status Bar
3.2.1 The Status Bar The Status Bar at the top of the display is visible only in RUN Page. It is divided into four main sections. Time in HH:MM:SS Format Available in Two Format 1. 24 Hour (default) 2. 12 Hour This setting is available in Date/Time in Settings Menu Error Code Indicator This Icon is visible if any On-Board Peripherals like RTC, ADC, DAC, etc. -
Page 18: The Function Key Bar
3.2.2 The Function key Bar The Function Key Bar at the bottom of the display is visible all the time. There are 2 Function Key Available. The meaning of the Function Keys varies depending on the situation. A Blank Function key text means that the function is disabled at the moment. - Page 19 Ramp Hold @ 100% Additional Info. Shows the Addition Information according to TC Mode & Additional Info selected in MENU DISPLAY TC terminal. Bar Graph Horizontal Bar graph according to RTD Percentage Value (0.00% - 100.00%). The value scales according to RTD reading and Input 0% &...
-
Page 20: Display Operations
Percentage Value The Percentage Value in Percentage according to Input Value. Tare The Tare Value Set from MENU DISPLAY Terminal-Tare page Actual Value The Raw Input Value without any scaling This will appear only if Main Display in ... - Page 21 iii. CheckBox RadioButtonBox The below section will show how to change the value of different widgets. ListBox ListBox are used when there is a limited amount of preset values. You have to select one of the available options. The list of available options is displayed in the Centre part.
- Page 22 The above figure shows the example how to change Input High (100%) Range from 24.000 to 10.000 mA. There are mainly 2 types of EditBox in this device. In most of the EditBox changing of decimal point & changing of sign is not allowed.
- Page 23 To change the sign of the value, shift to the sign digit and pressing UP or DOWN key will toggle the sign. CheckBox CheckBox is used where Binary Value (1/0, True/False) is available for any parameter. To change the CheckBox status press F1 key. This will enter into the edit mode.
- Page 24 RadioButtonBox RadioButtonBox is used where very few values can be possible and all the available values need to be visible. In this device, two types of RadioButtonBoxare available. One with 1 value can be selectable & the other where 1 or 2 values can be selectable at a time.
-
Page 25: Menu Layout
4. Menu Layout 4.1 MENU page There are mainly six Menus in this device. To enter into the MENU page press MENU/ENT key & press F2 key to come out from Menu page. Contains Parameters related to EM Measure Mode like Input Type, EM SETUP Range etc. - Page 26 This page contains parameters related to EM Measure like Input Type, Input Range, Scaling and Transfer Function. The Description of the Parameters appear on this page is given below. Parameter Name Description / Options I/P Type Measure Input Type (Input Type) Available Options: 0.000 to 24.000 mA DC mA(24V)
-
Page 27: Source Page
4.2 SOURCE Page This Page is appears in MENU RTD SETUP. This page contains parameters related to RTD like RTD ModeType,RTD select, Unit, RTD Source Mode etc. The Description of the Parameters appear on this page is given below. Parameter Name Description / Options RTD Mode... -
Page 28: Step Page
4.2.1 STEP Page Parameter Name Description / Options Starting Value of Step. Enter value according to RTD Display Mode. If display mode is actual enter value in ohms and if display mode is % enter value in %. Ending Value of Step. High Enter value according to RTD Display Mode. - Page 29 DOWN/UP This parameter is enabled only for Auto Step Mode (Manual CheckBox is Un-Checked) Repeat Defines how many times the steps are repeated Repeat Counts Range: 1 to 9999 This parameter is enabled only for Auto Step Mode (Manual CheckBox is Un-Checked) ...
-
Page 30: Ramp Page
pressing F1 & F2 key running STEP can be PAUSE or STOP at any time in RUN Page. STEP Setting can be accessed directly by F2 key (SETTING). NOTE: While STEP is running STEP settings can’t be accessible and Source Page Parameter settings can’t be change.Stop STEP before changing any settings. - Page 31 Fall Time (s) Time to decrease from High to Low Level. Range: 1 to 9999 Repeat Format How the Ramp should be done. Available Options: DOWN UP/DOWN DOWN/UP Repeat Defines how many times the steps are repeated Repeat Counts Range: 1 to 9999 ...
-
Page 32: 3Continuity Test
4.2.3Continuity Test Parameter Name Description / Options Continuity Feature Selection Radiobuttonbox. Continuity Feature Selecting radiobuttonbox will enable continuity feature for RTD Measure Mode. Enter the threshold value of resistance up to which continuity test is applied. Threshold Range: 0 to 100 When Testing Continuity Beep sounds and continuity symbol appear on run page as shown in below figure.When resistance between the Ω... -
Page 33: Display Page
4.3 DISPLAY Page This Page is appears in MENU DISPLAY. There is mainly three RUN Display Mode possible in this device. And this mode can be selected from the above Page. What information to be shown in each RUN Display Mode can be defined by this page. In this page there is one RadioButtonBox. -
Page 34: Rtd Display Settings
Parameter Name Description / Options Main Display Select which Reading to be display as a Main Reading (Reading Displays in Box in RUN Page). Available Options: Actual Display the Actual Input Value Percentage Display the Percentage Value of the Input. The Value depends on Input Range. - Page 35 Parameter Name Description / Options Main Display Select which Reading to be display as a Main Reading (Reading Displays in Box in RUN Page). Available Options: Actual Display the Actual RTD/Resistance Value Percentage Display the Percentage Value of RTD/Resistance according to value set in 0% & 100%. Low Value in Temperature/ohms for (0-100%) scaling.
-
Page 36: Data Logging Page
4.4 DATA LOGGING Page This section gives examples of how to log Readings with time and date over a set time period or on a key press. Logged data is stored in a user defined file in internal memory. This Page is appears in ... - Page 37 (HH:MM:SS) This parameter is enabled only for Periodic Trigger. File No. File Number. Range: 1 to 25 This parameter is enabled only for Periodic Trigger. File Info. Shows the information of stored files. This information contains Logging Start Time & Date and No of Samples stored in the file. File Delete Delete stored file.
-
Page 38: Setting Page
Transferring the Results to a Personal Computer: A 32-bit Windows® software called mCAL+.exeis shipped together with RC-12 if you bought the Data Logging option. Start thissoftware just as any other Windows® software. All communication between the PC and RC-12 is initiated frommCAL+.exe. -
Page 39: Hart Settings
Set Password vii. Factory Reset viii. About Us Press F1 key to Enter into the settings of any option. Description of all settings given below. 4.6.1 HART Settings Select YES to add a Series resistor (250Ω) into the mA circuit. You can then use this instrument together with a HART®... -
Page 40: Calibration
This source should be at least ten times accurate compared to the range of the instrument. Note: Masibus can provide a calibration service that is traceable to international standards. We recommend that you return the instrument to the manufacturer or an approved service agent forcalibration. - Page 41 To calibrate the instrument first enter the correct password. If the entered password is correct Measure & Source Calibration option will be enabled. Procedure for calibration of EM Measure Mode First select the Input Type which to be calibrated. For Better Calibration Input Range is divided into two sub ranges.
- Page 42 For example, If apply 1.000mA from the external source. Measured value shows the value that has been measured by the RC-12. If this value is 1.020 enter 1.000 value in ZERO Actual Value Edit Box & Press MENU/ENT key to calibrate the ZERO.
- Page 43 For example, If apply 5.00Ohms from the external source. Measured value shows the value that has been measured by the RC-12. If this value is 5.02 enter 5.00 value in ZERO Actual Value Edit Box & Press MENU/ENT key to calibrate the ZERO.
- Page 44 Similarly, for SPAN for Sub Range #1 calibration, Apply Resistance Input value near to Recommended Span Value for Sub Range 1 (for Group 1 sub range 1 it is 190.00Ohms) from reliable source device. For example, If apply 190.00Ohms from the external source. If the Measured value shows 191.00 enter 190.00 value in SPAN Actual Value Edit Box &...
- Page 45 To calibrate ZERO, Select ZERO Measured Edit Box, when this Edit Box is selected RC-12 will source value that is seen in ZERO Expected Value (here RC-12 will source 0.000mV). For Example the external measure unit is measuring 0.080 mV offset.
-
Page 46: Battery Info
To calibrate ZERO, Select ZERO Measured Edit Box, when this Edit Box is selected RC-12 will source value that is seen in ZERO Expected Value (here RC-12 will source 220.00Ohm). Now Measure the source value in Reliable Measure Unit. For Example the external measure unit is measuring221.00Ohm. -
Page 47: 6Set Password
EditBox will be enabled. Then enter the New Password and press MENU/ENT key to store it. 4.6.7Factory Reset To Reset RC-12 Parameters to its Default Value. To Reset Enter Current Password. If the entered password is correct then New Password EditBox will be enabled. -
Page 48: Maintenance & Troubleshooting
5. Maintenance & Troubleshooting 5.1 Common Problems Problem Possible Causes Device Not Starting Up Battery Discharged Battery Connection Loose Reading Fluctuation/ Wrong / Loose Connections Reading OPEN Error Code on status bar One of the peripheral not working properly. (Solution: Restart the Device if still error code showing contact factory) ... -
Page 49: General Specifications
6. General Specifications 6.1 General Specifications mA/V Measure + RTD/Ω( Source or measure), Display Mode mA/V Measure Only, RTD/Ω( Source or measure) only Supported units for RTD type °C/°F/°K RTD Measurement Current 300 uA 3 mA (0 … 650 Ω) Maximum Resistance Iexc ×... -
Page 50: Power Supply
6.4 Power Supply Battery Type Rechargeable Li-ion battery pack, 2300mAh 3.7V Charging Time <5 hours Charger supply 100-240 VAC, 50/60 Hz; Output 5V DC@1A >15 hours for RTD/Ω measure/source with minimum backlight on, Battery Life on full charge > 8 hours for 12mA(24V) measure mode with minimum backlight brightness Battery Status Battery symbol displayed with % power remaining... -
Page 51: Rtd Measurement And Simulation
6.9 RTD Measurement and Simulation 1) Pt10 …… Pt1000, -200 …… 850 ºC Range Resolution Accuracy Pt10…Pt400: 0.01 °C -200….200 °C 4 wire Measurement: 0.15°C Simulation*: 0.15 °C 200….600 °C Pt500,Pt1000: 0.1 °C 4 wire Measurement: 0.2 °C Simulation*: 0.25 °C 600….850 °C 4 wire Measurement: 0.3 °C Simulation*: 0.35 °C... -
Page 52: Enclosure Dimensions
6.11Enclosure Dimensions 6.12 Ordering Code Ordering Code RC 12 52 of 52| P a g e User Manual...
