ADWA AD 630 User Manual

Do & temperature waterproof meter with galvanic probe
Hide thumbs
Table of Contents

Advertisement

Quick Links

http://zoladu.com/

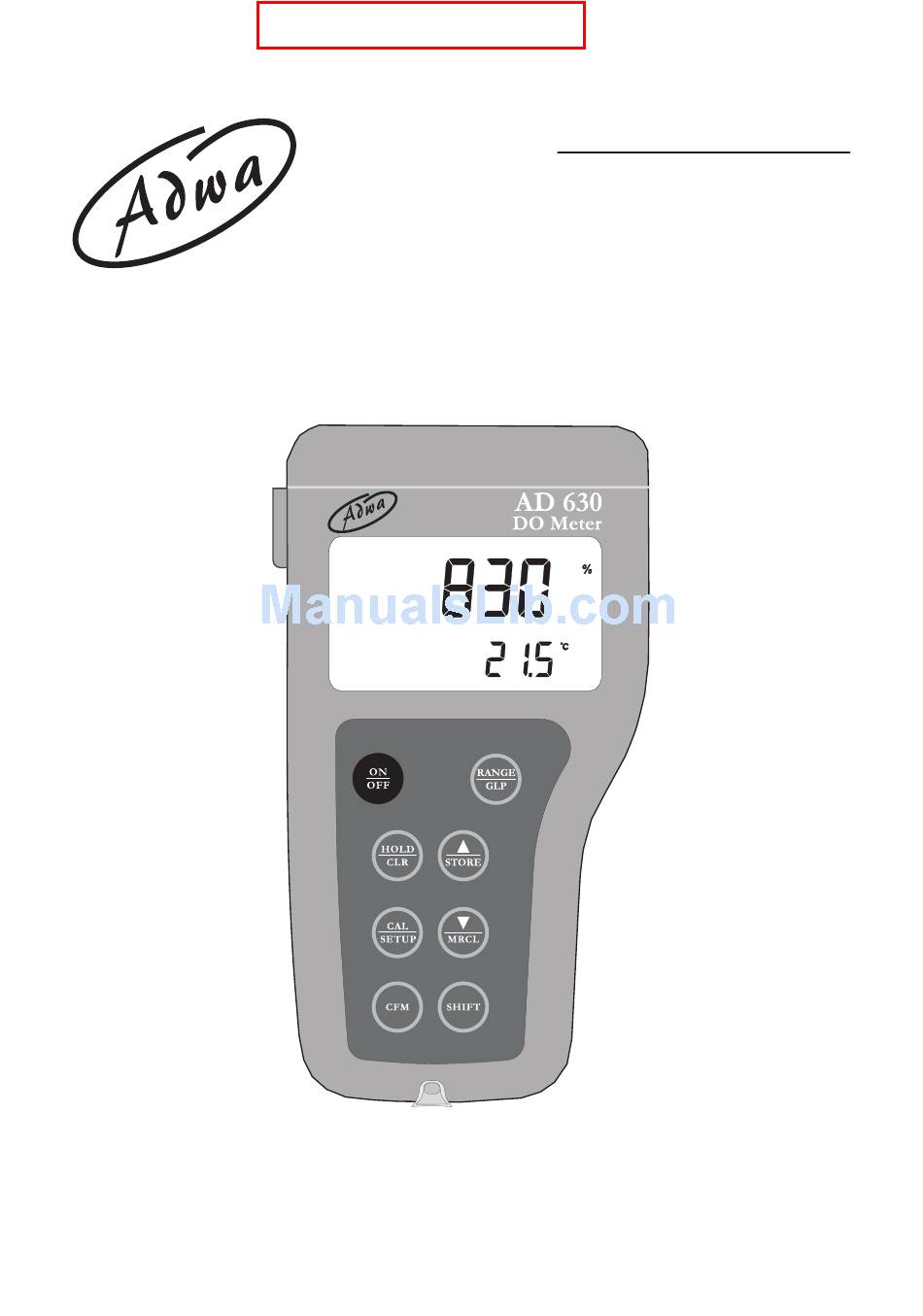

USER MANUAL
AD 630
DO & Temperature
Waterproof Meter
with Galvanic Probe
w w w . a d w a i n s t r u m e n t s . c o m

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AD 630 and is the answer not in the manual?

Questions and answers

Related Manuals for ADWA AD 630

Summary of Contents for ADWA AD 630

  • Page 1 USER MANUAL AD 630 DO & Temperature Waterproof Meter with Galvanic Probe w w w . a d w a i n s t r u m e n t s . c o m...
  • Page 2 Adwa will not be held responsible for any accident whether directly or indi- rectly, caused by the use of this instrument.

  • Page 3: Table Of Contents

    TABLE OF CONTENTS Introduction ..............4 Technical Data ............6 Front and Top Panels ..........8 Operational Guide ............ 10 DO Calibration ............14 Temperature Adjustment ........19 Setup ................ 20 Good Laboratory Practice ........29 Log-on-demand ............31 Hold function ............35 PC Interface ............

  • Page 4: Introduction

    INTRODUCTION AD630 is a heavy-duty portable waterproof meter for DO (Dissolved Oxygen) and temperature measure- ments, designed to provide laboratory results and accuracy even under harsh industrial conditions. Main features include: • DO readings displayed in ppm or % saturation units •...
  • Page 5 This model is supplied complete with: • AD8001/3 galvanic DO probe with built-in tempera- ture sensor, DIN connector and 3 m cable • Spare DO membrane with O-ring • Scouring pad for cleaning the probe • 1.5 V AA alkaline batteries (4 pcs) •...

  • Page 6: Technical Data

    TECHNICAL DATA Range 0.00 to 45.00 ppm O 0.0 to 300.0 % saturation 0.0 to 50.0°C / 32.0 to 122.0°F Resolution 0.01 ppm / 0.1% 0.1°C / 0.1°F Accuracy ±1.5% f.s. (DO) ±0.5°C / ±1.0°F DO Calibration Automatic, at 1 or 2 standard points (0 and 100%) or 1 custom point (>...
  • Page 7 Probe (included) AD8001/3 galvanic DO probe with built-in temperature sensor, DIN connector and 3 m cable Environment 0 to 50°C (32 to 122°F) RH max. 100% non-condensing Power Supply 4 x 1.5 V AA, alkaline battery Battery Life Approx. 200 hours of continuous use Auto-off User selectable: 5 minutes or disabled Dimensions...

  • Page 8: Front And Top Panels

    FRONT AND TOP PANELS...
  • Page 9 1. ON/OFF key, to turn the instrument ON and OFF 2. HOLD/CLR key, to freeze stable reading on the LCD and clear logged data 3. CAL/SETUP key, to enter/exit calibration mode and enter/exit SETUP mode 4. CFM key, to confirm value 5.

  • Page 10: Operational Guide

    OPERATIONAL GUIDE CONNECTIONS • The meter is supplied complete with four 1.5 V AA alkaline batteries. Remove the rear cover, unwrap the batteries and install them while paying attention to the correct polarity (see “Battery Replacement” section). • Connect the DO probe to the DIN socket on the top of the instrument.
  • Page 11 bubbles remain trapped. To avoid damaging the mem- brane, do not touch it with your fingers. • With the sensor facing down screw the cap clockwise to the end of the threads. Some electrolyte will over- flow. INSTRUMENT START-UP • Turn the instrument on by pressing the ON/OFF button.
  • Page 12 SALINITY AND ALTITUDE COMPENSATION If the sample contains significant concentration of salin- ity or if you are performing measurements at an altitude different from sea level, the read out values must be corrected, taking into account the lower degree of oxygen solubility in these situations (see “Setup”...
  • Page 13 For accurate DO measurements, a water movement of 0.3 m/s is required. This is to ensure that the oxygen- depleted membrane surface is constantly replenished. A moving stream will provide adequate circulation. The use of a magnetic stirrer to ensure a certain fluid velocity is recommended.

  • Page 14: Do Calibration

    DO CALIBRATION It is recommended to calibrate the instrument fre- quently, especially if high accuracy is required. Before proceeding with the calibration, make sure the probe is ready for measurements (see “Probe prepa- ration” paragraph on page 10), i.e. the membrane cap is filled with electrolyte and the probe is connected to the meter and properly polarized.
  • Page 15 • Switch the meter on by pressing the ON/OFF key. • Remove the probe protective cap. • Set the appropriate altitude factor and set the salinity factor to zero (see “Setup” section for details). Zero Calibration • Submerge the probe into AD7040 zero oxygen solu- tion and stir gently for 2-3 minutes.
  • Page 16 Note: If you are performing a slope calibration only, press CAL and then use the ARROW keys to select the 100% DO calibration point. • Dry the probe tip and allow a few seconds for the reading to stabilize. The hourglass symbol will blink until the reading is stable.
  • Page 17 • Set the appropriate altitude factor and set the salinity factor to zero (see “Setup” section for details). Procedure • Submerge the probe into the custom solution. • Press CAL and then RANGE. The CAL tag and the “Cal Point Custom” message will appear. •...
  • Page 18 Notes: • If the reading is not close to the selected value, the WRONG tag will blink. • The meter features the automatic buffer recog- nition function. If the arrow keys are pressed to select the desired calibration value, the automatic buffer recognition function is disabled.

  • Page 19: Temperature Adjustment

    TEMPERATURE ADJUSTMENT The temperature reading can be manually fine-tuned fol- lowing the below procedure. Press SHIFT and CFM keys to enter the temperature adjustment mode. Both primary and secondary LCDs will display the factory default temperature reading. Adjust the temperature reading on the primary LCD using the arrow keys.

  • Page 20: Setup

    SETUP Setup mode allows to view and modify the instrument parameters. To enter setup mode, press SETUP key from measure- ment mode. The SETUP tag lights up. Setup mode allows viewing and modifying the follow- ing parameters: • Salinity factor (SALt) •...
  • Page 21 • Use the arrow keys to select the next/previous parameter. SALINITY COMPENSATION FACTOR • Select the “SALt” item and press CAL. The salin- ity factor will start blinking. • Use the arrow keys to change the value. • Press CFM to save the modified value or CAL to escape without saving.
  • Page 22 º C Salinity (g/l) at Sea Level ºF 0 g/l 10 g/l 20 g/l 30 g/l 40 g/l 50 g/l 14.62 13.63 12.71 11.85 11.05 10.31 32.0 13.83 12.91 12.06 11.26 10.51 9.81 36.5 13.11 12.25 11.46 10.71 10.01 9.36 39.2 12.45 11.65 10.90 10.21 9.55...
  • Page 23 ALTITUDE COMPENSATION FACTOR • Select the “ALt” item and press CAL. The altitude factor will start blinking. • Use the arrow keys to change the value. • Press CFM to save the modified value or CAL to escape without saving. •...
  • Page 24 º C Altitude, meters above the sea level 1200 1500 1800 2100 2400 2700 3000 3300 3600 4000 14.6 14.1 13.6 13.2 12.6 12.1 11.7 11.2 10.8 10.4 10.0 9.6 13.8 13.3 12.8 12.3 11.9 11.4 11.0 10.6 10.2 9.8 13.1 12.6 12.2 11.7 11.3 10.8 10.4 10.1 9.7 12.4 12.0 11.5 11.1 10.7 10.3 9.9 11.8 11.4 11.0 10.6 10.2 9.8...
  • Page 25 TIME • Select the “TIME” item. The TIME tag will light up on the LCD. • Press CAL and the hour will start blinking. Use the arrow keys to change the displayed value. • Press RANGE and the min- utes will blink. Use the arrow keys to change the displayed value.
  • Page 26 • Press RANGE and the year will flash on the secondary LCD. Use the arrow keys to set the year. • Press CFM to save the modification or CAL to es- cape without saving. TEMPERATURE UNIT • To set the measure unit for temperature readings, select the “tEMP”...
  • Page 27 COMMAND PREFIX • This item is factory set to 16, which is the value required by the ADSW10 communication software. It is recommended to not change this value. AUTO-OFF • Select the “AOFF” item and press CAL. • Use the arrow keys to enable (On, 5 minutes) or disable (OFF) the feature.
  • Page 28 The following table lists the setup items, their valid range and the factory settings (default): Item Description Valid values Default SALt Salinity factor 0.0 to 50.0 Altitude factor 0 to 4000 TIME Time (hh:mm) 00:00 to 23:59 DATE Date (DD.MM.YYYY) 01.01.2007 to 31.12.2099 tEMP...

  • Page 29: Good Laboratory Practice

    GOOD LABORATORY PRACTICE Good Laboratory Practice (GLP) is a set of functions that allows storage and retrieval of data regarding the status of the system. After a successful calibration, the meter automatically stores the date and time of calibration, and the calibra- tion point(s).
  • Page 30 Standard calibration point(s) Custom calibration point Notes: • To exit GLP mode at any time press SHIFT and GLP. • If the calibration procedure was never performed, the LCD shows the “no CAL” message for a few seconds and then returns to normal measurement mode.

  • Page 31: Log-On-Demand

    LOG-ON-DEMAND To store the current reading into memory, press SHIFT and STORE keys from measure- ment mode. The LCD will display for a few seconds the “Stor” message to- gether with the LOG tag and the sample number. A complete set of information is memorized: date, time, DO and temperature readings.
  • Page 32 The primary LCD displays the date (day and month) and the secondary LCD shows the last stored sample number. If no samples are stored into memory, the “no rEC” indi- cation is displayed. • Select the desired sample number using the arrow keys. If the up arrow key is pressed while the last sample is displayed, the meter returns to the first sample.
  • Page 33 • Temperature reading (only dashes “----” mean reading out of range) • To skip to the next or previous sample, use the up or down arrow keys respectively. For example, if the up arrow key is pressed while a sample reading is displayed, the meter shows the read- ing of next sample.
  • Page 34 • Press SHIFT and CLR to delete the selected record or all records. • If the “dEL All” option was selected, all logged data are deleted and the instrument returns to normal mea- surement mode. • Press SHIFT and MRCL at any time to return to mea- surement mode.

  • Page 35: Hold Function

    HOLD FUNCTION To freeze a stable reading on the LCD, press HOLD key from normal measurement mode. The “Auto” and “H” tags will blink on the LCD until the reading stabilizes. When the reading is stable, the “Auto” and “H” tags stop blinking and the reading is frozen.

  • Page 36: Pc Interface

    To connect your instrument to a PC, use the AD9551 optional Adwa cable. Plug the cable to the instrument RS232 socket and to a serial port of your PC. If not using the AD9551 cable, communication between instrument and PC may be not possible, due to different RS232 connector configuration.
  • Page 37 • dead battery: if batteries become too weak to ensure reliable readings, the meter displays the “dEAd bATT” message for a few seconds and then automatically turns off. Battery replacement must only take place in a safe area and using the battery type specified in this instruction manual.

  • Page 38: Probe And Membrane Maintenance

    PROBE AND MEMBRANE MAINTENANCE For a top performance probe, it is recommended to re- place the membrane every 2 months and the electrolyte once a month. Proceed as follows: • Unscrew the membrane by turning it counterclockwise. • Rinse the supplied spare membrane with some electro- lyte solution while shaking it gently.

  • Page 39: Probes, Solutions And Accessories

    PROBES, SOLUTIONS AND ACCESSORIES AD8001/3 Galvanic DO probe with built-in tem- perature sensor, DIN connector & 3 m cable AD8001A/P Spare DO membrane with O-ring (5 pcs) AD7040 Zero oxygen solution, 100 ml bottle AD9072 Electrolyte solution for galvanic DO probe,4x30 ml bottle AD9315 Probe holder...
  • Page 40 ADWA HUNGARY Kft. Alsókikötõ sor 11, 6726 Szeged, Hungary Tel. +36 62 317 878 Fax +36 62 550 610 www.adwainstruments.com MANAD630 09/14...
