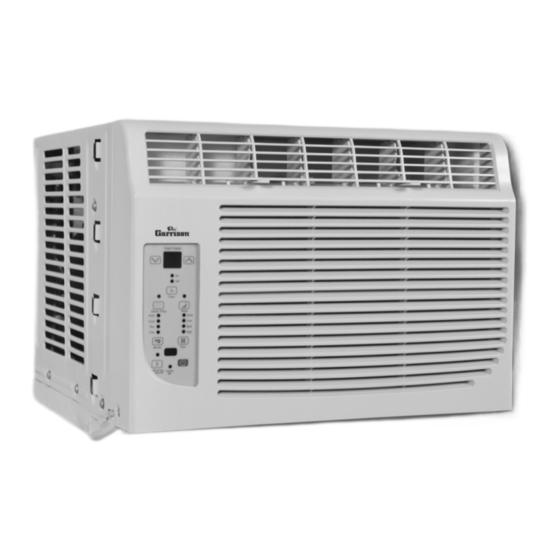

Garrison 1028303 User Manual

Window / wall type
Hide thumbs

Advertisement

Quick Links

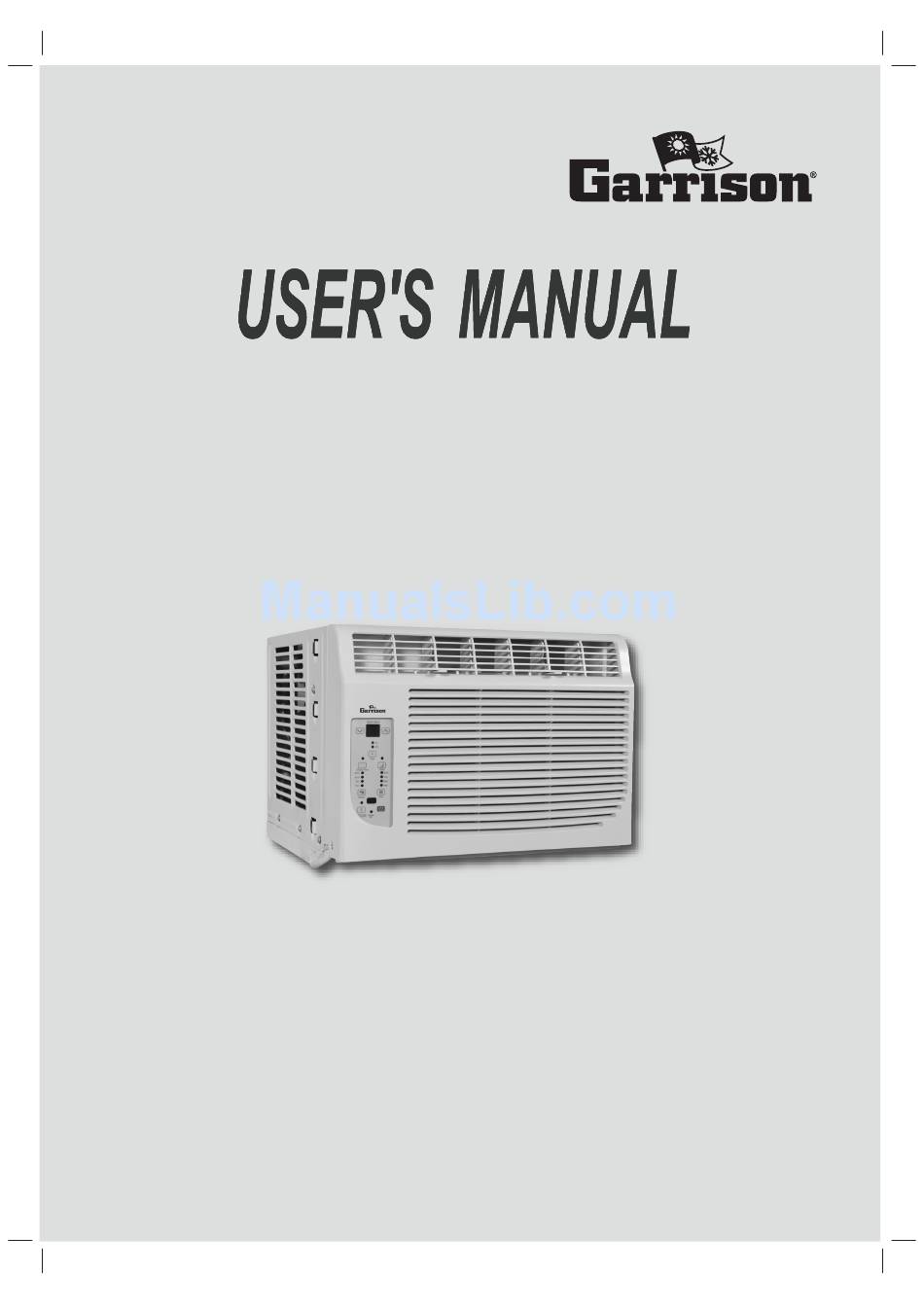

WINDOW/WALL - TYPE
ROOM AIR CONDITIONER
Model: 1028303
Important Safety Instructions .........................1-3
MULTI-STEP SPEED ELECTRONIC CONTROL
TA B L E O F C O N T E N T S
...................................
4-7
Before using your air conditioner, please read
this manual carefully and keep it for future reference.
................................................8
.............................
.....................................
...................................
8-10
10-11
11-12

Advertisement

loading
Need help?

Need help?

Do you have a question about the 1028303 and is the answer not in the manual?

Questions and answers

Related Manuals for Garrison 1028303

Summary of Contents for Garrison 1028303

  • Page 1: Table Of Contents

    WINDOW/WALL - TYPE ROOM AIR CONDITIONER Model: 1028303 MULTI-STEP SPEED ELECTRONIC CONTROL TA B L E O F C O N T E N T S Important Safety Instructions ......1-3 Normal Sounds ..........8 Air Conditioner Features ......8-10 Installation Instructions ........

  • Page 2: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS READ THIS MANUAL Inside you will find many helpful hints on how to use and maintain your air conditioner properly. Just a little preventive care on your part can save you a great deal of time and money over the life of your air conditioner. You'll find many answers to common problems in the chart of Troubleshooting ips.
  • Page 3 IMPORTANT SAFETY INSTRUCTIONS CAUTION When the air filter is to be Do not put a pet or house plant Ventilate the room well when where it will be exposed to direct removed, do not touch the metal used together with a stove, etc. air flow.
  • Page 4 IMPORTANT SAFETY INSTRUCTIONS WARNING NOTE: For Your Safety The power supply cord with this air Do not store or use gasoline or other flammable vapors and liquids in the vicinity conditioner contains a current detection of this or any other appliance. device designed to reduce the risk of fire.

  • Page 5: Installation Instructions

    INSTALLATION INSTRUCTIONS CAUTION BEFORE YOU BEGIN Do not, under any circumstances, cut or Read these instructions completely remove the third (ground) prong from the and carefully. power cord. IMPORTANT- Save these Do not change the plug on the power cord instructions for local inspector s use.

  • Page 6: Mounting Hardware

    INSTALLATION INSTRUCTIONS C: Align the hole in the top rail with those in the top PREPARE THE WINDOW of the unit as shown in Fig. B. Lower sash must open sufficiently to allow a clear vertical opening of 13 inches (330mm). Side louvers Fig.B and the rear of the AC must have clear air space to allow enough airflow through the condenser, for heat...
  • Page 7 INSTALLATION INSTRUCTIONS B. Slide the free end "Ⅰ" section of the panel directly SECURE THE ACCORDION PANELS into the cabinet as shown in Fig. 2. Slide the panel A. Keep a firm grip on the air conditioner, carefully down. Be sure to leave enough space to slip the top and bottom of the frame into the rails on the place the unit into the window opening so the bottom of the air conditioner frame is against the window...
  • Page 8 INSTALLATION INSTRUCTIONS If AC is Blocked by Stor m Window B. Drive 3/4" (19mm) or 1/2" (12.7mm) locking screws through frame holes into window sash (Fig. 8). Add wood as shown in Fig. 11, or remove storm window before air conditioner is installed. If Storm Window Frame must remain, be sure the drain holes or slots are not caulked or painted shut.

  • Page 9: Normal Sounds

    NORMAL SOUNDS High Pitched Chatter High efficiency compressors Vibration may have a high pitched chatter during the cooling cycle. Unit may vibrate and make noise because of poor wall or window construction or incorrect installation. Sound of Rushing Air At the front of the unit, you may hear the sound of rushing air being moved by the fan Pinging or Switching...
  • Page 10 AIR CONDITIONER FEATURES TO ADJUST FAN SPEEDS: TO SELECT THE OPERATING MODE: Press to select the Fan Speed in four steps-Auto, To choose operating mode, press Mode button. Each Low, Med or High. Each time the button is pressed, time you press the button, a mode is selected in a the fan speed mode is shifted.

  • Page 11: Care And Cleaning

    AIR CONDITIONER FEATURES Air Directional Louvers DISPLAYS: Displays Air Directional Louvers Temp Temp Timer Timer DISPLAYS: Lever Shows the set temperature in " C" or " F" and the Air Direction Auto-timer settings. While on Fan only mode, it shows the room temperature.

  • Page 12: Troubleshooting Tip

    CARE AND CLEANING Cabinet Cleaning Air Filter Cleaning Remove the filter by sliding out from the right-hand side. Be sure to unplug the air conditioner to prevent shock or fire Wash the filter using liquid dishwashing detergent and warm hazard. The cabinet and front may be dusted with an oil-free water.
  • Page 13 TROUBLESHOOTING TIPS Problem Solution Dirty air filter- air restricted. Clean air filter. Refer to Care and Cleaning section. Air conditioner cooling, but room Temperature is set too High, set temperature to a Lower setting. is too warm- no Air directional louvers positioned improperly. Position louvers for better air distribution. ice forming on cooling coil behind Front of units is blocked by drapes, blinds, furniture, etc.
  • Page 14 The design and specifications are subject to change without prior notice for product improvement. Consult with the sales agency or manufacturer for details. CS359-UC(XD) 202000192617 20131008...
