Link Loss Carry Forward (LLCF)

The Metrobility Delta Class "twister" incorporates LLCF
ing remote connections. When LLCF is enabled, the ports do not trans-
mit a link signal until they receive a link signal from the opposite port.

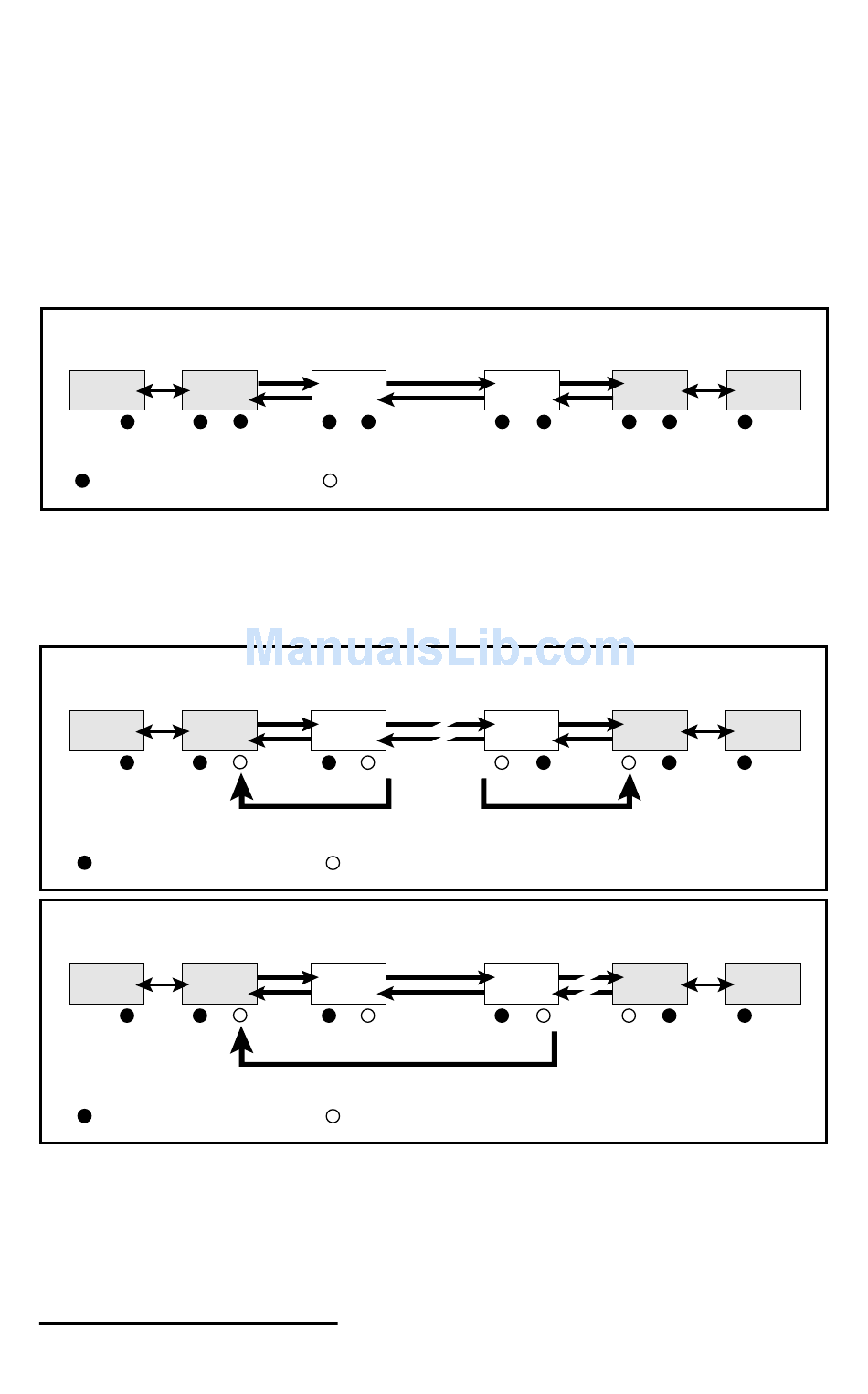

The diagram below shows a typical network configuration with good link
status using two "twister" units for remote connectivity. Note that LLCF is
enabled as indicated in the diagram below.
Management Switch/Hub
Station w/SNMP
LED lit = established link
If a connection breaks, each "twister" will carry that link loss forward to a
switch/hub which generates a trap to a management station. The net-
work administrator can then determine the source of the problem.
Management Switch/Hub
Station w/SNMP
LED lit = established link
Management Switch/Hub
Station w/SNMP
LED lit = established link
* Units are shipped with LLCF disabled.
14 Metrobility 100Mbps Delta Class "twister"
twister
LLCF is ON
LED unlit = no link
twister
LLCF is ON
Link Loss Carried Forward
LED unlit = no link
twister
LLCF is ON
Link Loss Carried Forward
LED unlit = no link
twister
LLCF is ON
Remote
Cable
twister
LLCF is ON
Broken
Remote
Cable
Link Loss Carried Forward
twister
LLCF is ON
Remote Broken
Cable Cable
*
for troubleshoot-
Switch/Hub Management
w/SNMP Station
Switch/Hub Management
w/SNMP Station
Switch/Hub Management
w/SNMP Station
