"twister"
10 Mbps Media Converter
10BASE-2
10BASE-T
COL
TERM
ON
OFF
Installation & User Guide
Models: 2111-12-01 / 2111-13-B / 2111-15-B
TX
RX
AT
LK
10BASE-FL
™
"twister"
2111
PWR
ACT
LINK
®
2111
™
"twister"
2111
x
I I
LK
PWR
AT
10BASE-T
TX
RX
AT
LK
10BASE-FL
™
"twister"
2111
x
I I
AT
LK
PWR
10BASE-T
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for METRObility Optical Systems twister 2111
Summary of Contents for METRObility Optical Systems twister 2111

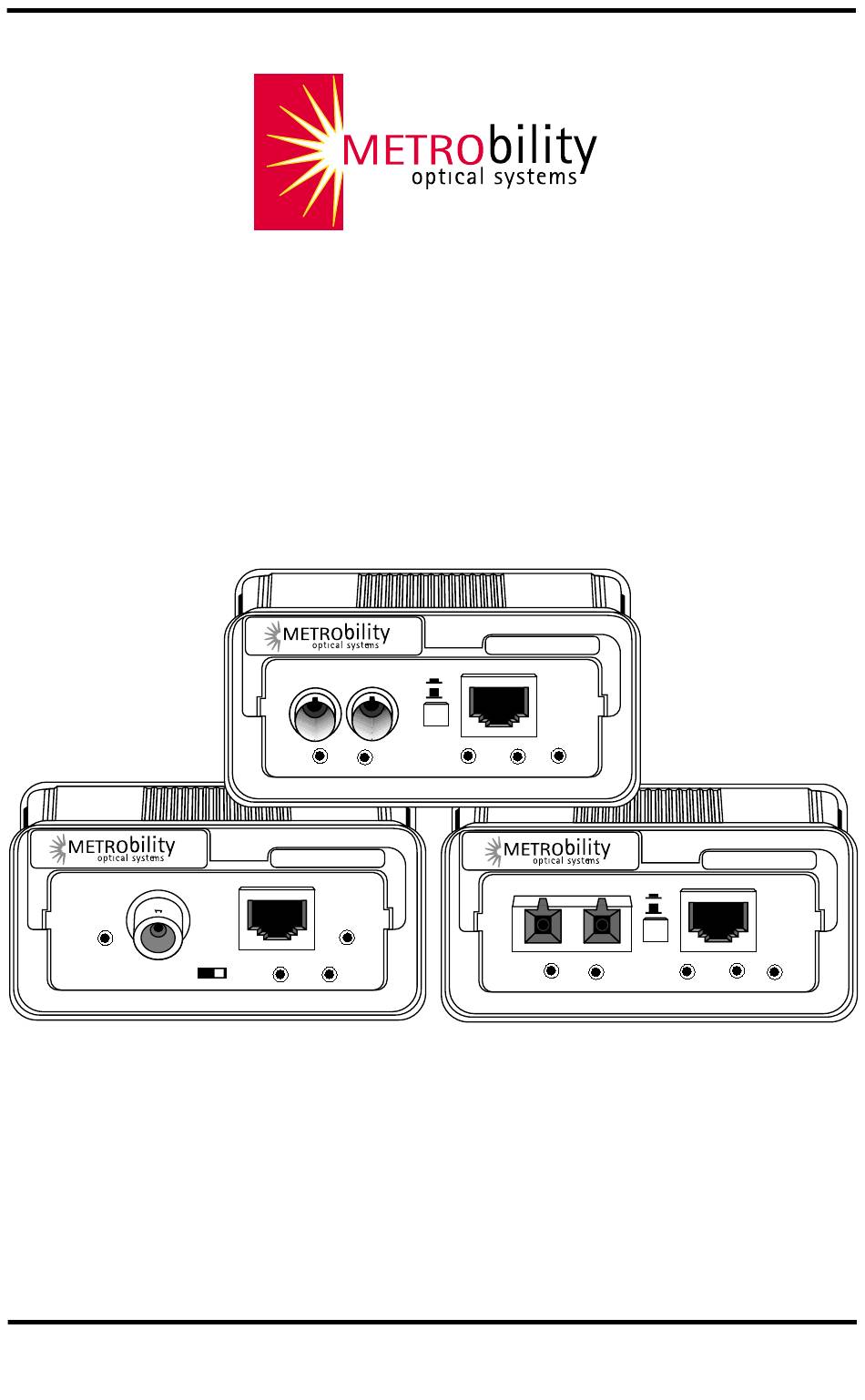

- Page 1 ® “twister” 2111 10 Mbps Media Converter ™ “twister” 2111 10BASE-FL 10BASE-T ™ “twister” ™ 2111 “twister” 2111 10BASE-2 10BASE-T TERM LINK 10BASE-FL 10BASE-T Installation & User Guide Models: 2111-12-01 / 2111-13-B / 2111-15-B...
- Page 2 No part of this publication may be reproduced, stored in a retrieval system, translated, transcribed, or transmitted, in any form, or by any means manual, electric, electronic, electromagnetic, mechanical, chemical, optical or otherwise, without prior explicit written permission of Metrobility Optical Systems, Inc. © 1999-2005 Metrobility Optical Systems, Inc.
-
Page 3: Table Of Contents
Warranty and Servicing ................21 Metrobility Optical Systems, Metrobility, Lancast, and “twister” are registered trademarks of Metrobility Optical Systems, Inc.; the Metrobility Optical Systems logo is a trademark of Metrobility Optical Systems, Inc. All others are trademarks of their respective owners. -
Page 4: Introduction
Introduction Metrobility “twister” media converters represent the hottest technology available for extending Ethernet networks. Since Metrobility first developed “twister” media conversion, it has become a standard for providing cost-effective means of integrating mixed media environments. As LANs grow and evolve, this technology provides the ideal solution for building effective migration strategies. -
Page 5: Installation Guide
Installation Guide Follow the simple steps outlined in this section of the guide to install and start using your Metrobility “twister” media converter. Unpack the “twister” and Accessories Check that the following components have been included with your order: • “twister” 2111 media converter •... -
Page 6: Step 4: Set The Switches
Set the Switches Termination Switch (2111-12-01 only) The “twister” 2111-12-01 has a termination switch located on the front panel. This switch, labeled TERM, is used to set either internal or external termination on the BNC port. External termination is enabled when the switch is in the OFF position (default). -
Page 7: Transparency Switch
Transparency Switch (2111-13-B and 2111-15-B only) The “twister” 2111-13-B and 2111-15-B have a set of DIP switches located on the back panel. Only the transparency switch, labeled TSP, is configurable. All other DIP switches are nonfunctional. When TSP is ON (default), the “twister” becomes completely transparent to the end devices connected to its two ports. -
Page 8: Mdi-Ii To Mdi-X Switch
MDI-II to MDI-X Switch All “twister” media converters with twisted-pair ports have an MDI-II to MDI-X switch that eliminates the need for crossover cables. The switch allows simple setup in either straight through or crossover configurations. It is located on the bottom of the unit directly below the RJ-45 connector, or on the front panel between the two ports. -
Page 9: Step 5: Connect To The Network
Connect to the Network The Metrobility “twister” 2111 media converter offers the ease of plug-and- play installation. Refer to the appropriate section below for guidelines regarding specific network connections. Twisted-pair Interface (all models) The “twister” 2111 provides one shielded RJ-45 connector for Category 3, 4, or 5 twisted-pair segments and supports a maximum link length of up to 100 meters. -
Page 10: Fiber Optic Interface
Fiber Optic Interface The following “twister” models support 10BASE-FL segments via ST or SC connectors. • The 2111-13-B provides one set of FL multimode SC connectors, which support a maximum segment length of up to 2 km for remote links. •... -
Page 11: Bnc Interface
BNC Interface (2111-12-01) The “twister” 2111-12-01 attaches to thinnet coaxial cable via a standard BNC connector and supports a maximum segment length of 185 meters. IMPORTANT: The coaxial cable of a LAN must be properly terminated at the end of each segment regardless of the device used at the end of each cable. - Page 12 When the internal 50Ω termination switch is enabled (ON), the “twister” can be connected directly to a workstation or other device. When the termination switch on the “twister” is disabled (OFF), you must attach a BNC terminator to the T-connector which connects to the unit. The example below illustrates how to connect the “twister”...
-
Page 13: Step 6: Apply Power
Apply Power Power is provided to the “twister” unit from the 90-250V universal desktop power supply module. This power module is equipped with a S760 hollow- type plug for insertion into the DC jack located on the back of the “twister” unit and standard IEC 320-type AC power receptacle. - Page 14 • AC 115V (North American): use a UL-listed and CSA-certified cord set consisting of a minimum No. 18 AWG, type SVT or SJT three- conductor cord (15 feet maximum length) and a parallel blade grounding-type attachment plug rated 15A, 125V. •...
-
Page 15: User Guide
User Guide This section contains more detailed information regarding certain operating features for the “twister” media converter. System LEDs The Metrobility “twister” 2111 media converter provides LEDs for the visible verification of unit status and proper functionality as well as aiding in troubleshoot- ing and overall network diagnosis and management. -
Page 16: Transparency Mode
Transparency Mode (2111-13-B and 2111-15-B only) By default, the “twister” 2111-13-B and 2111-15-B are configured with the Transparency Mode enabled (ON). In this mode, the “twister” is completely transparent to devices connected to its ports. To the end devices, it appears that they have a direct connection to each other and can auto-negotiate their duplex mode. - Page 17 Switch/Hub Remote Management 2111-xx-B 2111-xx-B Station w/SNMP Device twister twister AN is OFF TSP is ON TSP is ON AN is OFF Link loss is forwarded LED lit = established link LED unlit = no link When the Transparency Mode is disabled (OFF), you must manually configure the speed and duplex on both end devices to the same setting.
-
Page 18: Topology Solutions
Topology Solutions Enterprise Switch Lancast Intelligent 7500 with R111 10Mbps modules 2km multimode F/O twister 2111 PC with fiber NIC 10Mbps Hub Twisted-pair Links F/O Links PCs with NICs User Guide... -
Page 19: Technical Specifications
Technical Specifications Data Rate Data Rate _________________________________________ 10 Mbps half duplex _________________________________________ 20 Mbps full duplex Bit Delay ____________________________________________________ < 5 bits Network Connections Twisted-Pair Interface Connector ____________________________________ Shielded RJ-45, 8-pin jack Impedance __________________________________________ 100 Ohms nominal Signal Level Output (differential) _____________________________ 2.0 to 2.8 V Signal Level Input ____________________________________ 350 mV minimum Supported Link Length ___________________________________________ 100 m Cable Type ______________________________________ Category 3, 4, or 5 UTP... -
Page 20: Product Safety, Emc And Compliance Statements
Product Safety, EMC and Compliance Statements This equipment complies with the following requirements: • • • EN60950 (safety) • FCC Part 15, Class A • EN55022 Class A (emissions) • EN55024: 1998 (immunity) • IEC 825-1 Classification • Class 1 Laser Product •... -
Page 21: Warranty And Servicing
Warranty and Servicing Three-Year Warranty for Metrobility “twister” Media Converters Metrobility Optical Systems, Inc. warrants that every “twister” media converter will be free from defects in material and workmanship for a period of THREE YEARS. This warranty covers the original user only and is not transferable. Should the unit fail at any time during this warranty period, Metrobility will, at its sole discretion, replace, repair, or refund the purchase price of the product. - Page 22 Product Manuals The most recent version of this manual is available online at http://www.metrobility.com/support/manuals.htm Product Registration To register your product, go to http://www.metrobility.com/support/registration.asp 25 Manchester Street, Merrimack, NH 03054 USA tel: 1.603.880.1833 • fax: 1.603.594.2887 www.metrobility.com 5660-211112-001 M 6/05...
