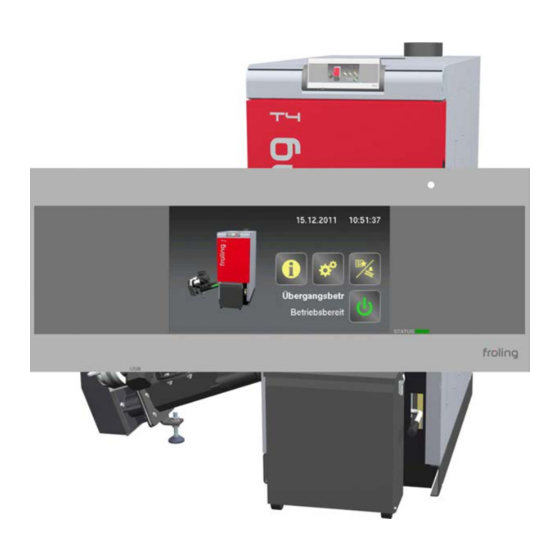

Page 1 Operating Instructions Boiler controller Lambdatronic H 3200 T4 - Touch Version 50.04 - Build 05.09 | Version 60.01 - Build 01.23 Translation of the original German operating instructions for technicians and operators Read and follow the instructions and safety information!
Page 2: Table Of Contents
Calibrating the touchscreen Operation Switching the boiler on/off Navigation within the info menu Navigation within the system menu 4.3.1 Navigating the menus Adjusting parameters Setting times Setting the date/time Quick menu Froling GesmbH | A-4710 Grieskirchen, Industriestraße 12 | www.froeling.com...
Page 3 Menu - Solar 5.3.1 Status displays for the solar system 5.3.2 Temperature settings for the solar system 5.3.3 Service parameters of the solar system 5.3.4 Solar heat meter Menu - Storage tank Operating Instructions Lambdatronic H 3200 T4 - Touch | B0820314_en...
Page 4 5.14.1 Setting Adjustable parameters: Boiler temperature Adjustable Parameters: Flue Gas Adjustable parameters - Ignition Adjustable Parameters: Air settings Adjustable parameters: Fuel feed Adjustable parameters: WOS / Cleaning Adjustable parameters: Combustion chamber Froling GesmbH | A-4710 Grieskirchen, Industriestraße 12 | www.froeling.com...
Page 5 Menu - Display settings 5.16.1 General Network settings 5.16.2 Date / Time 5.16.3 Software update / Service 5.17 PWM / 0 - 10V settings Troubleshooting Procedure for fault messages Setting protocol Operating Instructions Lambdatronic H 3200 T4 - Touch | B0820314_en...
Page 6: General
Please read and follow the operating instructions, in particular the safety information contained therein. Keep them available next to the boiler. These operating instructions contain important information about operation, electrical connection and troubleshooting for the Lambdatronic H 3200 T4 control. NOTICE The values given in the parameter lists are examples, and should not be used as standard values! The constant further development of our products means that there may be minor dif‐...
Page 7: Electrical Connection And Wiring
Electrical connection and wiring Core module and connection options 2 Electrical connection and wiring 2.1 Core module and connection options 2.1.1 Board view Operating Instructions Lambdatronic H 3200 T4 - Touch | B0820314_en...
Page 8: Connection Instructions
Pump 1 on core module (28) Connection cable 3 x 1.5 mm , max. 1.5A / 280W / 230V Mains (29) Connection cable 3 x 1.5 mm ; fused with C16A (provided by the customer) Froling GesmbH | A-4710 Grieskirchen, Industriestraße 12 | www.froeling.com...
Page 9: Mains Connection
❒ The power supply line (mains connection) must be fitted with a C16A fuse by the customer. If a safety overload switch is used it should be a type with C16A. 2.1.3 Connecting the flue gas sensor green-yellow Core module red + blue - Operating Instructions Lambdatronic H 3200 T4 - Touch | B0820314_en...
Page 10: Combination With Oil Burner
Setback mode Ignores the heating phases Override circuit Ignores the setback Handwheel… Allows you to adjust the temperature by +/- 3°C IMPORTANT! See assembly instructions/functional description for room temperature sensor FRA Froling GesmbH | A-4710 Grieskirchen, Industriestraße 12 | www.froeling.com...
Page 11: Boiler Enable Input
❒ If the boiler is enabled or started by the parameter, it goes at least to "Heating" status, even if the signal has stopped in the meantime. Only then does the boiler follow the shutdown procedure. Operating Instructions Lambdatronic H 3200 T4 - Touch | B0820314_en...
Page 12: Connecting A High Efficiency Pump To The Core Module
➥ Make sure that the cables are configured correctly (polarity) in accordance with the connection diagram of the pump! Important! When using a Froling pump assembly: ⇨ See "Connection diagrams according to pump types" [page 21] Froling GesmbH | A-4710 Grieskirchen, Industriestraße 12 | www.froeling.com...
Page 13: Expansion Modules
, max. 2.5A / 230V / 500W pump 1/2 (5) Mixing valve 1/2 (6) Connection cable 4 x 0.75mm , max. 0.15A / 230V 1. YMM as per ÖVE-K41-5 or H05VV-F as per DIN VDE 0881-5 Operating Instructions Lambdatronic H 3200 T4 - Touch | B0820314_en...
Page 14: Hydraulic Module
3 x 1.5mm , fuse 10A Pump 1/2 (10/11) Connection cable 3 x 1.5mm , max. 1.5A / 230V / 280W 1. YMM as per ÖVE-K41-5 or H05VV-F as per DIN VDE 0881-5 Froling GesmbH | A-4710 Grieskirchen, Industriestraße 12 | www.froeling.com...
Page 15: Connecting An Isolating Valve
The outer cable L(bn) should be connected to the outer cable of the respective mains supply of the module or to the core module, HCP0/burner relay output at pin “LV”. Operating Instructions Lambdatronic H 3200 T4 - Touch | B0820314_en...
Page 16: Connecting A High Efficiency Pump To The Hydraulic Module
➥ Make sure that the cables are configured correctly (polarity) in accordance with the connection diagram of the pump! IMPORTANT! When using a Froling pump assembly: ⇨ See "Connection diagrams according to pump types" [page 21] Froling GesmbH | A-4710 Grieskirchen, Industriestraße 12 | www.froeling.com...
Page 17: Wood Chip Module
3 x 0.75 mm², N/O switch contact 24V Ash screw monitoring (19) Connection cable 3 x 0.75 mm², inductive sensor 24V Lock (20) Connection cable 2 x 0.75 mm², 24V looping through Operating Instructions Lambdatronic H 3200 T4 - Touch | B0820314_en...
Page 18: Digital Module
24V (3) Connection cable 1 x 1.0 mm² Input 1 … 8 (4) Connection cable 1 x 0.75 mm² 1) YMM as per ÖVE-K41-5 or H05VV-F as per DIN VDE 0881-5 Froling GesmbH | A-4710 Grieskirchen, Industriestraße 12 | www.froeling.com...
Page 19: Power Supply
LIYCY paired 2x2x0.5 should be used. The connection to the 5-pin plugs should be carried out according to the following diagram: Braided shield Braided shield White White CAN L CAN L Green Green CAN H CAN H Yellow Yellow Brown Brown Operating Instructions Lambdatronic H 3200 T4 - Touch | B0820314_en...
Page 20: Connect The Patch Cable To The Bus Plug
“not set". In this case there is no bus termination. If the contacts are closed (im‐ age right), the end jumper is set and the bus connection is terminated. Froling GesmbH | A-4710 Grieskirchen, Industriestraße 12 | www.froeling.com...
Page 21: Setting The Module Address
4.1 – 4.2 13 – 14 5.1 – 5.6 5.1 – 5.2 15 – 16 6.1 – 6.6 6.1 – 6.2 17 - 18 7.1 – 7.7 7.1 – 7.2 Operating Instructions Lambdatronic H 3200 T4 - Touch | B0820314_en...
Page 22 - brown wire to earth - white wire to plus Do not use the other two wires (blue, black) and insu‐ late if necessary Froling GesmbH | A-4710 Grieskirchen, Industriestraße 12 | www.froeling.com...
Page 23: Overview Of The Basic Functions
The status LED shows the operating status of the system: ▪ GREEN flashing (interval: 5 sec OFF, 1 sec ON): Boiler off ▪ GREEN constant: BOILER SWITCHED ON ▪ ORANGE flashing: WARNING ▪ RED flashing: FAULT Operating Instructions Lambdatronic H 3200 T4 - Touch | B0820314_en...
Page 24: Control Icons
Back icon Takes you back up one menu level of the system menu. Can be used to return to the basic display. Froling GesmbH | A-4710 Grieskirchen, Industriestraße 12 | www.froeling.com...
Page 25: Display Icons
Remote control (switching the boiler on and off) by external operators via froeling-con‐ nect.com is permitted. Remote control (switching the boiler on and off) by external operators via froeling-con‐ nect.com is not permitted. Operating Instructions Lambdatronic H 3200 T4 - Touch | B0820314_en...
Page 26: Operating Statuses
Control of the induced draught fan and infeed for this operating status are defined in the "Igni‐ tion" parameter menu. Heating The Lambdatronic H 3200 T4 controls combustion according to the boil‐ er setpoints. Empty stoker The stoker is emptied according to procedure.
Page 27: Updating The Software Of The Touch Control
❒ Insert the USB stick with the necessary data (linux.bin; rootfs.img; update) into the USB port ❒ “Display settings” menu → “Software update / Service” ❒ Set “Restart control / Update” parameter to “Yes” ➥ Update will begin Display during the update: Operating Instructions Lambdatronic H 3200 T4 - Touch | B0820314_en...
Page 28 NOTICE Inaccurate calibration If you do not tap the indicated points accurately, the control may stop working properly and a software update may be required. Froling GesmbH | A-4710 Grieskirchen, Industriestraße 12 | www.froeling.com...
Page 29: Calibrating The Touchscreen
❒ Scroll down with the down arrow until the “Software update / Service" submenu appears and open the submenu ❒ In the “Software update / Service" menu open the “Recalibrate touch con- trol” parameter Operating Instructions Lambdatronic H 3200 T4 - Touch | B0820314_en...
Page 30 The control will restart after calibration. NOTICE Inaccurate calibration If you do not tap the indicated points accurately, the control may stop working properly and a software update may be required. Froling GesmbH | A-4710 Grieskirchen, Industriestraße 12 | www.froeling.com...
Page 31: Operation
The info menu displays all the information about the system. Use the right and left ar‐ rows to go to the individual menu items for the relevant information. The next time you open the info menu, the last page viewed will be displayed. Operating Instructions Lambdatronic H 3200 T4 - Touch | B0820314_en...
Page 32: Navigation Within The System Menu
The individual menus are divided into tabs for quicker navigation. ❒ Tap on the desired tab ➥ The list of parameters for the selected area will appear Froling GesmbH | A-4710 Grieskirchen, Industriestraße 12 | www.froeling.com...
Page 33 The parameter list shows three parameters. The up and down arrows can be used to scroll through longer lists of parameters. If you have reached the start or end of the parameter list, the relevant arrow symbol will become inactive. Operating Instructions Lambdatronic H 3200 T4 - Touch | B0820314_en...
Page 34: Adjusting Parameters
A parameter can only be adjusted if there is a pen icon beside it. Depending on the type of parameter, either the numeric keypad..or a list box will appear. In both cases you need to tap the confirm icon to save the entry. Froling GesmbH | A-4710 Grieskirchen, Industriestraße 12 | www.froeling.com...
Page 35: Setting Times
❒ The time window will open for editing ❒ Set the start and end time for the time window using the up and down arrows ❒ Save the time window setting by tapping on the confirm icon Operating Instructions Lambdatronic H 3200 T4 - Touch | B0820314_en...
Page 36 To delete a time window, set the times so that the hour and minute displays are re‐ placed by two dashes. If you want to apply the time window setting to another day in addition, you can do this by activating the relevant day. Froling GesmbH | A-4710 Grieskirchen, Industriestraße 12 | www.froeling.com...
Page 37: Setting The Date/Time
❒ A menu will then appear allowing you to adjust the date and time. To apply the new values you need to confirm the date and time by tapping the “confirm” icon. Operating Instructions Lambdatronic H 3200 T4 - Touch | B0820314_en...
Page 38: Quick Menu
4.7.7 “Mode in automatic mode” function ⇨ See "Boiler modes" [page 39] 4.7.8 "Extra loading” function One-off manual loading of domestic hot water. After loading, the mode that was previ‐ ously set becomes active again. Froling GesmbH | A-4710 Grieskirchen, Industriestraße 12 | www.froeling.com...
Page 39: Touch Cleaning" Function
❒ Requirement: The DHW tank temperature is below the minimum value and the boiler or storage tank temperature is sufficiently high. ⇨ See "Heating times of the DHW tank" [page 64] Operating Instructions Lambdatronic H 3200 T4 - Touch | B0820314_en...
Page 40: Transition Op. Without Storage Tank
Transition operation without storage tank with solar panel system Boiler heating time 1 Boiler heating time 2 Heating time 1 Heating time 2 Setback mode DHW tank loading time 1 Time Froling GesmbH | A-4710 Grieskirchen, Industriestraße 12 | www.froeling.com...
Page 41: Transition Op. With Storage Tank
Transition operation with storage tank and solar panel system Storage tank loading time 1 Heating time 1 Heating time 2 Setback mode DHW tank loading time 1 DHW tank loading time 2 Time Operating Instructions Lambdatronic H 3200 T4 - Touch | B0820314_en...
Page 42: Winter Op. Without Storage Tank
To ensure efficient operation, set systems with a storage tank to transition op. rather than winter op. Set systems with a storage tank to transition op. ⇨ See "Transition op. with storage tank" [page 41] Froling GesmbH | A-4710 Grieskirchen, Industriestraße 12 | www.froeling.com...
Page 43: Summer Op. Without Storage Tank
Tip: In systems with solar panels, choose the DHW tank loading time so that solar en‐ ergy can be used. Example 2: Summer operation with solar panel system DHW tank heating time 1 Time Operating Instructions Lambdatronic H 3200 T4 - Touch | B0820314_en...
Page 44: Summer Op. With Storage Tank
Example 2: Summer operation with storage tank and solar panel system Storage tank loading time 1 DHW tank loading time 1 DHW tank loading time 2 Time Froling GesmbH | A-4710 Grieskirchen, Industriestraße 12 | www.froeling.com...
Page 45: Initial Startup
Standard level for normal operation of the touch display. All cus‐ (Code 1) tomer-specific parameters are displayed and can be changed. Installer / Service Releases parameters to adjust the controller to the system com‐ ponents (if configured). Operating Instructions Lambdatronic H 3200 T4 - Touch | B0820314_en...
Page 46: Setting The System Selection
Initial startup 4.9.2 Setting the system selection Open the system selection menu ❒ In the system menu open “System” ❒ Then navigate to “System selection” in the menu and open the menu Froling GesmbH | A-4710 Grieskirchen, Industriestraße 12 | www.froeling.com...
Page 47: Selecting The Boiler Type
❒ In the submenu, set the actual output of the boiler and the fuel used, and activate the relevant parameters. ➥ Active parameters are identifiable by the confirm icon NOTICE! The boiler and specified material values must be applied before you exit this menu! Operating Instructions Lambdatronic H 3200 T4 - Touch | B0820314_en...
Page 48: Selecting The Feed System
Maintaining outfeed through return feed mixer Troubleshooting active E-filter present? AGR installed WOS monitoring active Rotary valve types: Rotary valve type I Rotary valve type II T207075 T209715 Selecting the feed system Froling GesmbH | A-4710 Grieskirchen, Industriestraße 12 | www.froeling.com...
Page 49: System Selection
For description see “ Lambdatronic H 3200 T4 Energy Systems” brochure Variant 1 Variants 2 and 5 Multiple house diagrams Variant 3 Variant 4 Slave boiler for boiler sequence control Only for systems in the cascade! Operating Instructions Lambdatronic H 3200 T4 - Touch | B0820314_en...
Page 50: Dhw Tank System
Otherwise, the selection table below shows the hydraulic system to be set for the spe‐ cific system: DHW tank system DHW tank 01 installed ❒ DHW tank 02 installed ❒ Froling GesmbH | A-4710 Grieskirchen, Industriestraße 12 | www.froeling.com...
Page 51: Heating System
❒ The “remote control XX installed” parameter should be checked if any of the the three remote controls shown is used for the respective heating circuit. Solar system Solar collector 01 installed ❒ A second pump is used instead of the isolating valve ❒ Operating Instructions Lambdatronic H 3200 T4 - Touch | B0820314_en...
Page 52: Boiler Remote Control
⇨ See "Digital inputs" [page 101] Drives ❒ Check that drives and actuators are working and turning in the right direction ⇨ See "Analogue outputs" [page 100] ⇨ See "Digital outputs" [page 99] Froling GesmbH | A-4710 Grieskirchen, Industriestraße 12 | www.froeling.com...
Page 53: Starting The System On Initial Startup
Flash fire hazard! ❒ The following parameters (depending on the configuration) can/should be set ac‐ cording to the customer's wishes: ▪ Desired boiler setpoint Operating Instructions Lambdatronic H 3200 T4 - Touch | B0820314_en...
Page 54: Adjusting The Feed Output Of The Feed Screw
Adjusting the feed output of the feed screw NOTICE! This adjustment must ONLY be carried out by a qualified technician. If an original Froling discharge system is installed, no adjustments are necessary, as it has already been adapted to the boiler.
Page 55: Menu Overview And Parameters
Menu overview and parameters Menu - Heating 5 Menu overview and parameters Operating Instructions Lambdatronic H 3200 T4 - Touch | B0820314_en...
Page 56: Status Displays For The Heating Circuits
(Setback) = setback mode; the heating phases are ignored (Auto) = automatic mode; heating phases according to setback program (Off) = switched off; heating circuit deactivated, only frost protection! External temperature 2°C Shows the current external temperature Froling GesmbH | A-4710 Grieskirchen, Industriestraße 12 | www.froeling.com...
Page 57: Temperature Settings For The Heating Circuits
7°C If the external temperature falls below this value in setback mode, the the heating circuit pump switches on heating circuit pumps and mixing valve are activated. in setback mode Operating Instructions Lambdatronic H 3200 T4 - Touch | B0820314_en...
Page 58: Heating Times Of The Heating Circuits
If a flow temperature setpoint is calculated below the value set here, the when flow setpoint is lower than heating circuit pump switches off and the mixing valve closes (just without remote control). Froling GesmbH | A-4710 Grieskirchen, Industriestraße 12 | www.froeling.com...
Page 59: Service Parameters For Heating Up Program
YES. NOTE: Parameters for heating circuit 2 only! ⇨ See "Digital outputs" [page 99] 5.1.5 Service parameters for heating up program Operating Instructions Lambdatronic H 3200 T4 - Touch | B0820314_en...
Page 60 Outfeed setpoint for all days in pro‐ 35°C If heating up program 7 is active, the selected heating circuit is adjusted to gram 7 the specified flow temperature. ⇨ See "Heating up programs" [page 61] Froling GesmbH | A-4710 Grieskirchen, Industriestraße 12 | www.froeling.com...
Page 61: Heating Up Programs
The heating up programs listed are non-binding rec‐ ommendations. If the heating up program is to be used for floor screed drying, you must consult the manufacturer of the floor finish and/or the installer Operating Instructions Lambdatronic H 3200 T4 - Touch | B0820314_en...
Page 62: General Settings
1 on relevant module) (0 = core module) Use room temperature sensor input If room thermostats are used instead of room temperature sensors, this for room thermostat parameter must be set to YES. Froling GesmbH | A-4710 Grieskirchen, Industriestraße 12 | www.froeling.com...
Page 63: Menu - Water
When this DHW tank temperature is reached the DHW tank loading pump switches off. Reload if DHW tank temperature is 45°C Reloading of the DHW tank is authorised when the DHW tank temperature below is below this level. Operating Instructions Lambdatronic H 3200 T4 - Touch | B0820314_en...
Page 64: Heating Times Of The Dhw Tank
Legionella heating activated The DHW tank is heated to at least 65°C once a week. Which day for legionella heating Day of the week on which the Legionella heating is carried out. Froling GesmbH | A-4710 Grieskirchen, Industriestraße 12 | www.froeling.com...
Page 65: Menu - Solar
Maximum DHW tank pump speed 100% If you need to limit the maximum speed of the DHW tank pump for system‐ ic reasons, you can do so by adjusting this parameter. Operating Instructions Lambdatronic H 3200 T4 - Touch | B0820314_en...
Page 66: Status Displays For The Solar System
Specifies the speed of the collector pump as a percentage of maximum speed. Pump between heat exchanger and 100% Current speed of the pump between heat exchanger and storage tank (on‐ storage tank ly for systems 12, 13) Froling GesmbH | A-4710 Grieskirchen, Industriestraße 12 | www.froeling.com...
Page 67: Temperature Settings For The Solar System
Storage tank bottom plus the set value produces the desired temperature tom differential of the collector return. If the collector return is too high, the storage tank pump speed is reduced. Operating Instructions Lambdatronic H 3200 T4 - Touch | B0820314_en...
Page 68: Service Parameters Of The Solar System
This function is active from 10:00am - 7:00pm and the threshold value of the collector temperature, from which this function is active, is dynamically adjusted. Froling GesmbH | A-4710 Grieskirchen, Industriestraße 12 | www.froeling.com...
Page 69 For DHW tank loading through the collector, the isolating valve is activated with 230V. If the valve switches incorrectly, the way it is controlled can be adjusted using this parameter. Operating Instructions Lambdatronic H 3200 T4 - Touch | B0820314_en...
Page 70: Solar Heat Meter
[0.5 – 5 pulses/L] Which sensor is used for the collec‐ Bus addresses of the sensors used, depending on the system tor return ⇨ See "Setting the module address" [page 21] Froling GesmbH | A-4710 Grieskirchen, Industriestraße 12 | www.froeling.com...
Page 71: Menu - Storage Tank
⇨ See "Setting the module address" [page 21] Is an external flow through counter If an external volume flow sensor is used in the collector return, set this used parameter to “YES”. Operating Instructions Lambdatronic H 3200 T4 - Touch | B0820314_en...
Page 72: Status Displays Of The Storage Tank
Specifies the current speed of the storage tank pump as a percentage of the maximum speed. Store charge Shows the current storage tank charge. 5.4.2 Temperature settings for the storage tank Froling GesmbH | A-4710 Grieskirchen, Industriestraße 12 | www.froeling.com...
Page 73: Heating Times Of The Storage Tank
5.4.3 Heating times of the storage tank ⇨ See "Setting times" [page 35] Operating Instructions Lambdatronic H 3200 T4 - Touch | B0820314_en...
Page 74: Service Parameters Of The Storage Tank
3200 T4 energy systems" documents. Which sensor is used for storage tank sensor 2 Which sensor is used for storage tank sensor 3 Which sensor is used for bottom storage tank Froling GesmbH | A-4710 Grieskirchen, Industriestraße 12 | www.froeling.com...
Page 75: Menu - Boiler
Maximum storage tank pump speed 100% If you need to limit the maximum speed of the storage tank pump for sys‐ temic reasons, you can do so by adjusting this parameter. Operating Instructions Lambdatronic H 3200 T4 - Touch | B0820314_en...
Page 76: Status Displays For The Boiler
ID fan speed 2460 Air flap control Position of the air flap Residual oxygen content 8.5% Calculated boiler setpoint 77°C Return setpoint calculated 62°C Return feed sensor 63°C Return pump controller Froling GesmbH | A-4710 Grieskirchen, Industriestraße 12 | www.froeling.com...
Page 77: Temperature Settings For The Boiler
Heating circuit overheat in variable 1°C If variable mode is activated, the boiler setpoint temperature in heating mode mode is increased by this value compared to the required flow tempera‐ ture. Operating Instructions Lambdatronic H 3200 T4 - Touch | B0820314_en...
Page 78: Heating Times Of The Boiler
The boiler temperature is controlled according to the calculated flow value for the heating circuit/DHW tank. Mixer runtime 240 s Sets mixer runtime of the mixer in use. Recommendation to reduce mixer vibration: Do not set to < 150 s Froling GesmbH | A-4710 Grieskirchen, Industriestraße 12 | www.froeling.com...
Page 79: General Settings
Set hours since last maintenance to To reset the counter “Hours since last maintenance”, this parameter must be set to "YES”. After the has been reset, the parameter jumps to "NO”. Operating Instructions Lambdatronic H 3200 T4 - Touch | B0820314_en...
Page 80: Operator Data
Customer no. 263586 If both the customer and the boiler number are set, they are automatically transferred into the commissioning report when it is saved. Boiler number Froling GesmbH | A-4710 Grieskirchen, Industriestraße 12 | www.froeling.com...
Page 81: Menu - Boiler
Standby boiler start, if storage tank 20°C Temperature at the top of the storage tank, which the temperature must top temperature is below fall below for the standby boiler to be activated Operating Instructions Lambdatronic H 3200 T4 - Touch | B0820314_en...
Page 82: Service Parameters Of The Backup Boiler
Invert backup boiler isolating valve For DHW tank loading through the backup boiler, the isolating valve is ac‐ tivated with 230V. If the valve switches incorrectly, this parameter can be adjusted. Froling GesmbH | A-4710 Grieskirchen, Industriestraße 12 | www.froeling.com...
Page 83: Menu - Fuel
Menu - Fuel Parameter Description Which second boiler is installed? Oil boil‐ Standby boiler type: - - OIL BOILER - MANUALLY FED - AUT. FED - GAS BOILER Burner relays Operating Instructions Lambdatronic H 3200 T4 - Touch | B0820314_en...
Page 84: Service Parameters For Fuel
Set parameter to "YES" and wait until the value returns to "NO". Only then have the values been adopted. ❒ Only adopt specified values in "Boiler off" status. ➥ Warning! Startup values are reset. Froling GesmbH | A-4710 Grieskirchen, Industriestraße 12 | www.froeling.com...
Page 85: Stoker Screw
How long should the screw turn backwards during troubleshooting screw, it turns backwards for When troubleshooting the feed 1.5 s How long should the feed screw turn forwards during troubleshooting screw, it turns forwards for Operating Instructions Lambdatronic H 3200 T4 - Touch | B0820314_en...
Page 86: Screw
The time for which the light barrier must consistently recognise no material barrier to deactivate material recognition in the drop box. Maximum idle time of screw 60 m Time delay until an error in the material recognition is tripped. 5.8.4 Screw 2 Froling GesmbH | A-4710 Grieskirchen, Industriestraße 12 | www.froeling.com...
Page 87: Menu - Network Pump
The time for which the light barrier must consistently recognise no material barrier to deactivate material recognition in the drop box. Maximum idle time of screw 60 m Time delay until an error in the material recognition is tripped. Operating Instructions Lambdatronic H 3200 T4 - Touch | B0820314_en...
Page 88: Network Pump Status Displays
Return temperature setpoint 50°C Note the information on multiple house diagrams in the “Lambdatronic H at feeder 1 3200 T4 energy systems" documents. Return temperature setpoint 50°C at feeder 2 Froling GesmbH | A-4710 Grieskirchen, Industriestraße 12 | www.froeling.com...
Page 89: Service Parameters For The Network Pump
⇨ See "Setting the module address" [page 21] Observe the information on hydraulic systems in the "Lambdatronic H Which pump is used for 3200 T4 energy systems" documents. feeder 1 Operating Instructions Lambdatronic H 3200 T4 - Touch | B0820314_en...
Page 90: Menu - Cascade
Maximum speed for feeder pump 1 100% If you need to limit the maximum speed of the storage tank pump for sys‐ temic reasons, you can do so by adjusting this parameter. Froling GesmbH | A-4710 Grieskirchen, Industriestraße 12 | www.froeling.com...
Page 91: Status Displays For The Cascade
Parameter Description Backup boiler boiler temperature 40°C Displays the current values for the relevant parameter. Backup boiler OK Backup boiler is heating Backup boiler control variable Boiler charging pump speed Operating Instructions Lambdatronic H 3200 T4 - Touch | B0820314_en...
Page 92: Temperature Settings For The Cascade
The parameter defines the maximum power reduction of the cascade be‐ cascade before the storage tank is fore the storage tank is fully loaded (modulation of the boiler system) fully loaded 5.10.4 Service parameters of the cascade Froling GesmbH | A-4710 Grieskirchen, Industriestraße 12 | www.froeling.com...
Page 93: Menu - Difference Regulator
If the same priority is set for two or more boiler systems, the boiler start order is determined by the service hours of the boiler systems Start priority of slave boiler 1 Start priority of slave boiler 2 Start priority of slave boiler 3 Operating Instructions Lambdatronic H 3200 T4 - Touch | B0820314_en...
Page 94: Status Displays For The Difference Regulator
Temperature settings for regulating range of the differential temperature source regulating output. Maximum temperature for 100°C The standard settings of 10°C or 100°C are selected so that the values in heat sink normal operation stay outside a limit. Froling GesmbH | A-4710 Grieskirchen, Industriestraße 12 | www.froeling.com...
Page 95: Service Parameters For The Difference Regulator
3200 T4 energy systems" documents. Sensor monitoring If relatively low temperatures (< 5°C) occur when using the diff. controller, setting the parameter to “NO” suppresses the error message Operating Instructions Lambdatronic H 3200 T4 - Touch | B0820314_en...
Page 96: Status Displays For The Circulation Pump
0 ... No flow at the valve 1 ... Valve registers flow Speed of the 100% Current circulation pump speed circulation pump 5.12.2 Temperature settings for the circulation pump Froling GesmbH | A-4710 Grieskirchen, Industriestraße 12 | www.froeling.com...
Page 97: Time Settings For The Circulation Pump
If the flow valve does not register any more flow, the circulation pump car‐ ries on running for the time set. 5.12.3 Time settings for the circulation pump ⇨ See "Setting times" [page 35] 5.12.4 Service parameters of the circulation pump Operating Instructions Lambdatronic H 3200 T4 - Touch | B0820314_en...
Page 98: Menu - Manual
Maximum speed of the circulation 100% If you need to limit the maximum speed of the circulation pump for system‐ pump ic reasons, you can do so by adjusting this parameter. Froling GesmbH | A-4710 Grieskirchen, Industriestraße 12 | www.froeling.com...
Page 99: Manual Operation
Screw 2 Oufeeder - manual Ignition Discharge screw Ash screw WOS motor Grate tip drive Rinse the condenser manually (only when boiler is off / on standby) 5.13.2 Digital outputs Operating Instructions Lambdatronic H 3200 T4 - Touch | B0820314_en...
Page 100: Analogue Outputs
A 0% A … automatic -A 0% … automatic, OFF ID Fan Actual value: 0 -A 1% - 100% … automatic, with % value ON A 0% 0% … manual, OFF Froling GesmbH | A-4710 Grieskirchen, Industriestraße 12 | www.froeling.com...
Page 101: Digital Inputs
Stoker motor protection tripped Feed screw motor protection tripped Motor protection delivery screw OK Motor protection intermediate screw Gravity shaft cover on delivery screw closed Light barrier delivery screw free Operating Instructions Lambdatronic H 3200 T4 - Touch | B0820314_en...
Page 102: Menu - System
Menu overview and parameters Menu - System Parameter Description Light barrier screw 1 Light barrier screw 2 Froling GesmbH | A-4710 Grieskirchen, Industriestraße 12 | www.froeling.com...
Page 103: Setting
Once the specified time has passed, the heating system tem‐ peratures are evaluated. Return setpoint boost (power influ‐ This setting determines how heavily the deviation of the actual boiler tem‐ ence) perature from the boiler temperature setpoint is weighted. Operating Instructions Lambdatronic H 3200 T4 - Touch | B0820314_en...
Page 104: Adjustable Parameters: Flue Gas
If the actual temperature of the boiler + the specified difference is greater than the actual temperature of the flue gas, the boiler switches to the oper‐ ating status, Off (criterion applies during shutdown wait status) Froling GesmbH | A-4710 Grieskirchen, Industriestraße 12 | www.froeling.com...
Page 105 “Temp 1” and “Temp 2”. Temp 2 130°C FGR characteristic progression 0: FGR characteristic progression 1: FGR characteristic progression 2: FGR characteristic progression 3: FGR characteristic progression 4: Operating Instructions Lambdatronic H 3200 T4 - Touch | B0820314_en...
Page 106: Adjustable Parameters - Ignition
Calorific value heat exchanger 22:00 Time until which the cleaning program can start. cleaning possible until Flue gas condenser Shows the current values. Heating: 0 min Washing processes: 0 Adjustable parameters - Ignition Froling GesmbH | A-4710 Grieskirchen, Industriestraße 12 | www.froeling.com...
Page 107: Adjustable Parameters: Air Settings
Minimum output Minimum boiler variable control that can be set for the boiler. The duration of the preparation is 120s Duration of the seal check during status, "Preparation". Operating Instructions Lambdatronic H 3200 T4 - Touch | B0820314_en...
Page 108: Adjustable Parameters: Fuel Feed
Nominal current for feed screw 0.80 A Nominal current for the feed screw motor according to the identification plate on the motor. Min. current monitoring with stoker / Detects failure of measured phase. feed screw Froling GesmbH | A-4710 Grieskirchen, Industriestraße 12 | www.froeling.com...
Page 109: Adjustable Parameters: Wos / Cleaning
Duration of an ash screw activation Cleaning after standby NO: Cleaning takes place after shutdown YES: Cleaning does not take place until the status switches from “Stand‐ by” to “Preparation”. Adjustable parameters: Combustion chamber Operating Instructions Lambdatronic H 3200 T4 - Touch | B0820314_en...
Page 110: Adjustable Parameters: Lambda Values
"Fault" status after the safety time. The fault "Safety which fire is out time O " is displayed. Slide-in control Factory setting - do not change! Start value of the slide-in control Froling GesmbH | A-4710 Grieskirchen, Industriestraße 12 | www.froeling.com...
Page 111: Adjustable Parameters: Lambda Values - Lsm11 Lambda Probe
CAUTION: The probe must be at 21% O (air). Broadband probe heating current 0.00A Display of the current values for the relevant broadband probe parameter Broadband probe heating voltage 0.00V Broadband probe Nernst 0.000V voltage Operating Instructions Lambdatronic H 3200 T4 - Touch | B0820314_en...
Page 112 ❒ Set parameter to "YES" and press the enter key ➥ Automatic calibration of the broadband probe begins ➥ Once calibration is complete the parameter is automatically set to "NO" and the broadband probe is ready for use Froling GesmbH | A-4710 Grieskirchen, Industriestraße 12 | www.froeling.com...
Page 113: Adjustable Parameters: General Settings
The COM 2 interface sends the most important boiler values every second MODBUS address Adjustable parameters for MODBUS MODBUS protocol (1 – RTU / 2 – ASCII) 5.14.2 Current values Operating Instructions Lambdatronic H 3200 T4 - Touch | B0820314_en...
Page 114 0.00 A power consumption Underpressure - setpoint 40 P Underpressure - actual 40 P Return sensor 61°C Board temperature wood chip mod‐ 35°C Cust. no.: 263586 Boiler no.: 560 EQU no.: 345344326 Froling GesmbH | A-4710 Grieskirchen, Industriestraße 12 | www.froeling.com...
Page 115: Service Hours
Ignition service hours Lambda probe service hours Opening/closing movements of the grate ID fan service hours Heat exchanger service hours Ash screw service hours Suction turbine(s) service hours Delivery screw service hours Operating Instructions Lambdatronic H 3200 T4 - Touch | B0820314_en...
Page 116: Sensors And Pumps
The display of the parameters varies depending on the system set. Which sensor is used for bottom storage tank Note the information on hydraulic systems in the "Lambdatronic H 3200 T4 energy systems" documents. Which pump is used for the...
Page 117: Display Operating Rights
Allocate access rights for changing solar system parameters to the individ‐ ual controls. Tap Solar 01 to activate the access rights of the solar system for the con‐ trol. This is indicated when the “Confirm” icon appears. Operating Instructions Lambdatronic H 3200 T4 - Touch | B0820314_en...
Page 118: Froeling Connect
Deviation of room sensor from touch 0°C display with address 7 Deviation of room sensor from but‐ 0°C ton display with address 1 Froling GesmbH | A-4710 Grieskirchen, Industriestraße 12 | www.froeling.com...
Page 119: System Selection
DHW tank: Button display with address 7 is al‐ None located to the following DHW tank: 5.14.6 System selection ⇨ See "Setting the system selection" [page 46] Operating Instructions Lambdatronic H 3200 T4 - Touch | B0820314_en...
Page 120: Menu - Diagnostics
Menu - Diagnostics 5.15 Menu - Diagnostics ⇨ See "Navigation within the system menu" [page 32] 5.15.1 Error display ⇨ See "Troubleshooting" [page 126] 5.15.2 Error history ⇨ See "Troubleshooting" [page 126] Froling GesmbH | A-4710 Grieskirchen, Industriestraße 12 | www.froeling.com...
Page 121: Clear Error History
This is the time the error occurred. This is the time the error was acknowledged. This is the time the error was rectified. 5.15.3 Clear error history Operating Instructions Lambdatronic H 3200 T4 - Touch | B0820314_en...
Page 122: Menu - Display Settings
Module address 0: Boiler console Module address 1-7: respective RBG Touch Once you have changed the module address, you will need to restart the boiler controller (switch main switch on boiler off and on). Froling GesmbH | A-4710 Grieskirchen, Industriestraße 12 | www.froeling.com...
Page 123: Network Settings
192.168.0.10 If the parameter “Use DHCP” is set to “NO”, the adjacent settings are re‐ leased for editing. Subnet mask 255.255.255.0 Default gateway: 0.0.0.0 DNS server 0.0.0.0 5.16.2 Date / Time ⇨ See "Setting the date/time" [page 37] Operating Instructions Lambdatronic H 3200 T4 - Touch | B0820314_en...
Page 124: Software Update / Service
Menu overview and parameters Menu - Display settings 5.16.3 Software update / Service ⇨ See "Updating the software of the touch control" [page 27] Froling GesmbH | A-4710 Grieskirchen, Industriestraße 12 | www.froeling.com...
Page 125: Pwm / 0 - 10V Settings
The same functions that apply with PDM apply to the parameter values with 0-10V. The only difference is that instead of pulse duration modulation, a 0-10V signal is used to control the pump. Operating Instructions Lambdatronic H 3200 T4 - Touch | B0820314_en...
Page 126: Troubleshooting
The “Error display” button will now appear in the quick menu. 6.1 Procedure for fault messages If you open the window with the respective fault text, the right arrow will take you to possible causes of the fault. Froling GesmbH | A-4710 Grieskirchen, Industriestraße 12 | www.froeling.com...
Page 127 Tapping “Solution” will also display action to be taken to resolve the problem. If there are several options available, these will be listed one below the other. Once the fault has been resolved, tap the Cancel icon to return to the basic display. Operating Instructions Lambdatronic H 3200 T4 - Touch | B0820314_en...
Page 128: Setting Protocol
Below the heating circuit number it notes the heating area, for which this heating cir‐ cuit is used. The relevant connected unit should be noted next to the pumps or sen‐ sors. Example: Module address = 2; Froling GesmbH | A-4710 Grieskirchen, Industriestraße 12 | www.froeling.com...
Page 129 Heating circuit module Sensor 2.5 Sensor 2.6 Bus cable correctly connected (see “Connecting the bus cable”)) Final check Addressing correctly carried out and recorded Jumper placed at the last module Operating Instructions Lambdatronic H 3200 T4 - Touch | B0820314_en...

Froling Lambdatronic H 3200 T4 Operating Instructions Manual

1 General

2 Electrical Connection and Wiring

3 Overview of the Basic Functions

4 Operation

5 Menu Overview and Parameters

6 Troubleshooting

7 Setting Protocol

Quick Links

Need help?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Froling Lambdatronic H 3200 T4

Summary of Contents for Froling Lambdatronic H 3200 T4

Table of Contents
