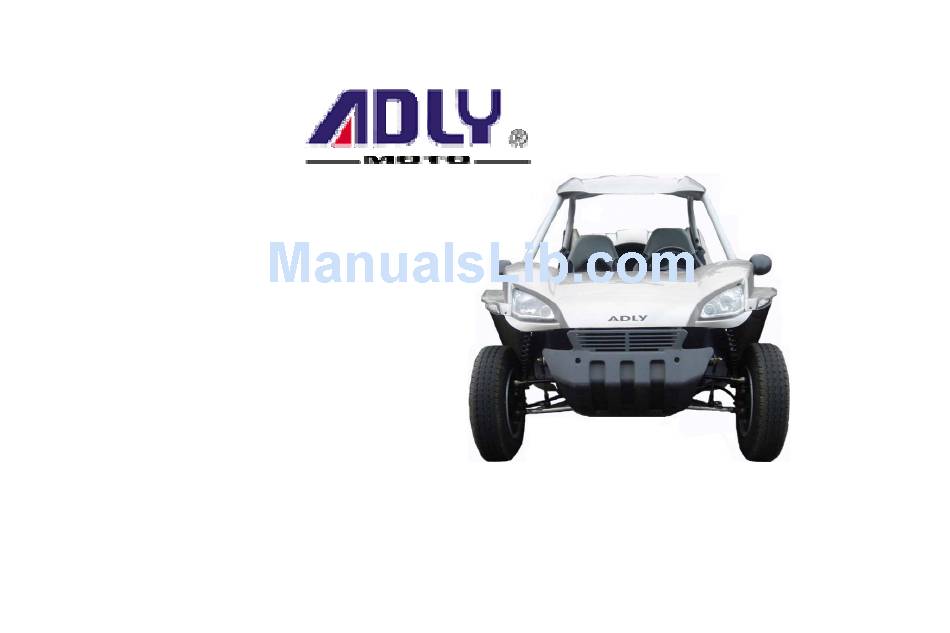

MK-320 Minicar
OWNER'S MANUAL
12/10/2008

Advertisement

loading
Need help?

Need help?

Do you have a question about the MK-320 and is the answer not in the manual?

Questions and answers

ابراهيم
March 23, 2025

احتاج الى قير كامل دباب بقي Adly 320 واحتاج الى بعض القطع الاخرى ارجو المساعدة WhatsApp number 00966506237082

User image 67df54d537754
0
1 comments:
Him
March 23, 2025

@ابراهيم

User image 67df550c2ce33
0

Related Manuals for ADLY MOTO MK-320

Summary of Contents for ADLY MOTO MK-320

  • Page 1 MK-320 Minicar OWNER’S MANUAL 12/10/2008...

  • Page 2: Foreword

    FOREWORD May we, the manufacturer, take this opportunity to thank you for choosing our Minicar to serve you. This Owner’s Manual is prepared for you to properly operate in safety. It also includes information about the general care and maintenance of your Minicar. Therefore, we would like you to read the manual before operating the vehicle.

  • Page 3: Table Of Contents

    CONTENTS Page Foreword --------------------------------------------------------------------------------------------------------- 1 Operation Warning --------------------------------------------------------------------------------------------- 3 Safety Information ---------------------------------------------------------------------------------------------- 4 Specifications ---------------------------------------------------------------------------------------------------- 5 Periodical Check and Services ------------------------------------------------------------------------------ 6 Pre Operating Inspection ------------------------------------------------------------------------------------- 7 Operation -------------------------------------------------------------------------------------------------------- 13 Maintenance ---------------------------------------------------------------------------------------------------- 24 Correct Way of Driving --------------------------------------------------------------------------------------- 29 Abnormalities and Trouble Shooting ---------------------------------------------------------------------- 31 VIN number and Identification ------------------------------------------------------------------------------ 32 Pre-Delivery Inspection --------------------------------------------------------------------------------------- 33 Maintenance and Service record -------------------------------------------------------------------------- 34...

  • Page 4: Operation Warning

    OPERATION WARNING THIS VEHICLE IS NOT A TOY AND CAN BE HAZARDOUS TO OPERATE. NEVER OPERATE THIS VEHICLE WITHOUT PROPER INSTRUCTION. THIS VEHICLE IS NOT FOR YOUTH UNDER 16 YEARS OLD. ALWAYS FASTEN SEAT BELT. READ THIS OWNER’S MANUAL CAREFULLY. IT’S DANGEROUS TO DRIVE ON AN UNCLEAR ROAD CONDITION.

  • Page 5: Safety Information

    SAFETY INFORMATION Don’t allow your child to ride. Read all warning sticks on vehicle and follow the instruction. Keep a safe distance between your vehicle and other vehicles. Take a training course if you are a beginner. This vehicle is designed to be operated only on level, free of obstacles. When operate this vehicle on public streets, follow all safety rules that required.

  • Page 6: Specifications

    SPECIFICATIONS MODEL TYPE MK-320 DISPLACEMENT 272 cc (7.34 cu in) TYPE 4 Stroke, SOHC, 4 Valves, Liquid cooled. STARTING Electric LUBRICATION Wet sump with washable oil filter TRANSMISSION CVT with H/L & Reverse gears. SPARK PLUG NGK, DPR7EA BATTERY 12 volts, 10 Ah Maintenance free OIL CAPACITY 1.0 L SAE 5W-40 or 10W-40...

  • Page 7: Periodical Check And Services

    PERIODICAL CHECK & SERVICES Maintenance Schedule The maintenance intervals in the following table are based upon average riding conditions. Riding in unusually dusty areas, require more frequent servicing. Frequency Regular Service Mileage ( KM) Item 1000 2000 3000 4000 5000 6000 Engine Oil Oil Filter...

  • Page 8: Pre Operating Inspection

    PRE OPERATING INSPECTION Inspect your vehicle before you ride it. It only takes a few minutes to check and may save your life. Check the tires condition and pressure. Check the nuts, bolts and other fasteners. Check the drive shaft condition. Check the throttle for smooth opening and return.
  • Page 9 PRE OPERATING INSPECTION Check and / or Refill Oil Oil Level Screen Max. Min. Oil Filter Housing ： CAUTIONS Be sure to have sufficient oil, see the oil level screen, and the filling cap is installed Oil Filling correctly. Total oil capacity：1.0 Liter Prescribed 4-stroke engine oil only, synthetic type is recommended.
  • Page 10 PRE OPERATING INSPECTION Check and refueling Insert the key and turn to unlock (clockwise) position for opening the fuel cap. After refueling, insert the cap properly and turn the key to lock (anti-clockwise) position. Pull out the key and check fuel cap to make sure it’s locked.
  • Page 11 PRE OPERATING INSPECTION Tire pressure ： CAUTIONS Recommended tire pressure: On-road 30 psi ( 2.11 kg/cm Max. pressure : 35 psi ( 2.46 kg/cm Min. pressure : 24 psi ( 1.69 kgf/cm Do not over inflate the tire pressure as indicated on the tire. Check if there is any gravel in the tread grooves or any nail puncture.
  • Page 12 PRE OPERATING INSPECTION Battery This vehicle is equipped with a maintenance free type battery that requires maintenance. Remove and Check Remove battery tray fixity. Remove negative and positive terminals (negative first). Remove battery and check voltage. Normal voltage：12V and above Keep terminals clean constantly.
  • Page 13 PRE OPERATING INSPECTION Coolant level With vehicle on a level surface, liquid should be between MIN and MAX level marks stamped on coolant reservoir. ： CAUTIONS Check coolant level while engine is cold. Coolant Reservior Never add coolant in cooling system when engine is hot.

  • Page 14: Operation

    OPERATION KEY SWITCH OFF & LOCK To cut off the power supplied to turn off the engine. The key can be extracted. After extracted the key, turn steeling wheel START OFF & left or right to lock the steeling. LOCK To supplied power to vehicle accessories.
  • Page 15 OPERATION ELECTRIC STARTER Start Step on the brake pedal then turn the key to Position start position to cranks the engine. After engine started, release the key and it will kept in "ON" position. ： CAUTIONS When cranks the engine: Don’t turn the key to start position as the engine is running.
  • Page 16 OPERATION SIGNAL LIGHT SWITCH Turn switch shaft up, the right signal light flashing indicates turning to the right. Turn switch shaft down, the left signal light flashing indicates turning to the left. The switch will automatically return to neutral when turning steering wheel ahead. CAUTIONS: Always turn on signal lights before turning.
  • Page 17 OPERATION HEADLIGHT SWITCH Turn switch shaft to change lighting function. The light function can be "OFF", "Position Switch Shaft Light" and "Head Light ". CHANGING HEADLIGHT BEAM Pull switch shaft toward driver to change Hi-Low beam. Pull switch shaft up again to change setting. Low beam For normal condition.
  • Page 18 OPERATION HAZARD WARNING SWITCH HAZARD Press lower side of hazard switch and all indicator lights will start blinking together. Hazard Switch Press upper side of hazard switch to release hazard function.
  • Page 19 OPERATION INSTRUMENT PANEL Speed Turn Indicator Fuel Meter Trip & Odometer Water Temp. Parking Setting Button Low Gear High Gear Neutral Reverse Hi Beam...
  • Page 20 OPERATION GEAR SHAFT L From Neutral position, hoist the gear shaft to top for low speed forward. Use in uphill driving or rough terrain conditions. Speed limited below 50 Km/Hr. H From Neutral position, hoist the gear shaft for high speed forward. CAUTION: Use in generally driving conditions.
  • Page 21 OPERATION LOCKING DIFFERENTIAL LOCK Locking differentials work by temporarily locking together a differential's output shafts, causing all wheels to turn at the same rate, providing torque in case of slippage. FREE...
  • Page 22 OPERATION BRAKE Brake The foot brake pedal is located at front of Padel driver beside with accelerate pedal. When step on the brake pedal, front and rear wheels will effect at same time. Accelerate Padel PARKING BRAKE HANDLE Parking Lock Pull the parking brake handle up to perform Button brake function.
  • Page 23 OPERATION ENGINE START-UP & CAUTIONS Check oil and fuel prior to start-up. 1. Set the gear to neutral and engaged parking brake. 2. Use key to turn “Main Switch” on. 3. Turn the key to start position to crank the starter motor.. ：...
  • Page 24 OPERATION FUEL METER The fuel meter is located on the left side of the instrument panel. Fuel Level When the tank was full, the level light Light Bar bars are shows at top. During the fuel consuming, light bars cease from top then down to bottom.

  • Page 25: Maintenance

    MAINTENANCE CLEAN AND REPLACE AIR FILTER CLEAN OIL FILTER Air filter is located under fuel tank. Oil filter house is located on lower left side of Move the seat to find air filter house. cylinder head. Remove oil filter house to clean filter. CLEAN AND CHECK FILTER EACH 1000KM OR AFTER OFF-ROAD USE.
  • Page 26 MAINTENANCE DRAIN AND REFILL GEAR OIL Main Gear Box Gear oil Place the vehicle on a level surface. drain plug Select NEUTRAL position then apply parking of main gear box brake. Remove gear oil drain plug to drain gear oil. Reinstall the drain plug and remove refill plug.
  • Page 27 MAINTENANCE DRAIN AND REFILL GEAR OIL Differential Gear oil Place the vehicle on a level surface. drain plug of differential Select NEUTRAL position then apply parking brake. Remove gear oil drain plug to drain gear oil. Reinstall the drain plug and remove level plug. Place a funnel into the oil level hole to refill gear oil.
  • Page 28 MAINTENANCE CVT DRAIN In case the water gets in CVT house and cause slipping. Switch off the engine then place the vehicle on a level surface. Remove the bolt below CVT drain mark for draining. Tighten the bolt properly then restart the engine.
  • Page 29 MAINTENANCE PARKING BRAKE Parking brake was solo control by parking brake handle and parking caliper. Parking Brake Check parking brake before ride. Handle Emergency Brake Parking brake can be used as an emergency brake but just during the pedal brake is fail. Adjustment Parking Brake Put parking brake handle on neutral.

  • Page 30: Correct Way Of Driving

    CORRECT WAY OF DRIVING START OF DRIVING Press the acceleration pedal slowly to control your speed. Acceleration is to increase the speed. Slowly control the pedal action while driving on a slope. It will activate the engine power. Deceleration is to decrease the speed. Release the pedal will do.
  • Page 31 CORRECT WAY OF DRIVING STOP OF THE VEHICLE Approaching to the parking point: Release the accelerator and press brakes pedal to decrease speed. Complete stop: Stop the engine by turns the key switch to “OFF”. Don’t park on uneven ground to avoid tipping over. ：...

  • Page 32: Abnormalities And Trouble Shooting

    ABNORMALITIES AND TROUBLE SHOOTING If the engine fails to start or engine fails to keep running. Check is the engine stop switch was in the RUN position. Check the gas tank is fuel are available and sufficient. Whether the procedure for engine start up is correct. Try to diagnose these malfunctions yourself first.

  • Page 33: Vin Number And Identification

    VIN NUMBER and IDENTICIFICATION Please record the VIN and engine number for further reference. The frame number (VIN) is stamped on the The engine number is engraved on middle front right side of frame. top of right crankcase. FRAME NO. RFL ENGINE NO.

  • Page 34: Pre-Delivery Inspection

    P.D.I. (Pre-Delivery Inspection) 1. Record the frame and engine number into the owner’s manual. 2. Check that all tires have correct pressure specified on the tire or in the owner’s manual. 3. Engine oil (4 Stroke, SAE10W/40 or Grade SAE 40) is enough. 4.

  • Page 35: Maintenance And Service Record

    MAINTENANCE and SERVICE RECORD P.D.I. 500 KM 1,000 KM NOTES：________________ NOTES：________________ NOTES：________________ _______________________ _______________________ _______________________ _______________________ _______________________ _______________________ _______________________ _______________________ _______________________ _________________________ _________________________ _________________________ DEALER： DEALER： DEALER： _________________________ _________________________ _________________________ DATE： DATE： DATE： 2,000 KM 3,000 KM 4,000 KM NOTES：________________ NOTES：________________ NOTES：________________ _______________________...
  • Page 36 MAINTENANCE and SERVICE RECORD 5,000 KM 6,000 KM 7,000 KM NOTES：________________ NOTES：________________ NOTES：________________ _______________________ _______________________ _______________________ _______________________ _______________________ _______________________ _______________________ _______________________ _______________________ _________________________ _________________________ _________________________ DEALER： DEALER： DEALER： _________________________ _________________________ _________________________ DATE： DATE： DATE： 8,000 KM 9,000 KM 10,000 KM NOTES：________________ NOTES：________________ NOTES：________________...
  • Page 37 MAINTENANCE and SERVICE RECORD 11,000 KM 12,000 KM 13,000 KM NOTES：________________ NOTES：________________ NOTES：________________ _______________________ _______________________ _______________________ _______________________ _______________________ _______________________ _______________________ _______________________ _______________________ _________________________ _________________________ _________________________ DEALER： DEALER： DEALER： _________________________ _________________________ _________________________ DATE： DATE： DATE： 14,000 KM 15,000 KM 16,000 KM NOTES：________________ NOTES：________________ NOTES：________________...

  • Page 38: Abnormalities Service Record

    ABNORMALITIES SERVICE RECORD ODOMETER : KM ODOMETER : KM ODOMETER : NOTES：________________ NOTES：________________ NOTES：________________ _______________________ _______________________ _______________________ _______________________ _______________________ _______________________ _______________________ _______________________ _______________________ _________________________ _________________________ _________________________ DEALER： DEALER： DEALER： _________________________ _________________________ _________________________ DATE： DATE： DATE： ODOMETER : KM ODOMETER : KM ODOMETER : NOTES：________________ NOTES：________________...
  • Page 39 ABNORMALITIES SERVICE RECORD ODOMETER : KM ODOMETER : KM ODOMETER : NOTES：________________ NOTES：________________ NOTES：________________ _______________________ _______________________ _______________________ _______________________ _______________________ _______________________ _______________________ _______________________ _______________________ _________________________ _________________________ _________________________ DEALER： DEALER： DEALER： _________________________ _________________________ _________________________ DATE： DATE： DATE： ODOMETER : KM ODOMETER : KM ODOMETER : NOTES：________________ NOTES：________________...
