MULTILOGGER - QUICK START MANUAL
M1140, M1200, M1200E, M1220, M1300, M1320, M1321, M1322, M1323, M1440
The Multilogger has been designed for measuring and recording physical and
electric quantities with an adjustable logging interval from 1 second to 24 hours.

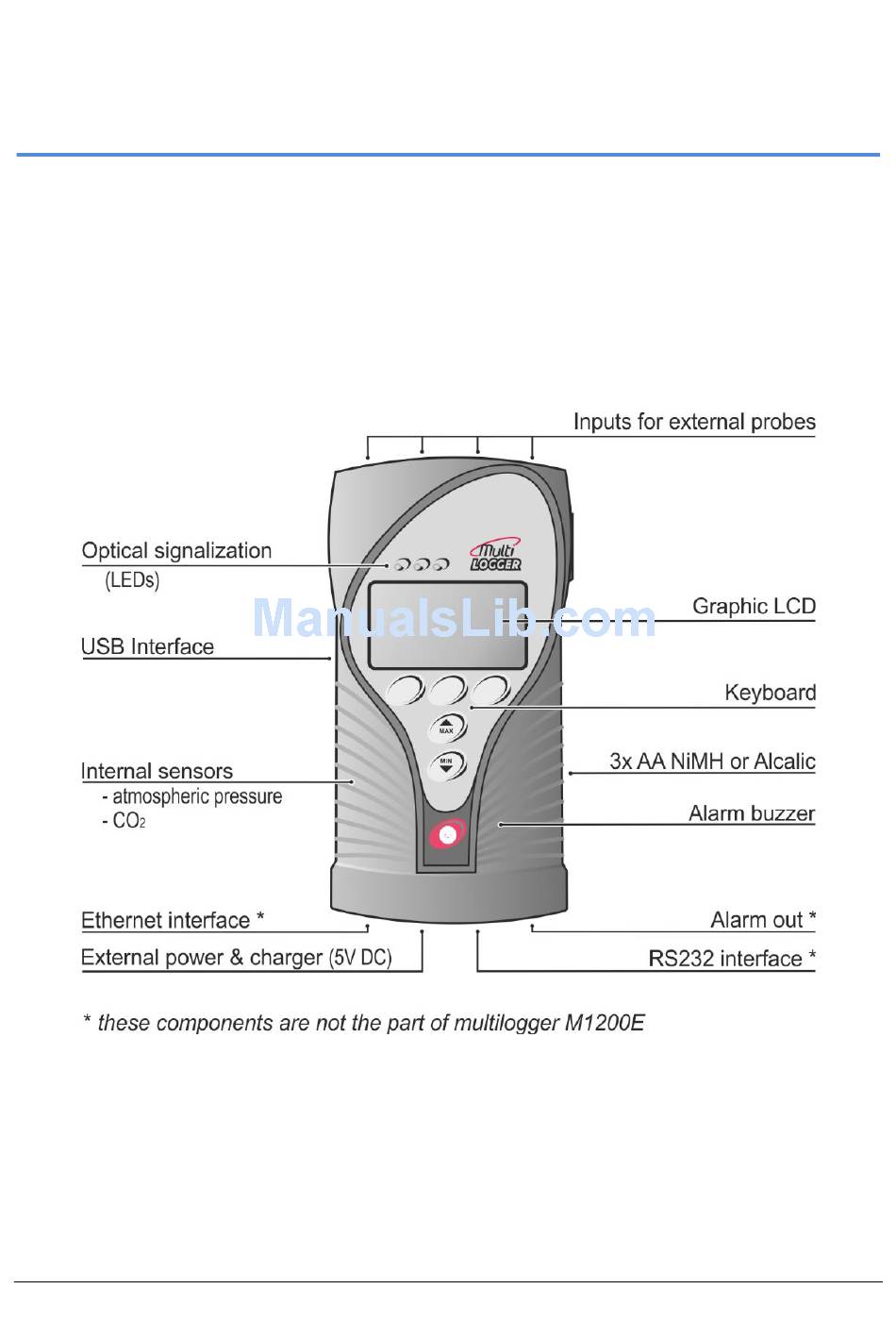

The device is equipped with 4 inputs (connectors) for external probes or
signals. Moreover, some versions also include an internal atmospheric
pressure and/or CO
concentration sensor. The production line consists of
2
several models with various combinations of the input ranges of the measured
quantities.
Getting started
Before putting the Multilogger into operation it is necessary to set up the device
inputs in accordance with connected probes and for the required measuring
ranges. This settings can be performed only using a computer with the
COMET Vision software.
IE-MLG-quick-04
1
Advertisement
Table of Contents
Related Manuals for Comet System M1200
Summary of Contents for Comet System M1200
- Page 1 MULTILOGGER - QUICK START MANUAL M1140, M1200, M1200E, M1220, M1300, M1320, M1321, M1322, M1323, M1440 The Multilogger has been designed for measuring and recording physical and electric quantities with an adjustable logging interval from 1 second to 24 hours. The device is equipped with 4 inputs (connectors) for external probes or signals.
- Page 2 Install the Comet Vision software that is available at www.cometsystem.cz to your computer. Launch installer and follow the instructions. If you purchased a license for full version, register it. The minimum hardware and software requirements: - Windows 7 and later or Windows Server 2008 R2 and later - 1.4 GHz processor - RAM 1 GB ...
- Page 3 This panel shows the configuration of the new device with the factory settings. For each input is shown the current type of connected probe or its measuring range. Change the settings of the selected input is possible by pressing Settings icon: Here it is possible in the dropdown menu to change the type of probe connected to the device input and to assign the appropriate input name for the...
- Page 4 measured quantities of which can be selected as user needs. Clicking to Finish the newly selected measured quantities will be assigned to the currently free channels. The maximum number of channels, with which the Multilogger can operate is 16. Then you can continue to set next input. In the line of each measured variable (ie.
- Page 5 Connection of probes and measured signals to the device inputs Manufactured models differ from each other by their input ranges and by input connectors. There are three types of connectors / terminals: MiniDIN connector ____________________________________________ It is used for connection of the DigiS/M…, DigiL/M…, Pt1000/M probes and for external CO probe.
- Page 6 Connection of the transmitter with voltage output: Connection of the transmitter with the current output (active): Connection of the transmitter with the current output (passive): IE-MLG-quick-04...
- Page 7 Connection of the binary and counter input: Warning To complement the information in this data sheet read the manual and other documentations that are available in the Download section for a particular device at www.cometsystem.com. IE-MLG-quick-04...
