GT950 Installation Guide
Desktop and Ceiling Mounted

Cabinet Dimensions

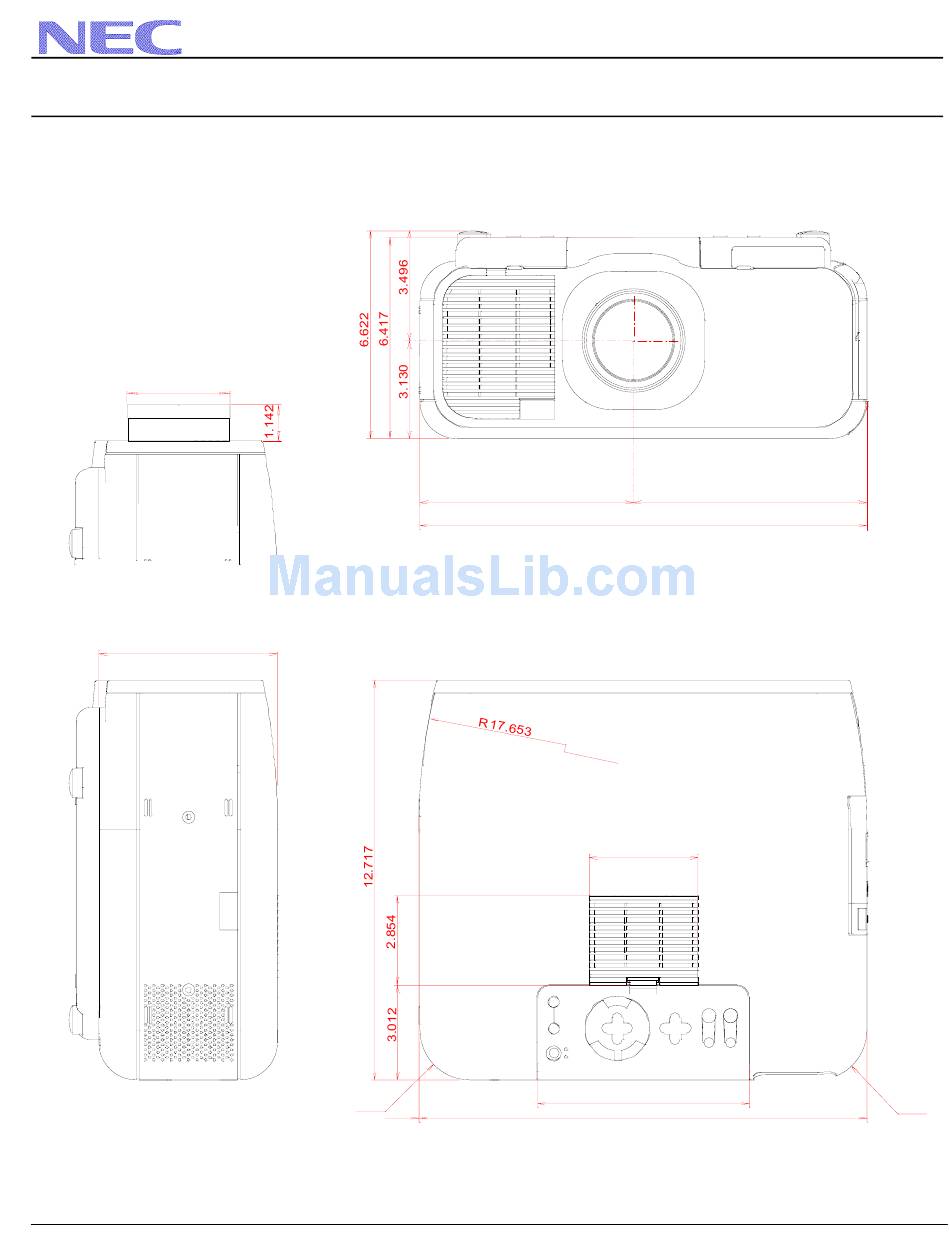

The following drawings show the cabinet dimensions for the GT950.
Dimensions are in inches. For millimeters multiply by 25.4.
GT950 with Optional GT35-9ZL Lens
Ø
3.268
5.669
www.necvisualsystems.com
6.811
R1.575
0.039
NEC Solutions (America), Inc.
Visual Systems
7.441
14.252
3.465
6.732
14.252
Page 5 of 9
v4.0
R 1.575
