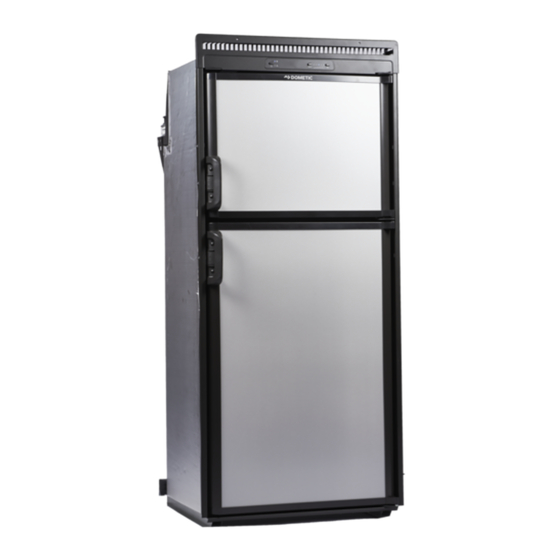

- Page 1 REFRIGERATION REFRIGERATORS MODE MODE RPD190, RPD 218 Compressor refrigerator Installation and Operating Manual...
-
Page 3: Table Of Contents
RPD190, RPD218 Please read this instruction manual carefully before installation and first use, and store it in a safe place. If you pass on the product to another person, hand over this instruction manual along with it. Table of contents Explanation of symbols . -
Page 4: Explanation Of Symbols
Explanation of symbols RPD190, RPD218 Explanation of symbols DANGER! Safety instruction: Failure to observe this instruction will cause fatal or serious injury. WARNING! Safety instruction: Failure to observe this instruction can cause fatal or serious injury. CAUTION! Safety instruction: Failure to observe this instruction can lead to injury. -
Page 5: Safety Instructions
RPD190, RPD218 Safety instructions Safety instructions The manufacturer accepts no liability for damage in the following cases: • Faulty assembly or connection • Damage to the product resulting from mechanical influences and excess voltage • Alterations to the product without express permission from the manufacturer •... - Page 6 Safety instructions RPD190, RPD218 CAUTION! • Danger of crushing! Do not put your fingers into the hinge. • Foodstuff may only be stored in its original packaging or in suitable containers. NOTICE! • Check that the voltage specification on the type plate is the same as that of the power supply.
-
Page 7: Scope Of Delivery
RPD190, RPD218 Scope of delivery • If you connect the device to a battery, make sure that no food comes into contact with the battery acid. NOTICE! • Do not use electrical devices inside the cooling device unless they are recommended by the manufacturer for that purpose. -
Page 8: Intended Use
Intended use RPD190, RPD218 Intended use The RPD series refrigerators are suitable for refrigerating foodstuffs and storing frozen foodstuffs. The device is also suitable for use on boats. The device is designed to be operated from a 12 V or 24 V on-board supply socket of a vehicle, boat or caravan as well as from a 100 –... - Page 9 RPD190, RPD218 Technical description Control elements inside the refrigerator The various types of refrigerators are shown in the following illustrations: RPD190 RPD218 MODE MODE Description Freezer compartment Control panel Wire shelf (folding, so that bottles can be put in the refrigerator)
-
Page 10: Control Elements
Technical description RPD190, RPD218 Control elements MODE Description P button (ON/OFF button) Power LED Status LED MODE button Temperature level LEDs button (Temperature setting button) -
Page 11: Installing And Connecting The Refrigerator
RPD190, RPD218 Installing and connecting the refrigerator Installing and connecting the refrigerator Please note the following instructions for installation on boats: DANGER! If the device is powered by the mains, ensure that the power supply has a residual current circuit breaker. -
Page 12: Installing The Refrigerator
Installing and connecting the refrigerator RPD190, RPD218 Installing the refrigerator >50 mm... - Page 13 RPD190, RPD218 Installing and connecting the refrigerator Key to fig. 3, page 12 Description Action Compressor shelf – produces heat – For optimum performance at high ambient temperatures: Cool intake air – external vent Fit inlet vent to exterior wall – position below compressor shelf Hot waste air –...
- Page 14 Installing and connecting the refrigerator RPD190, RPD218 • The installation dimensions can be found in the figure above. • Keep objects clear of openings in the housing or installation structure (such as ventilation slots, etc.). • Condensate is produced when the refrigerator is operating normally. A drain water hose is attached to the cooling device to drain the condensate to the outside.
- Page 15 RPD190, RPD218 Installing and connecting the refrigerator Proceed as follows to install the refrigerator: ➤ Fit the drain hose to the drain spout at the rear of the cabinet (1). ➤ Drill a hole for the drain water hose (e.g. through the floor (2).
- Page 16 Installing and connecting the refrigerator RPD190, RPD218 ➤ Fix the refrigerator in place using suitable screws (see figure above). ➤ Fix the lower front vent as shown in the illustration.
- Page 17 RPD190, RPD218 Installing and connecting the refrigerator Connecting the refrigerator to the power supply Connecting the refrigerator to 12 – 24 V NOTICE! • To avoid voltage drops and loss of performance, keep the connection cable as short as possible and uninterrupted.
- Page 18 Installing and connecting the refrigerator RPD190, RPD218 Key to the figure Coordinate axis Meaning Unit Cable length ∅ Cable cross section mm² NOTICE! Make sure the polarity is correct. ➤ Before starting up the device for the first time, check whether the operating voltage and the battery voltage match (see type plate).
-
Page 19: Using The Refrigerator
RPD190, RPD218 Using the refrigerator Connecting the refrigerator to AC mains DANGER! Danger of fatal injury! • Never handle plugs and switches with wet hands or if you are standing on a wet surface. • If you are operating your refrigerator on a boat with an AC mains connection using a shore connection, you must install a residual current circuit breaker between the AC mains and the refrigerator. - Page 20 Using the refrigerator RPD190, RPD218 Using the refrigerator The refrigerator conserves fresh foodstuffs. The freezer compartment conserves frozen foodstuff and freezes fresh foodstuff. CAUTION! Health hazard! • Never put any items back in the freezer compartment which have started defrosting or have been defrosted; consume them as soon as possible.
- Page 21 RPD190, RPD218 Using the refrigerator Setting the temperature – Normal mode ➤ Press the button to set the temperature to one of five levels between “cool” and “very cold”. The number of LEDs that are lit indicate the temperature range with 1 LED showing the lowest cooling capacity and 5 LEDs showing the highest cooling capacity.
- Page 22 Using the refrigerator RPD190, RPD218 Conserving foodstuffs You can conserve foodstuffs in the refrigerator. The time for which the food can be conserved in this way is usually stated on the package. NOTICE! • Do not conserve warm foodstuffs in the refrigerator.
- Page 23 RPD190, RPD218 Using the refrigerator Dividing the interior space You can divide the interior space of the refrigerator variably by arranging the shelves and the door compartments according to your needs. Removing and replacing the shelves ➤ Insert a flat bladed screw driver into the slot of the shelf locks and turn it counter-clockwise.
- Page 24 Using the refrigerator RPD190, RPD218 ➤ Insert the ends of the shelf on the left (1.). ➤ Slide the shelf into the holes on the right (2.). ➤ Slide the plastic plugs into the holes in the wall (3.).
- Page 25 RPD190, RPD218 Using the refrigerator ➤ Snap the shelf locks onto the shelf. Lower shelf stop wire...
-
Page 26: Replacing The Interior Light
Using the refrigerator RPD190, RPD218 NOTE A stop wire (1) is fitted to the rear of the lower shelf. The purpose is to prevent items from resting against the rear interior liner which has a low ambient control heater fitted behind the liner in this region. -
Page 27: Defrosting The Refrigerator
RPD190, RPD218 Using the refrigerator Defrosting the refrigerator NOTE In high ambient temperatures, the refrigerator may operate continuously, which can lead to excessive formation of frost on the rear wall of the refrigerator compartment. If this is the case, set the temperature control (fig. - Page 28 Using the refrigerator RPD190, RPD218 ➤ Run the refrigerator for approx. three hours at level “5”. ➤ Place the goods for cooling in the refrigerator. ➤ Set the temperature control to the desired level. Switching off and storing the refrigerator If you do not intend to use the refrigerator for a long time, proceed as follows: ➤...
-
Page 29: Cleaning And Maintenance
RPD190, RPD218 Cleaning and maintenance Cleaning and maintenance WARNING! Always disconnect the refrigerator from the mains before you clean and service it. NOTICE! • Do not use abrasive cleaning agents or hard objects during cleaning as these can damage the refrigerator. -
Page 30: Disposal
Disposal RPD190, RPD218 Disposal WARNING! Children beware! Before disposing of your old refrigerator: • Dismantle the drawers. • Leave the shelves in the refrigerator so that children cannot climb inside. NOTICE! An insulating gas is used in the device (see type plate). Check with the... -
Page 31: Troubleshooting
RPD190, RPD218 Troubleshooting Troubleshooting Compressor does not run (battery connection) Fault Possible cause Remedy Device does not The connection between the battery Establish a connection. function, Power LED and electronics unit has been does not glow interrupted. = 0 V... - Page 32 Troubleshooting RPD190, RPD218 Voltage between the positive and negative terminals of the electronics Term Cut-in voltage of the electronics Cut-off voltage of the electronics Compressor is not running (connected to AC supply) Fault Possible cause Remedy Device does not Connection supply line interrupted Establish a connection.
- Page 33 RPD190, RPD218 Troubleshooting Poor cooling, increase in interior temperature Fault Possible cause Remedy Compressor runs for a Evaporator is iced over. Defrost the evaporator. long time/continuously Cooling area insulation is insufficient Adjust/replace the door (moist/wet). seal. Ambient temperature too high –...
-
Page 34: Technical Data
Technical data RPD190, RPD218 Technical data RPD190 RPD218 Capacity – total: 190 l 218 l Capacity – freezer compartment: 44 l 44 l Connection voltage: 12 Vg or 24 Vg 100 – 240 Vw, 50 – 60 Hz Power rating (AC):... - Page 35 RPD190, RPD218 Technical data RPD190 RPD218 MODE MODE...
- Page 36 Dometic (Pty) Ltd. Dometic Branch Office Belgium MEXICO Regional Office Zincstraat 3 Dometic Mx, S. de R. L. de C. V. South Africa & Sub-Saharan Africa B-1500 Halle Circuito Médicos No. 6 Local 1 Unit 6-7 on Mastiff Linbro Park ...
