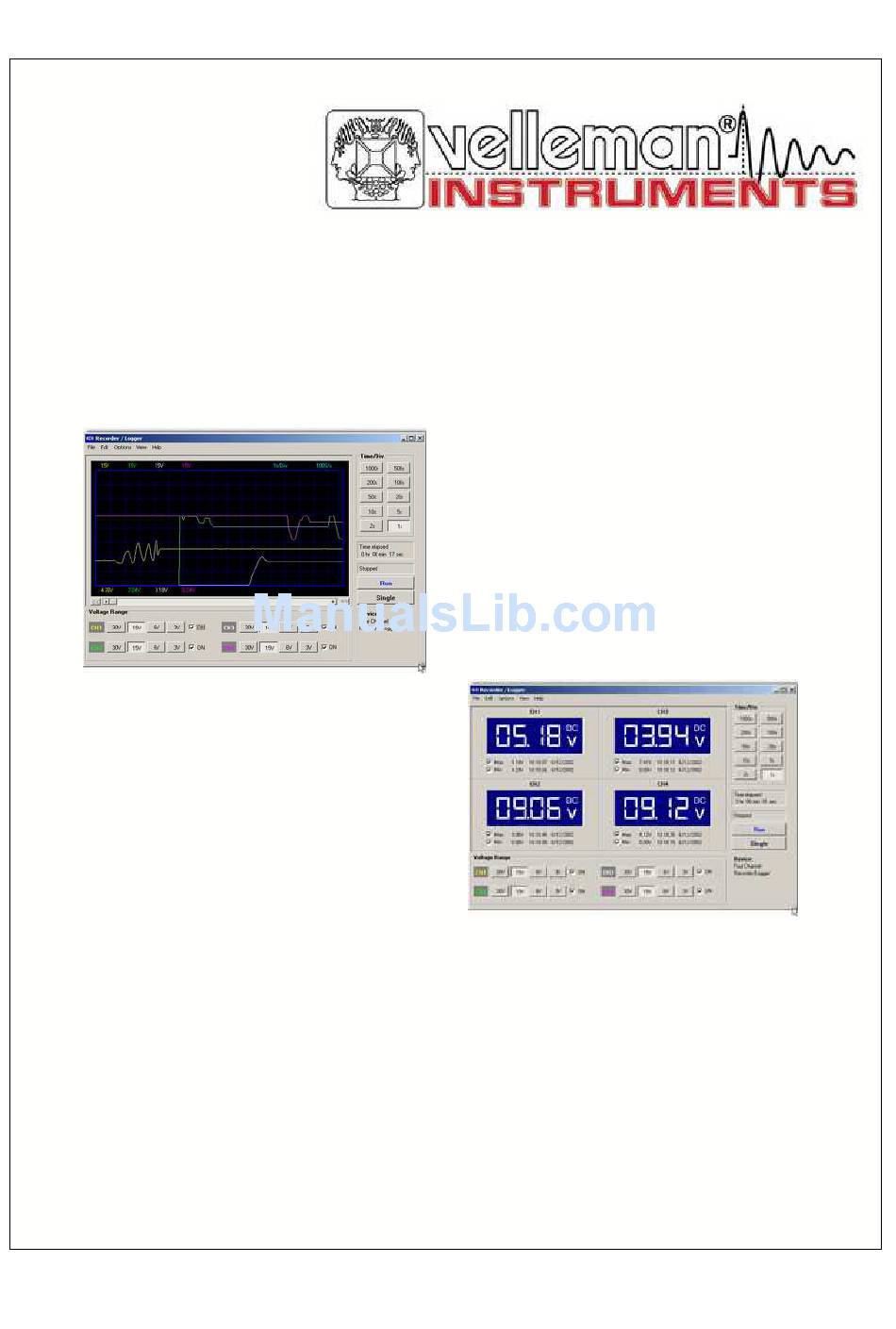

- Page 1 4 CHANNEL USB RECORDER / LOGGER PCS10 / K8047 User manual...
- Page 2 Velleman Instruments Altough developments in the field of electronics proceed at breakneck speed, we have always been able to create the ideal mix between innovation and durability. The innovations are mainly expressed in our scopes, which are created with the aid of the latest techniques.
-
Page 3: Table Of Contents
Troubleshooting ................................16 Product support ................................16 7 glossary ........................... 16 Administrator ................................16 ................................16 Logical printer ................................17 Plug and Play ................................17 Port ................................17 Print spooler ................................17 Printer ................................17 PCS10/K8047 © 2003 Velleman Components... - Page 4 PCS10 - K8047 recorder / Logger Spooling ................................17 ................................17 Index...
-
Page 5: Part I English
• Windows 98SE, ME, Windows 2000, Windows XP. • SVGA display card (min. 800 x 600). • Mouse • Free USB port • CD-Rom player. Software updates : Check our web site www.velleman.be for updates (or just click on "updates"). 1.1.3 Safety & Warnings SAFETY and WARNINGS Important safety information! PCS10/K8047 ©... -
Page 6: Warranty
ONE YEAR starting from the date of sale. This guarantee is only valid if the unit is submitted together with the original purchase invoice. VELLEMAN Components limits its responsibility to the reparation of defects or, as VELLEMAN Components deems necessary, to the replacement or reparation of defective components. -
Page 7: Power Led
Lights when the unit is recording data. 1.2.3 Signal input 4 input channels enable you to measure 4 signals at the same time. 1.2.4 USB output Connect the computer to the USB recorder/logger via the USB cable Make the connections : PCS10/K8047 © 2003 Velleman Components... -
Page 8: Readout Screens
PCS10 - K8047 recorder / Logger Readout screens 1.3.1 Analog screen K8047 / PCS10 screenshot Using this screen the 4 channels can be viewed simultanously as a trace on the screen . 1.3.2 Digital screen K8047 / PCS10 screenshot Powerfull feature which allows digital visualisation of the measurements... -
Page 9: Software Controls
English Software controls 1.4.1 Analog readout 1.4.1.1 Voltage range 1.4.1.2 Channels PCS10/K8047 © 2003 Velleman Components... -
Page 10: Time/Div
PCS10 - K8047 recorder / Logger 1.4.1.3 Time/div 1.4.1.4 Measuring... -
Page 11: Scrollbar
English 1.4.1.5 Scrollbar 1.4.2 Digital readout 1.4.2.1 Momentary voltage PCS10/K8047 © 2003 Velleman Components... -
Page 12: Max. & Min. Voltage Storage
PCS10 - K8047 recorder / Logger 1.4.2.2 Max. & Min. voltage storage Menu options 1.5.1 File menu Open image : Opens a image file and display it on the screen. Open data : Opens and displays the waveform data saved in text format using the Save data option. -
Page 13: Date
Point in time : 13 x 1/100 = 0,13s + 9:17:02 = 9:17:02.13 Voltage : 138 x 15/255 = 8,118V Example CH3 : Point in time : 4 x 1/100 = 0,04s + 9:17:02 = 9:17:02.04 Voltage : 61 x 30/255 = 7,176V Print page PCS10/K8047 © 2003 Velleman Components... -
Page 14: Edit Menu
PCS10 - K8047 recorder / Logger 1.5.2 Edit menu Copy : Copies the image to the windows 'clipboard'. Paste : Pastes the image residing in windows 'clipboard' to the screen. 1.5.3 Options menu Colors : Select the color for various items on the waveform display. To change the color of an item, click the corresponding button. -
Page 15: Colors
Brightens the blue grid on the screen. 1.5.4.1 Markers The user can perform measurements on one or 4 signals by using the markers. This can be useful when measuring the interval between two points of the amplitude. PCS10/K8047 © 2003 Velleman Components... -
Page 16: Markers Dv & T
PCS10 - K8047 recorder / Logger 1.5.4.2 Markers dV & t 1.5.4.3 Markers V & dt 1.5.4.4 Move the markers • Place the mouse pointer over a dached marker line. • Press and hold the left mouse button. • The marker line turns solid. -
Page 17: Display Digital
K8047 / PCS10 screenshot Unique feature allowing digital visualization of the max. and min. voltage peak during measurements 1.5.5 Help menu Contents : Display the help file. About : Displays information of the program version. PCS10/K8047 © 2003 Velleman Components... -
Page 18: About
PCS10 - K8047 recorder / Logger 1.5.5.1 About Assistance 1.6.1 Troubleshooting • If the Record Led of the Recorder/Logger unit is continuously lit at the startup: - Disconnect and then reconnect the unit to the PC. - The Record LED should show sequence of three blinks and then stay off until the Run button is depressed. -
Page 19: Logical Printer
A USB port is usually located on the back of your computer near the serial port or parallel port. Universal serial bus is also called USB. See also Plug and Play; port. PCS10/K8047 © 2003 Velleman Components... - Page 20 PCS10 - K8047 recorder / Logger Index - F - File menu - 2 - full coulour Full measurement range 24bit - H - - A - Hardware Help menu About absolute time - I - Analog readout Analog screen...
- Page 21 Time/div Troubleshooting True color - U - USB output USB power indication - V - V/div View menu Voltage range 7, 10 - W - Warranty Website Windows 95 Windows NT PCS10/K8047 © 2003 Velleman Components...
- Page 22 Velleman Instruments is a division of Velleman Components NV. Legen Heirweg 33 9890 Gavere Belgium Internet site : http://www.velleman.be E-mail : support@velleman.be © Velleman Instruments 2003_UK...
