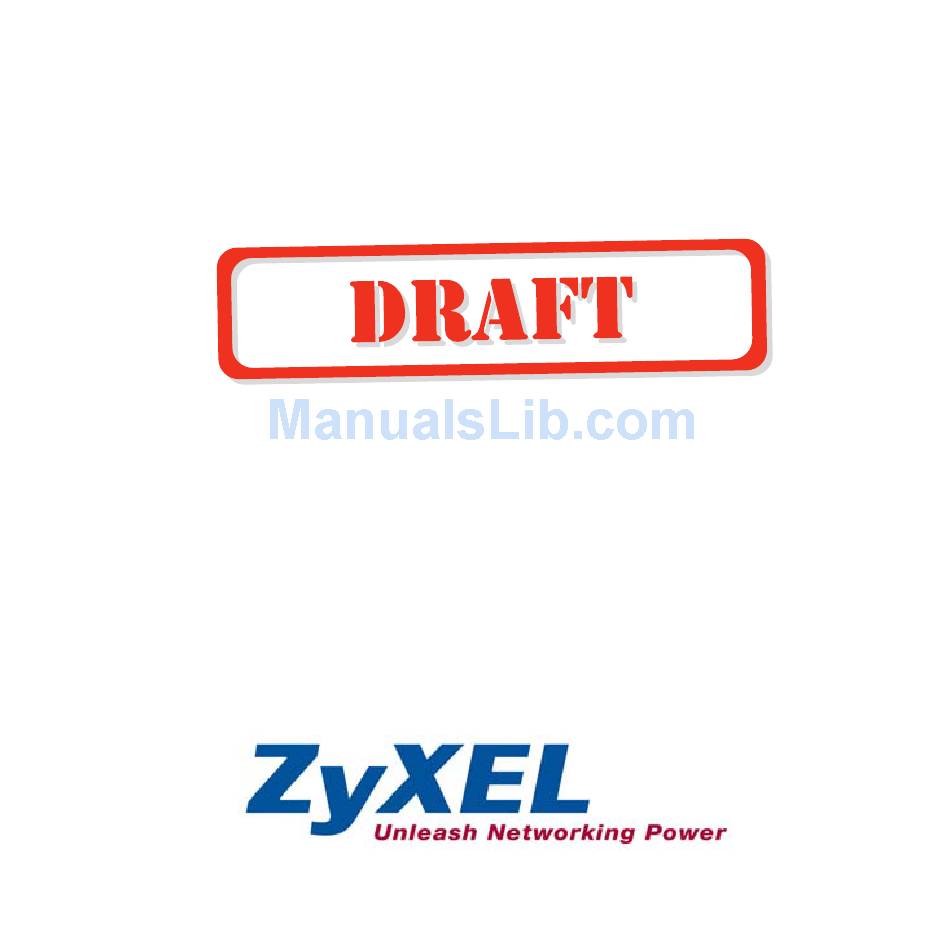

Page 1: Quick Installation Guide
ZyAIR G-220F 802.11g Wireless USB Adapter Quick Installation Guide Version 1.00 September 2004... -
Page 2: Important Note
3. Select the certification you wish to view from this page. About Your ZyAIR G-220F The ZyAIR G-220F is an IEEE 802.11g compliant wireless USB stick that connects to USB ports on desktop or notebook computers. Its maximum 54 Mbps data rate, which gives Ethernet equivalent speed, is ideal in the corporate or home environment. - Page 3 Windows 98 SE users may need the Windows 98 SE CD 2. ZyAIR Hardware and Utility Installation Follow the steps for your Windows version to install the ZyAIR G-220F. Windows XP 1. Locate an available USB port on the computer.
- Page 4 G-220F to the USB port on the computer. The LED turns on if the ZyAIR G-220F is properly inserted. Never bend, force or twist the ZyAIR G-220F into the port. 3. Windows automatically detects the ZyAIR and starts the installation process.
- Page 5 4. A Welcome screen displays. Click Next. 5. Click Next to accept the default file location or click Browse to select an alternate folder. 6. A window displays prompting you to insert the ZyAIR G-220F. Locate an available USB port on the computer.
- Page 6 G-220F to the USB port on the computer. The LED turns on if the ZyAIR G-220F is properly inserted. Never bend, force or twist the ZyAIR G-220F into the port. After you install the ZyAIR Utility and insert the ZyAIR G-220F, an icon appears in the system tray.
-
Page 7: Led Display
LED Display The following table describes the LED on the front panel of the ZyAIR G-220F. COLOR STATUS DESCRIPTION Blue The ZyAIR G-220F has a connection to a wireless LAN. Blink (fast) The ZyAIR G-220F is sending or receiving data. -
Page 8: Troubleshooting
Troubleshooting PROBLEM CORRECTIVE ACTION Windows does not Make sure the ZyAIR G-220F USB connecter is inserted into auto-detect the the computer USB port properly and then restart your ZyAIR G-220F. computer. Check the LED on the ZyAIR G-220F. Perform a hardware scan by clicking Start, Settings, Control Panel and double-clicking Add/Remove Hardware.
