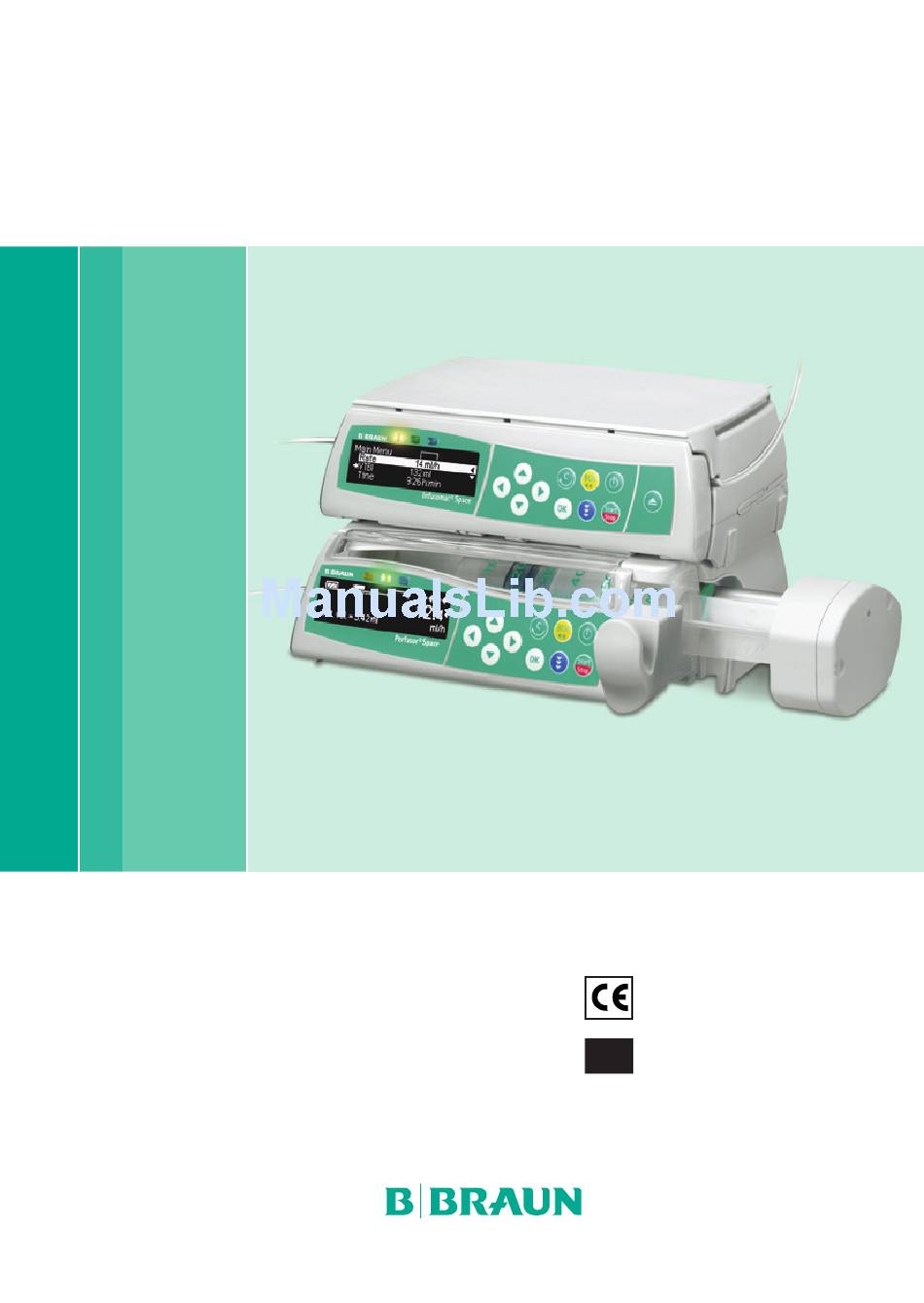

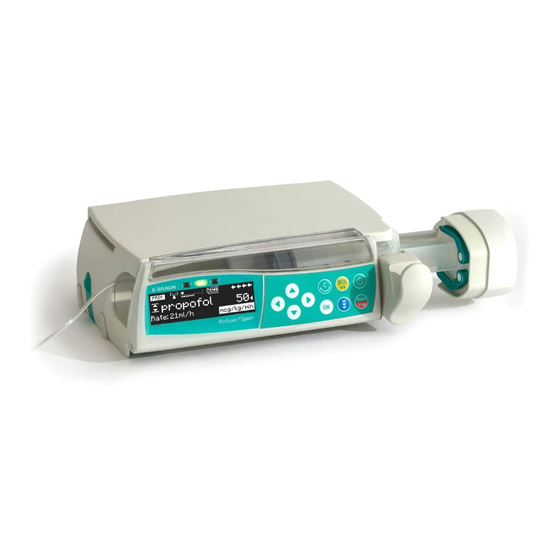

Battery Pack SP with WiFi
Perfusor® Space / Infusomat® Space / Infusomat® Space P
Instructions for Use
GB
Valid for software 027L

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Perfusor Space and is the answer not in the manual?

Questions and answers

Related Manuals for B. Braun Perfusor Space

Summary of Contents for B. Braun Perfusor Space

  • Page 1 Battery Pack SP with WiFi Perfusor® Space / Infusomat® Space / Infusomat® Space P Instructions for Use Valid for software 027L...

  • Page 2: Table Of Contents

    CONTENTS Before Operation..................3 Chapter 1/2/3 Intended Use / General / Safety Instructions ..5 Chapter 4 Main Menu ..............9 Chapter 5 Options Menu ..............11 Chapter 6 Operation of a pump with WiFi ......12 6.1 Configuration of the WLAN settings via Service Tool ............12 6.2 Default configuration of the wireless battery ..............14...

  • Page 3: Before Operation

    BEFORE OPERATION Caution: Please position the sticker with the wireless symbol at the pump operated with a battery pack SP with WiFi as shown on the picture. Valid for Perfusor® Space and Infusomat® Space. The wireless option is supported since software version J and later of the pump.
  • Page 4 Attention The LiIon battery module (8713182 or 8713182A) is not compatible with devices having a serial number below ■ Perfusor Space #8496 ■ Infusomat Space #11922 The battery module does have a fixation pin to be used in newer pumps. In case your pump does not allow to use such battery modules please break off the pin.

  • Page 5: Chapter 1/2/3 Intended Use / General / Safety Instructions

    INTENDED USE / GENERAL / SAFETY INSTRUCTIONS Chapter 1/2/3 INT END E D U SE The battery module of Space guaranties operation independent from mains power during transport situation. The battery module contains in addition a wireless transceiver module to allow data transmission of a single pump during transport or when con- nected to mains power.
  • Page 6 INTENDED USE / GENERAL / SAFETY INSTRUCTIONS Chapter 1/2/3 When adding a wireless battery module to a pump the wireless module starts within 2 minutes. In case you remove the battery from the pump or switch off the pump when operated in battery mode the wireless module is switched off, too.
  • Page 7 INTENDED USE / GENERAL / SAFETY INSTRUCTIONS Chapter 1/2/3 Please follow local ordinance and/or regulations for disposal Fire or chemical burn hazard if mistreated. To avoid possible injury. ■ Do not open or expose to heat above 80°C (176°F). ■ Do not use damaged Battery-Packs. ■...
  • Page 8 INTENDED USE / GENERAL / SAFETY INSTRUCTIONS Chapter 1/2/3 Symbols on product Symbol Explanation Caution, see documentation supplied with the product. Type CF unit with defibrillation protection Protection class II device Labeling of electric and electronic devices according to directive 2002/96/EC (WEEE) CE sign with the registration number of the notified body Temperature Limit...

  • Page 9: Main Menu

    MAIN MENU Chapter 4 MA IN ME N U Within the main menu the status of the wireless connection is displayed. In case the wireless transmitter is switched off, see also options menu, no symbol is shown in the status of the main menu.
  • Page 10 MAIN MENU Chapter 4 IP-Address shows the actually assigned IP address to this infusion pump. Signal strength: The signal strength shows the quality of the connection. Baud rate is the maximum communication speed in mega bits per second (Mbps). The maximum baud rate strongly depends on the used wireless standard (802.11 a/b/g/n).

  • Page 11: Options Menu

    OPTIONS MENU Chapter 5 O P T IO NS MENU Within the Options menu the wireless mode can be switched on or off.

  • Page 12: Operation Of A Pump With Wifi

    OPERATION OF A PUMP WITH WIFI Chapter 6 O P ER A TI ON OF A P U M P WI T H W I F I In case a wireless pump is connected to a SpaceStation the wireless transceiver is automatically switched off. When disconnected the wireless mode is automatically switched on again and operated with the previous settings.
  • Page 13 OPERATION OF A PUMP WITH WIFI Chapter 6 confirm the changes with “OK” and click on the button “Accept”. To change the actual profile select an other one from the configuration list. The stored profiles can not be selected at the pump. In case the wireless communication is interrupted the pump selects auto- matically a new one from your list and tries to reconnect to the network.

  • Page 14: Default Configuration Of The Wireless Battery

    OPERATION OF A PUMP WITH WIFI Chapter 6 6.2 Default configuration of the wireless battery: SSID: Space_xxxxxx (xxxxxx represents the serial number of the pump with leading zero, e.g. 012345) IP-Address (static): 192.168.101.41 Network type: ad-hoc Encryption: none (open network) 6.3 Software applications of the wireless battery: Space Online: The wireless battery contains a web server which offers different...

  • Page 15: Software Update Of The Wireless Module

    OPERATION OF A PUMP WITH WIFI Chapter 6 pumps. The data transfer within the BCC protocol is secured by checksums. To ensure the correctness of the data at the third party system it is strongly recommanded to use this checksums to identify possible transmission failures.
  • Page 16 OPERATION OF A PUMP WITH WIFI Chapter 6 d. Continue on to step 4 If the module is connected to a WiFi source you will need a PC with a Browser that has port 80 access to this network. Enter the target IP address in the Web Browser in order to reach the portal SpaceOnline (either 192.168.101.41 if the device is still in delivery status or enter the IP address given by the pump.
  • Page 17 OPERATION OF A PUMP WITH WIFI Chapter 6 c. Press “Update Software” a. -> “Configuration” b. Username: config c. Password: config...
  • Page 18 OPERATION OF A PUMP WITH WIFI Chapter 6 d. -> “Configuration” -> Select “Maintenance and software updates” d. Wait about 10 minutes, until the image is loaded and the module has exited the update. 6. Checking the Software version a. It shall again start by showing the main image with the latest SSID b.
  • Page 19 OPERATION OF A PUMP WITH WIFI Chapter 6 6.4.2 Update via Fall-Back image Within the Fall-Back image the wireless is set to ad-hoc mode. To connect to the wireless module use the following settings: SSID: SpaceComFallback Network mode: ad-hoc After reconnecting to the SpaceOnline (http://192.168.101.41) you can select the software you want to upload.

  • Page 20: Spaceonline, The Spacecom Web Server Application

    OPERATION OF A PUMP WITH WIFI Chapter 6 Do not restart the wireless module before you see this information in your browser. After the automatic restart of the wireless module you can connect to the module using the previous wireless settings before you have updated the module.
  • Page 21 OPERATION OF A PUMP WITH WIFI Chapter 6 the local alarm displays at the infusion pumps. Therapeutic and diagnostic decisions must not be made solely on the basis of the displays of the web application. SpaceOnline offers different Micro- Sites upon which different data or configurations are possible. 6.5.1 Setting of a network connection To set a network connection on your PC or PDMS (Client-System)

  • Page 22: Status

    OPERATION OF A PUMP WITH WIFI Chapter 6 user name password Activated for status status Status page service service Service page config config Configuration page In order to prevent unauthorized access you are recommended to change the individual passwords after first start-up. For further information regarding configuration please refer to the chapter „Configuration –...

  • Page 23: Service

    OPERATION OF A PUMP WITH WIFI Chapter 6 Network connection SpaceOnline does is established show actual data A connection status display is integrated in the header. The network connection between PC or browser and SpaceOnline is shown and the status of SpaceOnline is monitored using the two status displays, red/yellow/green.
  • Page 24 OPERATION OF A PUMP WITH WIFI Chapter 6 6.8.1 User Settings It is possible to administer the password of individual logins, confi- gure the BCC protocol and determine the network settings. The ward ID can also be set. To restore the factory defaults please select „Restore Factory Defaults after Reboot“.
  • Page 25 OPERATION OF A PUMP WITH WIFI Chapter 6 6.8.1.2 Change user name The predefined user names can be changed in this menu. However, it is not possible to add new or to delete existing user names. 6.8.1.3 Change access authorization The access authorization can be given for each individual user name.
  • Page 26 OPERATION OF A PUMP WITH WIFI Chapter 6 For detailed information about compatible systems, please refer to http://www.space.bbraun.com. The settings of the baud rate as well as parity, stopbits and databits, comply with the requirements of the PDM system. You also can setup a TCP/IP interface for the communication with SpaceCom via the BCC protocol.
  • Page 27 OPERATION OF A PUMP WITH WIFI Chapter 6 6.8.5 FTP Settings SpaceCom allows to setup a FTP connection. Please enter the re- quired data to enable the FTP server at SpaceCom. The FTP access is for service purpose only. The FTP access requires explicit SSL connection.

  • Page 28: Autoprogramming

    TECHNICAL DATA Chapter 8 T E CH NIC AL DA T A The technical data of the pump keep valid in case here are no other data are described. Technical data battery module: General Storage time: full charge at < 25 °C (77 °F) 3,5 month inside the pump 1 year outside the pump Charging time:...
  • Page 29 TECHNICAL DATA Chapter 8 Battery voltage: 6 to 8,2V Wireless module Operating System: Linux 2.6.34 Kernel Processor: ARM9 based Memory: 32MB Flash, 64MB RAM Radio module: IEEE 802.11a/b/g/n (IEEE 802.11g/n/b channel 1-13 IEEE 802.11a/n channel 36,40,44,48-140) Transmit power: 100mW Supported Modes: Ad-Hoc, Infrastructure Frequency Bands: 2.4GHz and 5GHz...
  • Page 30 GNU GENERAL PUBLIC LICENSE Chapter 9 GNU GENERAL PUBLIC LICENSE Version 2, June 1991 Copyright (C) 1989, 1991 Free Software Foundation, Inc., 51 Franklin Street, Fifth Floor, Boston, MA 02110-1301 USA. Everyone is permitted to copy and distribute verbatim copies of this license document, but changing it is not allowed.
  • Page 31 GNU GENERAL PUBLIC LICENSE Chapter 9 These restrictions translate to certain responsibilities for you if you distribute copies of the software, or if you modify it. For example, if you distribute copies of such a program, whether gratis or for a fee, you must give the recipients all the rights that you have.

  • Page 32: Advanced Features Of Autoprogramming

    GNU GENERAL PUBLIC LICENSE Chapter 9 GNU GENERAL PUBLIC LICENSE TERMS AND CONDITIONS FOR COPyING, DISTRIBUTION AND MODIFICATION 0. This License applies to any program or other work which contains a notice placed by the copyright holder saying it may be distributed under the terms of this General Public License.
  • Page 33 GNU GENERAL PUBLIC LICENSE Chapter 9 and you may at your option offer warranty protection in ex- change for a fee. 2. You may modify your copy or copies of the Program or any por- tion of it, thus forming a work based on the Program, and copy and distribute such modifications or work under the terms of Sec- tion 1 above, provided that you also meet all of these conditions: a) You must cause the modified files to carry prominent notices...
  • Page 34 GNU GENERAL PUBLIC LICENSE Chapter 9 themselves, then this License, and its terms, do not apply to those sections when you distribute them as separate works. But when you distribute the same sections as part of a whole which is a work based on the Program, the distribution of the whole must be on the terms of this License, whose permissions for other licens- ees extend to the entire whole, and thus to each and every part...
  • Page 35 GNU GENERAL PUBLIC LICENSE Chapter 9 distributed under the terms of Sections 1 and 2 above on a medium customarily used for software interchange; or, c) Accompany it with the information you received as to the offer to distribute corresponding source code. (This alternative is allowed only for noncommercial distribution and only if you received the program in object code or executable form with such an offer, in accord with Subsection b above.)
  • Page 36 GNU GENERAL PUBLIC LICENSE Chapter 9 terminated so long as such parties remain in full compliance. 5. You are not required to accept this License, since you have not signed it. However, nothing else grants you permission to modify or distribute the Program or its derivative works. These actions are prohibited by law if you do not accept this License.
  • Page 37 GNU GENERAL PUBLIC LICENSE Chapter 9 If any portion of this section is held invalid or unenforceable under any particular circumstance, the balance of the section is intended to apply and the section as a whole is intended to apply in other circumstances.
  • Page 38 GNU GENERAL PUBLIC LICENSE Chapter 9 Program specifies a version number of this License which applies to it and “any later version”, you have the option of following the terms and conditions either of that version or of any later version published by the Free Software Foundation.
  • Page 39 GNU GENERAL PUBLIC LICENSE Chapter 9 12. IN NO EVENT UNLESS REQUIRED BY APPLICABLE LAW OR AGREED TO IN WRITING WILL ANY COPYRIGHT HOLDER, OR ANY OTHER PARTY WHO MAY MODIFY AND/OR REDISTRIBUTE THE PROGRAM AS PERMITTED ABOVE, BE LIABLE TO YOU FOR DAM- AGES, INCLUDING ANY GENERAL, SPECIAL, INCIDENTAL OR CON- SEQUENTIAL DAMAGES ARISING OUT OF THE USE OR INABILITY TO USE THE PROGRAM (INCLUDING BUT NOT LIMITED TO LOSS...
  • Page 40 Manufactured by B. Braun Melsungen AG B. Braun Melsungen AG 34209 Melsungen Sparte Hospital Care Germany 34209 Melsungen Germany Tel +49 (0) 56 61 71-0 Tel.: +49 (0) 56 61 71-0 Fax: +49 (0) 56 61 71-20 44 38917342 • Drawing No. I0026700005 www.bbraun.com 0915 3891...
