Operating Instruction

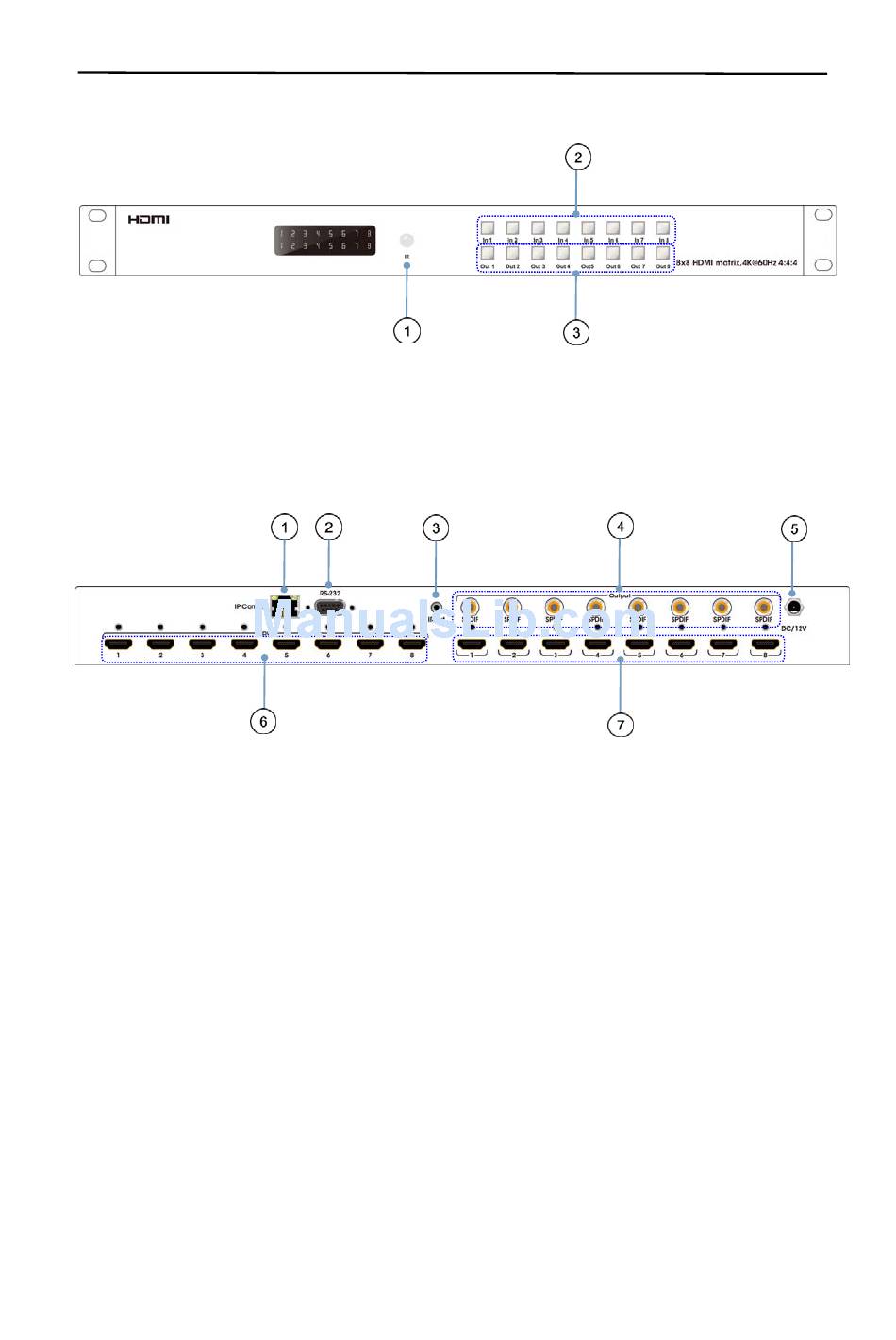

4. Panel Descriptions
① IR receive window.
② Input button IN1~8: choose the desired input port from ports 1~8.
③ Output button OUT1~8: choose the desired output port from ports 1~8.
① IP control.
② RS232 for control.
③ For IR external receiver cable.
④ SPDIF Audio output.
⑤ DC power input.
⑥ HDMI input port.
⑦ HDMI output port.
5
