Pros'Kit SS-256 Manual

SS-256 LCD Smart Soldering Station
Thank you for purchasing the
Station. Please read this manual before operating the SS-256.
Please store the manual in a safe, easily accessible place for future
reference.
Features
Large screen with backlight, LCD contrast and brightness are adjustable.

Designed with functional manual and shuffle knob for easy setting, more

convenient and user friendly.
Comes with high end quad-wire heating element for heat fast recovery.

Microprocessor controlled provide best performance and accurate

temperature control.
Temperature calibration function.

Auto sleep and wake up function, system lock, tip calibration and low

consumption.
3 data memories store and recall frequently used temperature values.

Built-in DC 5V/1A USB port for power supply.

Complies with CE and ESD standard, conform to RoHS.

Comes with UL Certified Wires.

Silicone handpiece cord wire heat-resistant up to 200°C.

Resettable fuse protection design.

Packing List
Please check the contents of the soldering station package and confirm
that all the items listed below are included.
Soldering Station..........................1
Iron Stand（with cleaning sponge）.1
Soldering Iron..............................1
Power Cord.................................1
Alligator Clip Grounding Wire...........1
User's Manual..............................1
Specifications
Model No.
Input Voltage (ACV)
Control system
Power consumption
Output voltage
LCD Display
Temperature range
Temperature calibration
Temperature stability
Heating element
Plug
Sleep mode
Temperature of sleep mode
USB port output
Memory setting
Temperature lock function
Replacement heater
Replacement soldering iron
Tip-to-ground resistance
potential
Size (mm)
Weight
Package
Soldering
Iron Holder
Sponge
Soldering
Iron Port
5V/1A
USB port
Shuffle Knob
SS-256 LCD Smart Soldering Iron
SS-256E
SS-256EU SS-256B SS-256H
110~120V 220~240 220~240
60Hz V 50Hz V 50Hz
Microprocessor-controlled
60W
24 VAC
73mmX40mm, Backlight
200~480°C /392 ~896
℉ ℉
100~699℃(212~1290℉),Adjustment
±2℃/±36℉ (no load)
Alumina ceramic heater
E B H
OFF & 1~240min adjustment
200 /392
℃ ℉
DC 5V/1A
3set
yes
9SS-900N-HT
9SS-256-SI
≦2Ω/≦2mV
180 x 150 x 106mm
2.1kg
Color Box
Power Soldering
Iron

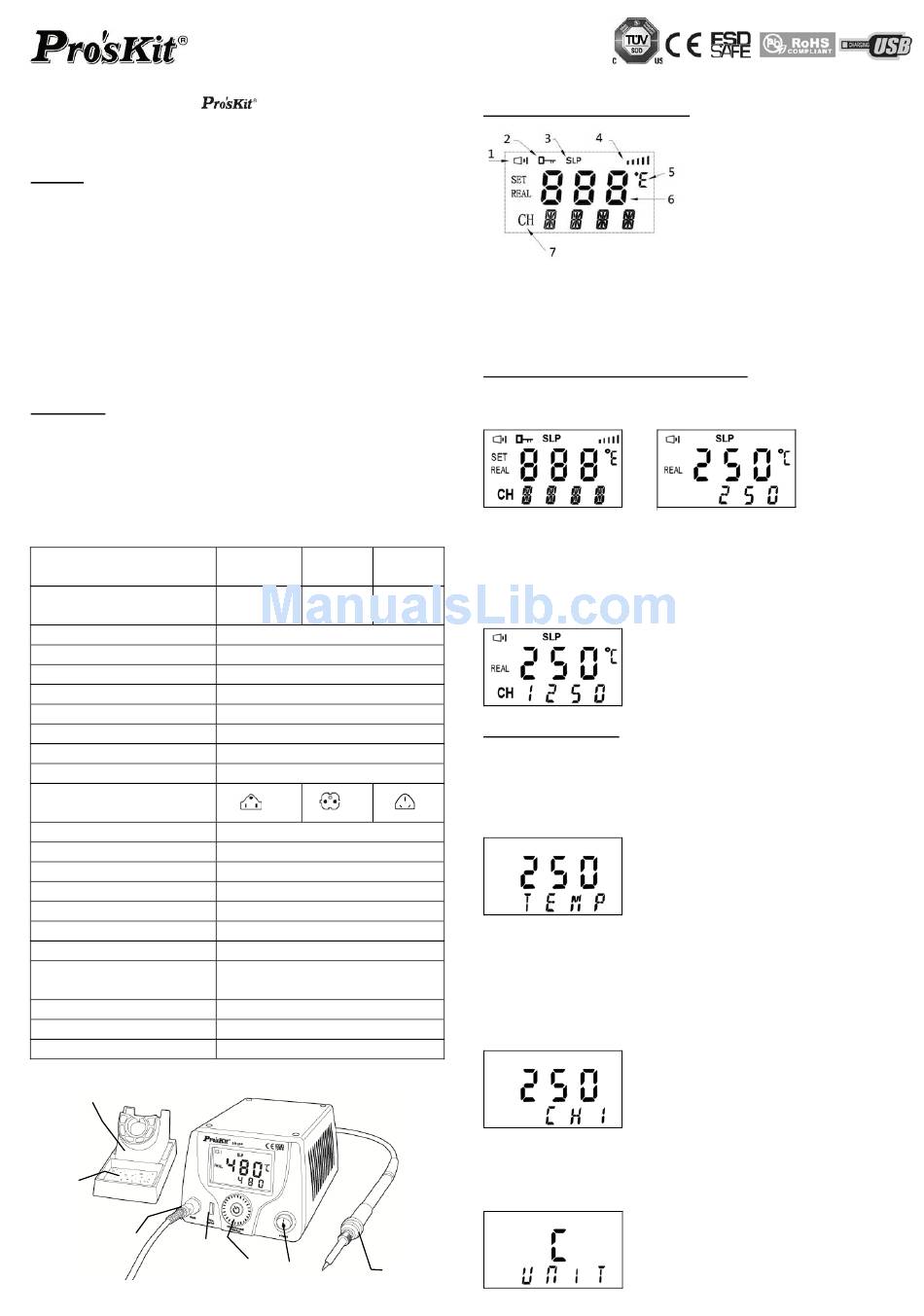

LCD Display function description
1. Current beep on or off
3. Current sleep mode
5. Temperature unit
6. Current Temperature
7. Temperature memory setting
Setting up & operating the soldering station
Start to use
Turn on the soldering station, LCD screen will display main menu (see fig.1)
after three seconds, last set temperature will display. (see fig.2)
Fig.1
Temperature setting
In the main menu, rotate around the
increase temperature, counter clockwise direction to decrease temperature
Temperature memory choose
In the main menu, press the center of shuffle knob, CH1/CH2/CH3 will
twinkling (see fig.3), rotate around the
temperature needed, press the center of shuffle knob again to save.
Fig.3
Function setting menu
Press 3 seconds of shuffle knob into the function setting menu. (see fig.4)
The first function setting is TEMP , rotate around the shuffle knob in
clockwise direction can be converted into the other function setting.
Function order of priority :
TEMP→UNIT→SLP→BEEP→LIGH→CODE→EXIT→back to TEMP
Press shuffle knob again, choose the function needed.
Fig.4
TEMP：Temperature memory setting (Fig.5)
Choose the "TEMP" function setting. Press knob into channel selection
mode. Rotate around the shuffle knob
knob again to the temperature setting , rotate around the
clockwise direction to increase temperature,
decrease temperature. Press knob to the next menu, rotate around the
shuffle knob and choose the " Exit" save the temperature and exit the
menu.
Fig.5
UNIT: Fahrenheit and Centigrade Selection (Fig.6)
Choose the "UNIT" function setting. Press knob into temperature unit
selection mode, rotate around the
unit, Press knob to the next menu, rotate around the shuffle knob and
choose the " Exit" save the temperature unit and exit the menu.
Fig.6
2. Temperature lock
4. Power display
Fig.2
shuffle knob in clockwise direction to
shuffle knob to choose the
to choose CH1/CH2/CH3, press
shuffle knob
counter clockwise direction to
knob , select "Fahrenheit" or "Centigrade"
