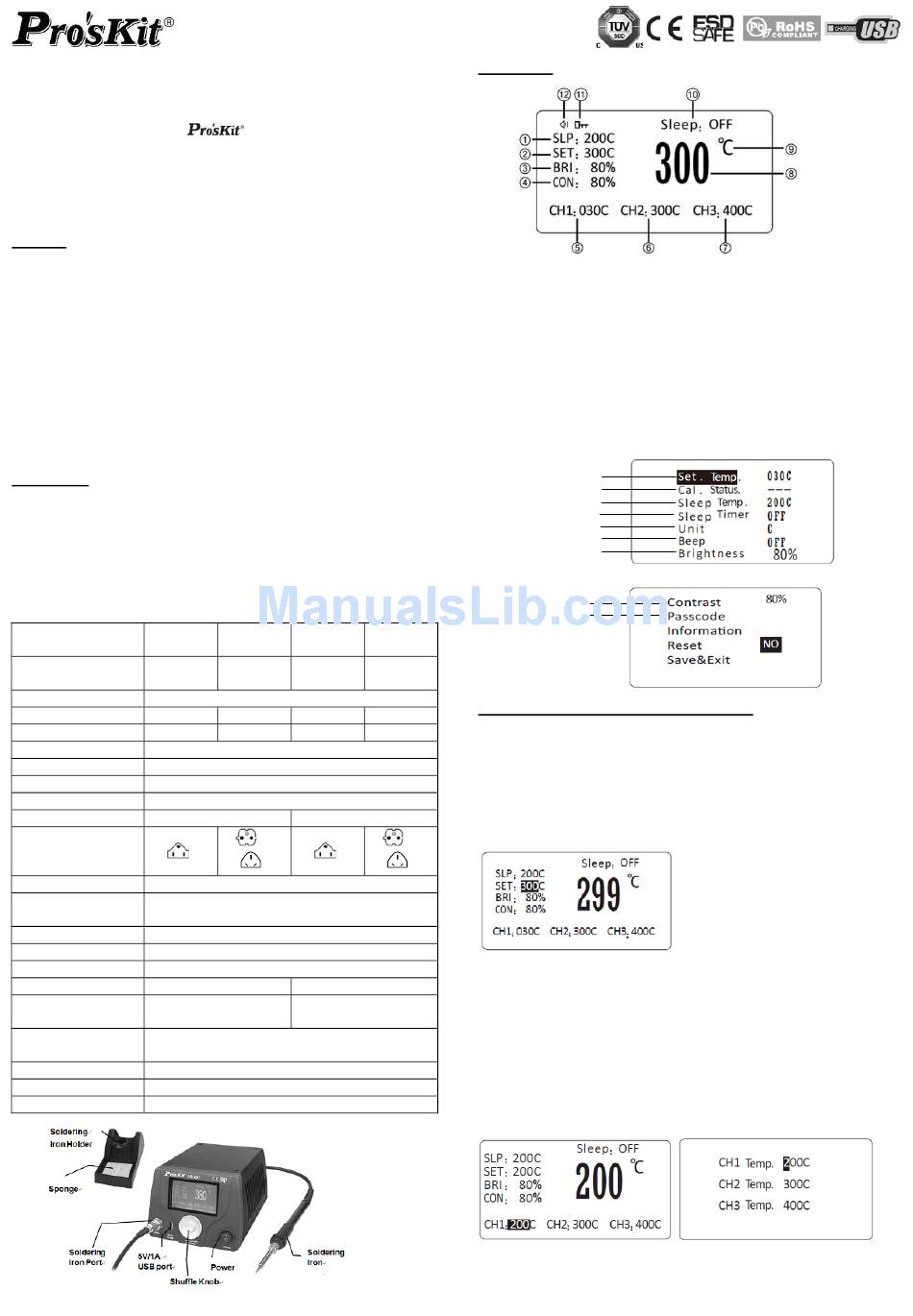

Pros'Kit SS-257 Manual

SS-257/SS-259
LCD Smart Soldering Iron Station
Thank you for purchasing the
Soldering Iron Station. Please read this manual before operating the
SS-257/SS-259.
Please store the manual in a safe, easily accessible place for future
reference.

Features

• Large screen with backlight, LCD contrast and brightness are adjustable.
• Designed with functional manual and shuffle knob for easy setting, more
convenient and user friendly.
•Comes with high end quad-wire heating element for heat fast recovery.
• Microprocessor controlled provide best performance and accurate
temperature control.
• Temperature calibration function.
• Auto sleep and wake up function, system lock, tip calibration and low
consumption.
•3 data memories store and recall frequently used temperature values.
•Built-in DC 5V/1A USB port for power supply.
• Complies with CE and ESD standard, conform to RoHS.
• Comes with UL Certified Wires.
• Silicone handpiece cord wire heat-resistant up to 200°C.
• Resettable fuse protection design.

Packing List

Please check the contents of the Soldering station package and confirm
that all the items listed below are included.
Soldering Station..........................1
Iron Stand（with cleaning sponge）.1
Soldering Iron..............................1
Power Cord.................................1
Alligator Clip Grounding Wire...........1
User's Manual..............................1

Specifications

SS-257E
Model No.
SS-257EU
110~120V
Input Voltage
60Hz
Control system Microprocessor-controlled
Power consumption 75W
Output voltage 24VAC
LCD Display 73mmX40mm，240X120 dot. Backlight
Temperature range 30~500°C /86~932°F
Temperature calibration 0~699℃(32~1290℉)，Adjustment
Temperature stability ±2℃/±36℉ (no load)
Heating element High end quad-wire heater
Plug
E
Sleep mode OFF & 1~360min adjustment
Temperature of sleep
30~400℃/86~752℉
mode
USB port output DC 5V/1A
Memory setting 3set
Temperature lock function yes
Replacement heater 9SS-257-HT
Replacement soldering
9SS-257-SI
iron
Tip-to-ground resistance
≦2Ω/≦2mV
potential
Size (mm) 180 x 150 x 106mm
Weight 2.3kg
Package Color Box
SS-257/SS-259 LCD Smart
SS-257B SS-259E SS-259B
SS-257H SS-259EU SS-259H
220~240V 110~120V 220~240V
50Hz 60Hz 50Hz
75W 90W 90W
24VAC 25VAC 25VAC
High end Silver alloy heater
B B
E
H H
9SS-259-HT
9SS-259-SI
Main menu
LCD Display function description
1. Temperature of sleep mode
3. LCD brightness ratio
5. CH1 temperature memory setting
6. CH2 temperature memory setting
7. CH3 temperature memory setting
8. Current temperature
9. Temperature unit
11. Temperature lock
Function setting menu
Press knob for 3 sec., it will enter the function setting menu.

Temperature setting

Calibration of temp.
Sleep temperature setting
Sleep time setting
Temperature unit
Beep Setting
LCD brightness setting
LCD contrast ratio setting
Temperature passcode
Setting up & operating the Soldering Station

Start to use

Turn on the soldering station, LCD screen will display main menu after
three seconds, last set temperature will display.
Temperature setting
In the main menu, press lower part of shuffle knob, move cursor to
the "SET" mode (as follow picture)，rotate around the
clockwise direction to increase
decrease temperature.

Temperature memory choose

In the main menu, press the center of shuffle knob twice, cursor will move
to the CH1/CH2/CH3(see fig.1) ，press the left or right position of shuffle
knob, choose the temperature needed.

Temperature memory setting

Press 3 seconds of shuffle knob into the function setting menu. Press knob
and move cursor to the "Set. Temp." mode, press knob again to the
temperature setting (see fig 2.), rotate around the
direction to increase temperature,
temperature. Press knob to the next menu, choose the "Save & Exit" save
the temperature and exit the menu.
Fig.1
2.Serting temperature
4. LCD screen contrast ratio
10. Current sleep mode
12. Current beep on or off
shuffle knob
temperature，counter clockwise direction to
shuffle knob
counter clockwise direction to decrease
Fig.2
in
in clockwise
