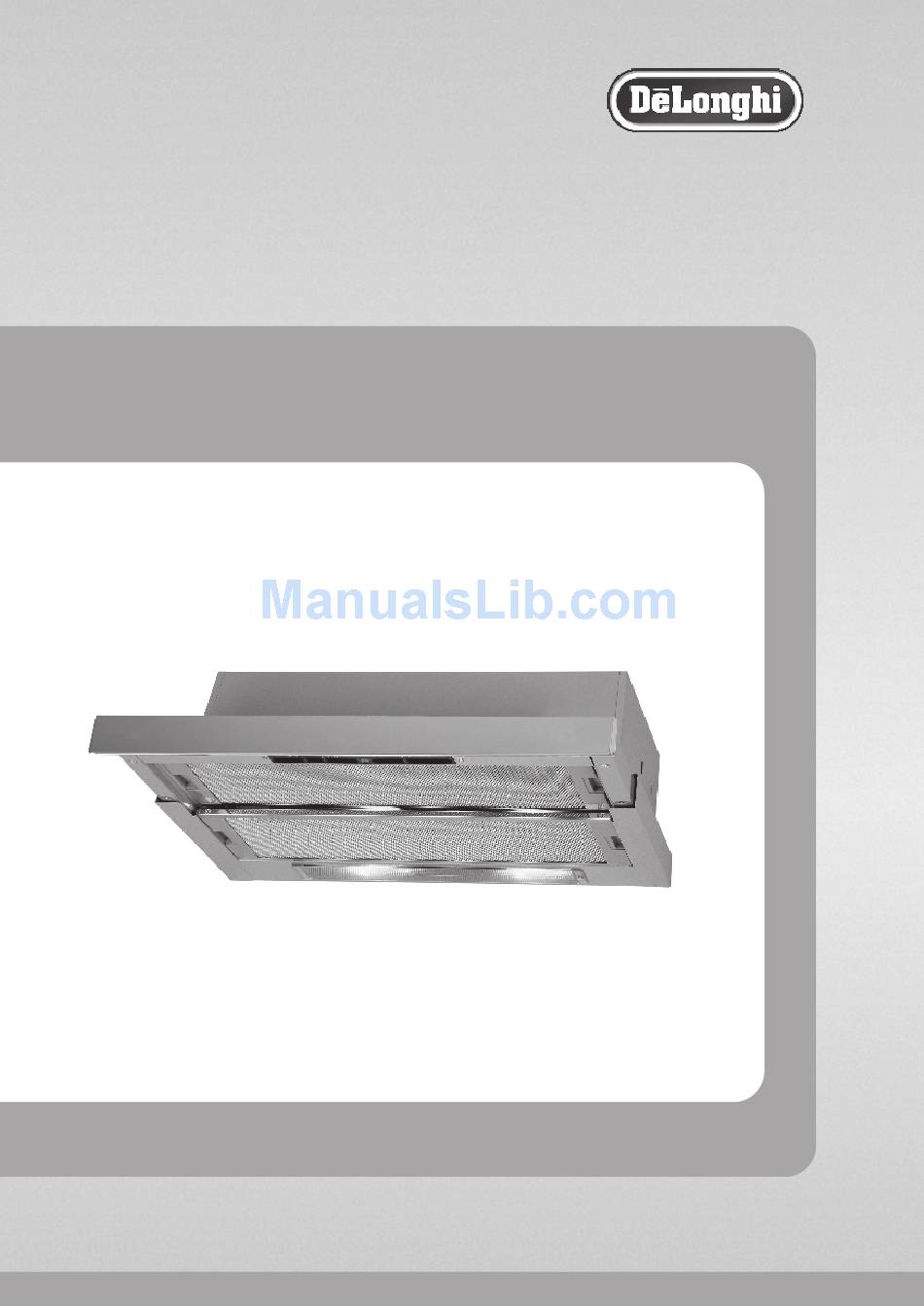

- Page 1 De’Longhi Rangehood Model TA60SS (60cm) / TA90SS (90cm) USER GUIDE Please read this user guide carefully and retain for future reference...
-
Page 2: Table Of Contents
Contents Parts and Features ..........03 De’Longhi Safety Precautions . -
Page 3: Parts And Features
Parts and Features Model: TA60SS (60cm) / TA90SS (90cm) Fig.1 Fig.2 Components: Controls Connecting Ring C-1. Lamp Switch on/off Filter Knob C-2. Fan Switch on/off M4 × 40mm Screws C-3. Fan Speed Switch 1/2/3 Carbon Filters (Optional Accessory) Mesh Grids... -
Page 4: De'longhi Safety Precautions
De’Longhi’s Safety Precautions De’Longhi pride themselves on their innovative Ÿ This appliance is designed exclusively for range of the highest quality consumer products. household use and not for commercial or industrial use. All other uses are strictly De’Longhi ensures all of its products are 100% forbidden. -
Page 5: Rangehood Safety Precautions
Rangehood Safety Precautions Your safety and the safety of others is very important. Safety messages are displayed in this manual and on your appliance. Read and obey these safety messages as they will alert you to potential hazards and tell you how to reduce the chance of injury. - Page 6 Rangehood Safety Precautions Before the appliance is used, it Ÿ Do not let the cord touch any hot surfaces. must be properly positioned and Ÿ Do not check the filter while the appliance is installed as described in this operating. manual, so read the manual Ÿ...
- Page 7 Rangehood Safety Precautions Ÿ Ÿ If something is wrong with the product, Operate the appliance on a level surface. please call a De’Longhi representative. Do Ÿ Keep ventilation openings clear of not attempt to repair or replace any part of obstruction.
-
Page 8: Installation Safety Precautions
Installation Safety Precautions Ÿ The cord should be secured behind the WARNING appliance and not left exposed or dangling to prevent accidental injury. Ÿ To ensure proper ventilation for your Ÿ appliance, the front of the unit must be The appliance should always be plugged into completely unobstructed. -
Page 9: Installing Your Rangehood
Installing your Rangehood Connection to the Electrical Supply Installation Instructions Ÿ Ÿ This appliance is supplied with a flexible The rangehood is supplied with cord and 3 pin plug for connection to a - 1 x Spacer properly earthed 10A power point. - 4 x Screws (M4 ×... - Page 10 Installing your Rangehood Installation Method Re-circulation Installation Method The rangehood is designed to be installed in The Rangehood can only be installed in this method with the purchase of Carbon Filters either Extraction Method or Re-Circulating that are sold as an optional accessory. Method (Requires purchase of Carbon Filters sold separately).
-
Page 11: Using Your Rangehood
Using your Rangehood Operating the Rangehood SWITCH ON THE LAMPS - Pull out the grill (G) more than 50mm - Slide the switch (C-1) from position ‘0' to ‘1' ADJUSTING THE FAN SPEED - Pull out the grill (G) more than 50mm - Slide the switch (C-2) from position ‘0' to ‘1' at low speed. -
Page 12: Care And Cleaning
Care and Cleaning Maintenance Changing the Bulbs The effective functioning of the hood depends Ÿ Disconnect the hood from the electricity. on the regularity with which cleaning and Ÿ Remove the lamp cover. maintenance is carried out. Particularly in the case of the grill (E) and optional charcoal filters Ÿ... -
Page 13: Help Us Help You
Help us Help You Read this guide carefully, it is intended to help you operate and maintain your new Rangehood properly. Keep it handy to answer your questions. If you don't understand something or you need more assistance, please call the De’Longhi Helpline. To help us provide prompt answers to your queries, please record your Rangehood model and serial numbers. -
Page 14: Warranty Information
Warranty Information The De’Longhi Rangehood is warranted against How to contact us about a warranty claim faults resulting from manufacturing or material defects. The warranty period for normal Talk to a De’Longhi representative for further domestic installation and use is one year from warranty or product information please call the the date of purchase. - Page 15 Notes Page 15...
- Page 16 P .O. Box 4540 Casula Mall, NSW 2170 P .O. Box 58-056 Botany, MANUKAU 2163 © 2017 De’Longhi Australia Pty Ltd.
