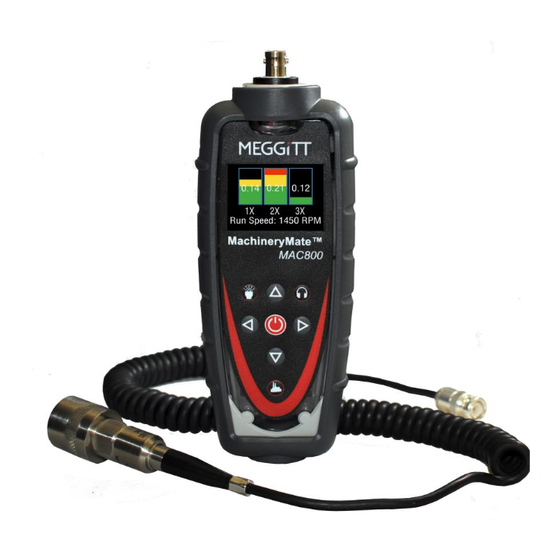

MachineryMate
800 operating guide
Handheld vibration meter
Meggitt Sensing Systems
Tel: +1 (301) 330-8811
20511 Seneca Meadows Parkway, Germantown MD 20876, USA
Tel: +1 800 WILCOXON
Fax: +1 (301) 330-8873
Meggitt (Maryland), Inc d/b/a Meggitt Sensing Systems
www.meggittsensingsystems.com
91938 Rev A.1 01/16
www.meggitt.com
Advertisement
Table of Contents
Related Manuals for Meggitt MachineryMate 800
Summary of Contents for Meggitt MachineryMate 800

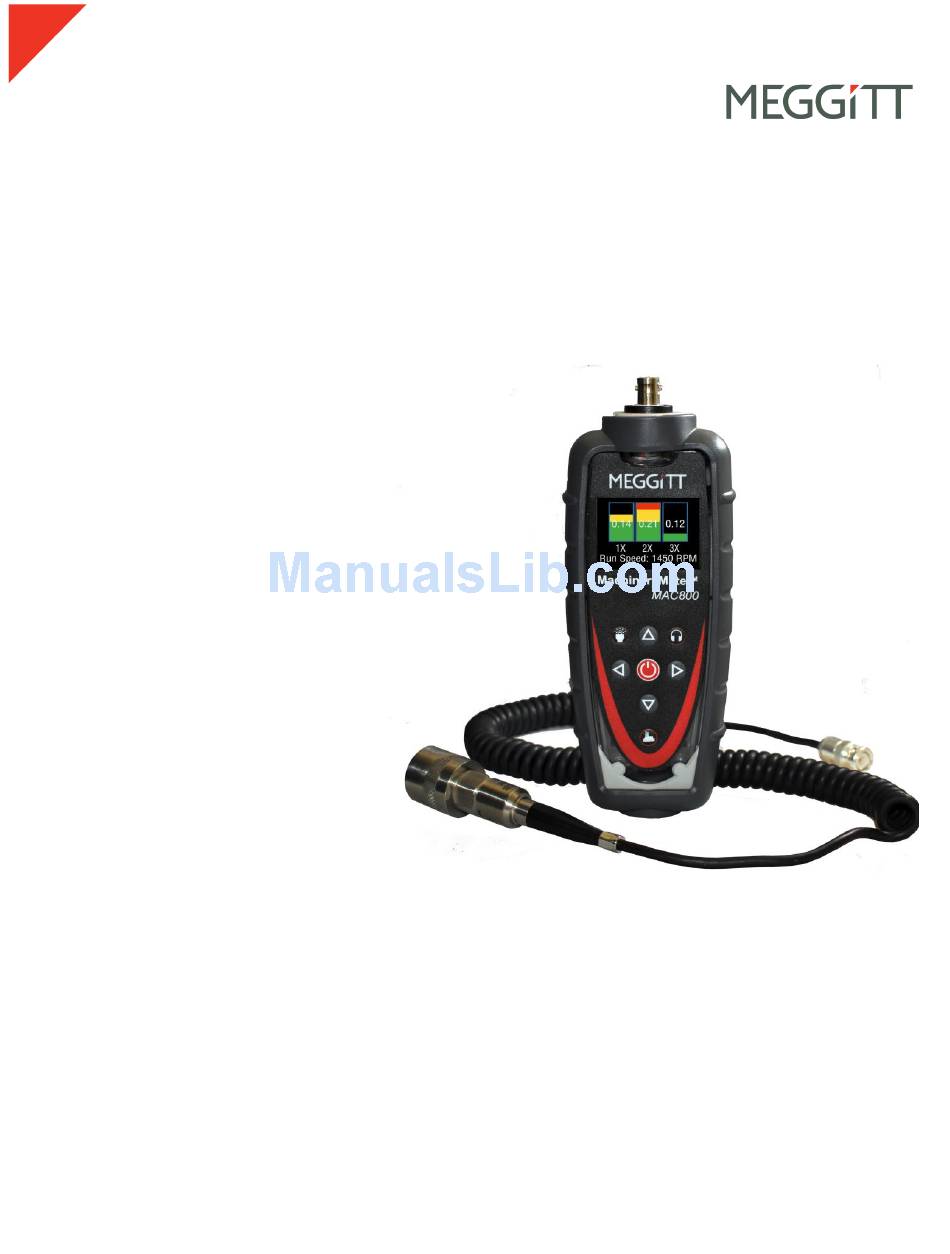

- Page 1 800 operating guide Handheld vibration meter Meggitt Sensing Systems Tel: +1 (301) 330-8811 20511 Seneca Meadows Parkway, Germantown MD 20876, USA Tel: +1 800 WILCOXON Fax: +1 (301) 330-8873 Meggitt (Maryland), Inc d/b/a Meggitt Sensing Systems www.meggittsensingsystems.com 91938 Rev A.1 01/16 www.meggitt.com...
- Page 2 Contents 1.0 Introduction 2.0 Operation 2.1 Fitting the sensor 2.2 Taking a reading 2.3 Configuration menus 3.0 Asset management 4.0 DataMate trending software 5.0 Accessories and options 6.0 Technical assistance 6.1 Technical assistance 6.2 Customer service 91398 Rev A.1 01/16 Page 2 of 8...
- Page 3 (held in place by six screws). 1.3 Service The MAC800 contains no user serviceable parts. In the unlikely case of malfunction, please return the complete unit to Meggitt Sensing Systems. 2.0 Operation 2.1 Fitting the sensor The MAC800 is supplied with an integral cable connected 780FM-2-J88C sensor that connects to the BNC connector on the meter.
- Page 4 2.2.1 Vibration readings Once a reading has been taken the display shows three color coded values to indicate alarm status. • ISO value (velocity in inch/s or mm/second) • Bearing noise in BDU (Bearing Damage Units) • Total g (acceleration) ISO value (mm/s) The ISO value (mm/s or inch/s) is the large number displayed at the top of the screen, which is the RMS (average) of the vibration velocity in the frequency band 10 Hz to 1 kHz (600 –...
- Page 5 Total acceleration (g) This is the RMS value of the total vibration acceleration measured by the meter over its entire frequency range (2 Hz to 10 kHz). This reading is shown in units of g (Earth’s gravitational constant, where 1 g = 9.81 Displacement Pressing the arrow buttons when the reading screen is displayed will display RMS displacement (thou or mm).
- Page 6 Press the down arrow to increase the resolution of the frequency axis from 100 (10 Hz or 600 RPM resolution) to 800 lines (1.25 Hz or 75 RPM resolution). Increasing the resolution zooms into the frequency spectrum. Scroll using the arrows to display the full spectrum at the higher resolution. 2.2.4 Live update mode The MAC800 can continuously display readings taken at one second intervals.
- Page 7 Run speed Can be set manually using the up and down arrows. Sensor mV/g Accelerometer sensitivity (mV/g) can be manually set using the up and down arrows from 1 - 1000 mV/g. This enables the resolution and range of the meter to be set by the user. 2.3.3 Device settings There are two pages of Device settings options.
- Page 8 6.0 Technical assistance 6.1 Technical assistance For technical assistance, please contact Meggitt Sensing Systesms at 301-330-8811or email MachineryMate@meggitt.com. 6.2 Customer service For customer service, please call 301-330-8811, or email MachineryMate@meggitt.com.
