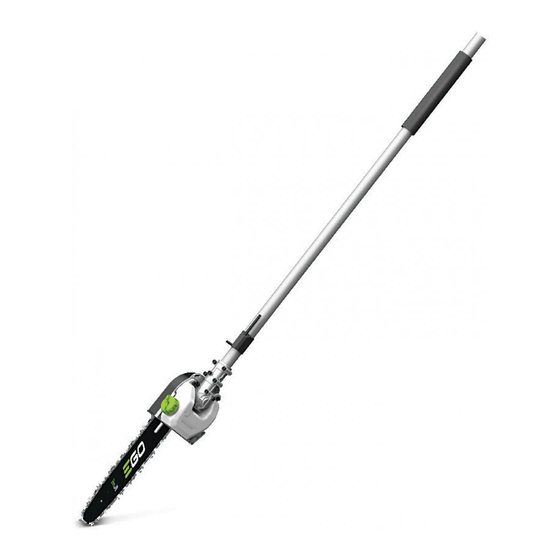

POLE SAW A TT ACHMENT
FOR USE ONLY WITH THE 56V LITHIUM-ION
POWER HEAD PH1400E
OPERATOR'S MANUAL
POLE SAW ATTACHMENT
MODEL NUMBER PSA1000
WARNING: To reduce the risk of injury, the user must read and understand the
Operator's Manual before using this product. Save these instructions for future reference.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PSA1000 and is the answer not in the manual?

Questions and answers

Related Manuals for EGO PSA1000

Summary of Contents for EGO PSA1000

  • Page 1 FOR USE ONLY WITH THE 56V LITHIUM-ION POWER HEAD PH1400E OPERATOR'S MANUAL POLE SAW ATTACHMENT MODEL NUMBER PSA1000 WARNING: To reduce the risk of injury, the user must read and understand the Operator’s Manual before using this product. Save these instructions for future reference.
  • Page 2 5. Wrench Holder 2. Soft Sleeve 4. Dual-head Wrench 6. Cover-screw 1. End Cap 7. Chain-sprocket Cover 3. Pole-saw Shaft 8. Extension Pole (Optional, SOLD SEPARATELY) 13. Oil-tank Cap 12. Chain-tensioning Screw 11. Guide Bar 9. Chain Sheath 10. Saw Chain 14.
  • Page 3 Minimum Maximum Maximum...
  • Page 4 Sprocket Chain Drive Links Alignment Guide-bar Slot Bulges Chain-tensioning Guide-bar Groove Tension-adjusting Screw 1.3mm Lubricating Hole Sprocket in Guide-bar Tip...

  • Page 5: Symbol Meaning

    IPX4 Protection water Degree This page depicts and describes safety symbols that may appear on this product. Read, understand, and follow all Volt Voltage instructions on the machine before attempting to assemble and operate it. POLE SAW ATTACHMENT — PSA1000...

  • Page 6: Important Safety Instructions

    Keep cutting edge exposed metal parts of the power tool “live” and could sharp and clean for best performance and to reduce give the operator an electric shock. the risk of injury. POLE SAW ATTACHMENT — PSA1000...

  • Page 7: Additional Warnings

    Stop the motor and remove the battery pack Replacement Parts - When servicing, use only whenever you leave the tool. identical EGO replacement parts. Use of any other accessory or attachment may increase the risk of ◾ Store Idle Appliances Indoors. When not in use, injury.

  • Page 8: Packing List

    Chain Sheath CONNECTING THE POLE SAW ATTACHMENT TO THE Dual-head Wrench POWER HEAD This pole saw attachment is designed for use with EGO Operator’s Manual 56V LITHIUM-ION Power Head PH1400E. Recommended Bar and Chain for this Pole Saw See “INSTALLING AN ATTACHMENT TO THE POWER HEAD“...
  • Page 9 Do not use dirty, used or other contaminated oils. Damage may occur to the bar or chain. 3. Make a final cut close to trunk. POLE SAW ATTACHMENT — PSA1000...

  • Page 10: Limbing And Pruning

    9. To prevent electrocution, do not operate within 15m tighten the oil tank cap. of overhead electrical lines and keep bystanders at 2. Position the pole saw attachment on its side with the least 15m away (Fig. G). chain-sprocket cover facing upwards. POLE SAW ATTACHMENT — PSA1000...

  • Page 11: Adjusting The Chain Tension

    Release the tip of the guide bar and turn the chain-tensioning screw once clockwise. Repeat this process until the sag is eliminated (Fig. N). 7. Hold the tip of the guide bar up and tighten the chain-sprocket-cover screw securely. POLE SAW ATTACHMENT — PSA1000...

  • Page 12: Transporting And Storing

    4. If the pole saw attachment is removed from the power head and stored separately, fit the end cap on the attachment shaft to avoid dirt getting into the coupler. POLE SAW ATTACHMENT — PSA1000...

  • Page 13: Troubleshooting

    “ADJUSTING THE CHAIN TENSION”. Bar and chain running hot and ◾ ◾ Chain oil tank is empty. Filling bar and chain lubricant. smoking. ◾ ◾ Debris in guide bar groove. Clear the debris in the groove. POLE SAW ATTACHMENT — PSA1000...

  • Page 14: Warranty

    New Zealand 0508 000 EGO (0508 000 346) any time you have questions or warranty claims. LIMITED SERVICE WARRANTY FOR FIVE YEARS from the date of original retail purchase, this EGO product is warranted against defects in material or workmanship. Defective product will receive free repair.
