Configuring Smart Scan
In the event that you wish to disable the Smart Scan
follow these steps:
1) Turn On your HDTV and at least 1 HD source. Make sure LED is ON.
2) Press the manual pushbutton on the front of the unit for ~ 5 seconds
until the LED flashes.
You can turn the Smart Scan TM feature back on by simply recycling the
power to the switch. This will enable the Smart Scan feature.
Description:
Do you have a HDTV with DVI only input? Now you can share your HDMI
video sources and L/R Stereo Audio with a single HD monitor. This
unique switch allows you to switch 3 HDMI video sources and L/R Stereo
Audio to your HDTV. Perfect for systems where the HDTV has a DVI input
for Video and L/R Audio inputs.
Now available with V1.3 Full HD and Deep color support.
Our proprietary Clear EYE TM transmission line and ISI reduction design will
IMPROVE the digital video signals. Smart Scan
selects the correct HDMI source so you can enjoy the program instead of
fumbling with the remote. Approved by Wives and Kids!
Features:
• 3 HDMI Inputs
• 3 L/R Stereo Inputs
• Version 1.3, Full 1080P
• Works with HDMI or DVI-D, HDCP-enabled HDTV.
• Supports high-resolution video 480 P, 720 I/P, 1080 I/P.
TM
• Smart Scan intelligently selects the source
TM
• Clear EYE design optimizes HDMI signal transmission
3
:
TM feature please
TM algorithm intelligently

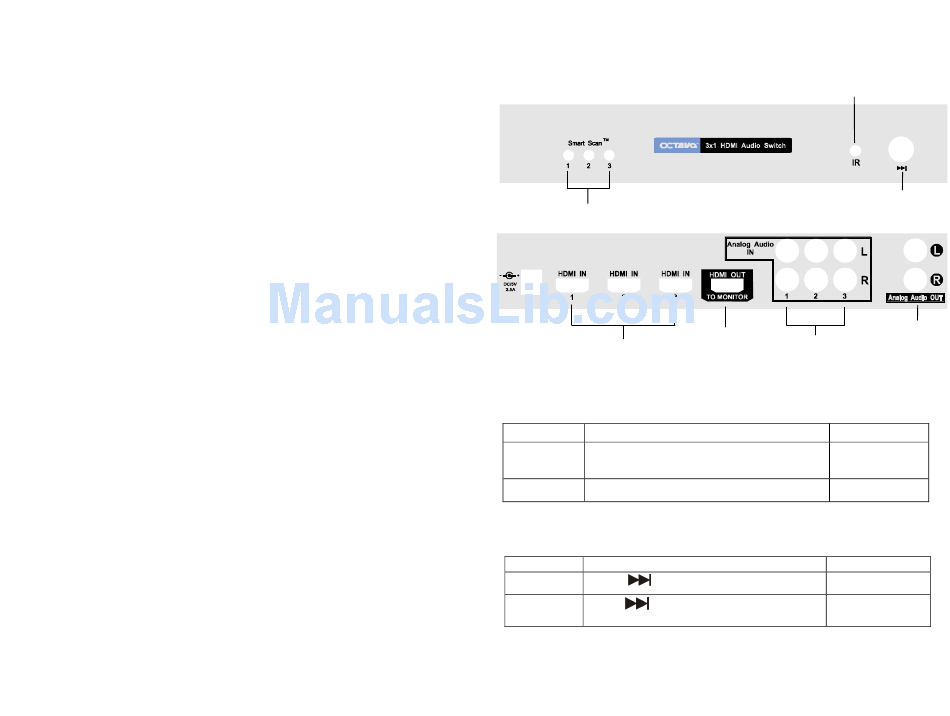

Front View
Source LED
Back View
DC
Power
HDMI Inputs
Input
Led Indication:
Meaning
LED ON HDMI Audio Switch is ON and Port
Indicated is selected.
NO LED HDMI Audio Switch is in Standby Mode.
Front Panel Control Button:
Function Action
Input Select Press t to manually select source.
Smart Scan Press for ~5 seconds until LED's
Disable cycle to disable Smart Scan.
Infrared Detector
Manual Select
HDMI
Stereo
Output
Audio
(To TV)
Inputs
Notes
Notes
4
Stereo
Audio
Output
