Octava HDA31-V1.3 Installation Manual page 3

Remote Control Guide:
Pressing +/-
Increments/Decrements
to the next available
Source.
Pressing ON/OFF
Turns On/Off the
HDMI switch.
Button
+, - Increments/Decrements to the next
available Source
1,2,3 Selects the corresponding
numbered source.
Turns ON/OFF the LED light.
Turns ON HDMI switch.
Put HDMI switch to Standby mode.
Other Not used
Octava's Remote control uses discrete code so can be easily integrated
with most Universal Remote Controls such as Logitech's Harmony.
Pressing 1...3
Selects the
corresponding numbered
source.
Pressing LED
Turns on/off the
Blue LED light.
Function Notes
5

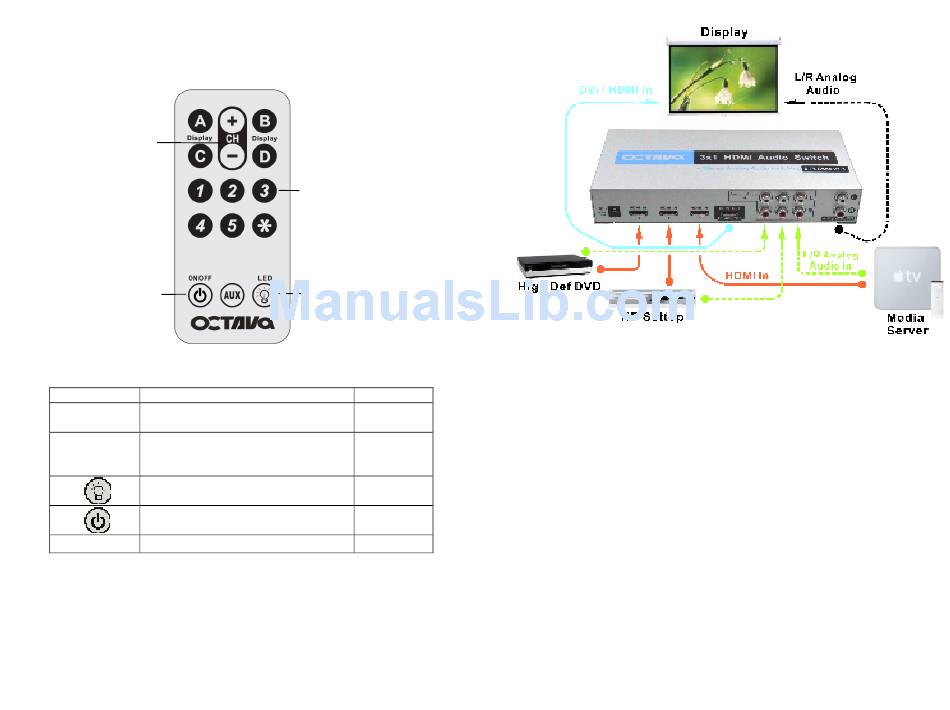

Application Diagram
Installation:
1) Connect the HDTV to the HDMI OUT
2) Connect the HDMI source to the HDMI INPUTS
3) Connect the L/R Audio sources to the LR Audio In
4) Connect the HDTV L/R Audio In to the L/R Audio Out
4) Connect the DC power adapter
Smart Scan :
TM
Octava's HDMI switch with Smart Scan
of fumbling with multiple remote controls. Simply power on the
HDMI source you want to view and the HDMI switch will
automatically switch to the correct port. If no HDMI sources are
on, then the switch will go into standby mode.
Energy Smart: If the HDTV is off or if all HDMI sources are off, the
switch will go into standby mode to conserve power.
TM saves you the hassle
2
