3.1
CD mechanism assembly
3.1.1 Removing the top cover
(See Figs.1 and 2)
(1) From the both side of the CD mechanism assembly, re-
move the four screws A attaching the top cover. (See
Fig.1.)
(2) Lift the front side of the top cover and move the top cover
backward to release the two joints a. (See Figs.1 and 2.)
1-6 (No.MY008)
SECTION 3

DISASSEMBLY

Top cover
A
A
A

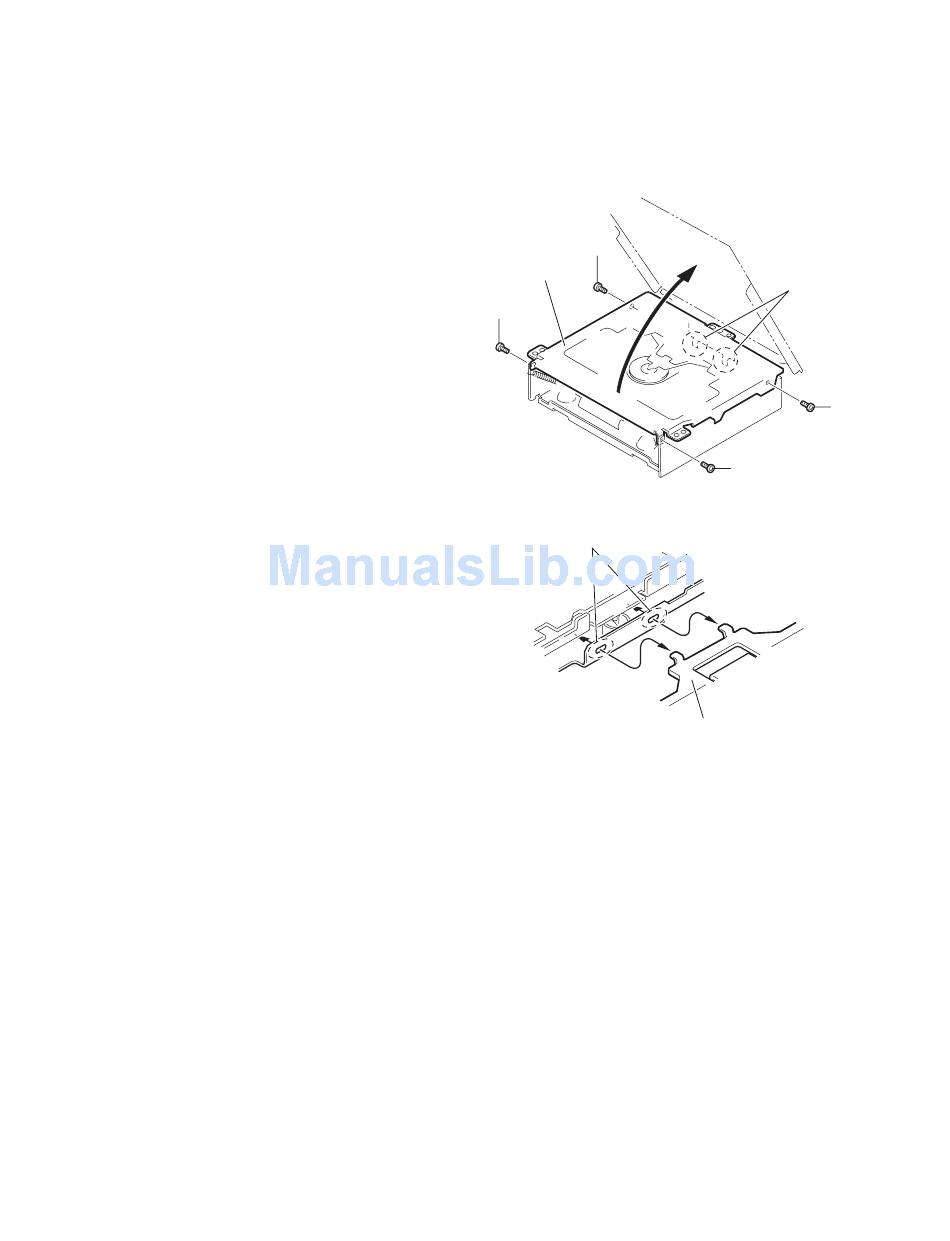

Fig.1
a
Top cover
Fig.2
a
A
