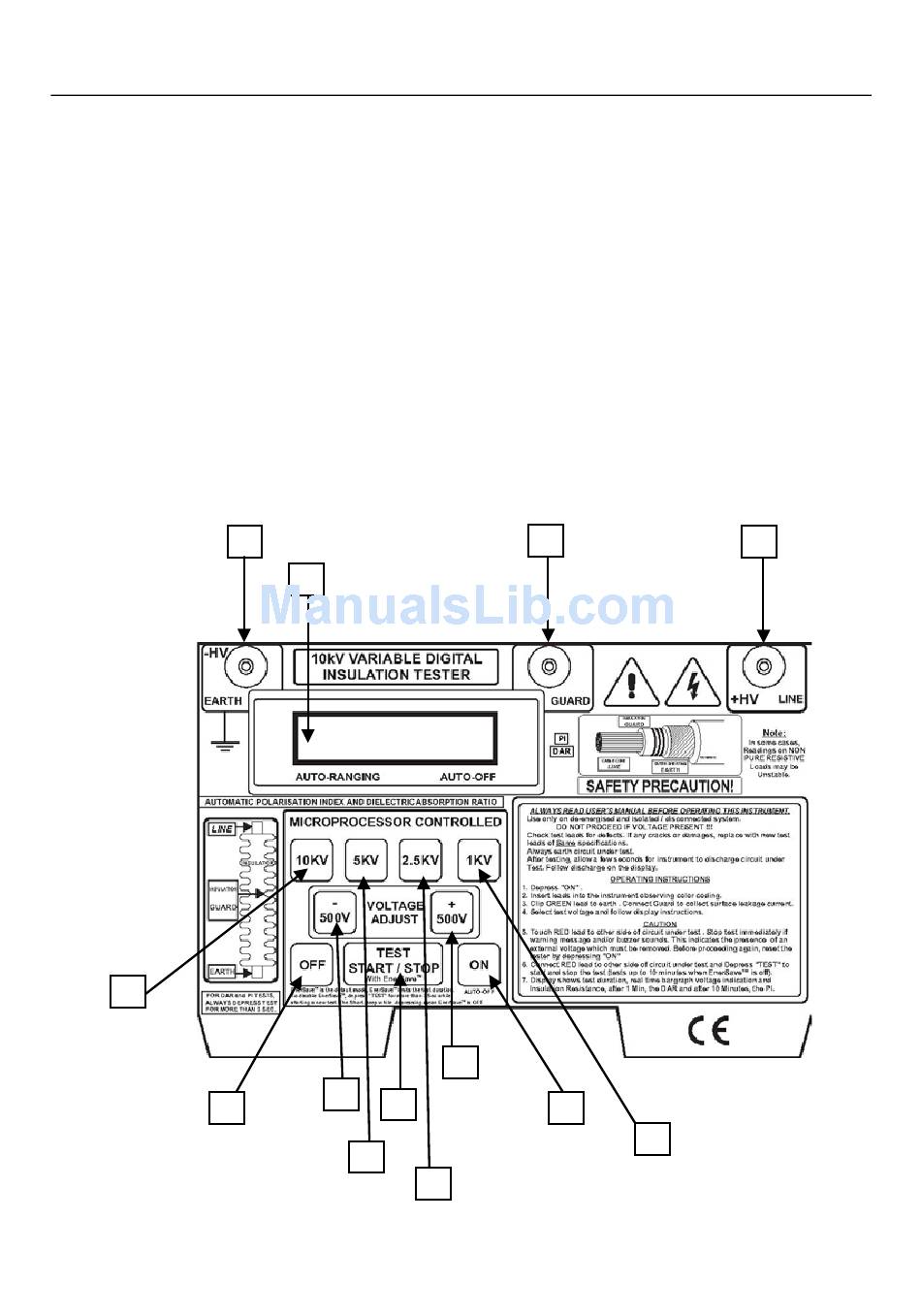

Description
1.
Negative High Voltage (HV) Terminal
(Earth Ground)
2.
Dot Matrix Display window
3.
GUARD connection Terminal
4.
Positive High Voltage Line Terminal
5.
10KV test voltage preset button
6.
Power OFF button
7.
Voltage adjustment button (-)
Note: Battery compartment located on bottom of instrument and test lead compartment
located behind the upper faceplate.
5
6
Shop for Extech products at:
1
2
7
9
8
ShopExtech
8.
5KV test voltage preset button
9.
TEST START/STOP button
10. 2.5KV test voltage preset button
11. 500V test voltage adjust button (+)
12. Power ON button
13. 1KV test voltage preset button
3
11
12
10
5
.ca
4
13
MG500-en-GB_v1.3 3/17
