Linearity
The Pic-Convert™ board provides a duty cycle or analog voltage output based on an increment from the
step and direction output on your controller. It is imperative that this output is linear for the 256 shades

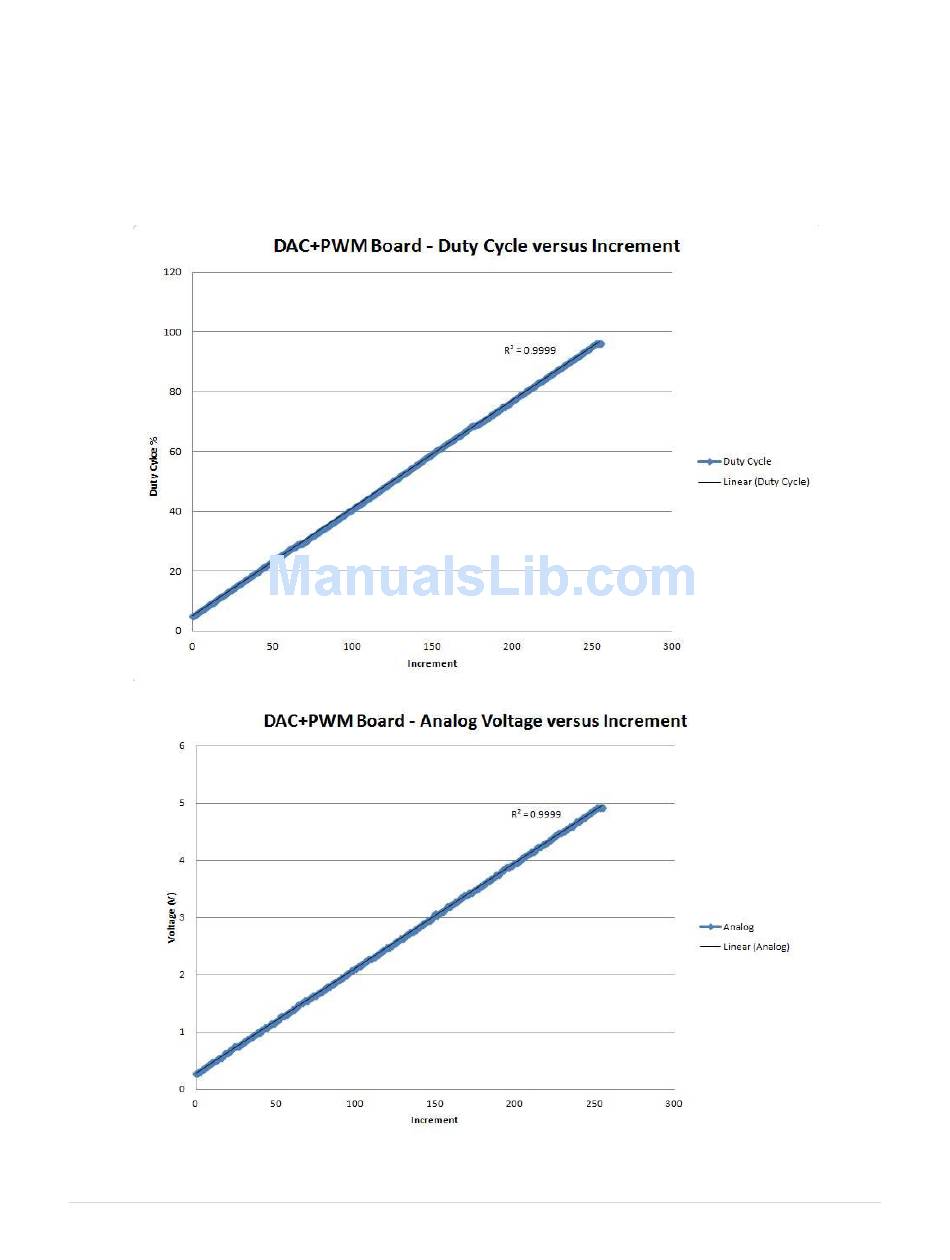

of greyscale will show exactly on your image. Here is the output for both versus increment. It is 99.99%
linear in both applications.
6 |
P a g e
J Tech Photonics, Inc.
Pic-Convert™ Board Instructions V2.7
Copyright 6/13/17
