Power Specifications

The Pic-Convert™ comes with a provided 7V power adapter. If you want to use a different power
supply, the board requires a voltage higher than +6V. You can use a power supply that is larger (up to
24volts), but make sure the regulator does not get too hot. A 9V or 12V supply should be easy to find.

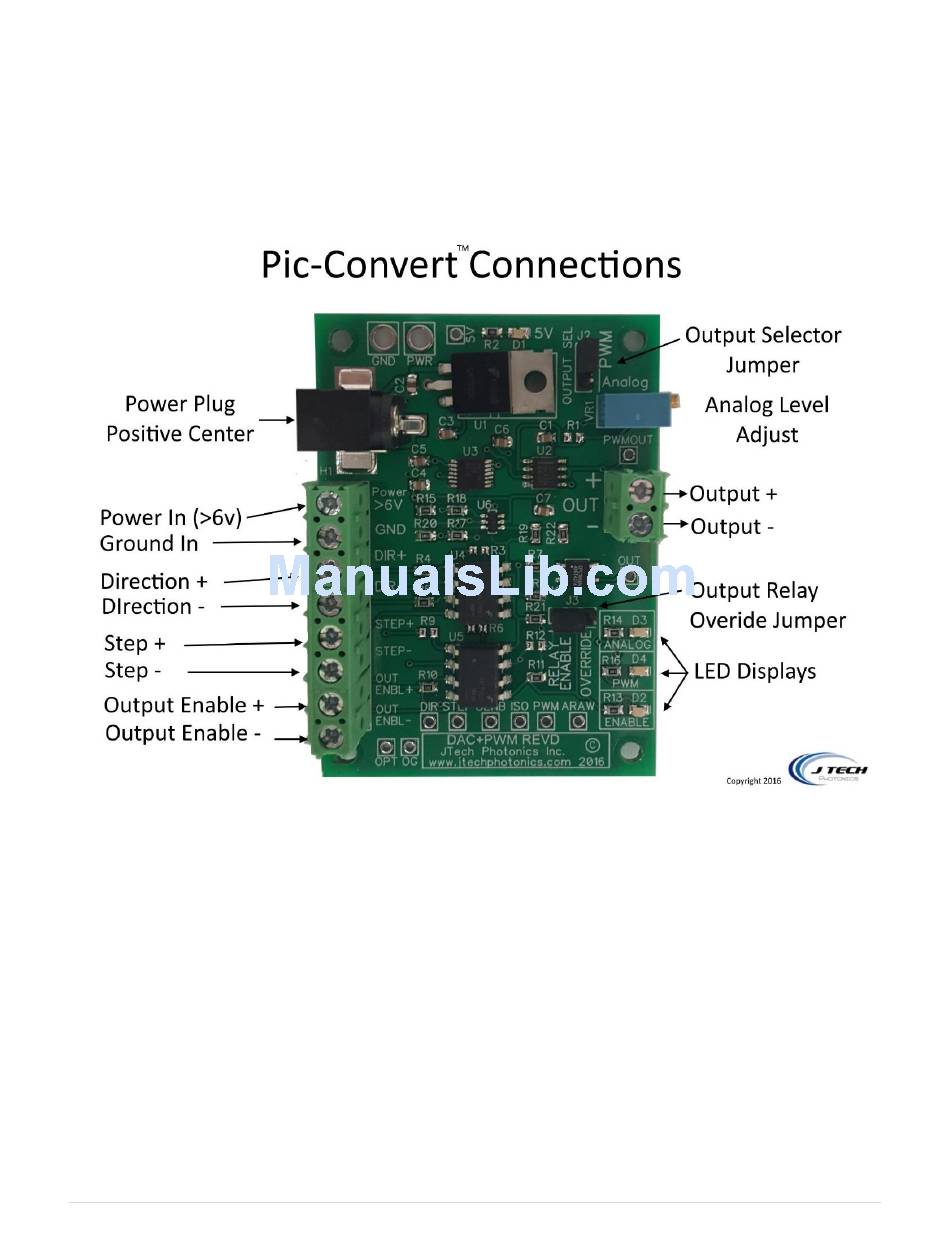

Connection Overview

INPUTS (left side of the board):
Direction + :
Direction - :
Step + :
STEP - :
Output Enable + :
Output Enable - :
OUTPUTS (right side of the board):
OUT:
2 | P a g e
J Tech Photonics, Inc.
Direction encoder signal for the axis chosen in control software.
Connect to the GND signal for your Breakout board or controller.
Step encoder signal for the axis chosen in control software.
Connect to the GND signal for your Breakout board or controller.
This will enable the output of PWM or Analog on the OUT header.
Connect to the GND signal for your Breakout board or controller.
Output for the PWM (or analog) signal.
Pic-Convert™ Board Instructions V2.7 Copyright 6/13/17
