J Tech Photonics Pic-Convert Instructions Manual page 10

Mach3 Setup
Here are some standard settings in Mach3 that Jeff at picengrave.com suggests from his experience with
the Pic-Convert™ board. Units are in INCHES.
Steps per inch:
Velocity:
Accel:
Step Pulse:
Direction Pulse:
This makes your incremental move distance = 0.0001"
Jeff recommends using the "A" axis because it has keyboard jogging enabled and a digital readout on the
mach3 default screen

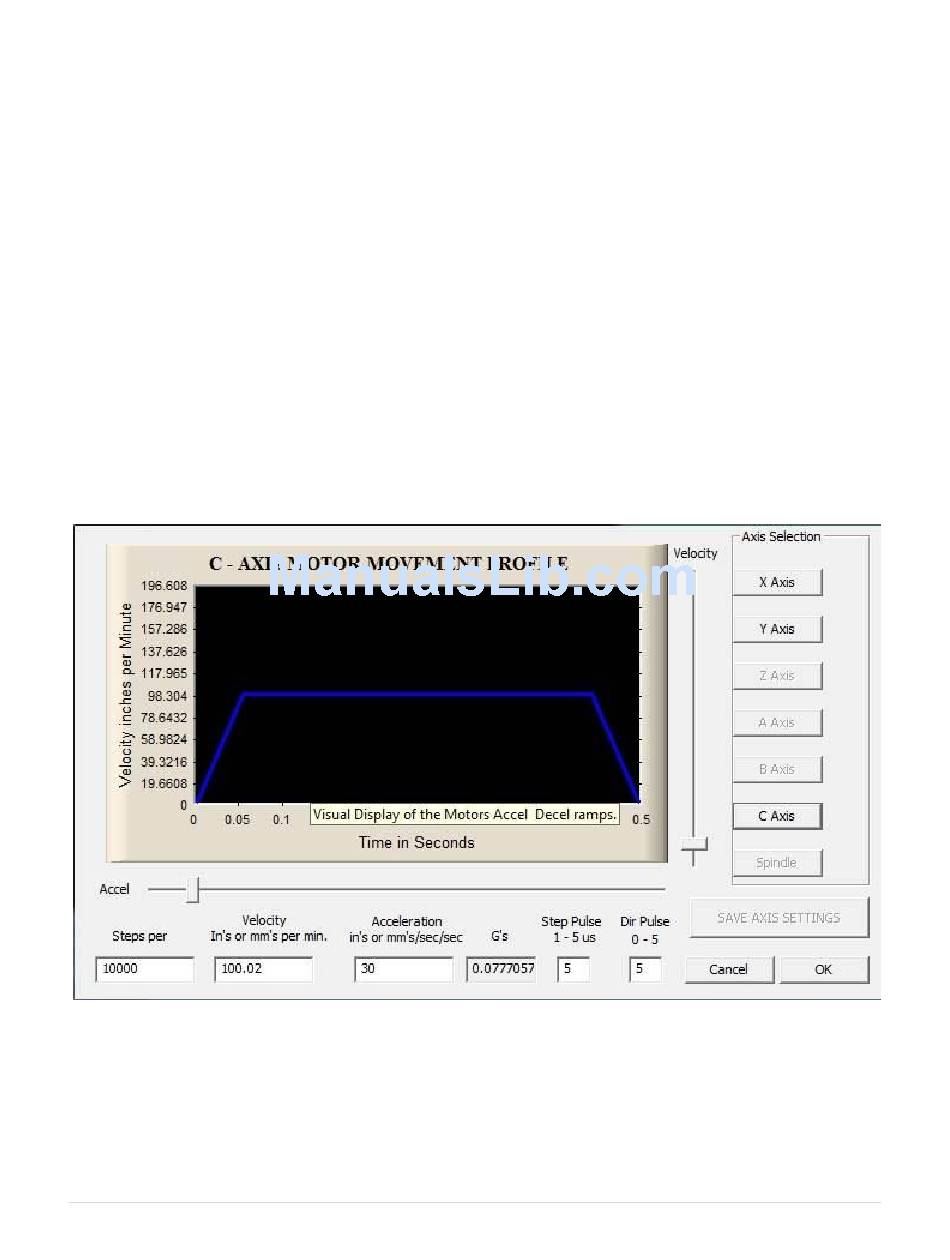

This example is for the C axis, but it can be also "A", "B", or "Z" as well:
10 | P a g e
J Tech Photonics, Inc.
10000
Calculated by your machine controller
30
5
5
Pic-Convert™ Board Instructions V2.7 Copyright 6/13/17
