RESIDENTIAL ELECTRIC WATER HEATER
TABLE OF CONTENTS
1) INTRODUCTION. . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
II) SAFETY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
III) INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
IV) OPERATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
V) MAINTENANCE . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
PLEASE RETAIN THESE INSTRUCTIONS IN A
SAFE LOCATION FOR FUTURE REFERENCE
WARNING:
Improper installation, adjustment, alter-
ation, service, or maintenance can cause
injury or property damage. Refer to this
manual. For assistance or additional infor-
mation, consult a qualified installer, serv-
ice agency, or the electric utility.
FOR YOUR SAFETY
• Do not store or use gasoline or other
flammable vapors and liquids in the
vicinity of this or any other appliance.
• Installation and service must be per-
formed by a qualified installer, service
agency or the electric utility.
WARNING:
If the information in these instructions is
not followed exactly, a fire or explosion
may result causing property damage, per-
sonal injury or death.
IF YOU HAVE ANY INSTALLATION, PERFORMANCE OR
OPERATIONAL QUESTIONS PLEASE CALL THE FOL-
LOWING NUMBER, PRIOR TO REMOVING THE WATER
HEATER:
1-888-479-8324
INSTALLATION AND
OPERATING INSTRUCTIONS
Read these instructions thoroughly before starting
INSTALLATION RECORD
This water heater is protected by a multi-year warranty against
leaks plus a one (1) year warranty on parts.
Record key data here for future reference and prompt service:
Installed By / Purchased From:
Installation Date:
Model Number
Watts
Watts
P.S.I.
Volts
PART NO. 324419-000 REV. 00 (12-04)
Location of Electrical Switch
or Circuit Protector:
Serial Number
Watts-Total
U.S. Gal.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for A.O. Smith 324419-000
Summary of Contents for A.O. Smith 324419-000

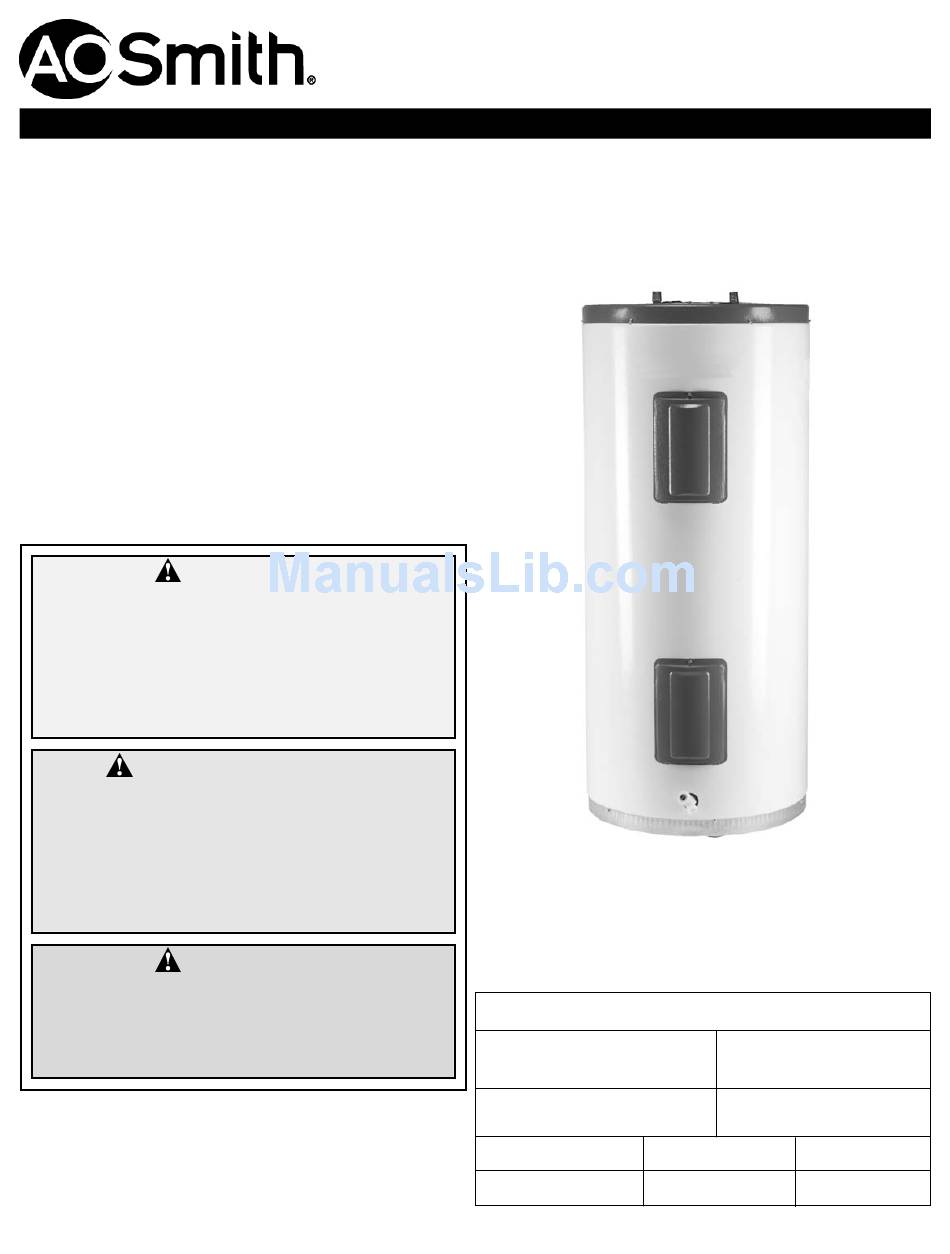

- Page 1 Circuit Protector: Model Number Serial Number IF YOU HAVE ANY INSTALLATION, PERFORMANCE OR OPERATIONAL QUESTIONS PLEASE CALL THE FOL- LOWING NUMBER, PRIOR TO REMOVING THE WATER Watts Watts-Total Watts HEATER: 1-888-479-8324 P.S.I. Volts U.S. Gal. PART NO. 324419-000 REV. 00 (12-04)
- Page 2 This page intentionally left blank. May be used for notes or to record other installation information. – 2 –...
-
Page 3: Installation
1) INTRODUCTION pressure relief valve certified by a nationally recognized testing laboratory that maintains periodic inspection of pro- Thank you for purchasing this water heater. Properly duction of listed equipment or materials, as meeting the lat- installed and maintained, it will provide years of trouble free est edition of “Relief Valves for Hot Water Supply service. - Page 4 Electrical 1. Check to see that the element marking and nameplate TWO WIRE CIRCUIT FOR SINGLE (1) ELEMENT HEATERS EQUIPPED WITH data correspond with the electric service available. The SINGLE (1) HIGH-LIMIT CONTROL. SPACESAVER MODELS ONLY. junction box where electrical connections are made is INCOMING located near the top of the heater, near the upper SUPPLY...
-
Page 5: Operation
IV) OPERATION Normal Operation: When hot water is being used, cold water enters the bottom of the heater (either bottom feed or Temperature Adjustment by diptube), and the bottom element will begin to heat the WARNING: cold water. If lots of hot water has been used, the upper Risk of scalding thermostat will take priority and the top portion of the heater will be heated. -
Page 6: Electrical Shock Hazard
Thermostat Replacement outlet (discharged water may be hot), slowly lift and release the lever handle on the temperature and pressure 1. Turn the electrical supply to the water heater "OFF". relief valve (see Figure 3) to allow the valve to operate freely 2. -
Page 7: Troubleshooting
Water Is Too Hot c. Remove the six (6) hex head screws securing the tank clean-out plate and remove the plate. Adjust the thermostats to a lower setting. See “Temperature d. Remove lime, scale or sediment using care not to Adjustment”... -
Page 8: Thermal Expansion
Pressure Build-Up (Thermal Expansion) During the heating cycle of the water heater, the water expands creating a pressure build-up in the plumbing sys- tem. If the pressure exceeds 150 psi, water will come out of the valve. This is a normal safety function of the T&P valve. The water supply meter may have a check valve or back flow preventer inside. - Page 9 Cold in OPTION 2 Hot out OPTION 1 Floor drain Drain pan* Floor drain SPACESAVER™ MODELS (SIDE OUTLET) ONLY NOTE TO INSTALLERS: bent tube shown) is installed for the hot water outlet on Hot out side outlet water heaters to ensure a maximum of hot water supply.
