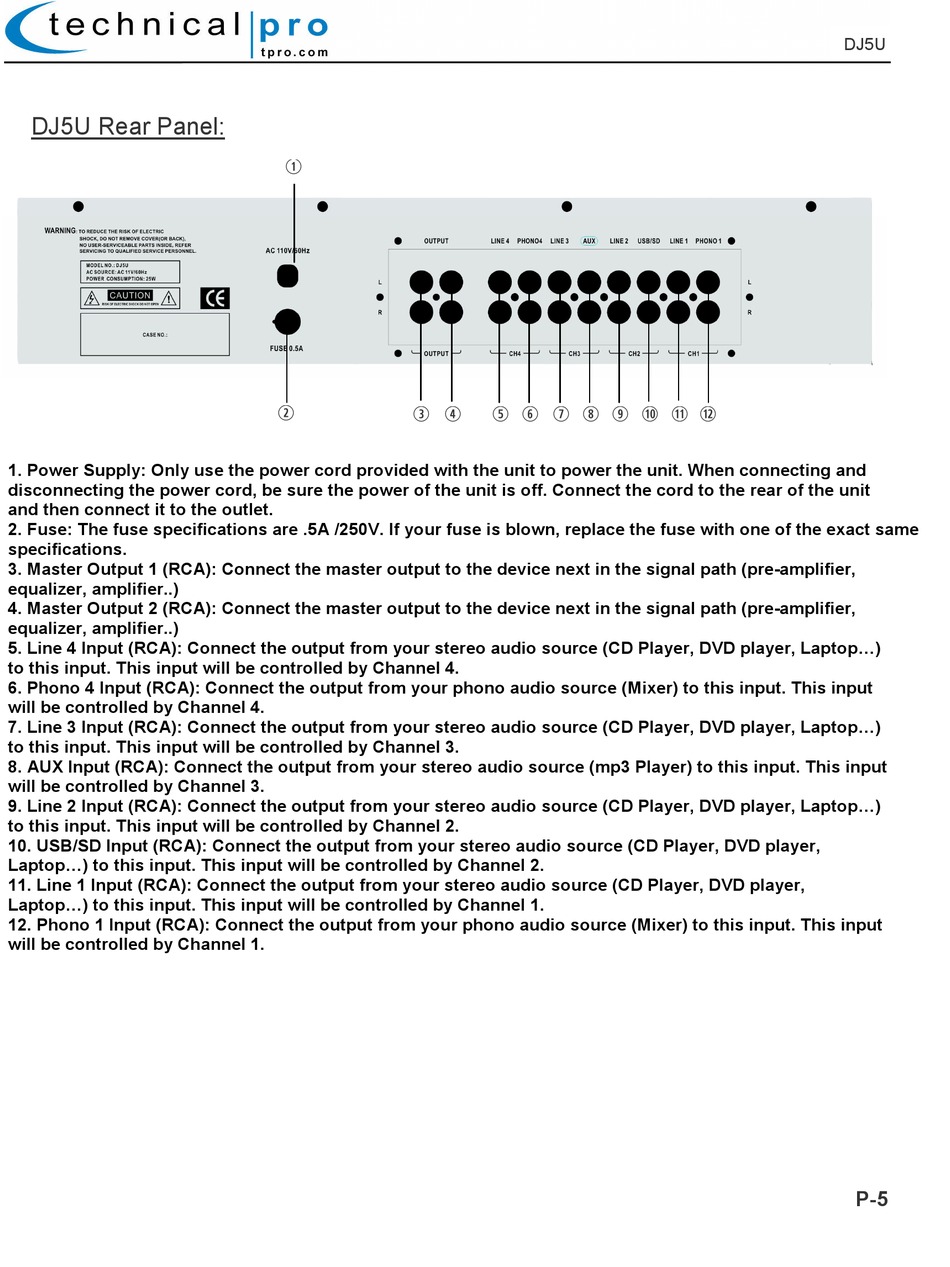

DJ5U Rear Panel:

q
w
e r t y u i o 1) 1! 1@
1. Power Supply: Only use the power cord provided with the unit to power the unit. When connecting and
disconnecting the power cord, be sure the power of the unit is off. Connect the cord to the rear of the unit
and then connect it to the outlet.
2. Fuse: The fuse specifications are .5A /250V. If your fuse is blown, replace the fuse with one of the exact same
specifications.
3. Master Output 1 (RCA): Connect the master output to the device next in the signal path (pre-amplifier,
equalizer, amplifier..)
4. Master Output 2 (RCA): Connect the master output to the device next in the signal path (pre-amplifier,
equalizer, amplifier..)
5. Line 4 Input (RCA): Connect the output from your stereo audio source (CD Player, DVD player, Laptop...)
to this input. This input will be controlled by Channel 4.
6. Phono 4 Input (RCA): Connect the output from your phono audio source (Mixer) to this input. This input
will be controlled by Channel 4.
7. Line 3 Input (RCA): Connect the output from your stereo audio source (CD Player, DVD player, Laptop...)
to this input. This input will be controlled by Channel 3.
8. AUX Input (RCA): Connect the output from your stereo audio source (mp3 Player) to this input. This input
will be controlled by Channel 3.
9. Line 2 Input (RCA): Connect the output from your stereo audio source (CD Player, DVD player, Laptop...)
to this input. This input will be controlled by Channel 2.
10. USB/SD Input (RCA): Connect the output from your stereo audio source (CD Player, DVD player,
Laptop...) to this input. This input will be controlled by Channel 2.
11. Line 1 Input (RCA): Connect the output from your stereo audio source (CD Player, DVD player,
Laptop...) to this input. This input will be controlled by Channel 1.
12. Phono 1 Input (RCA): Connect the output from your phono audio source (Mixer) to this input. This input
will be controlled by Channel 1.
