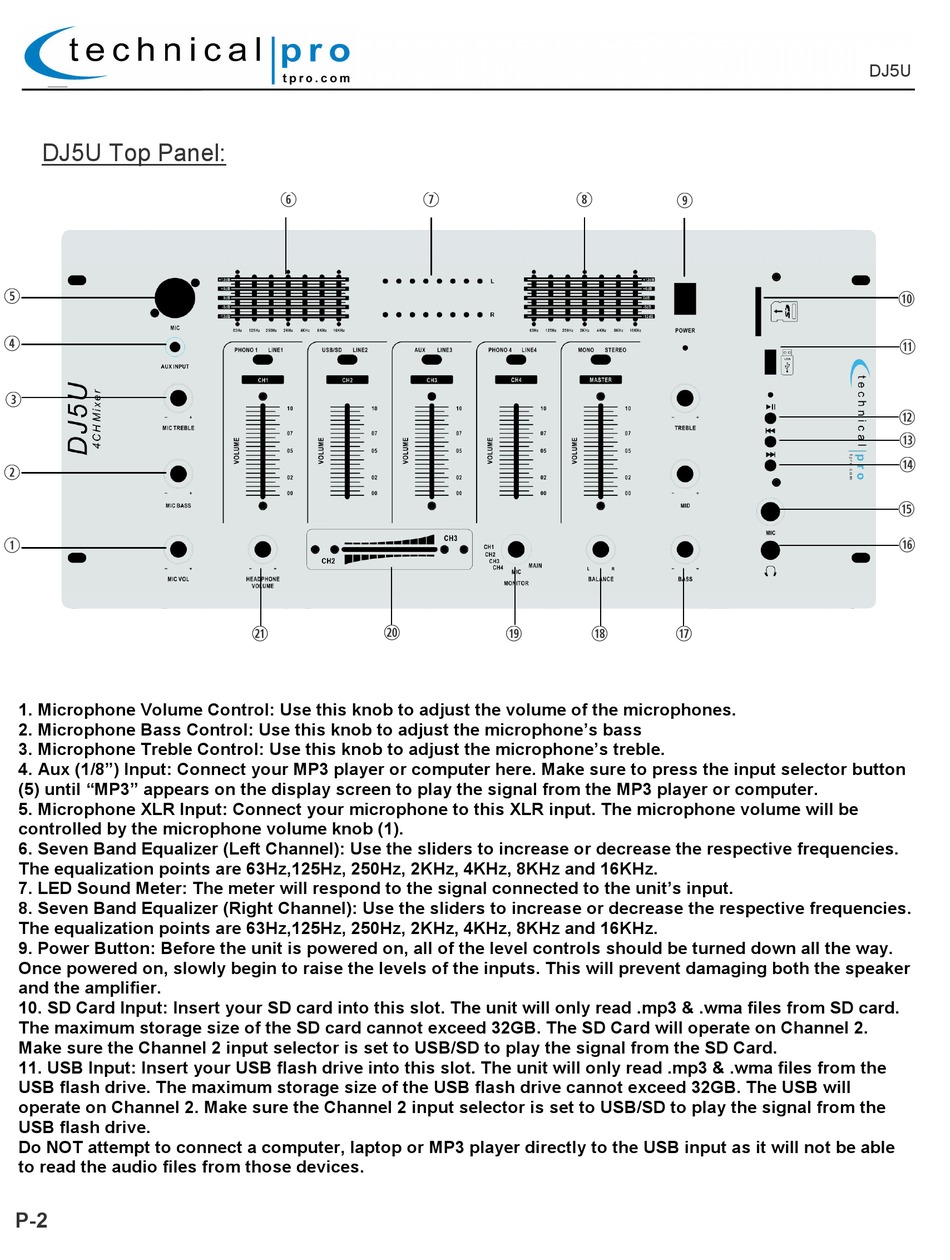

DJ5U Top Panel:

t
r
e
w
q
1. Microphone Volume Control: Use this knob to adjust the volume of the microphones.
2. Microphone Bass Control: Use this knob to adjust the microphone's bass
3. Microphone Treble Control: Use this knob to adjust the microphone's treble.
4. Aux (1/8") Input: Connect your MP3 player or computer here. Make sure to press the input selector button
(5) until "MP3" appears on the display screen to play the signal from the MP3 player or computer.
5. Microphone XLR Input: Connect your microphone to this XLR input. The microphone volume will be
controlled by the microphone volume knob (1).
6. Seven Band Equalizer (Left Channel): Use the sliders to increase or decrease the respective frequencies.
The equalization points are 63Hz,125Hz, 250Hz, 2KHz, 4KHz, 8KHz and 16KHz.
7. LED Sound Meter: The meter will respond to the signal connected to the unit's input.
8. Seven Band Equalizer (Right Channel): Use the sliders to increase or decrease the respective frequencies.
The equalization points are 63Hz,125Hz, 250Hz, 2KHz, 4KHz, 8KHz and 16KHz.
9. Power Button: Before the unit is powered on, all of the level controls should be turned down all the way.
Once powered on, slowly begin to raise the levels of the inputs. This will prevent damaging both the speaker
and the amplifier.
10. SD Card Input: Insert your SD card into this slot. The unit will only read .mp3 & .wma files from SD card.
The maximum storage size of the SD card cannot exceed 32GB. The SD Card will operate on Channel 2.
Make sure the Channel 2 input selector is set to USB/SD to play the signal from the SD Card.
11. USB Input: Insert your USB flash drive into this slot. The unit will only read .mp3 & .wma files from the
USB flash drive. The maximum storage size of the USB flash drive cannot exceed 32GB. The USB will
operate on Channel 2. Make sure the Channel 2 input selector is set to USB/SD to play the signal from the
USB flash drive.
Do NOT attempt to connect a computer, laptop or MP3 player directly to the USB input as it will not be able
to read the audio files from those devices.
