SCHEMATIC DIAGRAMS

Contents
Block diagram
Standard schematic diagrams
Printed circuit boards

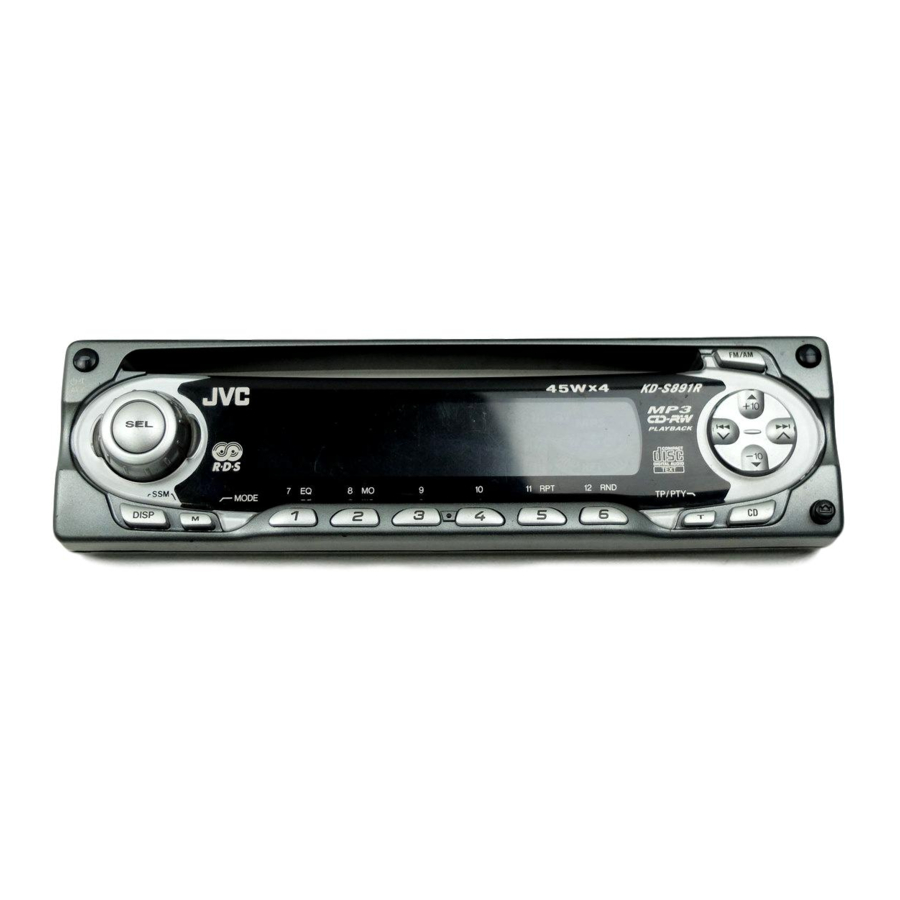

CD RECEIVER
KD-S891R
CD-ROM No.SML200307
COPYRIGHT
2003 VICTOR COMPANY OF JAPAN, LTD.
Area suffix
E ----------- Continental Europe
EX --------------- Central Europe
2-1
2-2
2-5 to 7
No.49876SCH
2003/7

Advertisement

Table of Contents
loading

Related Manuals for JVC KD-S891R

Summary of Contents for JVC KD-S891R

  • Page 1: Schematic Diagrams

    SCHEMATIC DIAGRAMS CD RECEIVER KD-S891R CD-ROM No.SML200307 Area suffix E ----------- Continental Europe EX --------------- Central Europe Contents Block diagram Standard schematic diagrams Printed circuit boards 2-5 to 7 No.49876SCH COPYRIGHT 2003 VICTOR COMPANY OF JAPAN, LTD. 2003/7...
