11.0 Technical Specifications

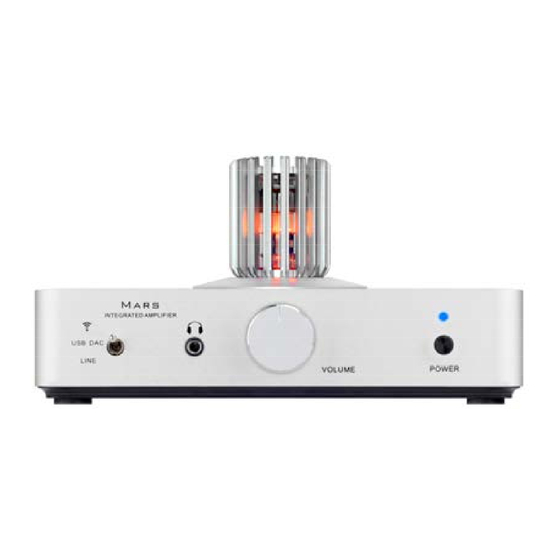

MARS HYBRID INTEGRATED AMPLIFIER
WITH USB DAC and WIRELESS
Power Output: Class A RMS 25W per channel
Frequency Response: 20Hz-40kHz (+/-0.5dB 1W)
S/N Ratio: 92dB
Output Power Distortion: <1% (4W 1kHz)
Input Sensitivity: 220mV
Inputs: LINE, USB DAC, Wireless
Max. Line Input: RMS 3.5V
USB DAC Spec.: 24 Bit 96kHz (IC Parts No.: VT1620)
Speaker Output Impedance: 4 or 8
Headphone Output Impedance: 32-600
Overall Negative Feedback: -39dB
Overall S/N Ratio: 83dB
Power Consumption: Max. 180W
Operation Method: Class AB
Output: Preamplifier
Tubes Required: 6N3
Dimensions: 190 x 128 x 40 mm (W x D x H)
7.5" x 5" x 6 1.5"
Weight: 3.5kg / 7.8lbs
Thank-you for selecting DARED
as your choice for your
audio entertainment system
and listening pleasure.
Experience The Art of Tube
Tube
The Purity of Sound
12
UNIVERSAL
INTEGRATED AMPLIFIER
WITH USB DAC and WIRELESS
with HEADPHONE OUTPUT
WARNING!
Read the instruction manual
completely before use.
IT CONTAINS VITAL SAFETY, WARRANTY
AND LIABILITY INFORMATION.
By using the product the user acknowledges their
responsibility and agrees to the warranty and liability
statements and safety notices.
DARED AUDIO INTERNATIONAL
www.dared.com.hk
© 2010-2014 DARED Due to constant improvements, specifications and functions
subject to change without notice. Failure to read and follow the guidelines estab-
lished in the manual may void warranty. Customer is solely responsible for use.
Tampering or modifying the unit voids warranty. Consult Warranty Statement for all
details.
MARS
TUBE HYBRID
Manual Rev 1.3 Nov 26 2014
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Dared Mars
Summary of Contents for Dared Mars
-
Page 1: Integrated Amplifier
Manual Rev 1.3 Nov 26 2014 Experience The Art of Tube DARED AUDIO INTERNATIONAL www.dared.com.hk © 2010-2014 DARED Due to constant improvements, specifications and functions subject to change without notice. Failure to read and follow the guidelines estab- Tube The Purity of Sound lished in the manual may void warranty. -
Page 2: Dear Valued Customer
If you hear unusual sounds, squeals, or have low audio output, or reason why our products are sought after retain their value over time. distorted output, it is time to consider replacing the tube. Your DARED Dealer may assist. Replace tubes always with the same model number. - Page 3 At this time also please locate the Product Registration Card and write down the serial number of your new MARS Amplifier in the space provid- ed on the card as well as below for future reference.
- Page 4 Unplug the AC mains cord as well as all other connecting cables during transportation. 10. Only use attachments and accessories specified by DARED or your Au- thorized DARED Dealer. 11. Use a surge protector on the main AC-Line to this component as well as all other components connected to this product.
- Page 5 4.0 Installation & Placement front panel to the desired input setting. Your MARS amplifier as is the case with any tube equipped device is more D. Turn on the Input Device and, for an example a CD, press play on the CD sensitive than most other types of audio components to EMI (electro- player.
- Page 6 Ensure that the AC wall outlet you use has a function- ing ground. Then, it is preferable that you plug your MARS amplifier into a surge suppressor or combination surge suppressor power bar used as well for your other audio components.
