Instructions Manual
FOR OUTDOOR USE ONLY

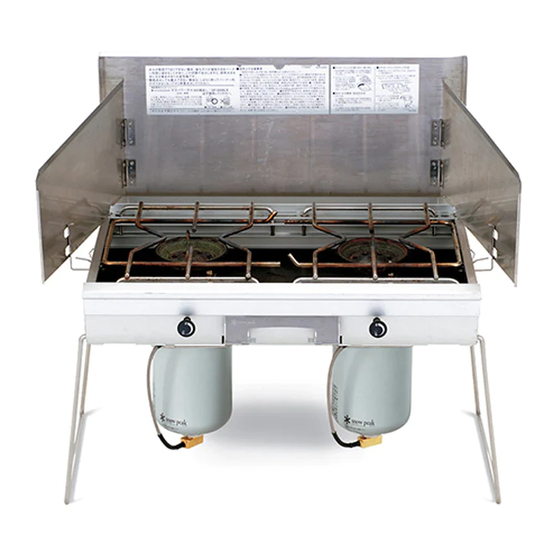

GigaPower Liquid Injection Double Burner Stove
(GS-230)
GigaPower Standard Double Burner Stove
(GS-220)
GigaPower Double Burner Stove
Liquid Injection
(GS-230)
Instructions and precautions that are
specific
to
this
product
displayed in boxes outlined with
thick, solid lines like this.
GigaPower Double Burner Stove
Standard
(GS-220)
Instructions and precautions that are
specific
to
this
product
displayed in boxes outlined with
thick, broken lines like this.
are
are
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Snow Peak GigaPower GS-230
Summary of Contents for Snow Peak GigaPower GS-230
- Page 1 Instructions Manual FOR OUTDOOR USE ONLY GigaPower Liquid Injection Double Burner Stove (GS-230) GigaPower Standard Double Burner Stove (GS-220) GigaPower Double Burner Stove Liquid Injection (GS-230) Instructions and precautions that are specific this product displayed in boxes outlined with thick, solid lines like this. GigaPower Double Burner Stove Standard (GS-220)
-
Page 2: Please Be Sure To Use These Products
Thank you for purchasing this Snow Peak product. Please read these instructions carefully in order to ensure safe long-term use of this product. Please be sure to keep this document for future reference. If there is an item in the instructions that you do not understand or have questions about, please contact Snow Peak before using this product. -
Page 3: Table Of Contents
GigaPower Standard Double Burner Stove (GS-220) The liquefied petroleum gas inside the canister is extracted in gas form and combusted. High-Power Designated Exclusive Snow Peak Products GigaPower Gas 500 Iso Fuel (GP-500) | White background with silver band GigaPower Gas 500 ProIso Fuel (GP-500G) | White background with gold band Gas fuel Please be sure to use these products. -
Page 4: Safety Precautions
Inspect the rubber O-ring on the connector every time you use beaches, riverside rocks or paved roads in summer. it. If the ring is worn or damaged, contact Snow Peak or the ■ Reason: Under direct sunlight, store where you purchased this product. - Page 5 WARNING WARNING Do not use underneath anything that is easily combustible. Do not place one cooking tray Maintain space of at least 30cm in all directions around the or pot across multiple stoves. stove. Attach and use the windscreen and cover as instructed to prevent heat damage to the surrounding area.
- Page 6 Storage and Disposal Precautions WARNING Do not tilt, shake, or lift a lit stove. If you are moving it, always WARNING turn the heat adjustment knobs on the front of the unit If you will not be using a fuel canister for a long period of time clockwise to extinguish the flames, confirm that the gas valves or are moving the stove, detach the canister and place the cap are closed, and only move after the entire unit has cooled...
- Page 7 Modifying them will not only decrease their performance, but could also lead to incomplete combustion or gas leakage. Consult the store where you purchased this product or Snow Peak regarding repairs. WARNING Do not bring fuel canisters onto an airplane.
-
Page 8: Contents Of Set (Names Of Parts)
■ Contents of Set Double burner main unit Trivet × 2 Stand × 2 Cover with windscreen Fuel canister valve shield Cover Windscreen Trivet Stopper Trivet Stand Lock spring Fuel canister valve shield Stand Auto-igniter Heat adjustment knob... -
Page 9: Assembly And Use
Assembly and Use 2. Attaching the stands Find a flat location for assembly, and ensure that it is clean so (1) Remove the trivets stored inside the stove. The trivets are that no dirt will adhere to the fuel canister connectors on the detached from the stove. - Page 10 Only use designated exclusive Snow Peak fuel canisters. tightened. Do not use any other fuel canisters. (5) To detach a fuel canister, confirm that the entire assemblage has sufficiently cooled down after the flame has been extinguished, and then follow the above procedure in reverse.
- Page 11 5. Attaching and detaching the fuel canister and the stove For GS-220 GS-230 Only use designated exclusive Snow Peak fuel canisters. Do not use any other fuel canisters. Only use designated exclusive Snow Peak fuel canisters. Do not use any other fuel canisters.
- Page 12 6. Ignition and adjusting and extinguishing the flame (3) Slowly turn the fuel canister connected to the connection tube (1) Ignition upside down. Confirm that the auto-igniters are discharging properly two to three times. Slowly turn the heat adjustment knobs counterclockwise (to the left, when viewed from the front), and press the auto- igniter buttons after discharging a small amount of gas.
- Page 13 7. Using Snow Peak’s exclusive cooking tray (sold separately) High If you are using a cooking tray, please use Snow Peak’s designated exclusive tray. <Exclusive cooking tray> Iron Griddle (GR-006) Always cook with the exclusive tray in a well-balanced If you are using this exclusive tray, always raise the trivets to position in the center of the stove.
- Page 14 8. Burner head care (1) You can clean inside the burner and inside the head by removing the central screw in the burner head to disassemble Using a burner that is clogged due to boil-over, etc. can result in incomplete combustion. Brass screw Burner head Wave washer ×...
-
Page 15: Precautions For Use
2. The product was damaged by misuse or rough handling. or Snow Peak. If it is a manufacturing defect, the product will 3. The product was damaged by modification. be repaired or replaced free of charge. In any other cases, the 4. -
Page 16: How To Spot And Handle Malfunctions And Abnormalities
● If there is still an abnormality or anything that you do not understand after checking the above, consult the store you purchased the product from or Snow Peak. ● If the stove will not extinguish, confirm the safety of the surrounding environment and wait for the gas to run out. -
Page 17: Gigapower Standard Double Burner Stove (Gs-220)
● Designated fuel canisters: GigaPower Gas 500 ProIso Fuel (GP-500G), GigaPower Gas 500 Iso Fuel (GP-500S) ● Designated pot diameter: 23cm or lower ● Volume: 8.0L or lower Snow Peak Inc. 958 Sanganji, Sanjo-shi, Niigata-ken 955-8616 TEL: 0256-38-1110 FAX: 0256-38-1015... - Page 18 GigaPower Liquid Injection Double Burner Stove (GS-230) Fuel Canister Attachment / Detachment (1) Connecting the Fuel Canister and the Tube Attach the fuel canister in an upright position (connector on top). If the canister is upside down (connector on the bottom) Designated Exclusive Fuel Canisters when you connect it, liquid gas will be forcefully ejected, which is extremely dangerous as this could cause ignition, fire, or...
- Page 19 Designated exclusive fuel canister (GP-500S or GP-500BL) CAUTION: Always attach and detach fuel canisters only when they are in Snow Peak Inc. an upright position (connector on top). 958 Sanganji, Sanjo-shi, Niigata-ken 955-8616 TEL: 0256-38-1110 FAX: 0256-38-1015 www.snowpeak.co.jp...
- Page 20 GigaPower Liquid Injection Double Burner Stove (GS-230) Fuel Canister Attachment / Detachment (2) Connecting the Fuel Canister to the Stove Always hold the fuel canister tightly with one hand, and operate the lock bar with the other hand. The fuel canister Designated Exclusive Fuel Canisters could fall if you do not attach it to the stove, and the impact from falling or the load on the connection tube from the weight...
- Page 21 Press CAUTION: Hold the fuel canister tightly and do not let go when attaching or detaching. The impact of a fall or the load on the connection tube from the weight of the fuel canister could cause damage.
