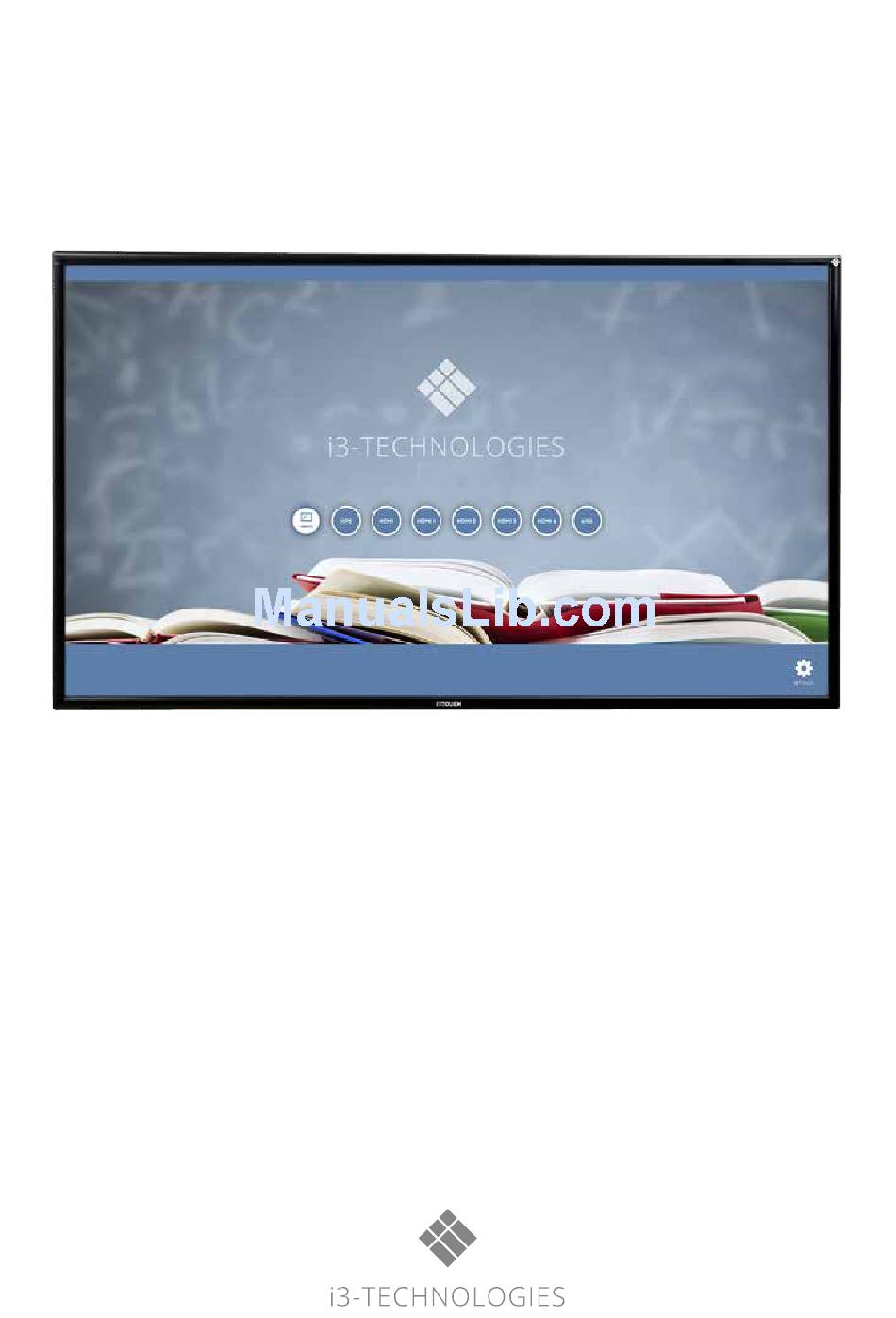

- Page 1 Interactive Touch Display User’s Manual i3TOUCH E1055 4K i3TOUCH E1065 4K i3TOUCH E1075 4K i3TOUCH E1086 4K...
-
Page 2: Table Of Contents
Contents Safety Warning & Statements Prepare to Install Connection and Setting Menu Operation Simple Troubleshooting Maintenance... -
Page 3: Safety Warning & Statements
Safety Warning Placement Do not place the unit on an unstable cart, stand, tripod, bracket, table, or shelf. Do not expose the unit to direct sunlight and other sources of heat. Do not put the unit near appliances that generate magnetic fields. Do not put any liquid near or on the unit, make sure do not spill any liquid inside the unit. -
Page 4: Prepare To Install
Prepare to Install 1. Control Panel Items Function description Tap to enter EnergySaving function Press at least 2 seconds to enter standby mode HOME button: back to main interface Return button: return to previous level menu Menu button: call up function menu Volume down button: turn down volume Volume up button: turn up volume... - Page 5 2. Terminal Interface Items Function description HDMI OUT Connected to the devices with HDMI input function Connect USB devices such as mobile hard disk, U disk, USB keyboard and mouse, USB drives, etc. High-definition multimedia interface signal input, connect to PC with HDMI IN HDMI output, set-top box, or other video device TOUCH...
- Page 6 3. Remote Control 1) Remote control button instruction...
- Page 7 Detailed Function Description Power on/off Mute switch Built-in computer Windows key Built-in computer Space key Space Built-in computer spacebar Alt + Tab Alt+Tab Alt+F4 Built-in computer program window close button Numeric input keys Numeric keys: Display: Display channel information Function button Input: Input signal source selection key, choose different sourced according to need Home:...
- Page 8 2) Remote Control Instruction Install Batteries (1) Open back cover of battery component on the back of remote control (2) Install AAA type battery according to the corresponding electrode, make sure battery positive and negative pole are correct ("+"to"+", "-" to "-"), please do not mix using old and new batteries (3) After battery is installed, close the back cover of battery components, and make the following clip buckled to the bottom Range of remote control...
-
Page 9: Connection And Setting
Connection and Setting For the safety of you and the machine, please do not connect any power plug before connection. 1. External Computer and Touch Connection USB Cable Audio Cable VGA Cable Computer (1) Use VGA cable to connect to VGA output port of external computer, and meanwhile use headphone audio cable to connect to external computer audio output interface (2) Use USB cable to connect to external computer USB port (3) After cable connection, plug in power cord,and switch power on... - Page 10 2. Audio and Video Equipment 1) AV IN Set-top Camera Video Game Video recorder Satellite TV receiver AV Cable (1) Use AV audio and video cables to connect audio and video equipments with AV output (yellow for video, red for right sound channel, and white for left sound channel) (2) After cable connection, plug in power cord, and switch power on (3) Press to turn equipment on...
- Page 11 3. Coaxial Connection Coaxial Cable Power amplifier/stereo equipment (1) Use coaxial cable to connect audio device with coaxial input (2) After cable connection, plug in power cord, and switch power on (3) Press to turn equipment on 4. Video Output Connection Projector HDMI IN Audio Cable...
- Page 12 5. LAN Connection Network Cable Internet 6. RS232 Connection RS232 Serial Port Cable Computer After using serial port cable to connect central control equipment and machine, certain function of the machine can be controlled via central control equipment, such as: machine ON/OFF, and adjustment of sound volume, etc.
-
Page 13: Menu Operation
Menu Operation Touch Menu Operation Call up Method Take middle point position on the bottom of display screen as starting point, use touch pen to drag towards screen center position to call up touch menu, as shown below. Note: "Touch A Method" mentioned in this manual to call up touch menu method is shown above. Setting Menu General Setting Press INPUT button on remote control or via touch A method to call up General Setting menu. - Page 14 Detail Setting Menu Press Menu on remote control or click the icon on General Setting menu with touch pen to call up detail setting menu. Detail setting menu includes Audio, Screen, Display and Adjust. Audio Press button on remote control to select Audio setting menu. Press button on remote control or directly click with touch pen to select the option.
- Page 15 Display Press button on remote control to select Display setting menu. Press button on remote control or directly click with touch pen to select the option. Press Enter on remote control to enter adjustment mode, and press button or directly click with touch pen to adjust each option.
-
Page 16: Simple Troubleshooting
Simple Troubleshooting Machine fails to work normally 1. Check whether there are other objects between remote control and equipment control receiving Remote control window, thus leading to failure of remote control. failure 2. Check whether the battery electrode in the remote control is correct. 3. -
Page 17: Maintenance
Maintenance Proper maintenance can avoid many early faults and regular careful cleaning can make machine brand new. Please unplug power plug before cleaning and maintenance, to prevent electric shock. Clean screen Please mix and stir even a little fabric softener or tableware detergent with warm water. Please use a soft cloth to be completely soaked in the mixture. - Page 20 AUTHORISED RESELLER WWW.I3-TECHNOLOGIES.COM INFO@I3-TECHNOLOGIES.COM...
