Connecting Power and Ground

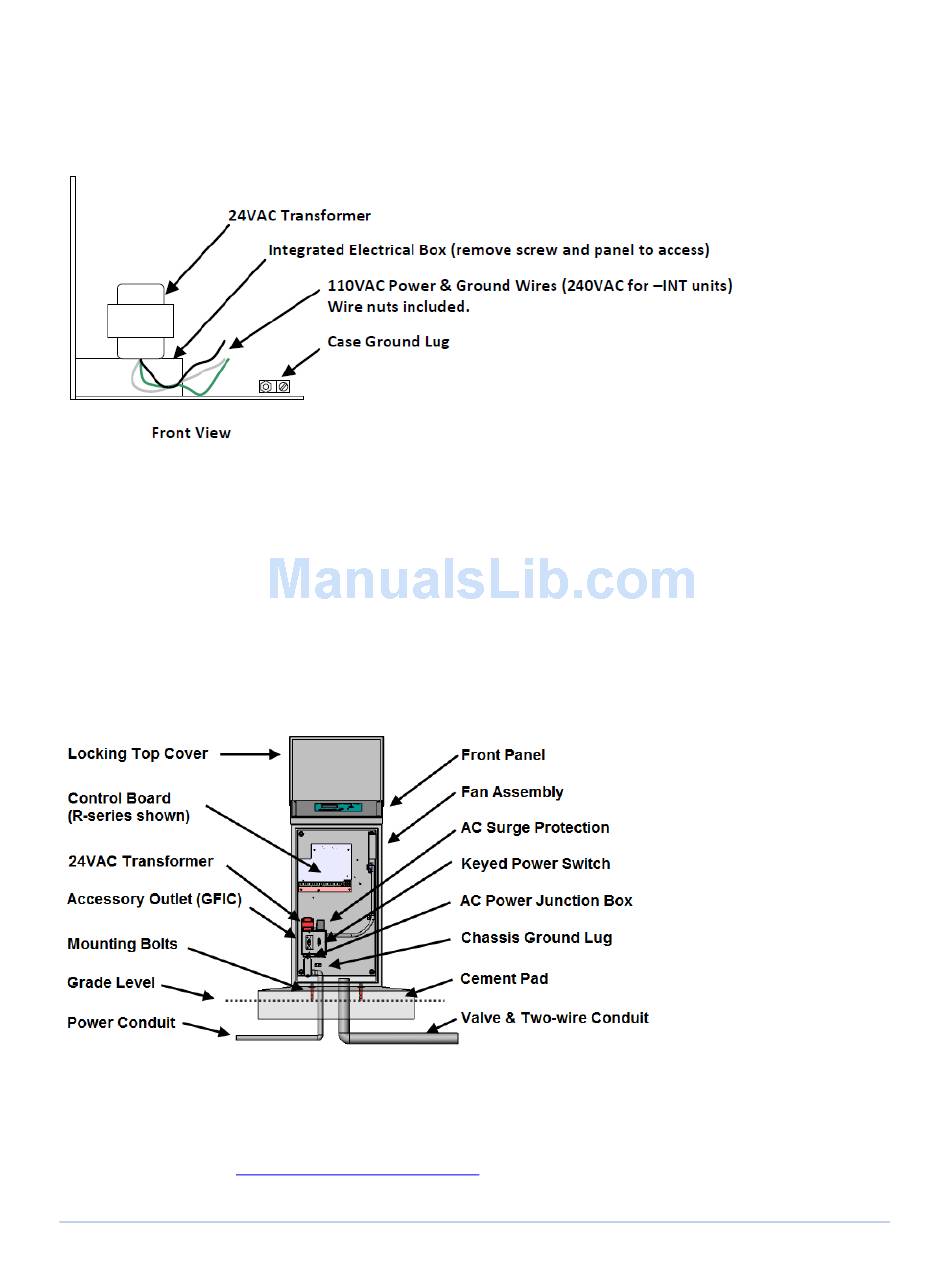

The main AC power connection is via a small built-in electrical box in the lower left of the enclosure. To access the
electrical box, remove the screw on the right and the panel. The box has a knockout suitable for direct connection
of a ½ inch conduit.
All installations should comply with local and national electrical codes.

Remote Connection Modules and Antennas

If installed, antennas for WiFi, Cell Modem, and Mesh Radio communication units mount through the top access
port. BL Commander permanent receiver unit antennas mount on the right access port (typically factory installed).
To install a communications module in an existing cabinet, consult the documentation that came with the
communications module.

P-series Pedestal Cabinets

The P-series pedestal units are designed to be pad-mounted and come with a concrete template for locating all
mounting bolts, AC power, and two-wire and/or valve wire conduits.

Mounting the Pedestal to a Concrete Platform

All P-series pedestal units are shipped with a metal form to locate mounting bolts and conduits. Install the
concrete pad according to Baseline's specifications with proper slope for drainage. Consult the Resource Library on
the Baseline web site at http://www.baselinesystems.com for CAD details and additional instructions.
