OPERATION
INSTALLATION
Unpack the unit and remove the exhaust hose
and the hose connector from the storage
compartment at the bottom of the unit.
EXHAUST HOSE INSTALLATION

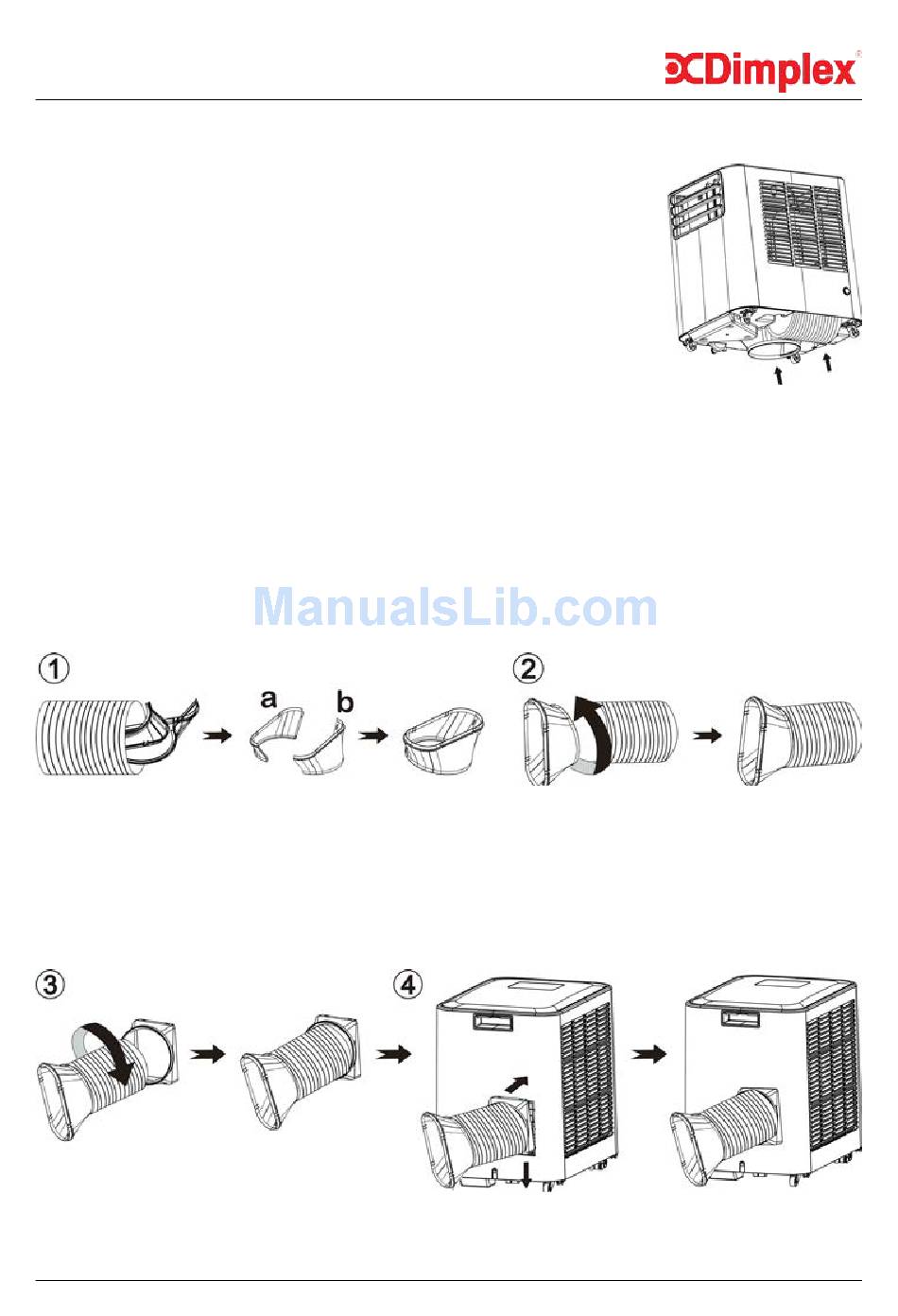

1. Remove the 2 x joints from the exhaust hose. See picture (1) below,
and connect joint (a) and joint (b) together.
2. Attach the joint to the exhaust hose in an anticlockwise direction. See
picture (2) below.
3. Rotate the exhaust hose clockwise as shown in picture (3), so that
the exhaust hose can be installed on the inner joint.
4. Attach the inner joint to the product. See picture (4).
