VENTING OPTIONS
• The downdraft vent is shipped with the
discharge outlet pointing straight down and
can be changed to the left or right side. To
avoid interference problems, the downdraft
vent cannot be vented to the right when
installed with a GE or Monogram gas
cooktop, or with a GE or Monogram non-
induction electric cooktop.
• The blower outlet is sized for 3-1/4" x 10"
and can be transitioned to 6" round.

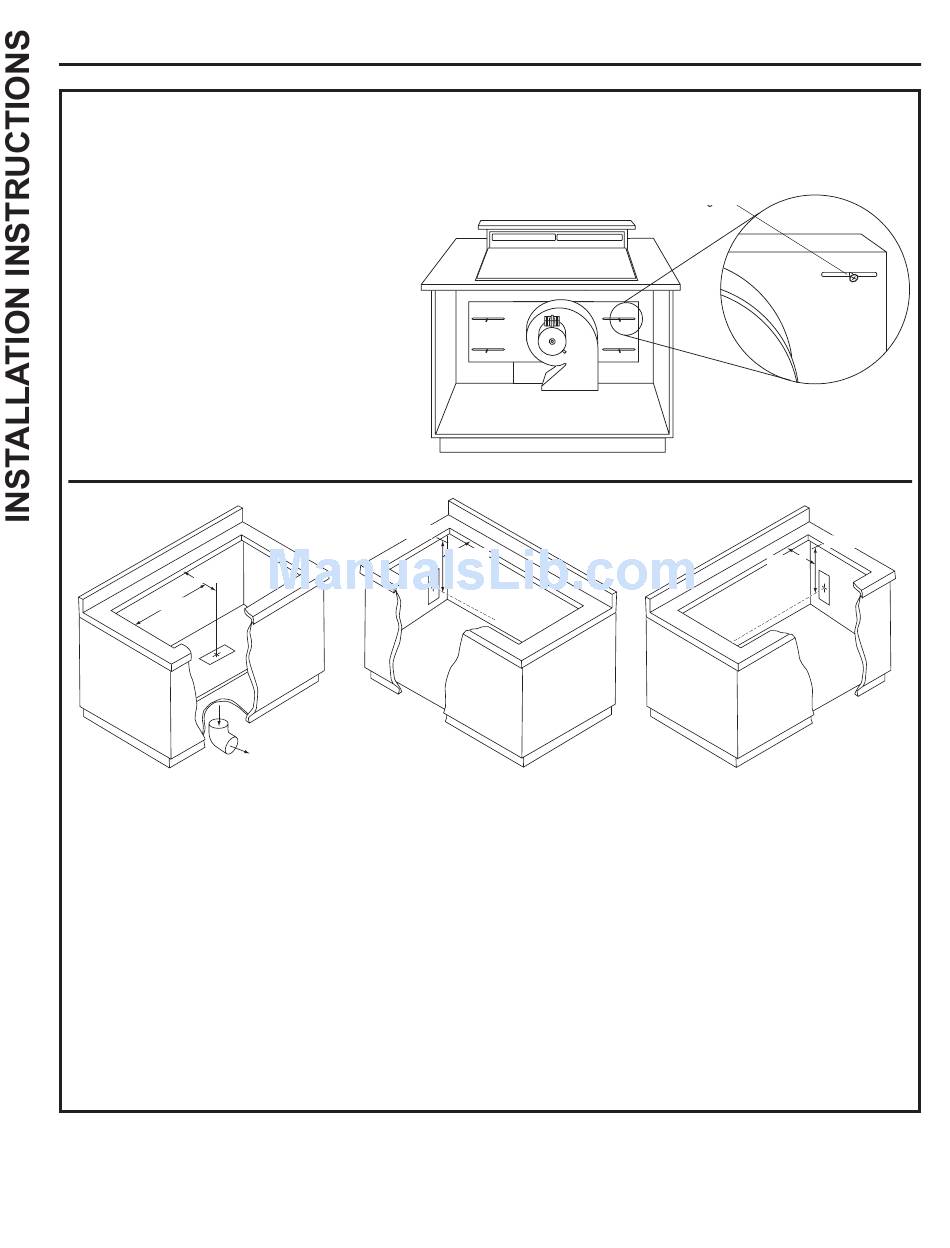

Side-to-Side Adjustments:
The entire blower mounting plate can be
adjusted 3-1/2" to the left or right. This
will help to align vent discharge to house
ductwork.
4-1/4"
17-1/4"
Discharge Down
(As Supplied)
Discharge Direction
The blower assembly may be removed and turned 90°
for a left- or right-side discharge.
• A left or right 90° direction adjustment should be
performed before dropping into the countertop
opening.
To change to a left or right discharge:
• Remove the 4 screws holding the blower and the
mounting plate assembly to the downdraft vent.
Retain screws.
• Remove blower assembly; turn it over to access
the 4 nuts holding the blower to the mounting plate.
Remove the nuts.
12
Installation Preparation
16-3/8"
4-1/4"
Discharge
Left
Loosen Screws
to Adjust
3-1/2" to
Left or Right
Discharge Down
(As Supplied)
IMPORTANT: Do not lift motor by the power cable.
• Turn the blower to the left or right discharge
direction and reinstall the 4 nuts.
• Reinstall blower and mounting plate with original
screws.
• To avoid interference problems, the downdraft vent
cannot be vented to the right when installed with
a GE or Monogram gas cooktop, or with a GE or
Monogram non-induction electric cooktop.
10-5/16"
4-1/4"
Discharge
Right
