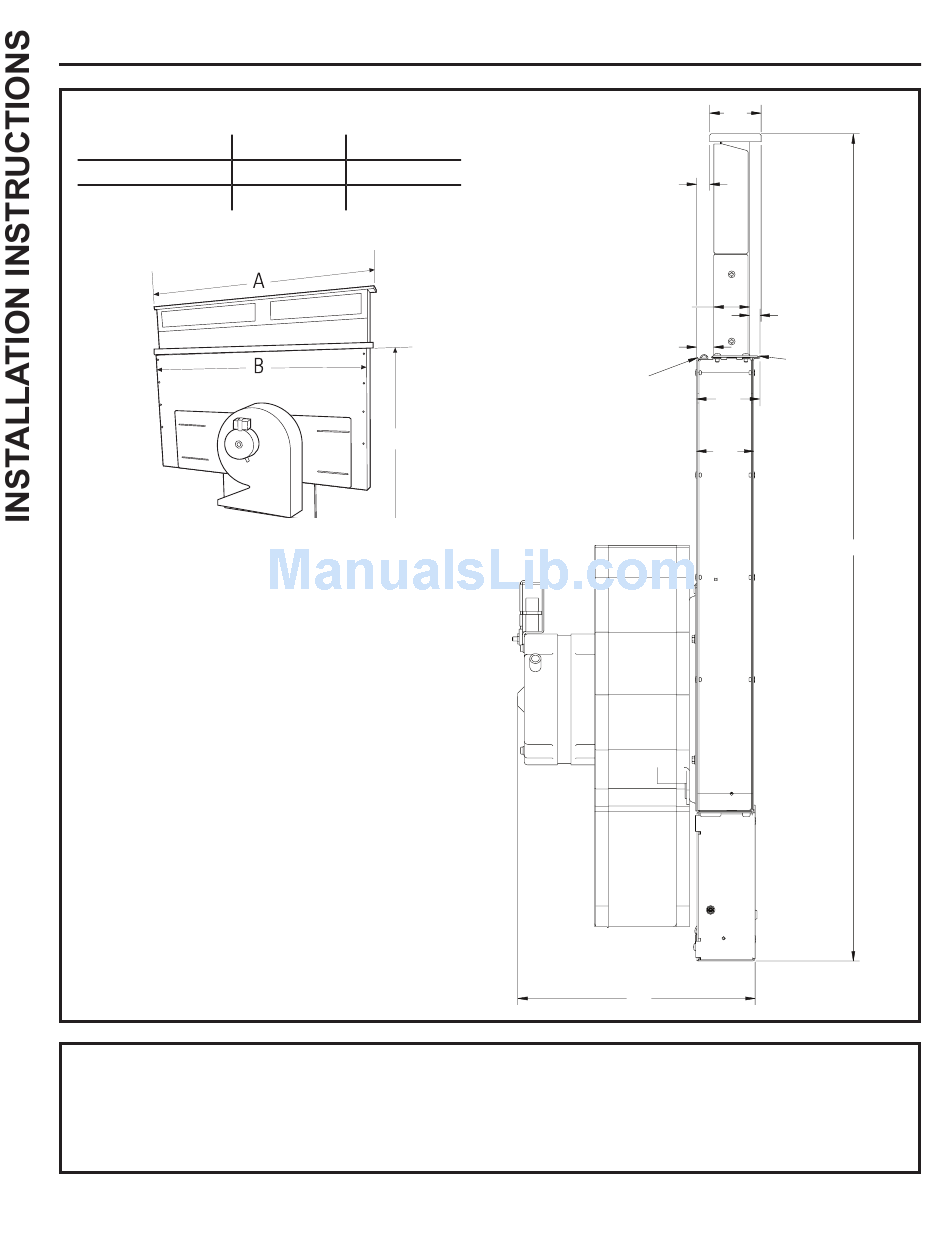

PRODUCT DIMENSIONS
30" Models
36" Models
Remote Blower Kit
JXRB67 – Optional kit for indoor remote location of the
blower/motor assembly. Use this kit when the blower and
motor assembly will be located outside of the cabinet,
such as below the cabinet floor.
10
Installation Preparation
A B
30" 28-5/16"
36" 33-15/16"
23-5/8"
.52
1.40
.68
NOTE: The cooktop
overlaps this surface.
9.3
Contact us to purchase the Remote Blower Kit , or to
find the dealer nearest to you call the GE Appliances
National Parts Center toll free at (800) 626-2002.
2.01
.45
NOTE:
This flange
sits on the
countertop.
2.49
2.24
32.36
