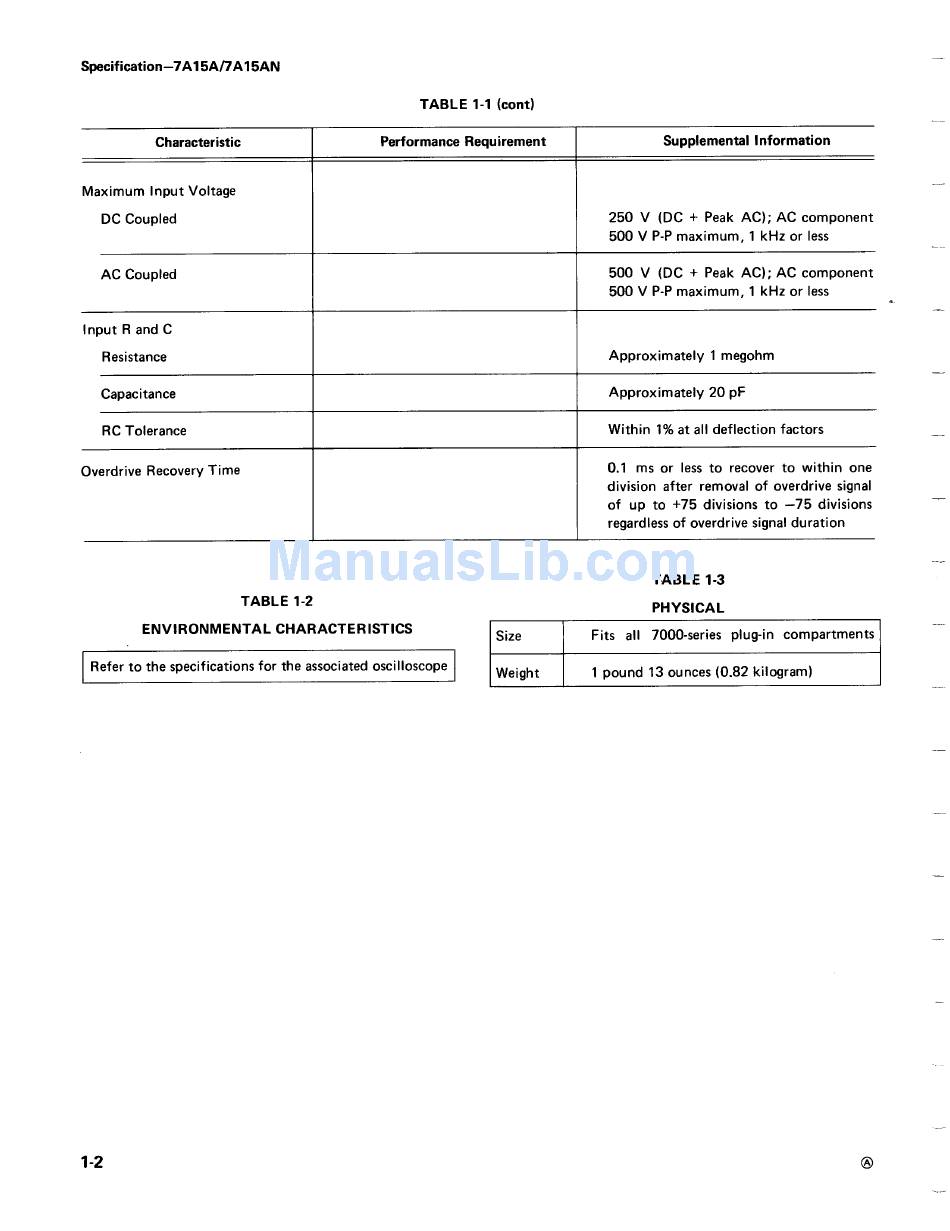

Specification-7A15A/7A15AN
TABLE 1-2
ENVIRONMENTAL CHARACTERISTICS
Refer to the specifications for the associated oscilloscope
TABLE 1-1 (cont)
TABLE 1-3
PHYSICAL
Characteristic
Performance Requirement
Supplemental Information
Maximum Input Voltage
DC Coupled
250 V (DC + Peak AC) ; AC component
500 V P-P maximum, 1 kHz or less
AC Coupled
500 V (DC + Peak AC) ; AC component
500 V P-P maximum, 1 kHz or less
Input R and C
Resistance
Approximately 1 megohm
Capacitance
Approximately 20 pF
RC Tolerance
Within 1% at all deflection factors
Overdrive Recovery Time
0.1 ms or less to recover to within one
division after removal of overdrive signal
of up to +75 divisions to -75 divisions
regardless of overdrive signal duration
Size
Fits all 7000-series plug-in compartments
Weight
1 pound 13 ounces (0 .82 kilogram)
