Angelcare ac601 Owner's Manual

Angelcare ac601 Owner's Manual

Movement sensor with sound monitor
Hide thumbs Also See for ac601:

Advertisement

Quick Links

Download this manual See also: Owner's Manual
Movement Sensor with Sound Monitor ..............................2
Détecteur de mouvements avec moniteur de sons..........13
Sensor de movimientos con monitor de sonidos .............25
AC601
OWNER'S MANUAL
MANUEL DE L'UTILISATEUR
MANUAL DEL PROPIETARIO
Keep for future reference
À garder pour référence ultérieure
Guarde para uso futuro

Advertisement

loading
Need help?

Need help?

Do you have a question about the ac601 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Angelcare ac601

Summary of Contents for Angelcare ac601

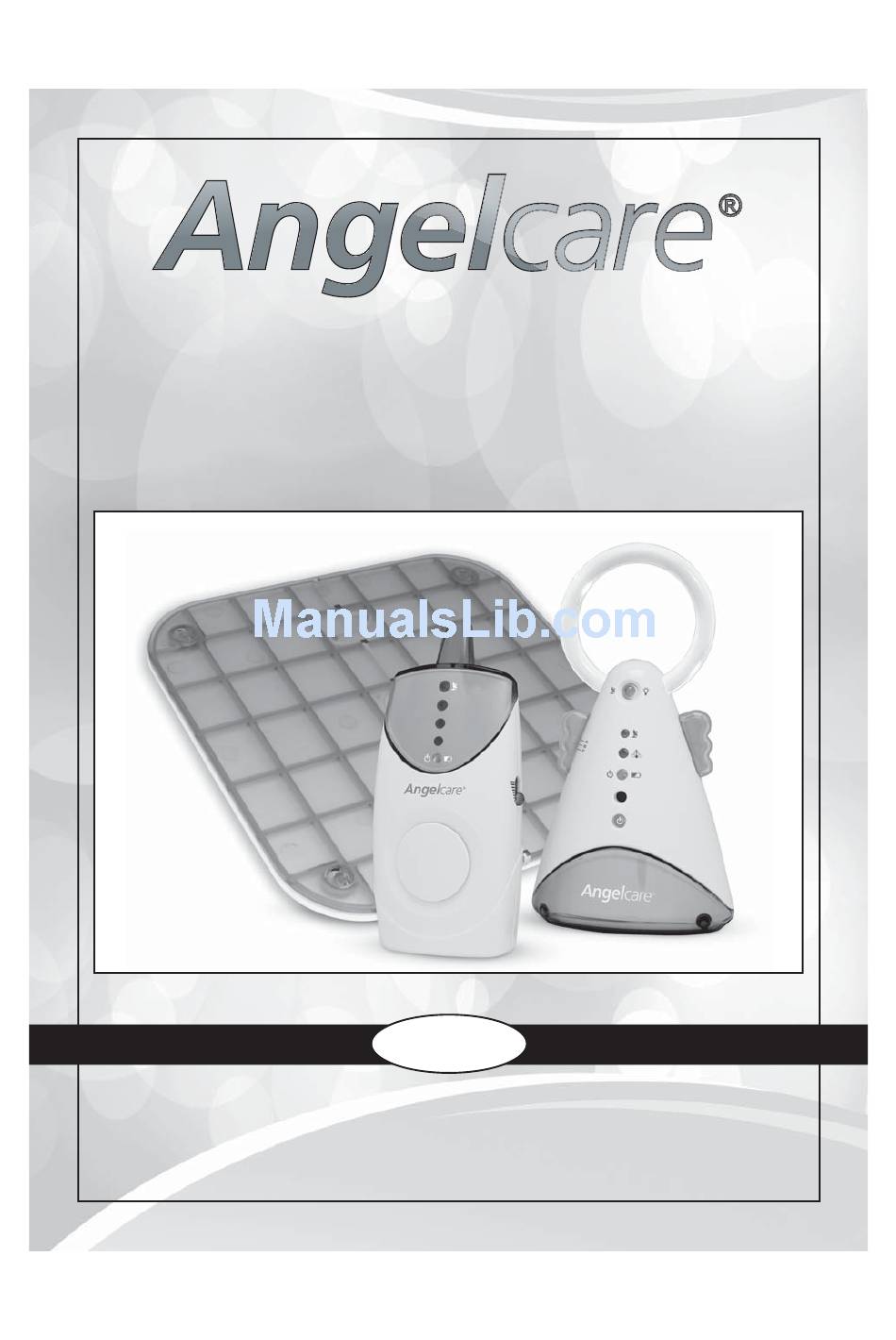

  • Page 1 Movement Sensor with Sound Monitor ......2 Détecteur de mouvements avec moniteur de sons..13 Sensor de movimientos con monitor de sonidos .....25 AC601 OWNER’S MANUAL MANUEL DE L’UTILISATEUR MANUAL DEL PROPIETARIO Keep for future reference À garder pour référence ultérieure Guarde para uso futuro...
  • Page 2 Failure to follow these warnings and the assembly instructions could result in serious injury or death. This product is designed to aid in the monitoring of • DO NOT OPEN THE NURSERY UNIT, PARENT UNIT your child. When using the monitor, you must still pro- OR ADAPTERS.
  • Page 3 This equipment generates, uses and can Angelcare® monitor and the alarm will not sound if it radiate radio frequency energy and, if not installed continues to detect any movement other than your and used inaccordance with the instructions, may baby’s.
  • Page 4 Ch. A - -High Ch. B - -Medium Ch. C - AC adapter -Low 7.5V 150mA Model: AC601 -Off DC 7.5V IN Power / Low batteries (green) Battery compartment 3 x AAA rechargeable Speaker batteries (NiMH) Installing Batteries in Parents Unit •...

  • Page 5: Setting Up Your Monitor

    13 inches long on all four sides and 1/4 inch thick. If your crib has a plywood base, your mattress support is firm enough to use the monitor properly. Only use your Angelcare® monitor in a sta- tionary sleeping environment such as a crib where the Sensor Pad can rest on a flat, firm surface.
  • Page 6 Testing Your Monitor Always test your monitor before using it the first time and then on a periodic basis. Before testing your monitor, complete the setup process as described above. TESTING THE MOVEMENT FUNCTION Note: Make Sure your Sensor Pad is set up before proceeding with this section. If you haven't set up your Sensor Pad please go to page 5 for instructions on how to properly set up the Sensor Pad.
  • Page 7 If you are still experiencing false alarms when you have reached level 5, please consult our customer service link on our website at www.angelcare-monitor.com Because the Sensor Pad may detect movement from many sources from both inside and outside your baby’s room, be sure all vibration sources are eliminated before changing the movement sensitivity level.

  • Page 8: Special Features

    Special features Out of range indicator Your monitor is equipped with an optional “Out of range” indicator function, which will advise you when the two units are not communicating with each other. Out of range situations can be caused by distance or by physical interferences.
  • Page 9 Masonite board under the pad. This support must be at least 13 inches long on all four sides and 1/4 inch thick. Only use your Angelcare® monitor in a stationary sleeping environment such as a crib where the Sensor Pad can rest on a hard, flat surface.

  • Page 10: Troubleshooting

    Troubleshooting Possible Cause Problem Solution False alarms • Baby was removed from the crib and the • Turn the Nursery Unit off. Nursery Unit was not switched off. • The Sensor Pad is not detecting your baby’s • The sensitivity level may need to be increased. movements because the sensitivity level is Refer to the Movement Sensitivity Adjustment too low.

  • Page 11: Limited Warranty

    This warranty does not apply to a product which has been damaged as a result of improper maintenance, an accident, improper voltage supply or any other form of misuse. The warranty is also void if the owner repairs or modifies the product in any way. Angelcare® is not liable for any incidental or consequential damages with regard to this product.
