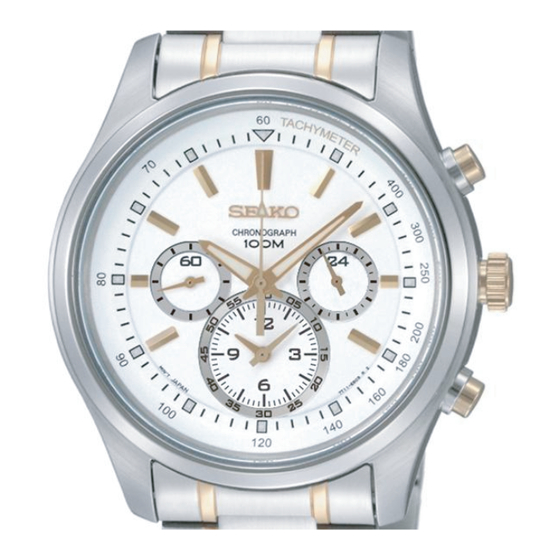

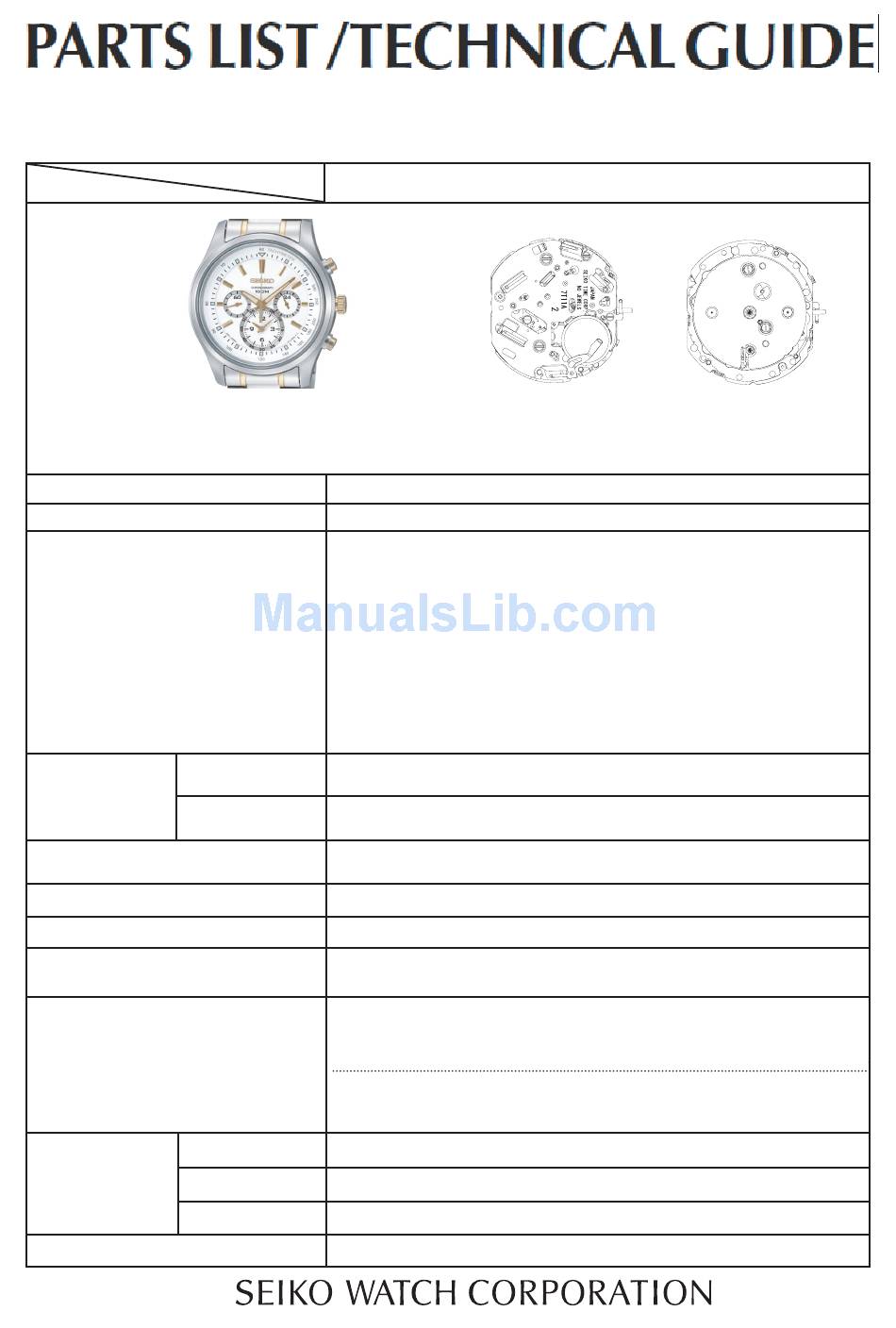

Cal. 7T11A has a new structure employing one crown and two buttons, but the basic movement structure of Cal. 7T11A is similar to the previous Cal. 7T Series watches, and the knowledge and technique you have gained in handling the previous Cal. 7T Series watches will come in handy when you repair Cal.
SPECIFICATIONS Cal. 7T11A ● Measurement functions Accumulated elapsed time measurement and split time measurement are available. ● Standard measurement Button Button Button → → START STOP RESET ● Accumulated elapsed time measurement Button Button Button Button Button → → … →...
Page 4
Cal. 7T11A Disassembling procedures Figs.: → Reassembling procedures Figs.: → Remarks on removing the Setting stem To remove the SETTING STEM when taking out the movement from the case or while disassemb -ling the parts during repair work, be sure to pull...
Page 6
Cal. 7T11A [SETTING MECHANISM/STEPPING MOTORS COIL BLOCK FOR (STATORS AND COIL BLOCKS)] MINUTE COUNTING 4002 711 29 COIL BLOCK 4002 700 COIL BLOCK FOR SECONDS COUNTING 4002 700 ROTOR FOR MINUTE COUNTING 4146 710 ROTOR 4146 710 ROTOR FOR SWITCH LEVER FOR START/...
Page 7
● How to find the correct parts, if not determined by 4 digit caliber number Following parts are determined based on the design of watches, such as hands height, dial color, and design of cases. Please refer to the SEIKO WATCH PARTS CATALOGUE in order to choose corresponding parts.
Page 8
Cal. 7T11A ● Tools and consumables required for disassembling/reassembling • Movement holder UNIVERSAL MOVEMENT HOLDER (S-682) • Watch oils SEIKO watch grease (S-6) and watch oils (AO-3 and AO-2) AO-3 AO-2 8/18...
● Setting mechanism Setting position and lubricating • SWITCH LEVER FOR START/STOP BUTTON SETTING LEVER YOKE TRAIN WHEEL SETTING LEVER TRAIN WHEEL SETTING LEVER YOKE SETTING LEVER SWITCH LEVER FOR START/STOP BUTTON SETTING STEM AO-3 SEIKO Watch Oil S-6 9/18...
Page 10
TECHNICAL GUIDE Cal. 7T11A ● Gear train mechanism After setting the TRAIN WHEEL BRIDGE and as illustrated PIN FOR TRAIN WHEEL BRIDGE lubricate the upper pivots of the following parts: below, • ROTOR, ROTOR FOR SECONDS COUNTING, 31 ROTOR FOR MINUTE...
Page 13
BLOCK” below). When measuring the current consumption using the SEIKO Multi-Tester S-860, use the range of 4 µ A of SUPPLY V (= 1.55 V) & GATE TIME (2 S). 2. Repeat the same procedures as 2. and 3. of measuring current consumption for the whole movement above.
Page 14
TECHNICAL GUIDE Cal. 7T11A [Structure of the CIRCUIT BLOCK] Input terminal (+) Input terminal (-) C-MOS-IC Output terminal Output terminal Crystal unit Output terminal ● Value checking – coil resistance (coil blocks) Check the resistance of each coil block if they are within the range in the following table.
Page 15
TECHNICAL GUIDE Cal. 7T11A ● Function check Before doing the following function check, follow the instructions on P.3 to correct the hand positions, set the time and operate the stopwatch function. Operation Function Check point Pull out the crown to...
Page 16
TECHNICAL GUIDE Cal. 7T11A ● Water resistance test Check the water resistance according to the designated specification of the watch. Marking on the case back Water resistance test Applied pressure WATER RESISTANT (WATER RESIST) Air overpressure test 3 BAR WATER RESIST 5 BAR...
TECHNICAL GUIDE Cal. 7T11A TROUBLESHOOTING Symptom Possible causes Solutions Measure the bat ter y voltage. Movement The watch stops operat - The battery has been depleted. Replace the battery with a new ing. one. The hour wheel and the pinion of...
Page 18
TECHNICAL GUIDE Cal. 7T11A Symptom Possible causes Solutions O n e o r m o r e S T O P WATCH Measure the coil block resist - STOPWATCH The relevant coil is broken. h a n d s h a v e stopped ance.
