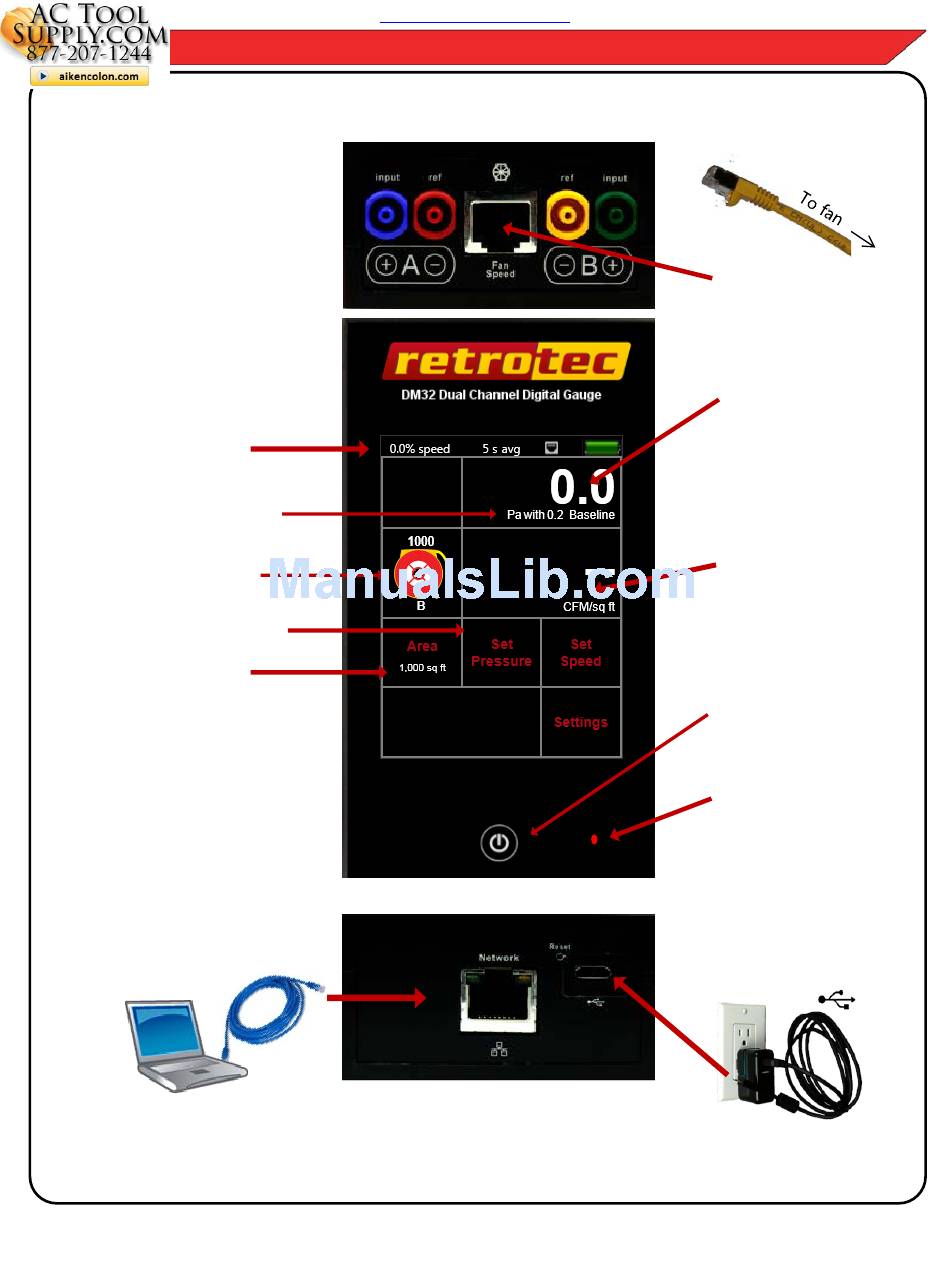

Tap in the boxes on
the touch sensitive
Home screen
Fan speed, time average,
network and battery
status
Baseline being subtracted
Select Device and Range
Set to any pressure
Dimensions eliminate
calculations
actoolsupply.com
actoolsupply.com

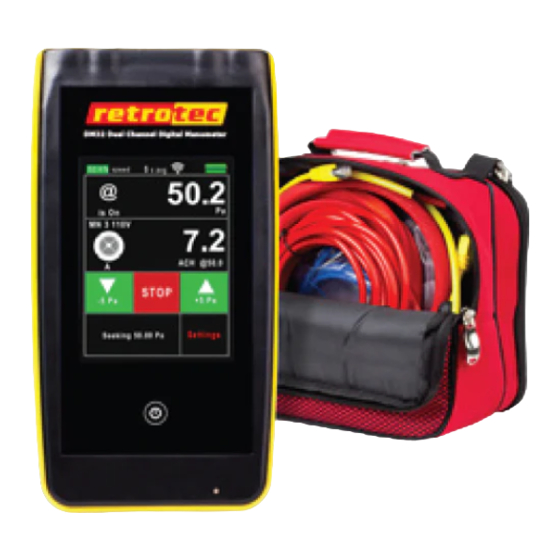

QuickGuide
DM32 Dual-Channel Digital Gauge
Computer connection
with Ethernet cable
actoolsupply.com
Control fan speed
[Channel A]
pressure difference
across blue "input" and
red "ref" ports
[Channel B]
....across green "input"
and yellow "ref" ports
On/Off and Home
On for charging,
off when charged
Recharge using micro-
USB to USB cable
Get latest updates online

Advertisement

loading
Need help?

Need help?

Do you have a question about the DM32 and is the answer not in the manual?

Questions and answers

Related Manuals for Retrotec DM32

Summary of Contents for Retrotec DM32

  • Page 1 QuickGuide DM32 Dual-Channel Digital Gauge Tap in the boxes on the touch sensitive Home screen Control fan speed [Channel A] pressure difference Fan speed, time average, across blue “input” and network and battery red “ref” ports status Baseline being subtracted...
  • Page 2 Retrotec US3112 Blower Door System Retrotec US3111 Blower Door System Retrotec US3102 Blower Door System Retrotec US3101 Blower Door System actoolsupply.com...
  • Page 3 actoolsupply.com 1: Make connections and power On Plug in color- coded tubes Press for 2 seconds to turn On /Off Connect ethernet-style Cable from gauge to fan 2: Set Range or Device to select Device to select Range Tap for options Tap to select and for more choices return Home...

  • Page 4: Run A Test

    actoolsupply.com 4: Set Area and Volume and [Set] area for: Flow/Area EqLA10/Area EfLA4/Area and [Set] volume for: ACH (Air Changes per Hour) 5: Run a test to target a pressure to set to a speed Tap to “Hold”, Tap to release Tap to change Result Tap to calculate Result exactly at (@) the “Set...
  • Page 5 actoolsupply.com Change gauge Settings [Settings] allows you to change: [Baseline]: Measure and remove Bias/Baseline pressures. Tap [Capture Baseline] to begin sampling Tap [End Capture] after 15 to 60 seconds The displayed Baseline pressure is subtracted from all future [Channel A] readings. Tap [Settings]>>[Baseline] >>[Clear Baseline] to remove.
