1. Description

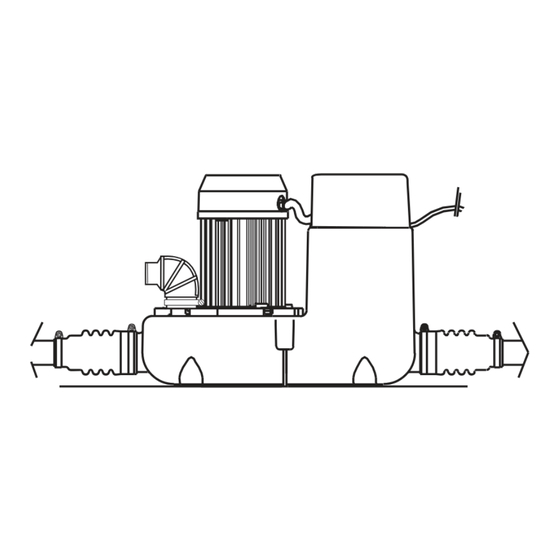

Sanicom is a lifting pump for wastewater used in commercial applications (restaurants, hairdressing salons, the catering industry etc.). The unit
operates automatically, has a high performance level, and is safe and reliable, provided all the rules for installation and maintenance in this
notice are strictly followed. Especially those indicated by:
Failure to comply with this instruction could endanger the safety of persons
Indication that a risk of electrical origin exists
Electrical installation must be carried out by a professional electrician.
Please also see "10 golden rules" for correct Saniflo installation on www.saniflo.co.uk
"Attention" Failure to comply with this instruction could endanger the safe functioning of the apparatus.
For any additional information, please contact our customer service department.
2. List of Accessories included
A
Flexible inlet connector
E
Inlet Cover
I
Elbow
x2
B
Hose clip
x1
F
Hose clip
x1
x1
C
25 x 40
Hose clip
x1
G
40 x 60
Screw
x2
D
32 x 50
Hose clip
x2
H
Plug
x2
50 x 70
x2
Advertisement
Related Manuals for Saniflo Sanicom FF03-P95
Summary of Contents for Saniflo Sanicom FF03-P95
- Page 1 Indication that a risk of electrical origin exists Electrical installation must be carried out by a professional electrician. Please also see “10 golden rules” for correct Saniflo installation on www.saniflo.co.uk “Attention” Failure to comply with this instruction could endanger the safe functioning of the apparatus.
- Page 2 3. Dimensions and overall measurements 420mm 230mm ø 60 330mm 490mm 4. How it works The Sanicom contains 1 pump. The tank is equipped with a sensor tube which controls the automatic activation of the motor when waste enters the unit. As soon as the waste enters the tank, the pump starts. 5.
-
Page 3: Installation
6. Technical Data & Application Application Commercial sink, washing machine, dishwasher or shower* or bath* Type FF03-P95 Maximum vertical pumping height Voltage 220 – 240 V Frequency 50 Hz Maximum power consumption 750 W Maximum current consumption 3.3 A Electrical class Protection index IP44 Max temp with intermittent functioning... - Page 4 9. Connection to sanitary ware To connect a bathtub (or shower), make sure the waste trap height is raised by at least 15cm above floor level. Connection must be made using 40mm or 50mm diameter pipework, with minimum slope of 1%. 2.5% 2.5% 150mm min...
- Page 5 Green/Yellow – Earth Warning: Ensure the electricity is turned OFF at the main switchboard before wiring to connector. All work on cable, pressure chamber and motor should only be carried out by a qualified Saniflo servicing agent, as special tools are required.
-
Page 6: 17. Troubleshooting
15. Commissioning Once the hydraulic and electrical connections have been made, check that the connections are tight by allowing water to flow through each entry point used. Ensure that the pump is working properly. 16. Use Sanicom is designed for disposing of wastewater originating from a commercial sink, washing machine, dishwasher, shower or bath and basin. Sanicom can pump out hot water upto 85°C for short periods only (eg. - Page 7 19. Parts...
