AMX NMX-WP-N1512 Quick Start Manual

Overview
The NMX-WP-N1512 4x1 Windowing Processor allows you to display multiple real-time HD streams on a single screen simultaneously. Four
window streams (from N1000 Series Encoders) are connected to the four independent network ports labeled U0-U3. Each window stream
can then be cropped, scaled, and positioned according to stored presets (such as quad, picture-in-picture, etc.) or in any user-defined
configuration. The combined output AV stream is then routed as a single N1000 stream to one or more displays via a single output
network port (any of the ports P0-P2).
NOTE: For proper operation, all four U ports must be connected to active streams.
IMPORTANT: To avoid creating a network loop, never connect more than one P port to the same network segment.
To achieve larger stacked configurations, additional Windowing Processors can be used as input streams.

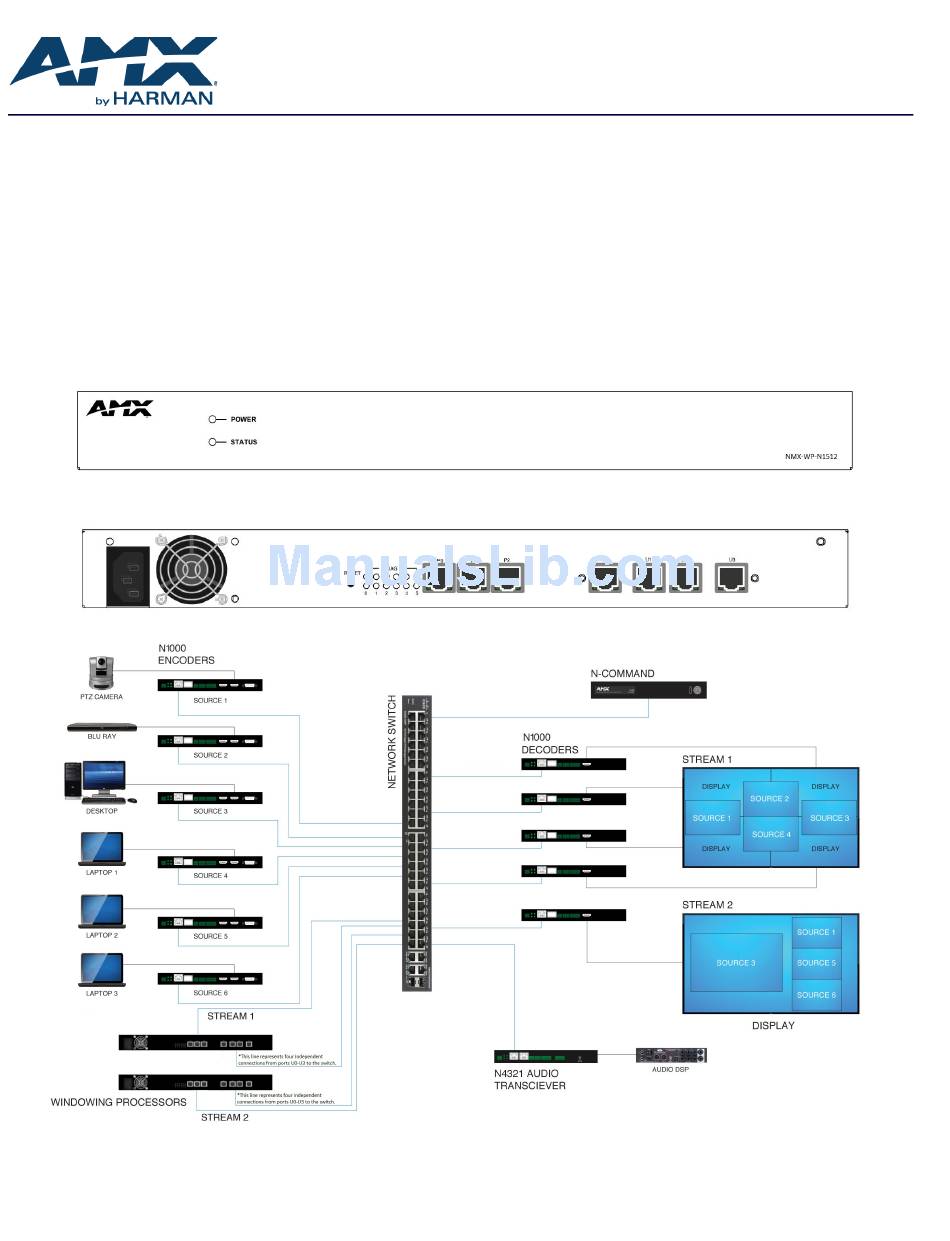

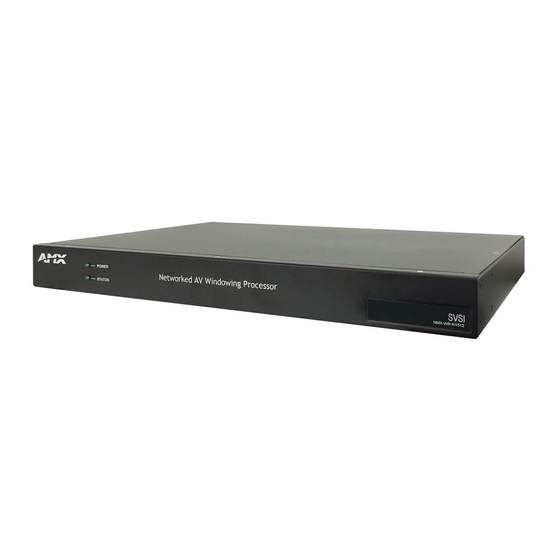

NMX-WP-N1512
N1512 Windowing Processor Front View
N1512 Windowing Processor Rear View
QUICK START GUIDE
N-Series Windowing Processor, 4x1
