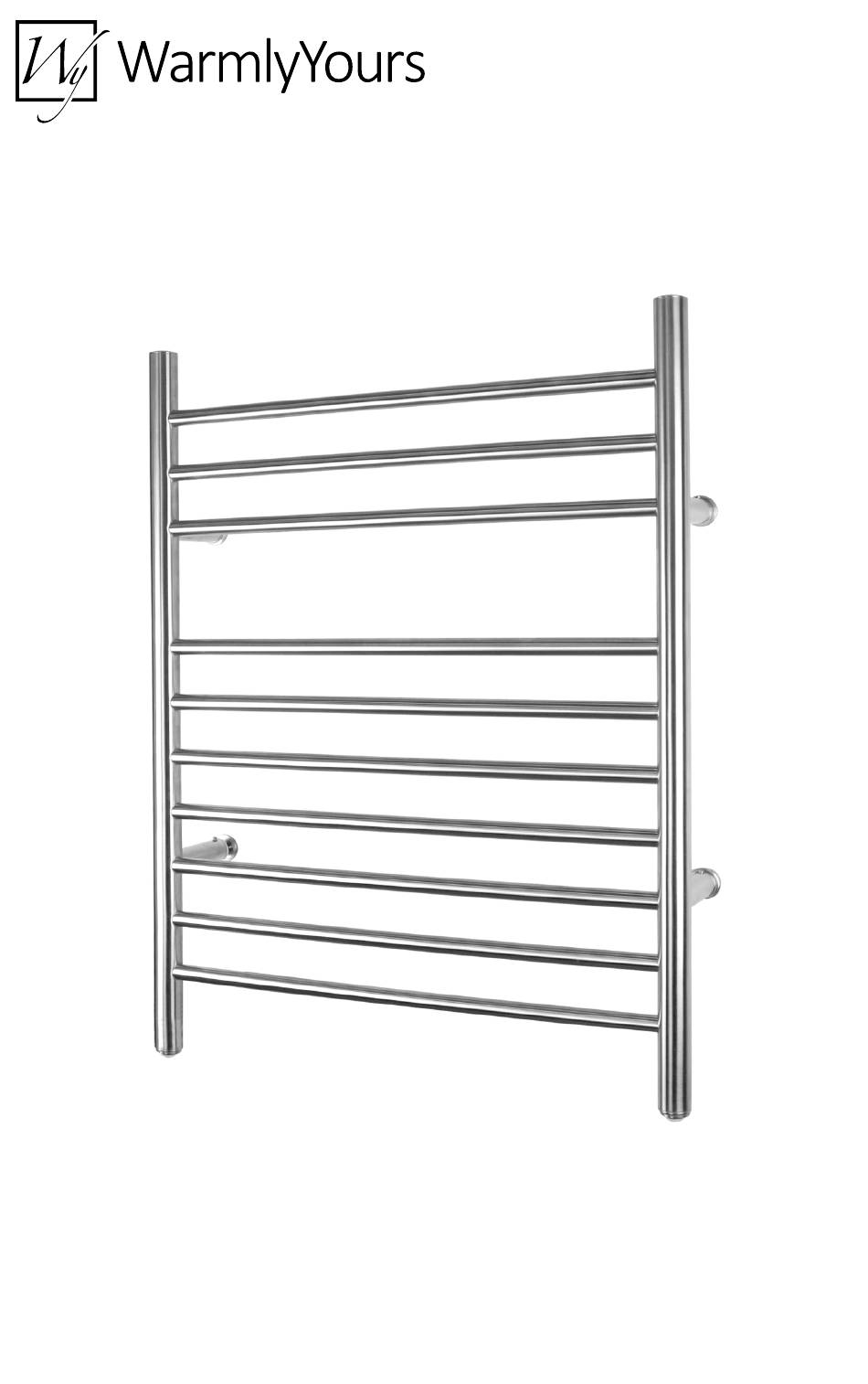

- Page 1 TW-F10BS-HP Installation & Operation Manual for WarmlyYours Infinity Dual Connection Towel Warmers...
-
Page 2: Safety Information

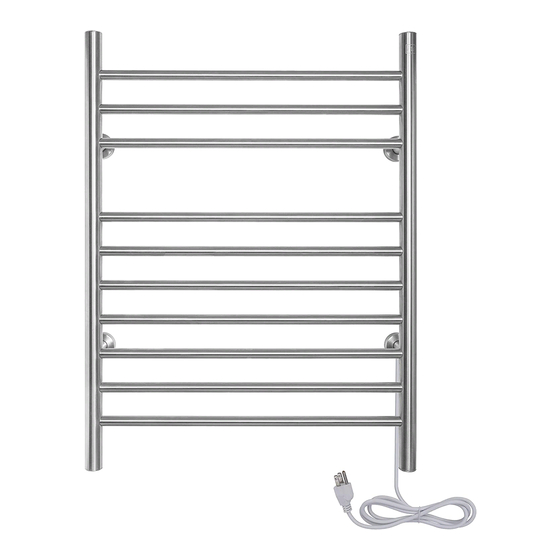

Thank you for choosing your finely crafted WarmlyYours Towel Warmer. Now you can add luxury and comfort to your bathroom with the soothing embrace of a warm towel or bathrobe upon stepping from the shower. The radiant heat from the Towel Warmer warms your towel. - Page 3 At least two of the four brackets must be attached directly to a stud. The Infinity Plug-In model must be installed less than 6 feet (183cm) from a properly grounded outlet to ensure the plug can reach. Make sure to measure the distance from where the plug is attached to the towel warmer to the electrical outlet.
- Page 4 This example shows 16” on center construction. Your situation may vary depending on your stud spacing. WARNING: Locations of anchor points may vary. Measure all dimensions prior to rough-in and installation. Infinity: Anchor Points stud 16” (406mm) stud 22 3/8" (568mm)
- Page 5 Affixing the Towel Warmer to the Wall (continued) Diagram B: Rough-In Diagram Note: Dimensions shown are distances between the center of anchor points. This example shows 16 inches on center construction. Your situation may vary depending on stud spacing. WARNING: Locations of anchor points may vary.
- Page 6 Bracket Assembly Instructions Diagram C: Bracket Assembly Diagrams Power Leg...
-
Page 7: Parts List
Collar, Leg, Brushed 0005-58120-0004 Collar, Leg, Polished 0005-58790-0000 Plug, Plastic, Power Leg 0005-51900-0000 Wrench, Hex, 2.5mm 0005-58140-0003 Leg, Mounting, Power, Brushed 0005-58120-0003 Leg, Mounting, Power, Polished AK05-58040-0000 Parts Kit Infinity, Power Leg, Brushed AK05-58020-0002 Parts Kit Infinity, Power Leg, Polished... - Page 8 Installation Instructions (Plug-in)
- Page 9 Installation Instructions (Plug-in)
- Page 10 Bracket Assembly Instructions (continued) Plug-In Model Only Plug the cord into a properly grounded outlet. Do NOT use an extension cord to make the connection between the towel warmer plug and outlet. Step 1 Hold the towel warmer in place while tightening the hex-head screws D at the base of each section of tubing A using the smaller Allen wrench L provided to secure the towel warmer in place.
- Page 11 Bracket Assembly Instructions (continued) Step 3 Measure for bracket positions using the template if desired. At least two brackets must be attached to a stud. Step 4 Affix brackets C and H to the wall using screw G and drywall anchor F where necessary.
- Page 12 Hardwire Assembly and Wiring ( Diagram E) step 1 step 2 step 1 step 1 step 2 step 2 step 3.1 step 3.1 step 3.1 step 4 step 4 step 4 step 6 step 6 Φ8mm Φ8mm Φ8mm step 1 step 2 step 3.2 step 1...
-
Page 13: Electrical Considerations
TO HOUSE GROUND NEUTRAL (WHITE) CONNECT TO HOUSE GROUND ENSURE THE SYSTEM IS GROUNDED * WE RECOMMEND TO ISOLATE THE YELLOW 3 WAY WIRE FROM THE OTHER WIRES USING A SOLDERLESS WIRE NUT CONNECTOR. ation Support • (800) 875-5285 • www.WarmlyYours.com... -
Page 14: Operation
D for switch for location. With a Control You may want to pair your towel warmer with a compatible WarmlyYours timer or switch. Make sure to refer to the installation manual of the control for proper operation and installation. If you have any questions, call 800-875-5285. -
Page 15: Connection Method
Product Construction - Towel Warmer The towel warmer is constructed from 304 stainless steel with a wall thickness of between 0.8 mm and 1.2 mm. The towel warmer is heated by a UL listed wire. The mounting brackets are manufactured from stainless steel and finished to match the finish of the specific model. - Page 16 Any suspected defect must be reported by registered letter immediately upon discovery. The determination of such a defect must be made by WarmlyYours. com Inc. or its authorized representative only. This warranty is null and void if the product is improperly installed, improperly operated, or abused.
