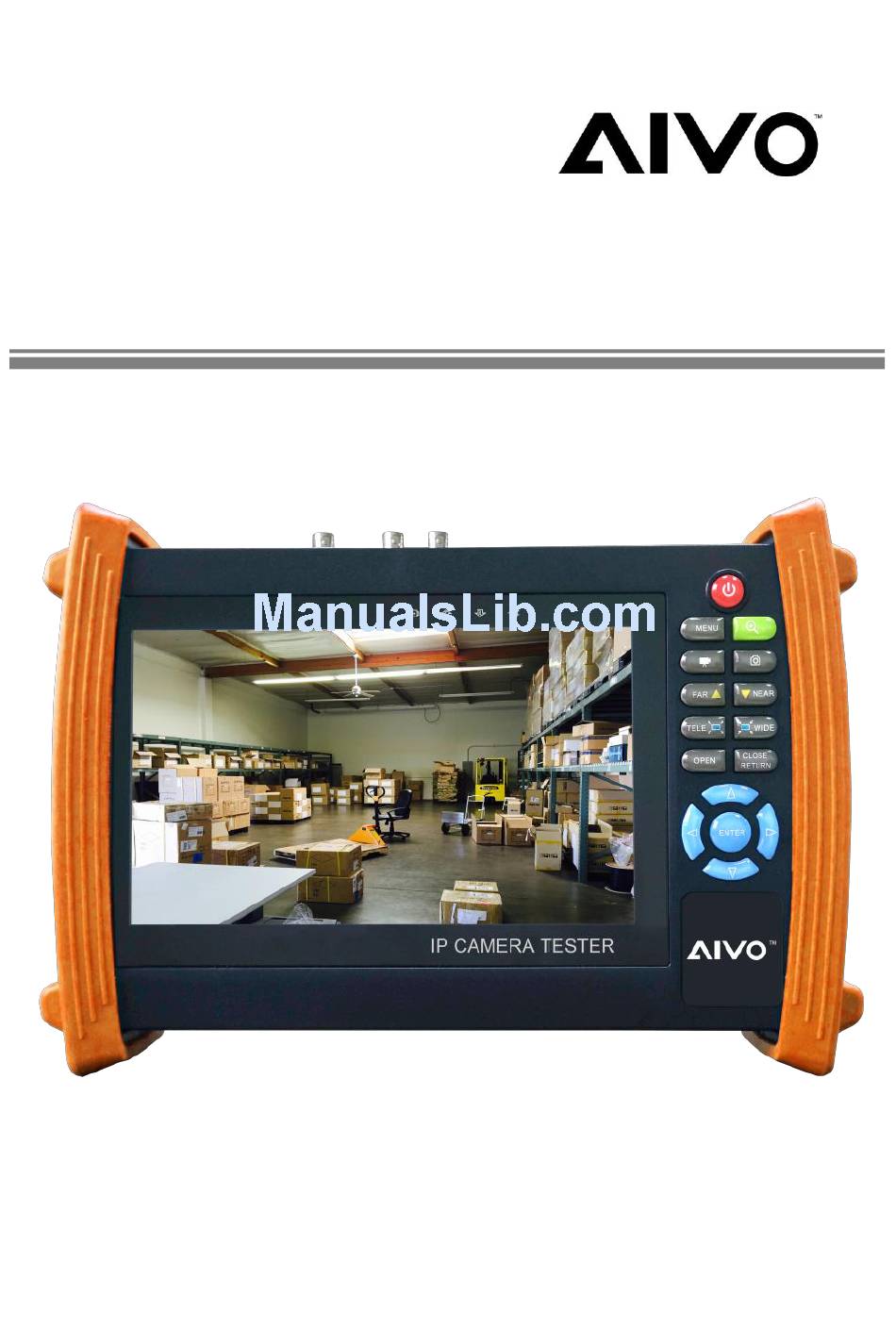

Thank you for purchasing the IP camera tester. Please read the manual before using the IP camera tester and use properly. For using the IP camera tester safely, please first read the「Safety Information」carefully in the manual. The manual should be kept well in case of reference. Keep the S/N label for after-sale service within warranty period.
1 .Safety information ◆ The tester is intended to use in compliance with the local rules of the electrical usage and avoid to apply at the places which are inapplicable for the use of electrics such as hospital, gas station etc. ◆...
◆Never connect the meter with any voltage source while the function switch is in the current, resistance, capacitance, diode, continuity, otherwise it will damage the meter. ◆Never perform capacitance measurements unless the capacitor to be measured has been discharged fully. ◆Never measure any of resistance, capacitance, diode or continuity measurements on live circuits.
Page 7
Hikvision camera. Hik test tool app is design for activating and debugging Hikvision camera, can auto-identify unactivated hikvision camera, also can display image from the Hikvision camera. ONVIF IP camera video testing. Compatible with H.264/MPEG4/MJPEG IP cameras, such as Dahua, HIKVISION, and ACTI Customized service is available.
Page 8
Enhanced Color bar generator, PAL/NTSC multi-system color bar video generator (Eight-system switchable, transmit/receive eight-system colorful images). PEAK video signal level, SYNC signal level, Color burst chroma level measurement,test video signal attenuation Cable tracer, by sending the audio signal, enables the blue cable tracer tester to find the connected cable from messy cables.
2.3 Function 2.3.1 Touch screen and OSD menu The IP camera tester combines touch screen control and physical buttons. This combination makes the tester very user friendly. The test meter allows you to move the function icons from the tester’s main menu to the APPS folder or move them back to customize the main menu 2.3.2 IP discovery IP discovery, do not need to know the first two digits of camera’s IP address , it can auto-scan the...
Page 10
Displays an analog camera image on the 7 inch 1280 x800 LCD screen display. Supports PAL & NTSC formats. The LCD screen's back light brightness, video image brightness, contrast and color saturation are all adjustable. 2.3.7 Video level meter Perform NTSC and PAL video amplitude signal measurements for PEAK to PEAK , SYNC levels, and COLOR BURST chroma level Video signal PEAK to PEAK level: For NTSC format, the video signal level is 140±15IRE...
Page 11
washed out. If the Chroma level is too high, there will be spots on the image. If the coaxial cable is too long, it will reduce the chroma level 2.3.8 PTZ controller Displays and allows for analysis of analog video and controls Pan/tilt/zoom function of PTZ analog cameras.
Page 12
PELCO-D:FF 01(Add)xx xxxxxxxx 2.3.14 Digital Image zoom on the monitor Set image zoom up to 4X to get a closer look at all the image detail. Supports analog and many IP cameras 2.3.15 Video screenshot, record and playback Capture the video image displayed and save as a JPEG file. You can also record and save the current video to the SD card.
Page 13
Ethernet cable. 2.3.23 Digital Multi-meter The tester has built in highly stable and reliable 33/4 digit (6600) digital multi-meter. It is used for the DC and AC voltage measurement, AC and DC current measurement, Resistance measurement, Continuity test, Diode measurements, Capacitance measurement, Auto/Manual measuring range switching, relative value measurement and locking.
Page 14
2.3.29 SDI camera test SDI digital video surveillance testing, support 720p 60fps / 1080p 30fps / 1080i 60fps digital camera image test and video image zoom, record, snapshot, photo viewer and video playback . 2.3.30 CVI camera test HD CVI video surveillance testing, support720p 25,30,50,60fps / 1080p 25,30fps, when CVI signal input, HD CVI camera image display, zoom, view photos, video record and playback, Coaxial PTZ control and call up the camera OSD menu.
Page 15
2.3.37 Screen image rotates 180 degrees You can manually rotate the display 180 degrees using the settings. . 2.3.38 FTP Server Start the tester’s Wi-Fi or connect the tester’s LAN port to the network. Once the tester is online, start its FTP Server and directly access files from the tester’s SD card.
2.4 Packing list 1). Tester 2). Adaptor DC12V 2A 3) Network cable tester 4) Polymer lithium ion battery (7.4V DC 6500mAh) 5). BNC cable 6). RS485 cable 7). SC,ST connector(Only for optical power meter) 8). Multi-meter test leads one pair of red and black (only for the Multi-meter models) 9).
Page 18
Press more than 2 seconds, turn on or off the device ,short press to turn on or off the menu display Menu key 4xzoom the image displays. Video record Snapshot Far focus: Focus the image faraway Near focus: Focus the image nearby TELE: zoom in the image WIDE: zoom out the image Open/set ,Confirm the setting of parameters, open or enlarge the aperture...
Page 19
Top interface Bottom interface Multimeter interface The charge indicator: it lights red while the battery is being charged. As the charging is complete, the indicator turns off automatically The RS485/RS232 data transmission indicator: it lights red while the data is being transmitted The data received indicator: it lights red while the data is being received The power indicator: it lights green while the tester is powered on by the adapter Visible red laser source emits Interface...
Optical power meter interface LED lamp RS485 Interface: RS485communication for the PTZ RS232 Interface: RS232 communication for the PTZ TDR cable test interface HDMI output interface Micro SD card moveable,(comes with 4GB, supports up to 32GB) UTP cable port: UTP cable tester port/ Cable tracer port Audio output and earphone interface Audio input PSE power sourcing equipment.
When the battery icon is full or the charge indicator turns off automatically, indicate the battery charging is completed Notice: When the Charge Indicator turns off, the battery is approximately 90% charged. The charging time can be extended for about 1 hour and the charging time within 12 hours will not damage the battery.
Page 22
Note:1) If the IP camera requires PoE power, then connect the IP camera to the IP tester’sLAN port . The tester will supply PoE Power for the IP camera. Click on the icon labeled POE to turn the PoE Power off or on. 2) If use the tester’s menu to turn off the tester’s PoE power supply, the PoE switch and the power sourcing equipment are allowed to connect to the tester’s PSE port, and the PoE power will be supplied to the IP camera by the tester’s LAN port.
3.2.2 Analog camera connection (1) ) Connect the camera's video output to the IP tester’s VIDEO IN. The image will display on the tester after pushing the PTZ icon (2) CCTV IP Tester “VIDEO OUT” interface connect to the Video input of monitor and optical video transmitter and receiver, the image display on the tester and monitor (3) Connect the camera or the speed dome RS485 controller cable to the tester RS485 interface ,(Note positive and negative connection of the cable).
(1) Connect the SDI camera's video output to the IP tester’s “SDI IN” interface, the image will display on the tester. The tester only come with SDI input interface. There is no SDI output interface. (2) Connect the SDI camera or the speed dome RS485 controller cable to the tester RS485 interface, (Note positive and negative connection of the cable).Support RS232 PTZ controller;...
Page 25
Click SD card, install or remove SD card. Press function icon seconds, tip: whether moves this icon to APPS file, if some function not be often used, can move these function icons to APPS. To move an app icon to the “APPS” folder, press and hold until the “move to apps directory” appears on the screen then press OK to move it or Cancel Page.21.
In APPS file, Select icon and press it for seconds, tip: whether move the file to the desktop? 3.3.1 IP discovery Press IP discover ,tester auto-scan the whole network segment IP, as well as auto-modify the tester‘s IP to the same network segment with the scanned camera's IP. Page.22.
Local IP:Tester’s IP address, Tester can auto-modify the tester‘s IP to the same network segment with the scanned camera's IP Discovery IP:Connected tester equipment’s IP address. If the camera connected to the tester directly, tester will display the camera’s IP address, if tester connects to Local Area Network, it displays the current IP address.
Page 28
Display the input video image, click the top menu bar icon to enter video level meter, (PEAK level, SYNC level, COLOR BURST measurement) Select relative function on the right side Toolbar to operate , functions including “Photos”, “Snapshot” , “Record” , “Playback” , “PTZ” , “Set” , Click , or press to quit.
Page 29
A. Protocol Use the up and down arrow keys to move the yellow cursor to the “protocol ”, set corresponding Protocol and support more than thirty PTZ protocols. Such as Pelco-D,Samsung,Yaan,LiLin,CSR600,Panasonic,Sony-EVI etc. B. Port Click and move, to “port” Select the communication port for the PTZ camera controlling (RS232/485) C.
Page 30
PTZ Control: Press the key control the PTZ direction of rotation Press the key , to switch on or turn off the aperture. Press the key , adjust the focus manually Press the key , manually adjust the zoom (2) Video and storage setting Click icon “set”,to enter and set analog video image brightness , contrast, color saturation, as well as the file storage way after snapshot and recording, support auto-storage and manual storage.
Page 31
Stretch two fingers outward or inward on the touch screen to zoom the image in or out. If not use touch screen to operate, press the key to zoom out , press the key zoom in, press upward and downward key to move the image For analog video input, as the resolution is 720*480, it is normal that the zoom in image is not clear.
Page 32
(5) Video record When you click the “Record” icon, video starts recording. A red recording icon appears on the screen and begins to flash and a timer appears indicating the time elapsed for the video. Click on the “Record” icon again to stop recording and save the video file to the SD card. if select manual storage, before recording begins ,appears dialog box “Input Name”...
Page 33
To rename or delete an image, click and hold on the file until this screen below appears Click to close and return to PTZ controller. (7) Recorded video playback Click the “Playback” icon to view your recorded videos. Tap on the video file image you want to watch. To rename or delete a video, click and hold on the file until this screen appears: Page.29.
Page 34
Video files also can play in the main menu “Video Player". (8) Video level meter Click the icon to enter, the IP camera tester has adopted hardware high-speed sampling and processing technology, can perform both NTSC and PAL video amplitude signal measurements for PEAK to PEAK, SYNC levels and COLOR BURST chroma level.
Page 35
Video signal level 140±15IRE NTSC Chroma level( COLOR BURST) 40±5IRE SYNC signal level 40±5IRE Video signal level 1000±200mV Chroma level( COLOR BURST) 300±35mV SYNC signal level 300±35mV Video signal PEAK to PEAK level: For NTSC format, the video signal level is 140±15IRE For PAL format, the video signal level is 1000±200mV If the level is too low, it will cause the image to lose quality and limit the distance it will travel over cable.
If the Chroma level is too low, the color will not be as deep, and some details of the image will become lighter. If the Chroma level is too high, there will be distortions on the image. If the coaxial cable is too long, it will reduce the chroma level.
channel works normally. Meanwhile on the basis of the received color bar, the monitoring center can judge if transmission has loss or interference. B. The tester sends out the pure color bar (such as white and black color), to test the monitor whether has bright or black dots C.
Page 38
If your IP camera does not appear after scanning the network, you can manually add an IP camera by clicking on the “Add” button on the bottom left. The URL address should be identical to the ONVIF camera service address. (With your camera’s IP address entered into the URL). Click OK to add the manually entered camera and then click the “Refresh”...
Page 39
Activate HIKVISION Camera : while in Rapid mode, tester can auto recognized unactivated HIKVISION Camera, And prompt "The camera is not active, you need to activate it", click "OK" to start activate . Enter a new password for the camera clicking “OK”...
Page 40
Back to Rapid ONVIF function, click log in to display the camera image ,the activation of HIKVISION Camera was completed . Pop-up settings menu when click the icon of the upper left corner Across network segments scan: After open this function , enter “Setting”-“IP Settings”-“Advanced”to add other network segments IP, Rapid ONVIF function can across network segments to scan camera’s IP .
Page 41
Video transmission protocol: UTP and TCP protocol Open password cracker : Cracks password of cameras View manual : Open Manual Restore Defaults: Revert “Rapid ONVIF” to default settings Confirm : Save the modified parameters Functions as below , Rapid ONVIF is the same with HD ONVIF . Live Video: Click “Live Video”...
Page 42
Zoom in image: press the key to enter the zoom mode. Press it again to exit zoom mode. When the image is enlarged tap left, right, up or down on the image to move the whole image on the screen When the image is enlarged, if not operate on touch screen, it can operate by the keyboard ,press the to zoon in , press the key to zoom out ,press upward and downward key to move...
Page 43
image will be very clear after it is enlarged. This is greatly helpful for the installers to ensure the IP camera’s video coverage and decide the IP camera’s install site. Image can only be enlarged on SD mode (The icon “ONVIF”is SD mode.) IP camera video settings: Click “Video Set”...
Page 44
Preview pictures: Quickly preview and zoom in or out pictures, automatically and manual refresh Network setting: Click “Network Set “to change the IP address settings. Note: Some cameras are not fully ONVIF compliant and cannot support changing their IP address, so there is no change after saving.
Page 45
Snapshot: Click “snapshot” to save the current image as a JPEG file on the SD card if select manual storage, appears dialog box “Input Name” , user-defined the files name(by Chinese character, English letter, or digit ) to save in SD card, if select “Auto- storage”, the tester auto stores the files after snapshot.
Page 46
Set: Click on the “Set” icon to change Snapshot and Video recording file name settings. You can set Auto storage, which sets filenames by time or set manual storage. Click “Sure” to save file name settings. Playback: Click the “Playback” icon to view saved videos. Double click the video you want to play. Click to return to the last menu To rename or delete a photo, click and hold on the file until this screen appears:...
Video files can play in the Video player on the main menu. 3.3.5 IP camera test The “IPC Test” app is used for IP cameras that are fully integrated by name with the IPC tester device . If the IP camera's video stream is MPEG4, use the IPC Test (SD) mode. If your IP camera's video stream is H.264, use IPC HD (High Definition).
Page 48
Note: Currently, the IPC Test App only supports some brands’ specific IP cameras; these include specific models made by ACTI, AXIS, Dahua, Hikvision, Samsung, and many more. If the camera is not fully integrated, please use the ONVIF or RTSP apps. IPC test interface Local IP: This is the tester’s IP address.
Page 49
1. When“IP camera type”is“Manual”, Pls select type by manually. Click IP camera type, list Honeywell , Kodak,Tiandy, Aipu-waton, ACTi,WoshiDA IP camera etc. If the brand has offered official original protocols, pls select camera type, input IP camera address ,user name and password ,click” official” to enter the camera image display interface(Currently, only support DAHUA official protocols ) 2.
If IP address setting has error or IP camera is not connected.. The tester prompts “Network Error” Click to quit from image display and return to IP camera test interface. Once you are viewing video on the IPC Test app, you will see the “Video Menu” icon on the top right.
Page 51
The tester supports resolution as follows: 1280x720P 25Hz 1280x720P 30Hz 1280x720P 50Hz 1280x720P 60Hz 1920x1080P 25Hz 1920x1080P 30Hz 1920x1080I 50Hz 1920x1080I 60Hz When SDI tester detects the camera input image resolution is 1080p 60Hz or1080p 50Hz, the tester’s screen will display “Does not support playing 1920*1080p 60Hz". If no SDI camera image input, the tester’s screen display “NO video signal input!”.
Click , or press to quit. 3.3.7 CVI camera test HD CVI camera, CVI dome camera test and PTZ control, click icon to enter When HD CVI signal input, the tester will display the image resolution on the top bar. Double-taps on the screen to make the image displayed full screen.
Page 53
Click the icon“PTZ”on the right toolbar to do the corresponding setting. “Port”: select coaxial control Enter PTZ address to perform parameters setting Operation instructions, please refer to “3.3.1 PTZ (1) Video monitor test” The PTZ address in the tester must be consistent with the dome camera or decoder, then the IPC tester can test .After setting the parameter, the tester can control the PTZ and lens.
Page 54
To control PTZ by screen touch: Tap left, right, upward and downward on the touch screen to control the PTZ rotation direction, PTZ cameras will rotate accordingly. By two fingers move outward and inward on the touch screen to zoom in and out the PTZ.
Page 55
Operation instructions, please refer to “3.3.1 PTZ (1) PTZ control parameters setting” (2)Coaxial camera menu setting Click “Coaxitron” and select “camera menu”, can open the dome menu Input calling dome camera menu address code, click “ok”, then press key button“ ”or click screen icon “...
Page 56
(3) Snapshot, record, photo viewer and video play back, please refer to “3.3.1 PTZ (1) Video monitor test” (4) Save setting Click icon “Set” on the right toolbar to enter storage setting. Support auto-storage and manual storage. When select manual storage, user can name and store the files. Page.52.
3.3.8 TVI camera HD TVI camera, TVI dome camera test and PTZ control, Click icon to enter When HD TVI signal input, the tester will display the image resolution on the top bar. Double-taps on the screen to make the image displayed full screen. The tester supports resolution as follows: 1280x720P 25FPS / 1280x720P30FPS / 1280x720P 50FPS / 1280x720P 60FPS 1920x1080P 25FPS / 1920x1080P 30FPS / 1920x1080P 50FPS / 1920x1080P 60FPS...
More operation instructions (such as PTZ control, coaxial camera menu setting ,snapshot, recording and playback etc), please refer to“3.3.6 CVI camera test” 3.3.9 AHD camera test AHD camera, AHD dome camera test and PTZ control, Click icon to enter When AHD signal input, the tester will display the image resolution on the top bar. Double-taps on the screen to make the image displayed full screen.
(1) Coaxial PTZ control Click the icon“PTZ”on the right toolbar to do the corresponding setting. “Port”: select coaxial control Enter PTZ address to perform parameters setting If to coaxial PTZ control the AHD camera, no parameters setting is needed. More operation instructions please refer to “3.3.6 CVI camera test” 3.3.10 IP address scan Connect the cable to the LAN port, click icon to enter, Set your IP address search range by...
3.3.11 PING Test PING is the most conventional network debugging tool; it is used for testing if the connected IP camera or other network equipment’s Ethernet port is working normally and the IP address is correct Connect a network cable to the LAN port and click the icon to open the PING tool.
Application: PING testing is the most conventional network debugging tools. It is used for testing if the connected IP camera or other network equipment’s Ethernet port is working normally and the IP address is correct. It’s normal that the first data packet will be lost when test start. 3.3.12Cable Test Click icon to enter...
Page 62
Use the blue Combination cable identifier and network cable tester’s copper pointer to touch all the cables in the bundle . You are searching at the other end. The cable that gives off the loudest tone is the cable connected to the tester.
Note: While the cable tracer tester is receiving the audio signal from the tester, it may be influenced by other signals and make some noise. 3.3.14 Port Flashing Connect a network cable to the meter’s “LAN” port, click the icon to open the Port Flashing app.
Application: The tester will send special signals to make the connected LAN port flicker at special frequency, which will enable the installers to easily and quickly find the connected Ethernet cable. This function can prevent mistakenly insertion or disconnection non-corresponding cable to artificially interrupt network connection.
Page 65
Note: Please keep the fiber connector and the dust cap be clean, and clean the detector with the special alcohol. Data hold While testing, click “Hold” to data hold, the data will not change. It’s convenient to read. Press again to quit. Relative power value (optical link loss) measurement While testing, set the wavelength for measurement.
Data hold and Relative measuring use together, the data is yellow while the function is effect. 3.3.17 Visual Fault Locator Click icon to enter VFL four status can select——“Steady mode”, “Evasive 1Hz”,“Evasive 2Hz”and“Time off”. Click button “Steady mode” to enter steady status, click button “Evasive 1Hz” and “Evasive 2Hz, to enter pulse mode, click button “Time off”, VFL is turned off.
Page 67
Click” Steady mode”, red laser source emits steady, click again to quit. Click icons “Evasive 1Hz”or“Evasive 2Hz”to enter pulse mode, the red laser source is emitted by a certain frequency, press it again to quit Page.63.
3.3.18 Digital Multi-meter Click icon to enter 1) SYMBOLS: U:DC Voltage Measuring A:DC Current Measuring Ω:Resistance Measuring :Diode Testing :AC Voltage Measuring :AC Current Measuring :Continuity Testing :Capacitance Measuring AC/DC Voltage and current measurement state display Auto- range The Multimeter auto adjust the range by input signal or tested components Data hold Hold data Relative...
Page 69
2) OPERATING INSTRUCTION DC Voltage Measuring WARNING! You can’t input the voltage which more than 660V DC, it’s possible to show higher voltage, but it’s may destroy the inner circuit. Pay attention not to get an electric shock when measuring high voltage. a.
Page 70
C.the tester default Auto range status, by click “AC auto range” d. Manual range can be select , press the key “NEAR” to restore Auto range e.Manual range: 0.000V 6.600V range 00.00V 66.00V range 000.0V 660.0V range 000.0mV ...
Page 71
The maximum current of mA socket is 660mA, over-current will destroy the fuse, and will damage the meter. The maximum current of 10A socket is 10A, over-current will destroy the meter, and will damage the operator. D. AC Current Measuring (Only Manual range) WARNING! Shut down the power of the tested circuit, and then connect the meter with the circuit for measurement.
Page 72
the meter. The maximum current of 10A socket is 10A, over-current will destroy the meter, and will damage the operator. In“ AC ” mode, only can input “AC ”, if not, will damage the meter. E. Resistance Measuring WARNING! When measuring in-circuit resistance, be sure the circuit under test has all power removed and that all capacitors have discharged fully.
Page 73
of the circuit under testing. c. If continuity exists (i.e., resistance less than about 50Ω), built-in buzzer will sound. G. Diode Testing WARNING! The capacitance of a capacitor should be tested separately, should not test in the installation of circuit. a.
Page 74
000.0nF 660.0nF range 6.600μF range 0.000uF 66.00μF range 00.00uF 660.0μF range 000.0uF 0.000mF 6.600mF range 00.00mF 66.00mF range d. Before connect test leads across two sides of the capacitor under measurement, be sure that the capacitor has been discharged fully.
Data hold Click “Hold data” to enter, the data be hold, the value is green. Press it again to quit. Relative value measurement Click “Relative “to enter, the tester Auto-save the data, the displayed new measurement and relative value is red color. Press it again to quit The hold function and the relative value be combined use, the display value is yellow The meter protection ...
The Media player can browse video and image files. It supports the video formats of MP4, H.264, MPEG4, and MKV. The IP tester recorded files can play directly via the Media player. The Media player will automatically display the video files from the SD card. Click on the desired file to play. Click RETURN to exit.
3.3.21 LED Flashlight It is convenient for the installation or maintenance in the evening or in the dark. Click icon enter While in the flashlight app, click the red button to turn on the LED lamp. Press it again to turn it off. If you don’t press the red button to shut off the lamp and press the button to exit the app, the lamp will stay on.
Connect a network cable from a PoE switch to the IP tester’s PSE IN port. Connect an IP camera or other PoE using node to IP tester’s LAN port, the PoE voltage and the cable’s pin connection status show on the screen. Note: This test if for measuring the voltage being drawn by the PoE node and the IP tester must be between the PoE switch and the PoE node for this test to work.
Page 79
Click “Cable” “Type” to select cable and start testing. One tap on “Start” , do one testing. If select built in cable type for testing, click “+” and“-” to adjust cable’s wave speed . User-defined calibration: Choose the cable 100 meters to 200 meters (more than 50 meters) , click “Cable”...
Page 80
2. Click “Cable” , “Type” to select cable, and corresponding type, for example, if testing BNC cable, select “BNC”, if testing communication cable 75-2, select SYV 75-2. 3.Click “+”or“-” to adjust wave speed ,while display length is the same with the actual Length ,click “Save“to save calibration data .
Note: The TDR reflect signal could be affected by the cable quality/ cable’s not well connected etc to cause the different TDR measurement. The TDR measurement is for reference only. Calculator 3.3.24 Click icon to enter 3.3.25 Browser Click icon to enter Type in the camera’s IP address and press “Go”...
camera. If they are not in the same segment, click the button or press “RETRUN” to exit. Open the “Settings” app from the main menu to change the IP tester’s network settings to match those of the IP camera. 3.3.26 IP camera viewer In addition to the ONVIF app or the IPC Test app, you can use one of the mobile apps in the IPC Viewer folder to view IP camera video.
Click desktop icon several seconds, to uninstall this application Click icon “update” in the IPC viewer interface, to update mobile apps. 3.3.27 PoE power / DC12V 2A and DC 5V 2A USB power output When the tester is turned on, the 12VDC and 5VDC power output functions are automatically turned on. If the IP tester is turned off, the 5VDC USB can still be used to power an external USB device.
The IP camera needs to be connected to the LAN port before you turn PoE Power on. If the IP camera Supports PoE, the PoE power is delivered via pins 1, 2, 3, and 6 on the LAN port. The IP tester will display “48V ON”...
Page 85
Audio Record: Connect an audio device to the IP tester’s audio input port. Click the icon to enter the Audio Recorder app. Click the red button to stop, and the unit will prompt you to save the recording Network test (Ethernet bandwidth test) Network test (Ethernet bandwidth test) To use the Network tester, you will need two IP testers.
Page 86
When test, need a tester or a computer installed Network Test Software as the Server, the other tester sends packet test. The two testers must be in the same network segment. a).Start the server: Click “Start Server” button to use the tester as a Server. It will display its IP address at the top of the screen.
Page 87
Network bandwidth testing can also be tested with a computer using compatible network bandwidth testing software. Install network bandwidth testing software on a computer, as a test Client or Server, to do the mutual testing with the tester. If use computer as the server, the computer IP address is :192.168.0.89 Tester as Client, tester’s IP address is:192.168.0.230.
Page 88
When use tester as Server,shows results: DHCP server: Click on the DHCP icon to open the DHCP server app. Select the “Start” check box at the top and make any desired changes to the network settings. Click “Save” to start assigning dynamic IP addresses for IP cameras and other networked devices.
Page 89
Notepad: Notepad can be used to record the important testing results, click the key “Save” to save the contents. Notepad can auto record the storage date and time. pls click to view the notepad , all saving contents display. Click each record bar to show the details.
Page 90
Link monitor: Click the icon to open the Link Monitor app. This app is used to see if an IP address is occupied by other network devices. This will avoid new address conflicts Click “Add” and enter the desired IP address. To test different network segments, click the “Settings” icon on the main menu and go to IP Settings and make the desired changes.
Page 91
Application: Add an IP camera or other network device to the current network group, the new IP address must not be occupied, otherwise it will cause IP conflicts and stop the equipment normal working. Link monitor can check if the new setting IP address is occupied. RTSP Player: The RTSP Player app will allow you to view the RTSP video stream from an IP camera.
Page 92
Note: in the event the ip tester does not auto detect the rtsp stream, refer to the specific camera manufacturer for the specific rtsp stream url. you may find this on line with a search of the camera model number and the word rtsp. Trace route It is used to determine path of the IP packet access target.
Page 93
Click “start” to trace the goal address Hik test tool Hik test tool app is design for activating and debugging Hikvision camera, can auto-identify unactivated hikvision camera, also can display image from the Hikvision camera. Tap icon to enter Hikvision activation:When connect the unactivated Hikvison camera to the tester, it will auto identify and display “Unactivate”...
Page 94
right corner button “Enable”, pop-up “the camera is not activate, activate now”? 2.Input password:Input new password, tap “ok” to activate 3. Confirm activation After activating the camera, the program default modifies the camera IP. Activated multiple cameras in the local area Network, and pop-up menu to modify IP, improve project efficiency. Page.90.
Page 95
For other operations need login activated camera, when login, select the camera at the left “online detection”, and input username and password to login. Play: display image from the camera Modify network information: Change the camera IP address, subnet mask and gateway etc. Modify user information: Modify the camera's user name and password.
Factory Reset:Camera factory reset 3.3.29 APPS Folder Click icon to enter You can move desktop icons into the Tools Folder by pressing on the icon for a few seconds until the screen below appears: Page.92.
You can also move an icon back to the desktop by pressing on the icon for a few seconds until it asks you if you want to move the icon back to the desktop. 3.3.30 System Setting Click icon to enter Page.93.
Page 98
Language: Select your desired language: English, Chinese, Korean, Russian, Italian , Polish or Spanish. Date/Time: Set the Date/time of the IP tester IP setting: Manually set the IP address, Subnet Mask, Default Gateway and DNS address or select “Dynamic allocation” to use DHCP. To test multiple network segments, click “Advanced” and then click “Add”...
Page 99
FTP server: Once the IP tester connects to a network, a computer can be used to read the SD card files via FTP Start the FTP server and then input the tester’s FTP address in the PC’s address bar. This will enable the PC to read ,copy and edit the files from the SD card without the use of SD card reader.
3.3.31 Update Click the icon to open the Update menu. Select “Local Update” to update via the SD card or select “Online Update” to check for updates on the internet. If there are applications that need updating, the applications will be displayed on the screen.
files and images to HDTV monitors. Connect an HDMI cable from the IP tester to an HDTV monitor at any time. It supports up to 1080P resolution. 3.6 PoE power output The IP tester supports PoE (Power over Ethernet) output to an IP camera via the LAN port. Data transmission and 48VDC use the network cable’s 1, 2, 3, and 6 pins to deliver power.
3.7 DC12V 2A power output When the IP tester is turned on, the 12VDC power output ON by default. The smaller end of the supplied converter cable connects to the tester’s DC12V/2A OUTPUT and the other end connects to the camera’s power input.
3.8 USB 5V 2A power output It can supply temporarily power for your mobile or other devices NOTE: When you use this function, please turn off the meter firstly, or it will cause the meter turn off. The USB port is for power only and not data. 4.
Page 104
1080p 30fps /1080i 60fps 1 channel CVI input(BNC interface, resolution support 720p CVI video signal test 25,30,50,60fps/ 1080p 25,30fps 1 channel TVI input(BNC interfce),resolution support 720p TVI video signal test 25,30,50,60fps/ 1080p 25,30fps 1 channel AHD input(BNC interface),resolution support 720p 25,30fps / AHD video signal test 1080p 25,30fps 1 channel BNC Input &...
Page 105
IP address scan, link scan, and Ping test. Quickly search the for IP camera’s Network test IP address on your network Cable tracer Find a connected cable from a bundle of cables using audio tones Measures PoE switch voltage and displays pin configuration PoE /PSE voltage test AC/DC Voltage, AC/DC current, Resistance, Capacitance, Data hold, Digital Multi-meter...
4.2 Multi-meter specifications Counts:-6600~+6600 Conversion rate: 3times/s Current modes for clamp meter with ZERO function Isolation: the Multi-meter connector must be isolated with the other connector. DC voltage Range Accuracy Resolution 660mV (Manual range) 0.1mV 6.600V ±(0.3%+4) 66.00V 10mV 660.0V 100mV AC voltage Range...
Page 107
Range Accuracy Resolution 6.600mA 66.00mA ±(0.5%+3) 10uA 660.0mA 100uA 10.00A ±(1%+5) 10mA Resistance Range Accuracy Resolution 660.0Ω 0.1Ω ±(0.8%+5) 6.600KΩ 1Ω 66.00KΩ 10Ω ±(0.8%+2) 660.0KΩ 100Ω 6.600MΩ 1KΩ 66MΩ 10KΩ ±(1.2%+5) Continuity Range Resolution Function The measurement value less 30Ω±3Ω,the tester will 660.0Ω...
Page 109
650nm Wavelength Calibration Output power 5mW(10mW,20mW) Modulation mode CW/1Hz/2Hz 5KM(10-20KM) Measurement Range FC/PC exchangeable Connector -10℃~+50℃ Working Temperature Operating Temperature -20℃~+70℃ The data above is only for reference and any change of them will not be informed in advance. For more detailed technical inquiries, please feel free to call the Technical Department of our company.
