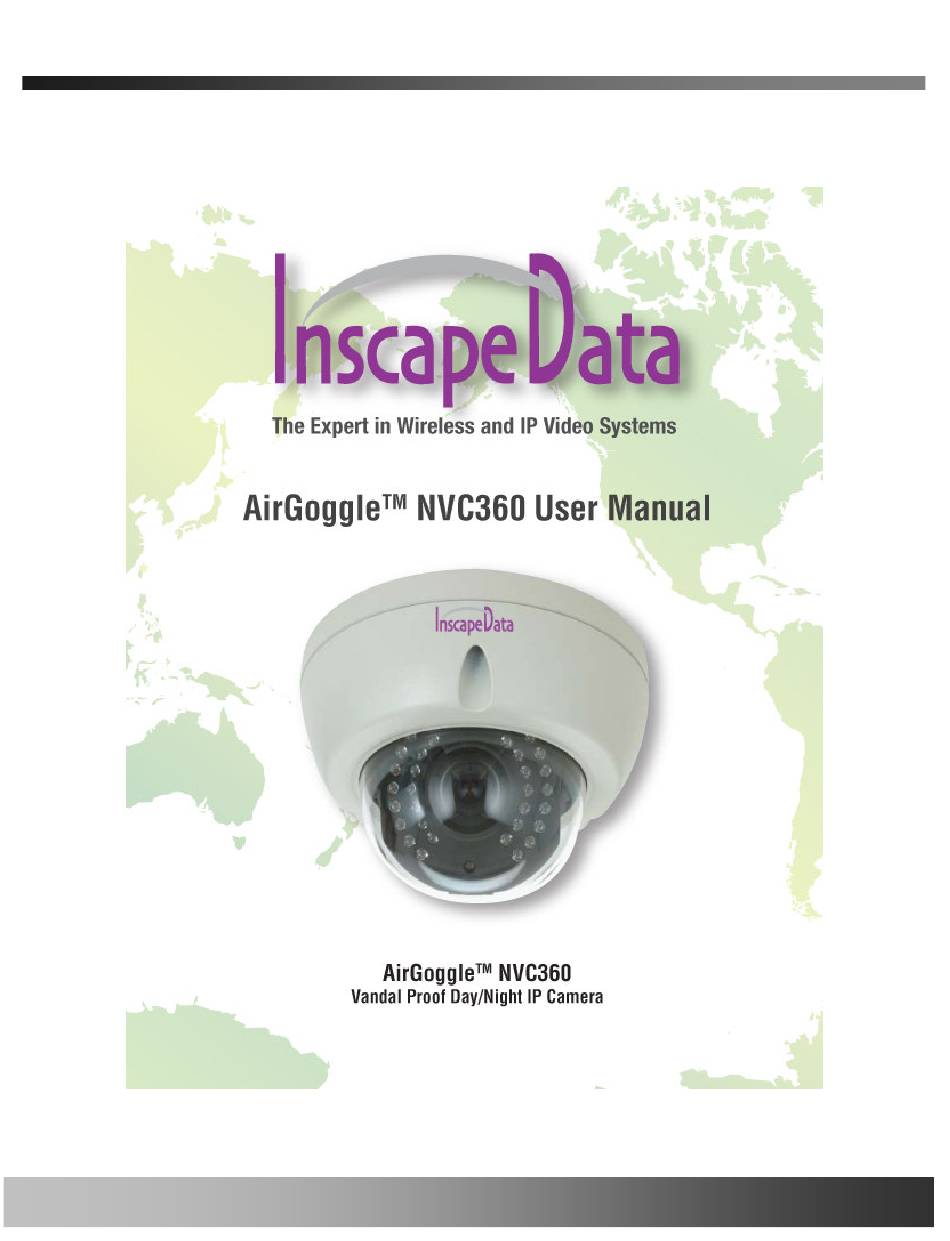

Inscape Data AirGoogle NVC360 User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
NVC 360 User's Guide
Rev0.1(Dec. 2007)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AirGoogle NVC360 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Inscape Data AirGoogle NVC360

Summary of Contents for Inscape Data AirGoogle NVC360

  • Page 1 NVC 360 User’s Guide Rev0.1(Dec. 2007)
  • Page 2 NVC 360 User’s Guide Directions NVC 360 series network cameras are designed for outdoor/indoor use. Don’t use NVC 360 in an environment beyond the condition limit. Be careful not to cause any physical damage by dropping or throwing the NVC 360 network camera. Especially keep the network camera out of reach of children.
  • Page 3 NVC 360 User’s Guide Warning & Caution If you fail to read this information and handle the product incorrectly, death or serious injury may occur. The unit should be installed by trained personnel. Always stop using when the product emits smoke or abnormal heat.
  • Page 4 NVC 360 User’s Guide Revision History Date Rev. No Description 2007-12-19 Creation of the document Rev.0.1 (Dec.2007)

  • Page 5: Table Of Contents

    NVC 360 User’s Guide Table of Contents 1. Introduction ................................. 6 1.1. Overview........................... 6 1.2. Features of NVC 360 ......................6 1.3. Applications of NVC 360 ....................8 2. Product Description............................. 9 2.1. Package Contents ......................9 2.2. Preview..........................9 2.3.

  • Page 6: Introduction

    NVC 360 User’s Guide 1. Introduction 1.1. Overview The NVC 360 is a state-of-the-art dual CCD vandal proof network camera which transmits synchronized video and audio data in real time with D1 resolution at full frame rate. This is possible through MPEG4 CODEC technology, which provides high quality video with highly compressed data streams.
  • Page 7 NVC 360 User’s Guide • • • • The same sensitivity with B/W Ex-view CCD. 0.003 lux. • • • • Integrated Heater • • • • System time management RTC and with Time Server synchronization 1 Alarm sensor inputs / 1 relay outputs Resolution - NTSC : 720x480, 352x240, 176x144.

  • Page 8: Applications Of Nvc 360

    NVC 360 User’s Guide Detailed Features for camera parts Polarity Protection of Power (DC12V) Various Surveillance Functions This protection function prevents damage to the domes power board if the dc supply is Dome Housing connected with incorrect polarity. The elegantly designed aluminum body and Poly Carbonate dome cover provide a very solid product for a DUAL CCD For extreme 0 Lux Surveillance wide range of applications.

  • Page 9: Product Description

    NVC 360 User’s Guide 2. Product Description 2.1. Package Contents Open the package and check if you have the followings: 1. Camera main body 2. CD(Manual, S/W) 3. Screw (Ø 4x16 screw 5EA, Ø4x16 screw 5EA ) 4. Manual 5. Terminal Block (5Pin 2EA) Optional Items 1.

  • Page 10: Pc Requirements

    NVC 360 User’s Guide 2.3. PC Requirements AV streaming data received from NVC 360 can be decoded or stored in a PC running NVR100 program which is a viewing & recording program for a PC. Minimum requirement of the PC is described below: Recommended Pentium IV 1.8G above 512MB above...
  • Page 11 NVC 360 User’s Guide 1. Surface mount adaptor 2. Cap screw (PT3/4, 1EA) 3. Main body 4. Focus handle 5. Zoom handle 6. Tilt rotation 7. Horizontal rotation 8. Pan rotation Fig.2-1 Detailed view of NVC 360 Rev.0.1 (Dec.2007)
  • Page 12 DC12V . Power adapter which is compliant to the specification for NVC 360 should be used. Misuse of power supply can cause damage to NVC 360. INSCAPE DATA assumes no responsibility for misuse of the power supply. Ground Rev.0.1 (Dec.2007)

  • Page 13: Specification Of The Analog Camera Module

    NVC 360 User’s Guide 2.4.2 Dimension and basic parts of NVC 360 ø ø ø ø 100 ø ø ø ø 46 PT 3/4 ø ø ø ø 77 ø ø ø ø 156 PT 3/4 – Fig 2.2 Dimension of NVC 360 (unit : mm) 2.5.
  • Page 14 NVC 360 User’s Guide Scanning NTSC : 525 Lines 2:1 Interlace System PAL : 625 Lines 2:1 Interlace Scanning NTSC : 15.734 [KHZ] / 59.94 [HZ] Frequency PAL : 15.625 [KHZ] / 50 [HZ] Shutter Speed NTSC : 1/60 ~ 1/100,000 sec PAL : 1/50 ~ 100,000 sec Sync System Internal Sync...

  • Page 15: Quick Installation Guide

    2.6. Quick Installation Guide Brief information for rapid installation is provided in this section. For more detailed information you are recommended to refer to pertinent documentations provided with the product or refer to Inscape Data’s home page (http://www.Inscape Data.com) 1. Apply power to NVC 360 and Connect NVC 360 to LAN like the following picture.
  • Page 16 NVC 360 User’s Guide parameters in the following table should be set-up with proper values. Detailed information for the parameters in Administrator Mode is found in [5. Configuring NVC 360 in Administrative Mode] [Note]: Set-up values are preserved even the power is turned off. Page Parameter Setup value...
  • Page 17 NVC 360 User’s Guide ADSL or Cable modem. DC12V Supply DC power Apply DC12V power to network camera 6. Remote video connection to NVC 360 Run NVR100 on your PC. Before connecting to NVC 360 it is needed to configure the connection information on the NVR100.

  • Page 18: Connecting Nvc 360 To Ip Network

    NVC 360 User’s Guide 3. Connecting NVC 360 to IP Network NVC 360 supports LAN, xDSL, and Cable modem. It also supports shared IP environment where single IP address is shared by at least 2 IP devices. Refer to [IP-Installer User’s Guide] for details of setting the IP address for NVC 360.

  • Page 19: Connecting To Xdsl/Cable Modem

    NVC 360 User’s Guide other IP sharing devices sit in-between the client and the IP video products. For more detailed information regarding the use of IP sharing device refer to the document [Use of Private IP network using IP-sharing- device]. ②...
  • Page 20 NVC 360 User’s Guide user over e-mail when the IP address is changed in floating IP environment, you have to assign the e- mail address when user name and password are input using IP-installer. (Management server provides a convenient way of connecting to your network camera under dynamic IP environment. Please refer to the Application note regarding “Management Server”...

  • Page 21: Ip-Installer

    IP video products such as Network Camera or A/V Server. IP- Installer is provided in a CD supplied with NVC 360 or it can be downloaded from “www.Inscape Data.com”. Detailed information of Installing and running IP-installer can be found in [IP-installer user’s guide] 4.1.

  • Page 22: Configuring Nvc 360 In Administrative Mode

    NVC 360 User’s Guide 5. Configuring NVC 360 in Administrative Mode 5.1. Log On There are 2 ways of connecting to NVC 360 administrative mode. One is through Internet Explorer and the other is through “NVR100” program. 1. Using Internet Explorer Type in the connection address of the network camera in the address window of the Internet Explorer as followings: http://[NVC 360 IP address]/admin.htm...
  • Page 23 NVC 360 User’s Guide 3. Input User Name and Password in the display screen shown in Fig. 5-2. Fig. 5-2 Log On Screen Factory default User Name and Password are set as ‘root’ and ‘root’, respectively. Click on “OK” button to enter into the Basic Setup page of Administrative Mode.

  • Page 24: Basic Setup

    NVC 360 User’s Guide 5.2. Basic Setup Setup the basic parameters of the NVC 360. Fig. 5-3 Basic Setup Sub Field Field/Button Description /Button Select a language of your choice Language Logical name of the NVC 360. It is same as the one set-up by IP- System Name installer.
  • Page 25 NVC 360 User’s Guide Select the type of input audio. Audio Input Select Line In for using Line-out from audio devices. Selection Select Mic for using microphone. Input Video This filed is set by the factory. Source Select a video size for transmission NTSC (30frames/sec Max.) : 176x144 / 352x240 / 720x480.

  • Page 26: Network Configuration

    NVC 360 User’s Guide 5.3. Network Configuration Setup the network parameters appropriately in accordance with your network environment. Many of the parameters in this page are same as those set up by “IP-Installer”. Fig. 5-4 Network Configuration Rev.0.1 (Dec.2007)
  • Page 27 NVC 360 User’s Guide Sub Field Field/Button Description /Button The network types supported by the NVC 360 are LAN(fixed IP), PPPoE, and DHCP(automatic IP allocation) When the network environment is fixed IP, select ‘LAN’ in the network type, and put the IP address, Subnet Mask, Gateway, DNS1 and Static IP Setup DNS2.
  • Page 28 NVC 360 User’s Guide If you check this, the IP address will be sent via E-mail whenever the Notify for IP IP address changes. It is sent to the E-mail address set by “Recv E- Change Mail Address”. Recv E-Mail Enter E-mail address to receive information sent from your network Address camera.

  • Page 29: User Admin & Time Setup

    NVC 360 User’s Guide 5.4. User Admin & Time Setup You can change the ID and password of users and also assign different attributes for each user. Fig. 5-5 User Administrator & Time Setup Rev.0.1 (Dec.2007)
  • Page 30 NVC 360 User’s Guide Sub Field Field/Button Description /Button Administrator Admin ID. Default ID is “root” Username Administrator Admin password. The default password is “root”. password : Administrator Enter the password once more to confirm the password. Confirm Password Add User Enter the user ID you want to add.
  • Page 31 NVC 360 User’s Guide If you uncheck for the Authentication for Viewing, all users can access If No, default the NVC 360 with the same attribute set here. Checked attributes are attribute enabled. Click “Save” to save the attribute. Current Time It shows you the current time of NVC 360.

  • Page 32: Sensor & Capture Setup

    NVC 360 User’s Guide 5.5. Sensor & Capture Setup This is the setup page for sensors and video capture conditions. Captured video can be sent to user by FTP or E- mail upon configuration. Fig. 5-7 Sensor & Capture Setup Sub Field Field/Button Description...
  • Page 33 NVC 360 User’s Guide Sensor Select Check to enable Sensor initiated capture. Motion Check to enable motion detection initiated capture. Detection Select Select a way of sending captured video. You can send captured video through FTP or E-mail, or both. Check to send captured video by e-mail.

  • Page 34: Alarm Device Setup

    NVC 360 User’s Guide 5.6. Alarm Device Setup Test the alarm output and describe the condition of alarm annunciation. Sensor related alarm operation, alarm device can operate only when the sensor is active at least over 2 seconds. Fig. 5-8 Alarm Device Setup Sub Field Field/Button Description...
  • Page 35 NVC 360 User’s Guide detection Set the duration of Alarm annunciation. Duration 10 sec, 30 sec, 1 min, 2 min, 5 min, 10 min, 30 min, 1 hour. SAVE Save the setup parameters. Rev.0.1 (Dec.2007)

  • Page 36: Motion Region Setup

    NVC 360 User’s Guide 5.7. Motion Region Setup Set the motion detection regions. Up to 3 regions can be defined. Fig. 5-9. Motion Region Setup Rev.0.1 (Dec.2007)
  • Page 37 NVC 360 User’s Guide Sub Field Field/Button Description /Button Not applicable. Channel Selection Set the sensitivity in motion detection for each channel. 1 is the most Channel Sensitivity sensitive, and 10 is the least sensitive. Set up to 3 the motion detection zone Enable each zone by checking the box at the left of each Region.

  • Page 38: Ptz Setup

    NVC 360 User’s Guide (Not applicable for NVC 360) 5.8. PTZ Setup Fig. 5-10 PTZ Setup Sub Field Field/Button Description /Button Not applicable Channel Selection Choose the PTZ model. PTZ Model Selection Choose default model for proper operation. Delete Button Press this button to delete the setup of PTZ Your PTZ device needs an ID, input ID in this field.
  • Page 39 NVC 360 User’s Guide You can check the various operation of the PTZ devices. PTZ Operation “Left”/”Right”/”UP”/”DOWN” , Check “AUTO FOCUS”/”ZIN”/”ZOUT” PTZ Position Not applicable for NVC 360. Detailed set-up can be achieved by PTZ controller or virtual Setup controller of the viewer. Rev.0.1 (Dec.2007)

  • Page 40: Encryption Set Up

    NVC 360 User’s Guide 5.9. Encryption Set up Fig. 5-11 Encryption Setup For additional security to the video and audio data transmitted from the network camera, you can set key codes and use them for encrypting the data from the network camera. You can selectively activate encryption for the video and audio data.
  • Page 41 NVC 360 User’s Guide Sub Field Field/Button Description /Button Check at this box to apply data encryption. If it is unchecked encryption is applied on neither video nor audio data regardless of the selection below. Enable Data Encryption Video Check to enable encryption on the video data. Audio Check to enable encryption on the audio data.

  • Page 42: Upgrade & Reset

    You can upgrade the NVC 360 via IP network. Fig. 5-12 Upgrade & Reset For each of the upgrade of the system component, upgrade code should be downloaded from Inscape Data’s home page before the system upgrade is performed. (Refer to [6.4.
  • Page 43 NVC 360 User’s Guide Add PTZ File Not applicable for NVC 360 Re-initialize the network camera to factory default state. By checking on a Radio button “Except Network Configuration”, you can preserve the parameters for the network. Checking on “All”, will return all Factory the parameters to factory default state.

  • Page 44: Status Report

    NVC 360 User’s Guide 5.11. Status Report It shows you system records since the system started. Fig. 5-13 Status Report You can check the problems as well as the versions and event status of the whole system and each module. Rev.0.1 (Dec.2007)

  • Page 45: Tips For Using Nvc 360

    NVC 360 User’s Guide 6. Tips for Using NVC 360 6.1. Alarm (for Sensor input) and AUX(for Relay output) Alarm terminal at the connector panel of NVC 360 is used to connect various sensing and alerting devices. Examples of sensing devices are infrared sensors, motion sensors, heat/smoke sensors, magnetic sensor, etc. Aux terminal is used for connecting alerting device such as loud speaker, flashing light, etc.
  • Page 46 NVC 360 User’s Guide 2. “Relay Out” connector for Relay Output from NVC 360 A Relay output is provided for connecting alarm devices or for remote on/off devices such as light control. Relay circuits are normal open and circuits are closed upon alarm output or remote on. The relay is capable of switching AC/DC 30V, 1A electrical signal.

  • Page 47: Trouble Shooting

    NVC 360 User’s Guide 3.2 Connection of Relay(Fig.6-5) R el ay S w i tch P o w er S upp l y A l arm A l arm A l arm A l arm 1V ~ 30 V D C /A C ,1 A 1V ~ 30 V D C /A C ,1 A 1V ~ 30 V D C /A C ,1 A 1V ~ 30 V D C /A C ,1 A...
  • Page 48 NVC 360 User’s Guide ping [the IP of the server] Example) ping 192.168.1.112 If you see the “Reply from …” message, it means that the server is properly connected. If you do not see a Reply message, check if the network cable and power cable are properly connected. 2.

  • Page 49: Web Viewer

    NVC 360 User’s Guide 3. Additional Trouble Shooting Problem Solution . Check if the power supply is AC24V. . Check if RS-485 communication cable is connected correctly. No operating . Check camera ID setting. . Check the termination. No picture .
  • Page 50 NVC 360 User’s Guide Control Panel of Web Viewer Enable bidirectional audio. When bidirectional audio is enabled, voice from your PC is delivered to NVC 360. Capture and store the still image on your desk top screen. Connect to NVC 360 in administrative mode. Rotate the screen by 180 degree.

  • Page 51: How To Upgrade Nvc 360 Firmware

    Followings are the procedure to apply for the manual upgrade 1) Save the upgrade system software to your PC. Upgrade software can be downloaded from Inscape Data’s home page or provided in CD.

  • Page 52: Appendix 1. On Site Installation Of Nvc 360

    NVC 360 User’s Guide Appendix 1. On Site Installation of NVC 360 A. Preparations for the installation A-1. Ceiling Mount Type 1. Fix the surface mount adaptor with 4pcs of screws on the place where you want to install. (FIG. 5) When you use pipe, please note the standard size of pipe.
  • Page 53 NVC 360 User’s Guide WALL MOUNT TYPE A-2. Contents ■ Wall mount bracket 1ea ■ Set Anchor Bolt (W5/16) 4ea ■ Hexagon Socket head cap screw M4.0 x16 4ea ■ Hexagon wrench 3mm L Type 1ea If you want to install the Vandal dome on the concrete wall, you need to make 12.5mm diameter 4 holes by drill like FIG.
  • Page 54 NVC 360 User’s Guide Assemble a wall mount bracket and camera by Hexagon socket head cap screws (M4.0X16) (FIG. 10) HEXAGON SOCKET HEAD CAP SCREW M4.0x16 4EA FIG. 10 FIG. 11 Rev.0.1 (Dec.2007)
  • Page 55 NVC 360 User’s Guide B. Dip Switch Setting – LED/H –– VIDEO DC LEVEL DIP SWITCH SENSITIVITY A. DIP SWITCH SETTING -. FLK : Flickerless ON/OFF -. BLK : BLC ON/OFF -. LED/H : IR LED Illumination High power Rev.0.1 (Dec.2007)
  • Page 56 NVC 360 User’s Guide C. Trouble C. Trouble C. Trouble C. Trouble Shooting Shooting Shooting Shooting If you have trouble setting up or operating the camera, refer to the following. PROBLEM SOLUTION No operation Check if the power supply is DC12V. Check if all the cables are connected correctly.
