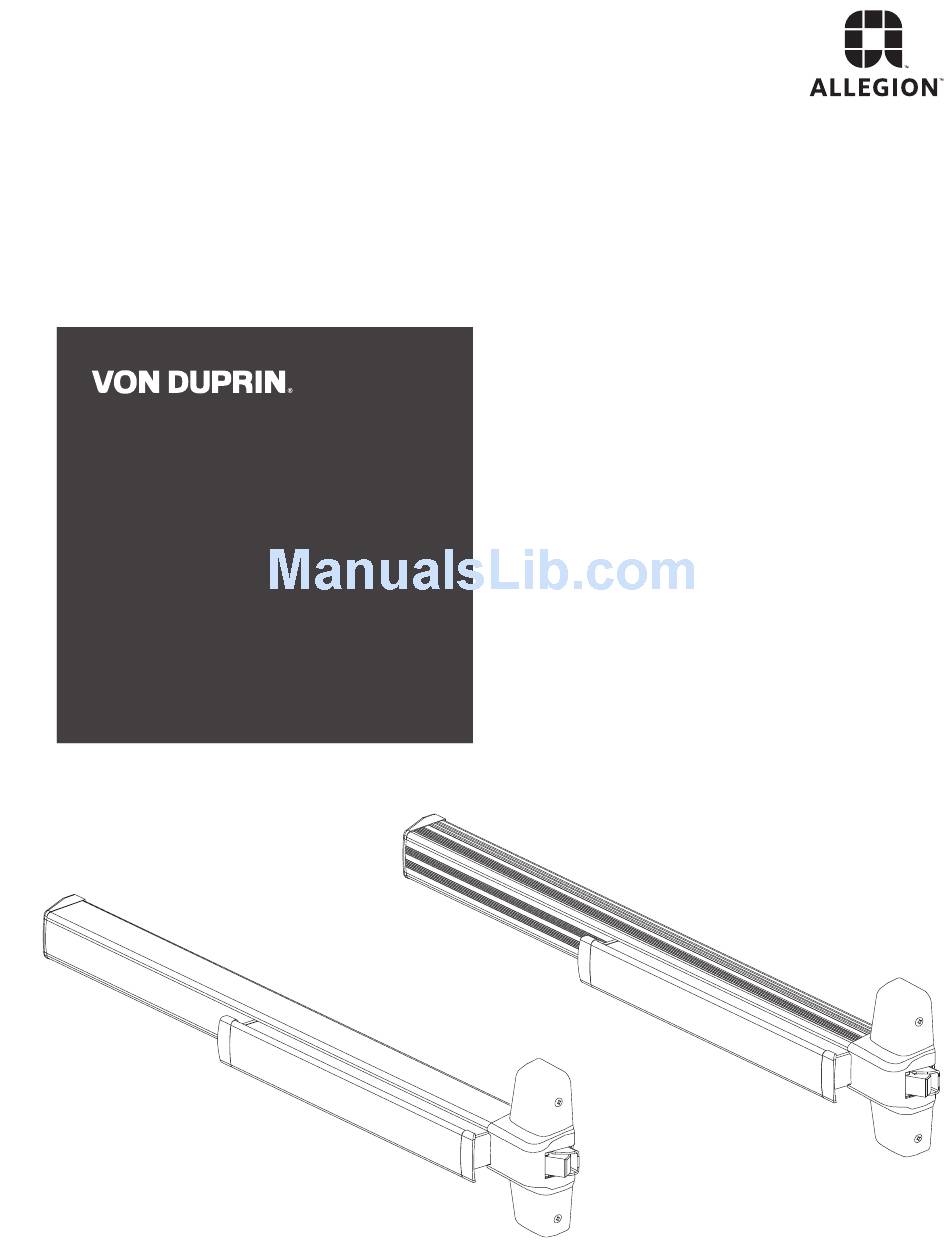

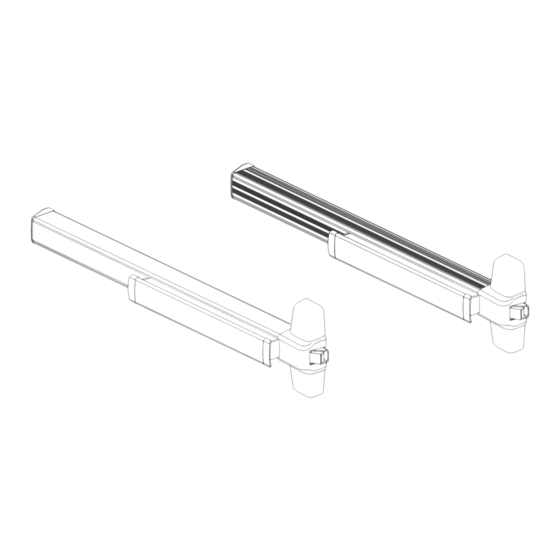

- Page 1 98/99 Series Rim Exit Devices Service manual 99 RIM 98 RIM...
-
Page 2: Table Of Contents
• Finish desired (if available finished) • Date of original purchase (if known) To find out the name of your local Von Duprin distributor or sales representative, contact: Von Duprin Division Allegion 2720 Tobey Drive Indianapolis, IN 46219 Phone: 877-671-7011 PART NUMBER AND AVAILABILITY CHANGES This manual was designed to help illustrate the replacement parts and kits that are available for sale. -
Page 3: Finishes
98/99 SERIES FINISHES U.S. Std BHMA OUTSIDE TRIM FUNCTIONS Reference Description Reference Polished Brass Dull Brass US10 Dull Bronze US15 Satin Nickel US26 Polished Chrome US26D Dull Chrome US28 Anodized Alum. (Clear) US32D Satin Stainless Steel 992L 992L-BE* 313AN Anodized Alum. (313) 996L 996L-BE* 994L-BE*... -
Page 4: Allegion
98/99 RIM PANIC DEVICE PANIC ONLY CD Conversion Kit 99 Series - 050115 98 Series - 050132 PANIC ONLY Less Dogging Cover Plate Kit Hex Dogging Kit 99 Series - 050589 99 Series - 050114 98 Series - 050588 98 Series - 050117 4 •... -
Page 5: Description
98/99 RIM PANIC DEVICE Item No. Quantity Part No. Description Finish 900561 98/99 Series Mounting Pkg. (1-3/4 & 2-1/4) 090085 227 Dog Key 5/32” Hex (Pkg of 10) 090005 227 Dog Key 5/32” Hex (Pkg of 2) 090040 Hex Dog Shaft (Pkg of 2) 107813 n i l n i t... -
Page 6: Allegion
98/99-F FIRE DEVICE Fire Cover Plate Kit 99 Series - 050589 98 Series - 050588 6 • Von Duprin • 98/99 Series Rim Exit Devices Service Manual... -
Page 7: Description
98/99-F FIRE DEVICE Item No. Quantity Part No. Description Finish 900561 98/99 Series Mounting Pkg. (1-3/4 & 2-1/4) *PBKIT 98/99 Series Push Bar Retrofit Kit - 3’ Door *PBKIT 98/99 Series Push Bar Retrofit Kit - 4’ Door 050524 Impact Resistant End Cap Bracket 090036 Cover Plate Anti-rattle Spring (Pkg of 10) 900597... -
Page 8: Description
98/99 RIM PANIC DEVICE BASEPLATE ASSEMBLY Item No. Quantity Part No. Description Finish 090043 Dogging adapter (Pkg of 2) 090042 Dogging adapter spring (Pkg of 2) 090041 Dogging spring (Pkg of 2) 090040 Hex dogging shaft (Pkg of 2) 090044 Dogging hook (Pkg of 2) 090039 Latch return spring (Pkg of 10) -
Page 9: Center Case Assembly
98/99 PANIC & 98/99-F FIRE DEVICE CENTER CASE ASSEMBLY Item No. Quantity Part No. Description Finish 090107 Retaining Ring (Pkg of 10) 090079 Latch Bolt Pin (Pkg of 10) 090074 NL Drive Screw (Pkg of 10) 050565 Center Case Reinforcing Bracket Von Duprin •... -
Page 10: Description
98/99-2 & 98/99-F-2 DOUBLE CYLINDER OPTION Item No. Quantity Part No. Description Finish 050024 98/99-2 RHR Center Case Less Cover 050025 98/99-2 LHR Center Case Less Cover 050027 98/99-F-2 RHR Center Case Less Cover 050028 98/99-F-2 LHR Center Case Less Cover 113098 98/99 Rim Double Cyl. -
Page 11: Description
E98/99 & E98/99-F (ELECTRIC LOCKING) OPTION Item No. Quantity Part No. Description Finish 106224 E98/99 Rim Subminiature Switch Assembly (R,Y,B) 968938 Subminiature Switch 110389 E98/99 Rim Solenoid 110392 E98/99 Solenoid Plunger - FSE RHR 110390 E98/99 Solenoid Plunger - FSE LHR 110393 E98/99 Solenoid Plunger - FS RHR 110391 E98/99 Solenoid Plunger - FS LHR 110867 E98/99 Rim Signal Cable... -
Page 12: Description
HD-EL98/HD-EL99 HEX DOGGING/ELECTRIC LATCH RETRACTION OPTION - PANIC DEVICE ONLY Item No. Quantity Part No. Description Finish 050531 EL Dogging Rod Kit - 3’ device 050532 EL Dogging Rod Kit - 4’ device 110388 EL 6’ Cable and Connector 050534 EL Potted Module 050536 HD-EL Solenoid... -
Page 13: Ss (Signal Switch)
EL98/EL99 SERIES ELECTRIC LATCH RETRACTION OPTION Item No. Quantity Part No. Description Finish 050531 EL Dogging Rod Kit - 3’ device 050532 EL Dogging Rod Kit - 4’ device 110388 EL 6’ Cable and Connector 050534 EL Potted Module 050535 EL Solenoid Assembly 050538 EL Dogging Rod Retainer... -
Page 14: Rx (Request To Exit)
98/99 SERIES LX (LATCH BOLT MONITOR) & RX (REQUEST TO EXIT) OPTIONS LX Switch Wire Colors Violet, Gray, White (for Low Current Violet, Gray, Black) RX Switch Wire Colors Red, Yellow, Blue (for Low Current Green, Yellow, Blue) 14 • Von Duprin • 98/99 Series Rim Exit Devices Service Manual... -
Page 15: Rx (Request To Exit)
98/99 SERIES LX (LATCH BOLT MONITOR) & RX (REQUEST TO EXIT) OPTIONS Item No. Quantity Part No. 050254 LX Switch Kit 3’ Device 050255 LX Switch Kit 4’ Device 050247 LX-EL Switch Kit 050283 LX-LC (Low Current) Switch Kit 3’ Device 050285 LX-LC (Low Current) Switch Kit 4’... -
Page 16: Allegion
CX98/99 SERIES CHEXIT AND CX-RCM OPTION Item No. Quantity Part No. 050228 Chexit PCB Kit - 15 Second Release 050700 Chexit PCB Kit - 30 Second Release 050701 Chexit PCB Kit - 0 Second Release 050702 Chexit PCB Kit - Boca 15 Second Release 050703 Chexit PCB Kit - Boca 30 Second Release 050533... -
Page 17: Description
CX-CD/SD98/99 SERIES OPTION Item No. Quantity Part No. Description Finish 050548 SD98/99 RHR Center Case Kit Less Cover 050549 SD98/99 LHR Center Case Kit Less Cover 050555 SD98/99 RHR Center Case Cover Kit 050556 SD98/99 LHR Center Case Cover Kit 112409 CD-CX/SD Cylinder Dog Housing 112455... -
Page 18: Alk (Exit Alarm Kit)
98/99 ALK EXIT ALARM KIT Item No. Quantity Part No. Description Finish 111795 ALK PCB Assembly 050525 n i l l l o 969122 ALK Alarm Device Sign 969349 ALK Arming Label 969350 ALK Disarming Label 969354 Retainer Nut 970594 ALK Cylinder Spacer 090036 Cover Plate Anti-rattle spring (Pkg of 10) -
Page 19: Service Replacement Items
98/99 SERIES SERVICE REPLACEMENT ITEMS Item No. Quantity Part No. Description Finish 050153 Old Style Hex Dogging Replacement Kit 963909 #22 Hitch Pin - Hex/CD Dogging Old Style 968112 Old Style Hex Dog Shaft 969941 Old Style Dogging Hook 968116 Old Style CD Actuator Arm 900905 Old Style End Cap and Bracket Assembly... -
Page 20: Service Replacement Items
98/99 SERIES SERVICE REPLACEMENT ITEMS Item No. Quantity Part No. Description Finish 050218 EL Solenoid Replacement Kit X in “Finish” column designates finished items; finish must be specified when ordering. EL SOLENOID REPLACEMENT KIT (FOR DEVICES SHIPPED BEFORE JANUARY 1987) Note: This kit replaces the old style EL solenoid parts with the new style. -
Page 21: Allegion
Von Duprin • 98/99 Series Rim Exit Devices Service Manual • 21... -
Page 22: Allegion
About Allegion Allegion (NYSE: ALLE) creates peace of mind by pioneering safety and security. As a $2 billion provider of security solutions for homes and businesses, Allegion employs more than 7,800 people and sells products in more than 120 countries across the world.
