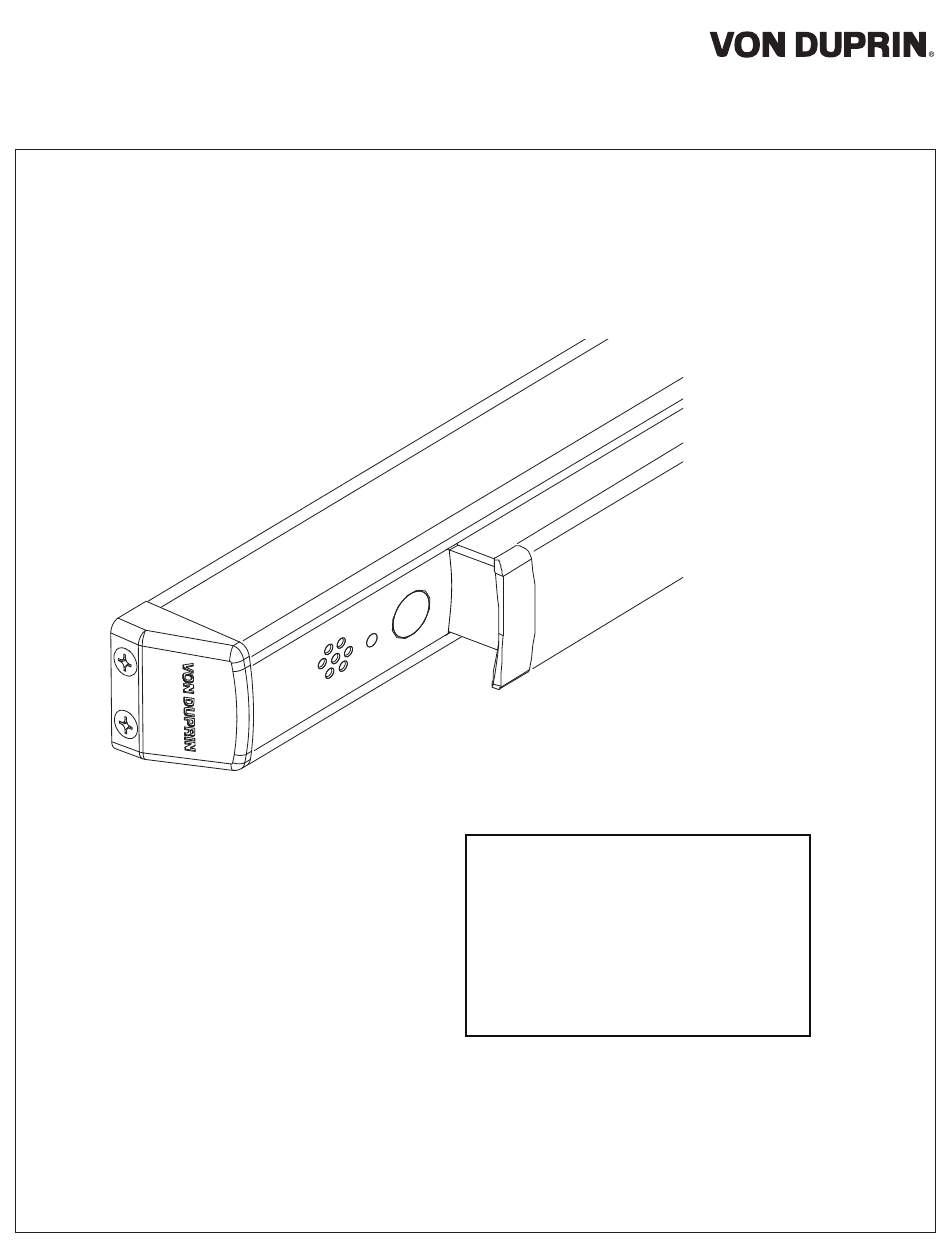

*47344938*

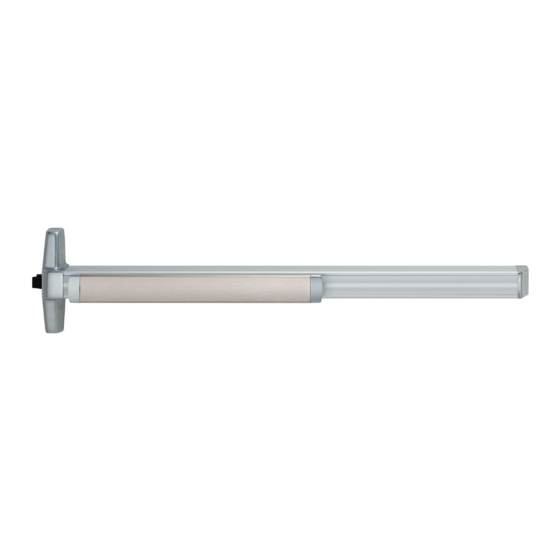

33/35 and 98/99
47344938
ALK Alarm Kit
Installation Instructions
Index:
• General Information .................. 2
• Parts List ................................... 2
...................................
• Installation ................................ 3
• Wiring ...................................... 5
• Operating Instructions .............. 7
• Changing the Battery ................ 8
Advertisement
Table of Contents
Related Manuals for Allegion Von Duprin 33/35 Series
Summary of Contents for Allegion Von Duprin 33/35 Series
-
Page 1: Table Of Contents
*47344938* 33/35 and 98/99 47344938 ALK Alarm Kit Installation Instructions Index: • General Information ....2 • Parts List ........2 ........• Installation ........ 3 • Wiring ........5 • Operating Instructions ....7 • Changing the Battery ....8... -
Page 2: General Information
General Information These instructions are presented in step-by-step sequence. Review this page carefully. It will help identify the hardware and define the terminology used throughout. Parts List L Note: The ALK Alarm Kit requires an RX or LX switch mounted in the exit device. This kit includes the following parts (shown below): •... -
Page 3: Installation
Installation Assemble the ALK unit with the parts in order as shown below, through 1 1/4" Mortise cylinder Remove and discard with straight cam (not included in kit) Do not allow pieces to slip out Make sure polarity is correct battery holder Cylinder... - Page 4 Cut the device and/or cover plate (end opposite cylinder hole) to proper length. L Note: See device installation instructions for additional information. Cut this end Minimum cover plate length is 8-7/8" If exit device does not have LX or RX switch in it, install switch before proceeding. L Note: Refer to the appropriate RX or LX installation instructions.
-
Page 5: Wiring
Attach wiring to terminal blocks on ALK board as shown. Notes about Wiring: The EI (external inhibit) option uses NO (normally open) dry access control contacts to inhibit the ALK. Closing the access control contacts inhibits the ALK. When the access control contacts are re-opened, the ALK re-arms with no delay. RX, LX, and EI inputs are not polarized. - Page 6 Remove dogging shaft if present and slide ALK unit into device. L Note: Make sure that the wires do not tangle with moving parts by carefully pulling them toward the dogging end of device while sliding in the ALK unit. ALK assembly Remove label Remove dogging...
-
Page 7: Operating Instructions
Install device to door. Mount sign by peeling off protective backing and sticking sign into place. Operating Instructions 1. Insert the key into the cylinder and arm the unit by turning the key clockwise to position until it stops. Return key to position to remove. -
Page 8: Changing The Battery
To change the battery, follow steps through below, then reassemble. Remove end cap Slide out ALK assembly Make sure polarity is correct Change battery Customer Service © Allegion 2021 Printed in U.S.A. 47344938 Rev. 05/21-a 1-877-671-7011 www.allegion.com/us...
