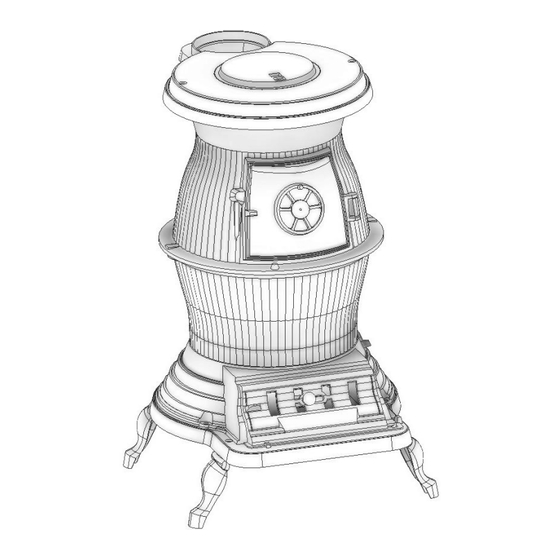

Caboose Potbelly
Read All Instructions Carefully Before
Starting The Installation or Operating
DO NOT USE THIS HEATER
IN A MOBILE HOME OR TRAILER
THIS MANUAL WILL HELP YOU TO OBTAIN EFFICIENT, DEPENDABLE SERVICE FROM THE HEATER, AND ENABLE YOU TO ORDER
REPAIR PARTS CORRECTLY. KEEP IN A SAFE PLACE FOR FUTURE REFERENCE.
Owners Manual
COAL ONLY STOVE
CAUTION!
This Stove.
SAVE THIS MANUAL FOR FUTURE REFERENCE
UNITED STATES STOVE COMPANY
227 Industrial Park Road
South Pittsburg, TN 37380
1869
NOTE: THIS IS NOT A
U.L. LISTED COAL BURNING STOVE
The use of wood in this stove, other than
for coal ignition purposes, is prohibited
P.O. Box 151
(423) 837-2100
by law.
Keeping America Warm
since 1869
851499D-1501G
